4K without compromise
The AXIS Q1798-LE features a highly sensitive 4/3” image sensor that delivers exceptional video quality and detailed images at resolutions up to 10 megapixels. Thanks to Axis Lightfinder 2.0, it captures true colors even in near-total darkness. Equipped with a Canon lens with a focal length of 12-48 mm and a horizontal field of view of 90°, it is perfect for monitoring wide, open spaces like airports, harbors, and sports stadiums. The camera includes built-in analytics for proactive surveillance, as well as audio input, Axis OptimizedIR, shock detection, auto-rotation, and advanced security features. Additionally, Axis Zipstream technology supports H.264/H.265 compression, offering significant reductions in bandwidth and storage requirements.
Key Features
Code/SKU: AXIS Q1798-LE
Quick Specs:
| Category | Specification |
|---|---|
| Image Sensor | 4/3" back–illuminated color CMOS |
| Lens | Canon 12–48 mm, F1.7–4.0 |
| 4K | Horizontal field of view: 90°–21°, Vertical field of view: 49°–12° |
| 10MP | Horizontal field of view: 86°–20°, Vertical field of view: 62°–15° |
| Autofocus | Zoom triggered, auto-iris, automatic day/night |
| Day and Night | Automatically removable infrared-cut filter in day mode and infrared-band-pass filter 800–900 nm in night mode |
| Minimum Illumination | Color: 0.03 lux at 50 IRE F1.7, B/W: 0.006 lux at 50 IRE F1.7, 0 lux with IR illumination on |
| Shutter Time | 1/45500 s to 2 s |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG |
| Resolution | 3712x2784 10 MP to 160x90, 3840x2160 4K to 160x90 |
| Maximum Pixel Density with 4x Optical Zoom | 10 m (32 ft): 1036 px/m, 25 m (82 ft): 414 px/m, 50 m (164 ft): 207 px/m |
| Frame Rate | 4K: Up to 25/30 fps (50/60 Hz), 10 MP: Up to 20 fps (50/60 Hz) |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG, Axis Zipstream technology in H.264 and H.265, Controllable frame rate and bandwidth, VBR/ABR/MBR H.264/H.265 |
| Image Settings | Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, defogging, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring of images, electronic image stabilization, barrel distortion correction, text and image overlay, dynamic text and image overlay, privacy masks, Rotation: auto, 0°, 90°, 180°, 270° including Corridor Format, Scene profiles: forensic, vivid, traffic overview |
| Pan/Tilt/Zoom | 4x optical zoom, preset positions |
| Audio Streaming | Audio in, simplex |
| Audio Compression | AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM, Configurable bit rate |
| Audio Input/Output | External microphone input, line input, digital input with ring power, balanced microphone, balanced input. |
| Network Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, digest authentication, user access log, centralized certificate management, signed firmware, secure boot, Brute force delay protection |
| Supported Protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com, AXIS Video Hosting System (AVHS) with One-Click Connection, ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
| Onscreen Controls | IR Illumination, Electronic image stabilization, Defogging, Autofocus, Wide dynamic range, Video streaming indicator, Day/night shift |
| Analytics Included | AXIS Video Motion Detection, AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, active tampering alarm |
| Supported | AXIS Perimeter Defender, Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| Event Triggers | Analytics, edge storage events, Supervised external input, virtual inputs through API, shock detection |
| Event Actions | Pre- and post-alarm video buffering, File upload: FTP, SFTP, HTTP, HTTPS, network share and email, Notification: email, HTTP, HTTPS, TCP and SNMP trap |
| Data Streaming | Event data |
| Built-in Installation Aids | Remote zoom, pixel counter, leveling assistant, autorotation |
| Casing | IP66-/IP67-, and NEMA 4X-rated, IK10 impact-resistant aluminum enclosure with integrated dehumidifying membrane, weathershield with black anti-glare coating, Color: White NCS S 1002-B, PVC free, 2% recycled plastic |
| Memory | 2048 MB RAM, 512 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4, Typical 13.3 W, max 24.0 W, 20–28 V DC, typical 12.9 W, max 23.2 W, 20–24 V AC, typical 19.4 V A, max 33.0 V A |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T, IDC punchdown connector, AC and DC Power connector, Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max. load 50 mA), 3.5 mm mic/line in |
| IR Illumination | AXIS OptimizedIR with power-efficient, long-life 850 nm IR LED’s with adjustable intensity. Range of reach more than 50 m (164 ft) in wide field of view and 100 m (328 ft) in full tele view, or more depending on the scene. |
| Storage | Support for microSD/microSDHC/microSDXC card and encryption, Recording to network-attached storage (NAS), For SD card and NAS recommendations see axis.com |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) |
| Humidity (Operating) | 10-100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity (Storage) | 5-95% RH (non-condensing) |
| Approvals | EMC: EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EAC; Safety: IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252; Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X, NEMA TS 2 (2.2.7–2.2.9); Network: NIST SP500–267; Other: EN/IEC 62471 |
| Dimensions | Length: 360 mm (14 11/64 in), Ø 147 mm (5 13/16 in) |
| Weight | 2.55 kg (5.3 lb) |
| Included Accessories | Installation Guide, Windows® decoder 1-user license, connector kit, Resistorx® L-key, RJ45 patch cable |
| Optional Accessories | AXIS T8604 Media Converter Switch, AXIS T91B47 Pole Mount, AXIS T94P01B Corner Bracket, For more accessories, see axis.com |
| Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners available at axis.com/vms |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

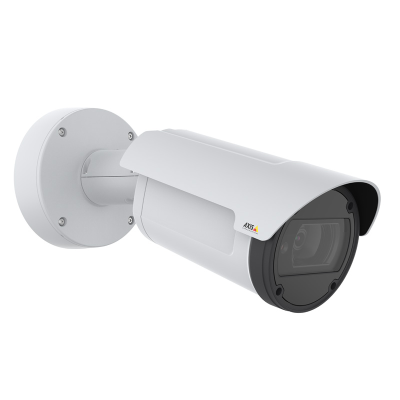

AXIS Q1798-LE 10MP Bullet Camera, H.264/5, PoE, IR, IK08, IP67, 12 - 48mm VF Lens
The AXIS Q1798-LE Network Camera is a state-of-the-art surveillance solution designed for superior performance in demanding environments. Featuring an advanced 4K Ultra HD resolution, it delivers exceptional image clarity and detail, ensuring that every critical element is captured with precision. The camera is equipped with an integrated varifocal lens, allowing for flexible adjustments to achieve the optimal field of view. Its robust build includes an IP66-rated weatherproof enclosure, making it suitable for both indoor and outdoor applications. The AXIS Q1798-LE excels in low-light conditions thanks to its advanced Lightfinder technology, which enhances color reproduction and visibility in challenging lighting situations. Additionally, the camera is powered by Axis' proprietary ARTPEC-8 processor, which optimizes image quality and processing efficiency. It supports advanced analytics features, such as motion detection and object classification, which are crucial for enhancing security and operational awareness. The camera also offers built-in infrared (IR) illumination, providing clear night-time surveillance up to a specified range. Its secure and encrypted data transmission ensures that footage is protected from unauthorized access. The AXIS Q1798-LE supports Power over Ethernet (PoE), simplifying installation by allowing both power and data to be transmitted through a single cable. This model is designed to integrate seamlessly with Axis' network video solutions, providing a scalable and customizable surveillance system. Its user-friendly interface and configuration tools streamline setup and management, making it accessible for both novice and experienced users. The camera's durable construction and reliable performance make it an ideal choice for critical monitoring applications in various settings. With its comprehensive feature set and high-resolution capabilities, the AXIS Q1798-LE Network Camera represents a cutting-edge solution for modern security needs.
Features
| Image Sensor | 4/3" back–illuminated color CMOS |
| Lens | Canon 12–48 mm, F1.7–4.0 |
| 4K | Horizontal field of view: 90°–21°, Vertical field of view: 49°–12° |
| 10MP | Horizontal field of view: 86°–20°, Vertical field of view: 62°–15° |
| Autofocus | Zoom triggered, auto-iris, automatic day/night |
| Day and Night | Automatically removable infrared-cut filter in day mode and infrared-band-pass filter 800–900 nm in night mode |
| Minimum Illumination | Color: 0.03 lux at 50 IRE F1.7, B/W: 0.006 lux at 50 IRE F1.7, 0 lux with IR illumination on |
| Shutter Time | 1/45500 s to 2 s |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG |
| Resolution | 3712x2784 10 MP to 160x90, 3840x2160 4K to 160x90 |
| Maximum Pixel Density with 4x Optical Zoom | 10 m (32 ft): 1036 px/m, 25 m (82 ft): 414 px/m, 50 m (164 ft): 207 px/m |
| Frame Rate | 4K: Up to 25/30 fps (50/60 Hz), 10 MP: Up to 20 fps (50/60 Hz) |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG, Axis Zipstream technology in H.264 and H.265, Controllable frame rate and bandwidth, VBR/ABR/MBR H.264/H.265 |
| Image Settings | Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, defogging, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring of images, electronic image stabilization, barrel distortion correction, text and image overlay, dynamic text and image overlay, privacy masks, Rotation: auto, 0°, 90°, 180°, 270° including Corridor Format, Scene profiles: forensic, vivid, traffic overview |
| Pan/Tilt/Zoom | 4x optical zoom, preset positions |
| Audio Streaming | Audio in, simplex |
| Audio Compression | AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM, Configurable bit rate |
| Audio Input/Output | External microphone input, line input, digital input with ring power, balanced microphone, balanced input. |
