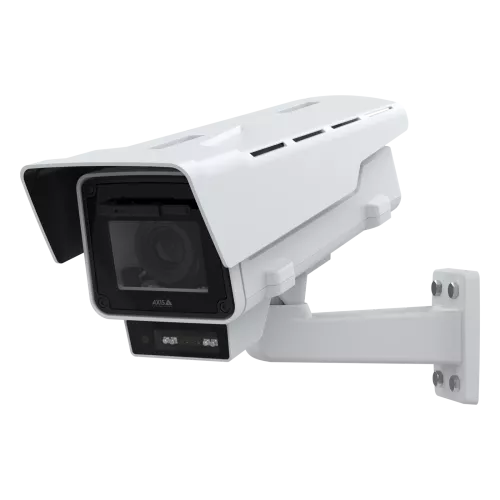

Axis Q1656-LE Box Camera 4MP Deep Learning Analytics

Model: Q1656-LE

Who This Is For

For integrators and security managers who need edge-based deep learning analytics on a camera that can be precisely configured for demanding outdoor installations, the Axis Q1656-LE is a professional 4MP box camera built around a dedicated deep learning processing unit. The box form factor accepts interchangeable CS and C-mount lenses, which means the focal length can be matched exactly to the distance and field of view required - whether that is a narrow approach road 80 metres out or a wide loading dock entrance. The built-in IR illumination handles low-light conditions without relying on external lighting infrastructure. This is a product for sites where generic fixed-lens cameras lack the analytical capability or optical flexibility that the application demands: transport hubs, critical infrastructure perimeters, logistics yards, and commercial properties running AXIS Object Analytics for accurate object classification at the edge.

What This Camera Actually Does

Who Buys This Model

• Logistics and Freight Operators: Sites with long vehicle approaches and high-contrast loading dock entrances where accurate vehicle detection via AXIS Object Analytics reduces operator fatigue from false alerts.
• Critical Infrastructure Security Teams: Perimeter surveillance on utility sites, water treatment facilities, and transport hubs that require edge analytics to run independently of centralised server infrastructure.
• Professional Integrators on Custom Builds: Installers specifying cameras for unusual scenes - long corridors, narrow approach lanes, or wide yard overviews - where a fixed-lens camera cannot deliver the right angle without a purpose-selected focal length.
• Commercial Property Managers Upgrading Analytics: Facilities moving away from rule-based motion detection toward deep learning classification to reduce overnight false alarm callouts to security patrols.
• Gatehouse and Checkpoint Operators: Sites needing a local HDMI monitor feed at the guard post alongside the network recording stream, without adding a separate decoder or display server.

Honest Assessment

The Q1656-LE genuinely stands apart in its class through the combination of a dedicated deep learning processor and a fully interchangeable lens mount in a single weatherproof outdoor housing. Edge-based AXIS Object Analytics means the classification workload does not depend on server capacity, and the ability to select the exact lens for each scene is a practical advantage on sites where no standard focal length fits every position. The HDMI output adds deployment flexibility that most fixed cameras lack entirely. Where this camera is not the right tool: if the installation requires motorised optical zoom or pan-tilt coverage across a wide area, a PTZ camera will serve the site better. If budget is the primary driver and deep learning analytics are not required, a standard 4MP fixed camera costs significantly less. The Q1656-LE is supplied by Security Australia for professional deployments where both optical precision and analytical accuracy are required from a single unit.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring a fixed outdoor scene where the working distance or field of view does not align with any standard fixed-lens camera, and accurate human/vehicle classification at the edge is required to manage alarm quality.
• Good match if: The installation includes a gatehouse or control room monitor that needs a direct HDMI feed from the camera position without routing through additional decoding hardware.
• You may need a different model if: The scene requires continuous pan, tilt, or optical zoom across a large open area - a PTZ camera is better suited to that coverage requirement and will deliver more flexible repositioning without a site visit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The scene requires a specific focal length not available in a fixed-lens camera, and edge-based deep learning object classification is required to manage alarm quality without adding server-side analytics.
• You may need a different model if: The monitored area changes frequently or covers a wide open space - a PTZ camera with auto-tracking will provide far greater operational flexibility and is better suited to dynamic coverage requirements.
• Pairs well with: A PoE+ managed switch with VLAN support, an Axis-compatible NVR or VMS with AXIS Object Analytics integration, and a compatible CS-mount varifocal or fixed lens selected to match the site's working distance.

Common Questions

1. Does a lens come included with the Q1656-LE?

   No. The Q1656-LE is a camera body only - no lens is included in the box. The CS-mount and C-mount compatibility means you choose the lens separately to match your specific installation distance and field of view. Axis recommends P-iris lenses to take full advantage of the camera's automatic iris control and optimise image quality across changing light conditions.

2. Will a standard PoE switch power this camera?

   No. The Q1656-LE requires IEEE 802.3at PoE+ delivering up to 25.5W. Standard IEEE 802.3af PoE switches supply a maximum of 15.4W and will not power this camera reliably. Check your switch datasheet and confirm PoE+ is available on the specific port before running cable.

3. How does AXIS Object Analytics work on this camera?

   AXIS Object Analytics runs entirely on the camera's onboard deep learning processor - no server or cloud connection is required for classification. The application detects and classifies humans and vehicles within defined zones, and generates alerts only for the object types you configure. This is fundamentally different from pixel-based motion detection, which cannot distinguish a person from a blowing plastic bag.

4. Does this camera work with third-party VMS software?

   Yes, in most cases. The Q1656-LE supports ONVIF Profile S and Profile G, and AXIS Object Analytics metadata is passed over the network to compatible VMS platforms. Axis also provides integration with major VMS vendors including Milestone, Genetec, and others. Check your VMS vendor's compatibility list for confirmed AXIS Object Analytics metadata support if alarm triggers from the analytics are critical to your setup.

5. Will this camera work in very cold or very hot outdoor conditions in Australia?

   Yes. The Q1656-LE is rated for operation between -40°C and 60°C, which comfortably covers Australian outdoor conditions from alpine environments to exposed industrial sites in northern regions. The IP66 rating also protects against heavy rain and dust ingress, making it suitable for year-round outdoor mounting without additional weatherproof enclosures in the vast majority of Australian sites.

6. Can recorded footage be stored on the camera itself if the network goes down?

   Yes. The Q1656-LE includes a microSD/SDHC/SDXC card slot for edge storage. With a card installed, the camera can continue recording locally if the network connection or NVR becomes unavailable, then sync footage back to the server when connectivity is restored - depending on VMS configuration. This is particularly useful for remote or exposed locations where network interruptions are possible.

7. Does this camera have built-in cybersecurity protections?

   Yes. The Q1656-LE includes AXIS Edge Vault, which provides a hardware-based secure element, signed firmware to verify software integrity, secure boot to prevent unauthorised firmware from loading, and TPM 2.0 for cryptographic key storage. These protections are relevant for deployments on critical infrastructure or government sites where network security requirements are elevated. The camera is available through Security Australia for projects where formal documentation of cybersecurity features is required.

Downloads & Resources

• Axis Q1656-LE Datasheet (PDF)
• Axis Q1656-LE Product Page - Axis Communications
• AXIS Object Analytics Overview
