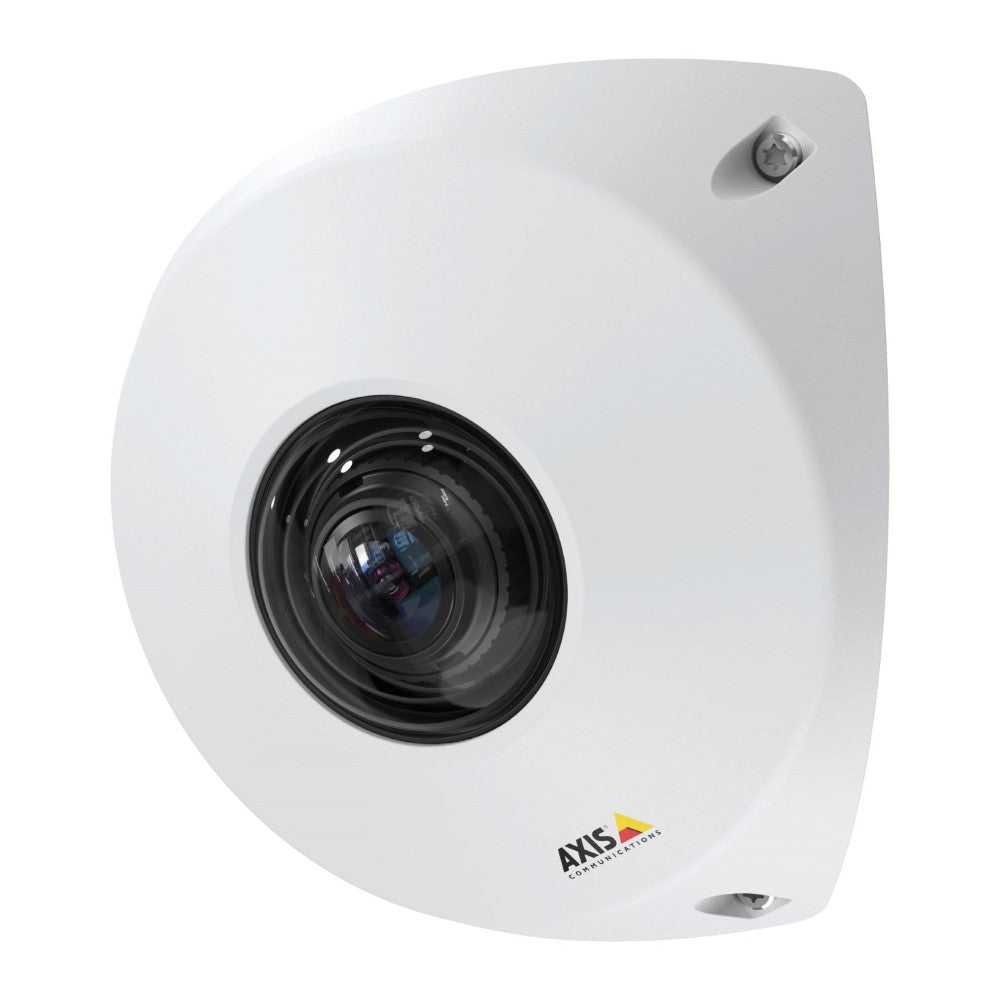

AXIS P9106-V Corner Network Camera, H.264, PoE, IP66, IK10, 1.8mm Lens, White

Model: AXIS P9106-V

Who This Is For

When eliminating blind spots in confined, high-risk interior spaces is the priority, the AXIS P9106-V Corner Network Camera is built specifically for that challenge. Designed to mount directly into a room corner, it delivers a 130-degree horizontal field of view that covers wall-to-wall without repositioning or multiple cameras. It is the white anti-ligature, anti-grip variant - a deliberate design choice for mental health observation rooms, custody cells, detention areas, and secure waiting rooms where fixture safety is a compliance requirement. Facility managers specifying camera systems for healthcare environments, correctional facilities, and government-controlled spaces will find this model addresses both the surveillance need and the duty-of-care obligation simultaneously. The IK10 vandal resistance and IP66 rating add durability in spaces where tampering or cleaning chemicals are routine concerns. It is not a general-purpose indoor camera - it is a purpose-built solution for spaces where standard dome cameras create unacceptable risk or coverage gaps.

What This Camera Actually Does

Who Buys This Model

• Mental Health Facility Managers: Specifying cameras for observation rooms and patient areas where anti-ligature and anti-grip compliance is a non-negotiable design requirement - the white model is engineered for exactly this application.
• Correctional and Custody Facility Operators: Needing corner-mounted coverage in cells and interview rooms with IK10 resistance to deliberate physical impact and chemical cleaning without compromising image quality.
• Government and Institutional Security Integrators: Building out systems in secure waiting rooms, holding areas, or government interview suites where a single corner camera must cover the full room and meet durability specifications.
• Lift and Elevator Fit-Out Contractors: Installing surveillance in elevator cabins where the corner mount position, compact profile, and 130-degree FOV provide full cabin coverage from a single unit without a visible dome housing.
• School and Childcare Security Designers: Deploying cameras in classrooms or welfare rooms where wide-angle corner coverage is needed and the housing must withstand routine cleaning without damage to the lens window.

Honest Assessment

The AXIS P9106-V does one thing exceptionally well: it solves the corner coverage problem in confined, sensitive spaces with a housing design that addresses real risk-management obligations. The anti-ligature, anti-grip white construction is a genuine specification feature - not a cosmetic label - and the 130-degree FOV from a corner position genuinely eliminates the blind zones a ceiling-mounted dome leaves along walls in small rooms. The IK10 rating and replaceable chemical-resistant front window suit high-cleaning-frequency institutional environments. What this camera will not do is cover large open areas, car parks, or long corridors - the 1.8mm wide-angle lens is purpose-built for close-range room coverage, not distance. It has no IR illumination, so external lighting is required in unlit spaces. Two-way audio requires an additional external AXIS T61 interface - it is not built in. Buyers needing outdoor capability, long-range coverage, or IR night vision should look at a different camera type available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are specifying cameras for a mental health facility, custody suite, or secure waiting room where anti-ligature and anti-grip housing is a compliance requirement and full corner-to-corner room coverage is needed from a single unit.
• Good match if: You are installing in an elevator cabin or small interview room where the 130-degree horizontal FOV from a corner position eliminates the need for multiple cameras and the IK10 rating ensures the housing withstands accidental or deliberate impact.
• You may need a different model if: Your application requires IR night vision in unlit environments, outdoor weatherproof coverage, or long-range image capture - a turret or bullet camera with built-in IR would serve that need better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires a corner-mounted camera with anti-ligature, anti-grip housing compliance, IK10 vandal resistance, and wide-angle room coverage in a single confined space - no other standard dome or turret form factor achieves this combination.
• You may need a different model if: Your application requires IR night vision in unlit spaces, coverage of large open areas or long corridors, or outdoor perimeter monitoring - a bullet or turret camera with built-in IR and a longer focal length will serve those needs far better.
• Pairs well with: A PoE-capable NVR or VMS platform that supports ONVIF or Axis VAPIX, and an AXIS T61 Audio and I/O Interface where two-way audio capability is required in observation or interview rooms.

Common Questions

1. Does this camera work in a fully dark room with no lighting?

   No. The AXIS P9106-V has no infrared illumination - it is a colour-only camera with a minimum illumination rating of 0.35 lux. In rooms where lighting is switched off entirely, the camera will not produce a usable image. If your observation or custody rooms operate in full darkness, external IR illuminators or maintained ambient lighting are required alongside this unit.

2. Will this camera work with any standard PoE switch or NVR?

   Yes, provided the switch or NVR port delivers standard IEEE 802.3af PoE. The P9106-V draws power and carries data over a single Cat5e or Cat6 cable - no separate power supply is needed. Confirm your NVR or switch PoE budget per port before deploying, particularly in multi-camera enclosures where total PoE draw is a factor.

3. Is the digital PTZ on this camera the same as a motorised PTZ?

   No. The AXIS P9106-V uses digital PTZ only - the physical camera does not pan, tilt, or zoom optically. Digital PTZ crops and enlarges regions within the existing 3 MP image sensor. This means zoomed-in views will have reduced pixel density compared to the full-resolution image. The feature is best used for defining preset view areas and switching between operator views, not for tracking moving subjects across a wide area. For motorised optical zoom and physical pan/tilt, a dedicated PTZ camera is required.

4. How does the multi-view streaming work and what does it actually output?

   The P9106-V outputs 2 independently cropped view areas simultaneously from the single wide-angle sensor. Each crop is configured separately in the camera's interface - one could be set to the full room view, another to a tighter crop on the door or seating area. Both streams record or display independently. This is useful when a recorder or VMS needs separate channels for a wide contextual view and a detail view without deploying 2 physical cameras.

5. Does this camera have a built-in microphone and speaker for two-way audio?

   No. The P9106-V does not have a built-in microphone or speaker. Two-way audio is supported via an external AXIS T61 Audio and I/O Interface using portcast technology - this is a separate accessory that connects to the camera's network port. If audio monitoring or communication is a requirement for your observation room or interview suite, factor the AXIS T61 into your bill of materials.

6. Is the IK10 rating sufficient for high-risk custody or secure care environments?

   IK10 is the highest standardised impact protection rating, representing resistance to 20 joules of impact energy. For most custody, mental health, and secure care applications, IK10 is the specified minimum. The white housing also has no protruding grip points or exposed fixings, which addresses both physical attack resistance and anti-ligature compliance. Check your specific facility risk assessment and any applicable Australian standards for your environment before confirming this is sufficient - IK10 is confirmed, higher ratings are not available on this model.

7. How much does Zipstream actually reduce storage requirements?

   The reduction varies by scene. Zipstream analyses each frame and applies additional compression to areas of low detail or low motion while maintaining full bitrate on areas of activity. In low-motion environments like waiting rooms or interview rooms, the storage saving is typically significant - Axis publishes figures of up to 50% or more in suitable scenes. In continuously active scenes the saving is lower. The output is standard H.264 and plays back on any compatible recorder or VMS - no proprietary decoder is needed. Buyers comparing storage requirements can request guidance from Security Australia based on their specific camera count and retention period.
