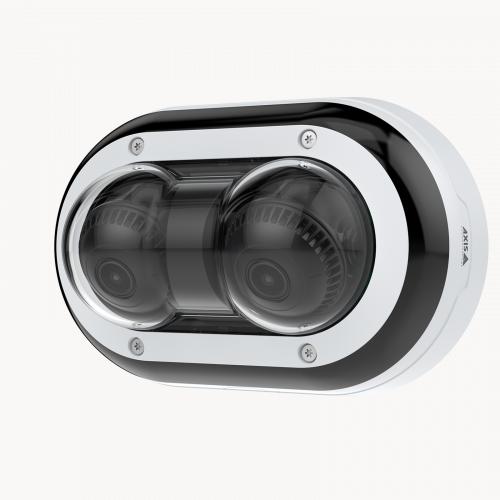

AXIS P4705-PLVE Panoramic Camera Dual-sensor with 360° IR and deep learning

Model: AXIS P4705-PLVE

Who This Is For

When eliminating blind spots with a single camera position is the priority, the AXIS P4705-PLVE delivers dual-sensor 360-degree panoramic coverage with built-in IR illumination and deep learning analytics - a combination that makes it a practical choice for locations where running multiple cameras is either impractical or cost-prohibitive. Facilities managers overseeing open-plan warehouses, large retail floors, car parks, and building lobbies will find this camera reduces both the number of installation points required and the ongoing review workload through intelligent object classification. The built-in IR makes it viable in unlit or poorly lit environments after hours, and the deep learning engine means operators can configure zone-based alerts that respond to people and vehicles rather than shadows, lighting changes, or environmental movement. It suits sites where a network administrator or security integrator is handling the installation and VMS configuration.

What This Camera Actually Does

Who Buys This Model

• Facilities and Security Managers at Commercial Premises: Open-plan offices, showroom floors, and building lobbies where a single overhead camera mount needs to cover the full room without directional gaps - and where after-hours IR coverage is required without adding lighting.
• Car Park and Transport Hub Operators: Covered multi-deck car parks, transit interchanges, and airport drop-off zones where 360-degree coverage at each bay or intersection replaces 3-4 directional cameras, reducing infrastructure cost and switch port consumption.
• Retail Loss Prevention Teams: Large retail floor environments where a ceiling-mounted panoramic camera provides full aisle and floor coverage, and where deep learning analytics can be configured to trigger alerts on loitering or zone entry after trading hours.
• Security Integrators on Enterprise Projects: Installers specifying Axis-based VMS environments (AXIS Camera Station, Milestone, Genetec) who need a camera that delivers multiple dewarped virtual streams from a single licensed device, reducing per-channel costs on large deployments.

Honest Assessment

The AXIS P4705-PLVE does two things well: it genuinely eliminates the angular gaps that occur when tiling multiple fixed-lens cameras across a large space, and the on-board deep learning analytics produce a measurable reduction in false alarms compared to pixel-change motion detection. The built-in 360-degree IR is a real benefit in sites where external lighting is absent or inconsistent. These are not marketing claims - they are outcomes tied directly to the dual-sensor architecture and AXIS Object Analytics engine. Where this camera will not serve well is in scenarios requiring high-resolution identification at distance. Panoramic cameras by nature distribute resolution across a wide field, so pixel density per object at the edges of the scene is lower than what a dedicated varifocal or optical-zoom camera would deliver at the same range. If positive identification of individuals at a specific chokepoint - such as a building entry or gate - is the primary requirement, a targeted fixed or motorised-zoom camera available through Security Australia would be a more appropriate specification alongside this unit.

Before You Buy

Quick Fit Check

• Good match if: You need full 360-degree coverage from a single ceiling mount in a large open-plan area - car park, warehouse floor, or retail space - and want to reduce the number of camera positions, switch ports, and VMS channel licences required.
• Good match if: The site has limited or no artificial lighting after hours and you need IR illumination that covers the entire panoramic field without installing separate IR floodlights around the perimeter.
• You may need a different model if: Your primary requirement is positive face or plate identification at a specific entry point or gate - a targeted varifocal or motorised-zoom camera will deliver higher pixel density at distance than any panoramic sensor at an equivalent price point.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera position to deliver gap-free 360-degree coverage with after-hours IR and deep learning classification - reducing both hardware count and alert fatigue compared to tiling multiple fixed-lens cameras across the same space.
• You may need a different model if: Optical-quality identification at a specific entry point or long approach is the primary requirement - a motorised-zoom or varifocal fixed camera will concentrate resolution on a narrower field and deliver more usable identification detail at distance than a multi-sensor panoramic unit.
• Pairs well with: A targeted varifocal or optical-zoom camera covering the primary entry or vehicle approach, using this unit to provide the surrounding overview context and the targeted camera for identification detail.

Common Questions

1. Does this camera work on a standard PoE switch port?

   Yes. The AXIS P4705-PLVE is powered by IEEE 802.3af PoE, which is the standard power class supported by virtually all managed and unmanaged PoE switches. A single Cat5e or Cat6 cable carries both power and data to the camera. You do not need PoE+ (802.3at) for this model, which simplifies switch selection on multi-port deployments.

2. How does the dual-sensor stitching work and can I view each sensor independently?

   The 2 sensors are stitched together in-camera to produce a seamless 360-degree panoramic stream. Most compatible VMS platforms - including AXIS Camera Station, Milestone XProtect, and Genetec - also allow you to dewarp the panoramic stream into independent virtual camera views per sensor region, or into corridor and quad-split display formats. This means you can simultaneously display a full overview and several dewarped zone views from a single physical device and a single VMS channel licence, depending on your platform's licensing model.

3. What does "deep learning" actually mean for day-to-day operation on this camera?

   It means the on-board processor runs AXIS Object Analytics, which classifies detected moving objects as humans or vehicles before triggering a configured alert. Unlike standard pixel-change motion detection, the camera does not send an alert when a light source changes, a shadow moves, or a small animal crosses the frame. In practice this reduces the volume of nuisance notifications that operators need to review, and it means zone-based rules - such as alerting on any human entering a restricted area after hours - operate with a lower false trigger rate.

4. Will this camera work outdoors and handle Australian weather conditions?

   Yes. The P4705-PLVE is rated IP66 and IP67 for water and dust ingress, and IK10 for impact resistance. The IP67 rating confirms the camera can withstand temporary submersion in addition to direct water jets, which exceeds the weatherproofing required for covered outdoor areas exposed to heavy rain. The operating temperature range of -30°C to 50°C covers the full range of Australian climate conditions from alpine to tropical.

5. What are the DORI distances for detection, observation, recognition, and identification on this camera?

   Panoramic cameras distribute their total pixel count across a 360-degree field, so DORI distances per zone are shorter than a dedicated fixed-lens camera with equivalent per-pixel resolution. The P4705-PLVE is engineered for detection and observation across wide areas - confirming that a person or vehicle is present and tracking movement through a space - rather than positive identification at distance. For face-level or licence plate identification at a specific approach, this camera is typically deployed alongside a targeted fixed or varifocal camera covering the chokepoint, with the panoramic unit providing the surrounding context view. Contact Security Australia for application-specific DORI guidance based on your ceiling height and site layout.

6. Does the 360-degree IR illumination cover the full panoramic field evenly?

   Yes. The built-in IR LEDs are distributed to cover the complete 360-degree horizontal field rather than projecting IR in a single forward direction as a bullet or dome camera does. This is a specific design feature of the PLVE variant. In practice, IR performance at the edges of the panoramic field is influenced by mounting height - the closer the camera is to the ground level, the more effective the IR reach across the floor plane. For mounting heights above 4m, verify that the IR range is adequate for your detection distance before finalising the installation design.

7. Is this camera compatible with third-party VMS platforms or does it require Axis software?

   No - it does not require Axis software. The P4705-PLVE supports ONVIF Profile S, G, and T, which means it integrates with any ONVIF-compliant recording platform. Axis also publishes free integration drivers for Milestone XProtect and Genetec Security Center that enable panoramic dewarping and AXIS Object Analytics event handling natively within those platforms. If you are using a lower-tier NVR, confirm that your recorder supports panoramic dewarping for the Axis dual-sensor stream before purchasing, as basic ONVIF recording without dewarping will display the stitched panoramic image without the ability to extract independent zone views.
