Seamless, 180° coverage with no blind spots
The AXIS P3818-PVE Panoramic Camera supports various mounting options, such as recessed, flush, pendant, or back-to-back, making it adaptable to different installation environments. Additionally, it includes advanced technologies like Axis Lightfinder for low-light conditions, Forensic WDR for handling challenging lighting, and Zipstream to reduce bandwidth and storage needs. Built-in cybersecurity features protect the system from unauthorized access, enhancing overall security.
Key Features
Code/SKU: AXIS P3818-PVE
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 3 x 5 MP 1/2.8” progressive scan RGB CMOS |
| Lens | Fixed 3.2 mm, F2.0 Horizontal field of view: 180° Vertical field of view: 90° |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | With Forensic WDR and Lightfinder: Color: 0.16 lux, F2.0 B/W: 0.05 lux, F2.0 |
| Shutter Speed | 1/91000 to 1/25 s With WDR: 1/50000 to 1/25 s |
| Camera Angle Adjustment | Pan: +/- 180° Tilt: 0° to 50° Roll: +/- 5° |
| System on Chip (SoC) | Model: ARTPEC-7 (x2) Memory: 2048 MB RAM (x2), 512 MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 5120x2560 (13.1 MP) to 256x128 |
| Frame Rate | 13.1 MP @ 25/30 fps (50/60 Hz) WDR |
| Video Streaming | 13.1 MP: 1 configurable stream in H.264, H.265, and Motion JPEG in full frame rate Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Image Settings | Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, compression, dynamic text and image overlay, orientation aid, exposure control, noise reduction, fine-tuning of behavior at low light, polygon privacy masks |
| Audio | |
| Audio Streaming | Two-way audio via edge-to-edge technology |
| Audio Input/Output | External microphone input, line input, digital audio input, automatic gain control, network speaker pairing |
| Audio Encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, 44.1 kHz ACC-LC, LPCM Configurable bit rate |
| Network | |
| Security | IP address filtering, HTTPS encryption, IEEE 802.1X (EAP-TLS) network access control, user access log, centralized certificate management, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified) |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT, Secure I/O, Syslog, SIP |
| Edge Storage | SD/SDHC/SDXC slot supporting memory cards up to 1 TB (card not included) Support for recording to network-attached storage (NAS) |
| Physical | |
| Operating Conditions | -40°C to 60°C (-40°F to 140°F) Humidity: 10% to 100% RH (condensing) |
| Storage Conditions | -40°C to 60°C (-40°F to 140°F) Humidity: 5% to 95% RH (non-condensing) |
| Dimensions | Height: 149 mm (5.9 in) Diameter: 250 mm (9.8 in) |
| Weight | 3.2 kg (7.1 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

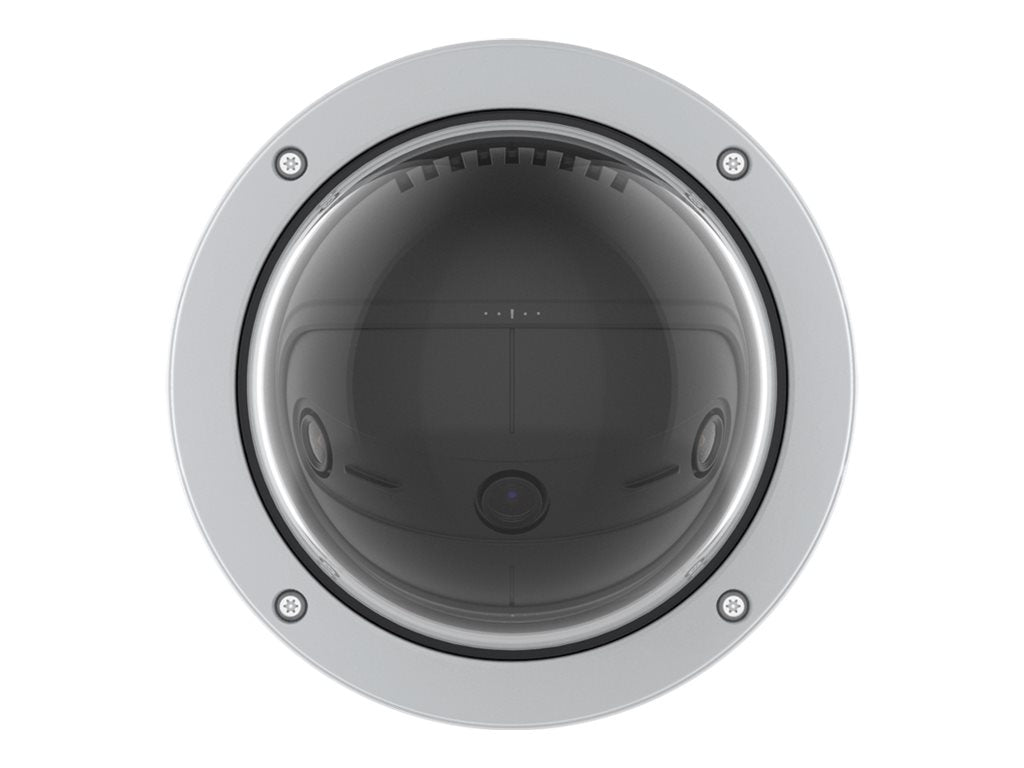

AXIS P3818-PVE 13MP Outdoor Panoramic Dome, 180 VIEW, Seamless Stitching
The AXIS P3818-PVE Panoramic Camera is a versatile and advanced surveillance solution designed to provide seamless 180° panoramic views. This multisensor camera features three 4K sensors that are seamlessly stitched together to deliver a coherent and high-quality image across extensive areas, making it ideal for monitoring large spaces like city squares, parking lots, and warehouses. It offers both horizontal and vertical coverage, allowing for complete situational awareness without blind spots. The camera supports various mounting options, such as recessed, flush, pendant, or back-to-back, making it adaptable to different installation environments. Additionally, it includes advanced technologies like Axis Lightfinder for low-light conditions, Forensic WDR for handling challenging lighting, and Zipstream to reduce bandwidth and storage needs. Built-in cybersecurity features protect the system from unauthorized access, enhancing overall security. The AXIS P3818-PVE is also cost-efficient, providing the benefits of three cameras in one, reducing the number of cameras needed to cover large areas.
Complete coverage with support for audio input
AXIS P3818-PVE is perfect when you need to see the whole picture. This multisensor camera offers seamless stitching of all three images to deliver a seamless 180° panoramic overview of extensive areas and excellent image usability. You get 180° horizontal coverage, and 90° vertical coverage with no blind spots. It’s possible to mount two cameras back-to-back for a complete 360° overview using AXIS T94V01C Dual Camera Mount. This allows for quick and intuitive situational awareness over a large area and lets the operator visually follow objects across great distances. Featuring edge-to-edge technology, it’s easy to add support for audio-out using AXIS network speakers, and audio-input directly into the camera enables you to listen in to transactions or incidents.
Brilliant, seamless images
The single smooth and cohesive video stream is what really sets AXIS P3818-PVE apart. This 13 MP multisensor camera offers seamless 180° panoramic coverage and captures ultra-high resolution images with incredible details up to 30 fps. With seamless stitching across all 3 images, it delivers a coherent-looking image in one single video stream for a perfect overview without any stitch in the center. And, the camera automatically optimizes white balance and exposure time. Furthermore, thanks to Forensic WDR, it offers excellent image usability.
Cost-efficient, flexible, and secure
This cost-efficient camera gives you the benefits of three cameras while paying for just one. And, fewer cameras are needed to cover large areas. Additionally, it offers a wide variety of mounting options – recessed, flush, pendant, or even back-to-back. Plus, it offers adjustable positions for fast and easy mounting on walls, ceilings, or in a corridor. AXIS P3818-PVE offers built-in cybersecurity features including Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. And, for added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.
Features
| Camera | |
|---|---|
| Image Sensor | 3 x 5 MP 1/2.8” progressive scan RGB CMOS |
| Lens | Fixed 3.2 mm, F2.0 Horizontal field of view: 180° Vertical field of view: 90° |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | With Forensic WDR and Lightfinder: Color: 0.16 lux, F2.0 B/W: 0.05 lux, F2.0 |
| Shutter Speed | 1/91000 to 1/25 s With WDR: 1/50000 to 1/25 s |
| Camera Angle Adjustment | Pan: +/- 180° Tilt: 0° to 50° Roll: +/- 5° |
| System on Chip (SoC) | Model: ARTPEC-7 (x2) Memory: 2048 MB RAM (x2), 512 MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | 5120x2560 (13.1 MP) to 256x128 |
| Frame Rate | 13.1 MP @ 25/30 fps (50/60 Hz) WDR |
| Video Streaming | 13.1 MP: 1 configurable stream in H.264, H.265, and Motion JPEG in full frame rate Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Image Settings | Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, compression, dynamic text and image overlay, orientation aid, exposure control, noise reduction, fine-tuning of behavior at low light, polygon privacy masks |
