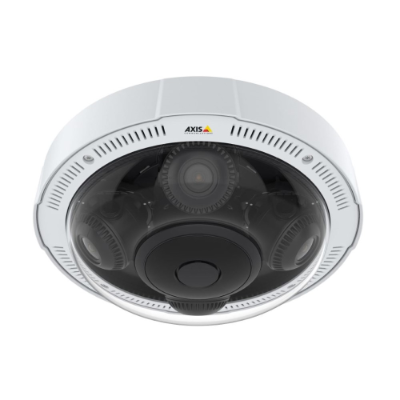

AXIS P3737-PLE 4x 5MP Panoramic Camera IR, Zipstream, PoE, IP67, IK09

Model: AXIS P3737-PLE

Who This Is For

For security integrators and end-users who need wide-area coverage from a single network drop, the AXIS P3737-PLE is a four-sensor panoramic camera that replaces what would otherwise require multiple individual cameras across a large open space. Each of the 4 independently adjustable camera heads delivers 5 MP resolution, with remote varifocal lenses that can be aimed, zoomed, and focused without a technician physically repositioning hardware after installation. It suits airports, logistics warehouses, car parks, retail concourses, and transport interchanges - anywhere that a single cable run, single IP address, and single VMS licence needs to cover 270 to 360 degrees effectively. The 360-degree IR illumination with individually controllable LEDs means round-the-clock coverage is maintained even in complete darkness, while the IP67-rated weather shield and IK09-rated housing make it viable for exposed outdoor positions including corner and eave mounts.

Download Product Datasheet (PDF)

What This Camera Actually Does

Who Buys This Model

• Airport and Transport Hub Operators: Need wide-area situational awareness across concourses, gate lounges, and ticketing halls from as few cable drops as possible - the 360-degree coverage and single-IP architecture address both requirements directly.
• Large Retail and Shopping Centre Security Teams: Monitor open-plan floor areas, food courts, and atrium spaces where multiple dome cameras would create blind spots between coverage cones - the 4 independently aimed heads eliminate those gaps from one ceiling mount point.
• Logistics and Warehouse Managers: Require coverage of loading dock approaches, yard perimeters, and internal warehouse aisles simultaneously, with IR performance to handle lights-out overnight operations and Forensic WDR for dock doors with direct sunlight exposure.
• Security Integrators Reducing VMS Licence Costs: Specify the P3737-PLE where a client's VMS charges per channel - 4 video streams via a single licensed device versus 4 individual licensed cameras represents a direct per-site cost saving at scale.
• Facilities Managers in Outdoor Exposed Positions: Corner mounts on building exteriors, car park stairwells, and service yard entries where an IP67/IK09-rated multi-head unit handles weather and vandalism risk without requiring separate housings for each view direction.

Honest Assessment

The AXIS P3737-PLE does its most useful work in large-area deployments where reducing cable runs and VMS licences has direct financial value. Four independently adjustable varifocal heads, 360-degree IR, Forensic WDR, and edge-based AXIS Object Analytics make it a genuinely capable unit for airports, logistics facilities, retail concourses, and exposed outdoor corners. The ARTPEC-8 DLPU handles analytics classification on-device without requiring a server, and Zipstream keeps storage requirements manageable across all 4 channels. It is supplied by Security Australia as part of the Axis professional camera range. Where this unit is not the right answer: if you need optical PTZ patrol with preset positions and auto-tracking across a large open perimeter, a dedicated PTZ camera will cover more ground in a single direction. If your installation needs just one or two views, the per-unit cost makes individual cameras more practical. The P3737-PLE earns its price in multi-view, high-traffic applications where the cable and licence consolidation pays back across multiple sites.

Before You Buy

Quick Fit Check

• Good match if: You need to cover a large open space - a concourse, warehouse floor, or outdoor yard - from a single ceiling or corner mount point where running 4 separate cable routes is impractical or expensive.
• Good match if: Your site operates in low-light or lights-out conditions overnight and requires reliable IR coverage across all monitored directions simultaneously, backed by Forensic WDR for high-contrast daytime scenes.
• You may need a different model if: Your primary requirement is active optical zoom tracking of moving targets across a large perimeter - a dedicated PTZ camera with motorised optical zoom and auto-tracking patrol presets is a better fit for that application and is available across the range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need simultaneous multi-directional coverage from a single cable drop, with independently adjustable varifocal heads, 360-degree IR, and edge analytics - particularly where VMS licence or cabling costs are part of the project budget calculation.
• You may need a different model if: Your primary requirement is motorised optical zoom with pan/tilt patrol presets and auto-tracking across a long perimeter - a dedicated PTZ camera is the more appropriate product type for active operator-driven tracking scenarios, and a range of PTZ options are available on securityaustralia.com.au.
• Pairs well with: A PoE+ managed switch with sufficient per-port power budget, an NVR or VMS platform that handles multi-sensor devices efficiently, and a compatible Axis network speaker (such as the AXIS T61 series) where audio response capability is required at the monitored location.

Common Questions

1. Does this camera actually replace 4 separate cameras in a VMS system?

   It depends on your VMS platform's licensing model. The P3737-PLE connects to your network as a single IP device with one IP address, and some VMS platforms licence by physical device - in that case yes, 4 video streams are delivered under a single device licence. However, other platforms count individual video channels regardless of the physical device. Confirm your VMS vendor's approach before specifying the unit to determine the actual licence saving on your project.

2. Will this camera work in complete darkness?

   Yes. The P3737-PLE achieves 0 lux minimum illumination with IR illumination active. All 4 camera heads have built-in OptimizedIR illumination with individually controllable LED clusters, and the automatic IR-cut filter switches to monochrome mode in low-light conditions. This means the camera maintains usable footage in fully unlit environments across all 4 monitored directions simultaneously.

3. Can each of the 4 camera heads be aimed at a different zone independently?

   Yes. Each head supports independent pan (+/-90 degrees), tilt (+25 to +95 degrees), rotation (-5 to +95 degrees), and twist (+/-20 degrees) adjustment. The varifocal lenses on each head also support remote zoom and focus, meaning you can fine-tune each head's field of view - from 99 degrees wide to 37 degrees zoomed - remotely through the camera's interface without physically repositioning the unit after installation.

4. Does this camera require a PoE+ switch port or will a standard PoE port work?

   A standard 802.3af PoE port at 15.4 W is very unlikely to be sufficient for this unit. The P3737-PLE operates 4 camera heads plus 360-degree IR illumination from a single PoE connection, which places it firmly in the PoE+ (802.3at, up to 30 W) category for switch port planning. Before running cable, confirm the exact power draw from the Axis datasheet and match it to your switch's per-port power budget. Under-powered units may reduce IR output or fail to operate correctly.

5. Does this camera have built-in two-way audio - microphone and speaker?

   No. The P3737-PLE does not have a built-in microphone or speaker. It supports two-way audio via Axis network speaker pairing technology - specifically through the AXIS T61 Mk II series - which connects as a separate networked audio device. If audio response or talk-down is required at the monitored location, an external Axis network speaker must be included in the system design.

6. What analytics does the P3737-PLE run on-device, and does it need a separate server?

   No separate server is required. The camera's ARTPEC-8 processor includes a dedicated deep learning processing unit (DLPU) that runs AXIS Object Analytics directly on the camera edge. It classifies people and vehicles, supports user-defined detection zones across multiple channels simultaneously, and can trigger alarms when object counts exceed configured thresholds. The camera also supports ACAP version 4, allowing third-party deep learning applications from Axis partners to be loaded and run on-device.

7. How does the multi-sensor design of the P3737-PLE differ from a fisheye or single-sensor panoramic camera, and what does that mean for image quality?

   The P3737-PLE uses 4 discrete physical sensors with individual varifocal lenses rather than a single fisheye lens that covers 360 degrees through optical distortion. A fisheye panoramic camera achieves wide coverage by using extreme lens curvature - the resulting image requires digital dewarping, and resolution is shared across the full 360-degree frame, reducing effective detail at any specific point. The P3737-PLE assigns a full 5 MP sensor to each direction independently, so each head delivers its own 2592x1944 image without sharing resolution with the other heads. There is no software dewarping required, and each head can be individually zoomed to increase pixel density on a specific zone. The trade-off is that coverage between the 4 heads is not continuous - there are physical gaps between each head's field of view, whereas a fisheye produces a fully seamless 360-degree image. For applications where gap-free continuity matters more than per-zone resolution, a fisheye is more appropriate; where per-zone detail and independent zoom control are priorities, the multi-sensor approach of the P3737-PLE is the stronger choice.

8. Is the P3737-PLE rated for outdoor installation and what protection does it offer against vandalism?

   Yes. The camera carries an IP67 weather protection rating via its integrated weather shield, providing full protection against dust ingress and water immersion. The vandal-resistant casing is IK09-rated, meaning it is tested to withstand significant impact force. For most outdoor wall, corner, and eave mounting positions, this rating provides adequate protection against opportunistic interference. The camera is not rated IK10, so in environments with an elevated risk of deliberate sustained attack, a protective camera cage or recessed mounting may be worth considering in addition to the standard housing.

Downloads & Resources

• Product Spec Sheet (PDF)
