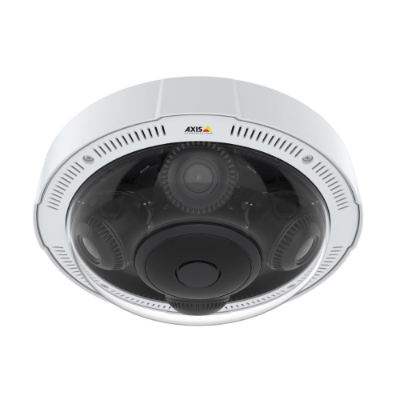

AXIS P3727-PLE 4x 2MP Panoramic Camera 4x1080p, 360deg IR, Zipstream, PoE, IP67, IK09

Model: AXIS-02218-001

Who This Is For

Specified by security consultants and integrators tackling wide-area coverage from a single mounting point, the AXIS P3727-PLE delivers 4 independent 1080p video streams out of one outdoor housing. Where a fixed camera leaves blind spots and a PTZ cannot watch multiple directions at once, this four-sensor panoramic head closes the gap - each camera head is individually aimed and locked, covering an entire car park perimeter, open retail floor, or transport interchange from one pole or ceiling mount. With IP67 weather resistance, IK09 impact protection, 360-degree IR illumination, AXIS Object Analytics, and Zipstream compressing H.265 streams without sacrificing evidential detail, the P3727-PLE suits both new builds and retrofits where conduit runs are fixed and adding extra camera positions is not practical or cost-effective.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Single-Conduit Retrofits: One cable run, one mounting point, 4 camera channels. When running additional conduit through an existing structure is cost-prohibitive, the P3727-PLE replaces what would otherwise require 3 or 4 separate camera positions.
• Transport Infrastructure Operators: Bus interchanges, rail platforms, and ferry terminals need simultaneous coverage in multiple directions from overhead mounts. Independent head aiming means each platform lane or boarding zone gets its own dedicated stream.
• Retail Loss Prevention Managers: Large open floor layouts - hardware stores, warehouse retail, and supermarkets - use this camera mounted at ceiling structural points to cover multiple aisles and cross-aisle sightlines from a single overhead position.
• Campus and Facility Security Teams: Car parks, open courtyards, and building perimeters with corner or central pole positions benefit from covering all approach directions simultaneously. IK09 impact rating adds tolerance to the incidental knocks common in high-traffic outdoor environments.

Honest Assessment

The P3727-PLE genuinely earns its place where coverage planning requires multiple simultaneous sightlines from one mount. The combination of individually aimed varifocal heads, per-sector IR illumination, Forensic WDR, and on-board AXIS Object Analytics at 4 x 1080p is a strong specification for open-area and perimeter work. Zipstream meaningfully reduces the storage and bandwidth overhead of running 4 continuous streams. IP67 and IK09 ratings mean the housing holds up in outdoor and semi-industrial environments without additional protection. Available through Security Australia, this model is stocked for integrators who need reliable access rather than extended lead times. Where this camera is not the right call: applications requiring long-range identification along a single narrow approach are better served by a varifocal bullet or motorised-zoom PTZ. Indoor ceiling installations where a discreet low-profile dome is specified - particularly in heritage or retail fit-out environments - will find the multi-head form factor visually intrusive.

Before You Buy

Quick Fit Check

• Good match if: You need to cover 3 or 4 distinct directions from a single mounting point - such as a central car park pole or outdoor courtyard column - and want each direction recorded as its own independent 1080p stream with on-board object classification.
• Good match if: Your installation has a fixed conduit run to one position and expanding to additional camera drops is not practical - the 4 individual varifocal heads and 360-degree IR allow genuine multi-sector coverage without additional cabling infrastructure.
• You may need a different model if: Your primary requirement is long-range identification down a single corridor, driveway, or access road - a motorised-zoom PTZ or long-range varifocal bullet camera will deliver greater reach and detail in that single-axis application. Browse PTZ and bullet camera options at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires simultaneous multi-direction recording from a single mounting point and you need each direction as its own independent 1080p channel with on-board object classification - not a stitched panoramic tile.
• You may need a different model if: Your primary requirement is tracking a moving subject across a large open area or following activity down a single long approach - a motorised PTZ with optical zoom and auto-tracking is better suited to that use case. PTZ options are available at securityaustralia.com.au.
• Pairs well with: A PoE+ network switch with adequate per-port power budget, and a multi-channel NVR or VMS capable of recording 4 simultaneous 1080p streams per camera position.

Common Questions

1. Does the P3727-PLE produce a single 360-degree stitched image or 4 separate video streams?

   Four separate streams. Each of the 4 camera heads outputs its own independent 1920x1080 channel - your NVR or VMS receives and records them as 4 discrete video inputs. There is no stitching engine merging them into a single panoramic tile. This is a deliberate design choice: each channel maintains full 1080p resolution and its own analytics instance, rather than dividing a single sensor across a wide view and reducing per-zone detail.

2. What field of view does each camera head actually cover, and how does the varifocal range affect coverage distance?

   At the 4x1080p capture mode, each head covers between 49-96 degrees horizontally depending on zoom position. At the wide end (3 mm, ~96 degrees horizontal), each head covers a broad sector at shorter usable range - suited to open areas where object classification rather than identification at distance is the priority. Zoomed toward 6 mm (~49 degrees horizontal), each head narrows its sector and pushes observable range further out - useful when a specific entry point or lane needs tighter framing. DORI distances are not published in the confirmed specification set, so integrators should conduct a site test at the intended mount height using Axis's camera selector tool before finalising head positions.

3. Will this camera work in complete darkness?

   Yes. With IR active, minimum illumination reaches 0 lux on each channel in B/W mode. The 360-degree IR LEDs are individually controllable per sector, so each head illuminates its own aimed zone rather than flooding a single direction. Colour imaging is maintained down to 0.17 lux (with Forensic WDR and Lightfinder) before the automatic IR cut filter removes and the camera transitions to B/W IR mode.

4. Does this camera support two-way audio?

   Not natively. The P3727-PLE does not have a built-in microphone or speaker. Two-way audio connectivity requires the optional AXIS T61 Audio and I/O Interface with portcast technology, and that configuration additionally requires a 30 W midspan or higher between the T61 interface and the camera. If audio is a core requirement for your installation, confirm the T61 accessory is part of your specification before procurement.

5. How much does Zipstream actually reduce storage when running 4 simultaneous 1080p streams?

   The reduction varies by scene complexity, but Axis Zipstream in H.265 mode dynamically drops the bitrate during low-activity periods while maintaining full quality when motion or object events occur. For a 4-channel deployment running continuously, the combined storage saving across all streams can be substantial over a 30-day retention period. Zipstream supports VBR, ABR, and MBR rate control in both H.264 and H.265 - giving integrators the flexibility to set maximum bitrate caps per channel while allowing the codec to reduce below that ceiling when the scene is static.

6. Does this camera work outdoors in Australian weather conditions?

   Yes. The P3727-PLE carries an IP67 rating, meaning the housing is fully dust-tight and protected against temporary water immersion. IK09 impact resistance means the housing withstands a 10-joule impact - relevant for outdoor pole-mounted or exposed eave installations. Both ratings are confirmed in the product specification. The camera is designed for permanent outdoor installation without additional enclosures.

7. Is the P3727-PLE compatible with third-party VMS platforms?

   Yes, in most cases. The camera streams H.264 and H.265 over standard ONVIF-compatible protocols and is compatible with the Axis Camera Application Platform. Most enterprise VMS platforms including Milestone, Genetec, and Avigilon have published Axis device integration. Because the camera presents as 4 independent channels, confirm your VMS licence covers the total channel count - a single P3727-PLE consumes 4 camera licences in platforms that licence per channel. The Security Australia team can assist with specification queries if you are confirming VMS compatibility before purchase.
