AXIS P1245 Mk II Modular Standard Camera Discreet 1080p Indoor Surveillance with Deep Learning & Flexible Installation

Model: AXIS P1245 Mk II

Who This Is For

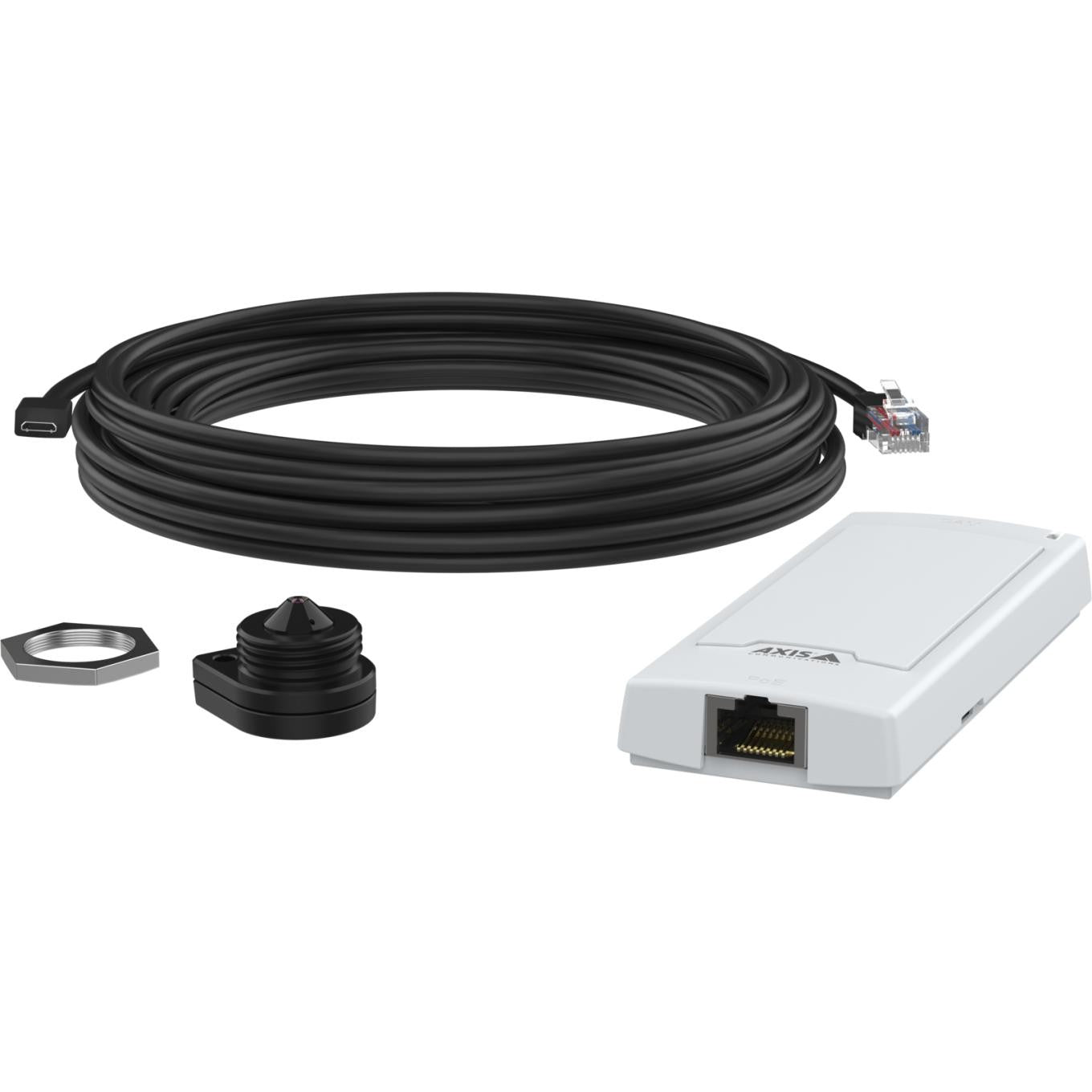

When discreet placement is the priority without sacrificing image quality or analytics capability, the AXIS P1245 Mk II is the camera installers reach for. Its modular design separates the sensor unit from the main processing unit, allowing the tiny sensor head to sit flush behind a pinhole aperture in a ceiling tile, wall panel, or custom enclosure while the processing unit is hidden elsewhere. This makes it the right fit for environments where a visible camera would alter behaviour, undermine the purpose of monitoring, or simply conflict with interior design requirements. Retail loss prevention teams, corporate HR departments monitoring sensitive areas, reception desks, interview rooms, and high-end hospitality venues all represent typical deployments. Installers also use the P1245 Mk II in covert upgrade projects where existing infrastructure needs a modern 1080p sensor with deep learning analytics dropped in without drawing attention.

What This Camera Actually Does

Who Buys This Model

• Retail Loss Prevention Teams: Deploying covert coverage at POS counters, fitting rooms, and high-value merchandise areas where a visible dome would alert subjects and change behaviour before an incident is recorded.
• Corporate Security Managers: Monitoring cash-handling rooms, server access points, and HR interview rooms in office environments where camera visibility would compromise the purpose of the installation.
• Hospitality and Gaming Venues: Installing discreet surveillance at cashier desks, bar counters, or back-of-house areas where visible cameras conflict with venue aesthetics or customer experience expectations.
• Security Integrators on Upgrade Projects: Replacing ageing covert SD cameras in existing installations that need 1080p resolution and on-camera deep learning analytics within the same concealed format.
• Investigative Deployments: Short or medium-term covert setups in internal investigation scenarios where the modular design allows rapid, clean installation and removal without structural modification.

Honest Assessment

The AXIS P1245 Mk II does what very few cameras in this category manage well: it pairs a genuinely small, concealable sensor unit with serious on-camera processing. The ARTPEC-7 chipset running AXIS Object Analytics is not a trimmed-down analytics stack - it is the same deep learning engine found in Axis fixed cameras costing considerably more. The 1080p resolution, H.265 compression, and WDR handling are all practical rather than headline-only specs. For covert indoor work, this is a well-engineered, fit-for-purpose unit available through Security Australia. That said, there are clear limits: this camera has no IR illumination, so it requires adequate ambient light to produce usable footage. It is also an indoor-only device and is not rated for external use. If the monitoring area is unlit at night or the application involves outdoor covert surveillance, a different camera type is required. For wide-area open-plan coverage where concealment is not a priority, a standard fixed or dome camera will deliver a wider field of view at lower cost.

Before You Buy

Quick Fit Check

• Good match if: You need 1080p covert indoor surveillance where the sensor must be hidden behind a pinhole aperture and the processing unit can sit in a nearby concealed space - retail counters, interview rooms, and back-of-house areas with adequate lighting.
• Good match if: You are running an AXIS-based VMS and want on-camera AXIS Object Analytics with human and vehicle classification without adding server-side processing load - the ARTPEC-7 handles this locally.
• You may need a different model if: The monitored area has low or no ambient light at night - a camera with built-in IR illumination or a low-light fixed dome would be more appropriate for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Concealment is the primary requirement and the space has adequate ambient lighting - the modular sensor architecture and ARTPEC-7 deep learning deliver a level of analytics capability that is rare in the covert camera category.
• You may need a different model if: The monitored area has periods of low or zero ambient light - a fixed dome or turret camera with built-in IR illumination would be more appropriate for mixed-light or after-hours indoor coverage.
• Pairs well with: A compatible AXIS network video recorder or VMS platform with ONVIF Profile T support, and an edge storage MicroSDXC card for local redundancy.

Common Questions

1. Does the AXIS P1245 Mk II work in low light or darkness?

   No. The P1245 Mk II has no built-in IR illumination and requires adequate ambient light to produce usable footage. If the monitored space is partially or fully unlit at night, this camera will not perform acceptably in those conditions. The design prioritises covert installation form factor over low-light capability - if both are required, a different camera type with integrated IR is necessary.

2. How far apart can the sensor unit and main unit be installed?

   The sensor unit connects to the main unit via a dedicated multi-connector cable supplied with the camera. The maximum cable distance between the 2 units is defined by the Axis-specified cable length for the P1245 Mk II - confirm this figure in the Axis datasheet before planning an installation where the main unit will be routed to a remote enclosure or ceiling void. Exceeding the rated cable length will cause signal and power issues.

3. Will this camera work with a non-Axis NVR or VMS?

   Yes, in most cases. The P1245 Mk II supports ONVIF Profile S, Profile G, and Profile T, which provides baseline compatibility with the majority of IP video management systems and network recorders that are ONVIF-compliant. However, AXIS Object Analytics and some Axis-specific streaming features function fully only within Axis-compatible platforms such as AXIS Camera Station or AXIS Video Management Software. Confirm ONVIF profile support with your VMS vendor before deploying.

4. What does AXIS Object Analytics actually do on this camera?

   It classifies detected objects as humans or vehicles using deep learning processed on-camera by the ARTPEC-7 chip. This means the camera generates event triggers based on object type rather than raw pixel motion - a piece of paper blowing past or a light change will not trigger a human detection alert. Scenarios can be configured to trigger on line crossing, area entry, or loitering, with classification filtering applied before any alert is sent to the VMS or recorder.

5. Does this camera support edge storage if the network goes down?

   Yes. The P1245 Mk II includes a MicroSD/MicroSDHC/MicroSDXC card slot for local edge recording. When configured, the camera can record to the card as a primary stream or as a fallback if the NVR connection is interrupted. This is particularly useful in covert deployments where network reliability or recorder accessibility may be variable, and where gaps in the recorded footage would undermine the evidentiary value of the installation.

6. Does the P1245 Mk II require PoE+ or will standard PoE work?

   Standard IEEE 802.3af PoE is sufficient for the P1245 Mk II. PoE+ (802.3at) is not required. A standard PoE switch or injector with 802.3af output will power the camera normally. This keeps infrastructure costs lower compared to cameras that demand the higher wattage of PoE+, and means the camera is compatible with a wider range of existing PoE switching infrastructure. The team at Security Australia can advise on compatible PoE switch options if needed.

7. Is the P1245 Mk II suitable for outdoor covert installations?

   No. The P1245 Mk II is rated for indoor use only and is not designed to withstand moisture, condensation, or temperature extremes associated with outdoor environments. It has no IP weather rating for external installation. For covert outdoor surveillance, a different camera type with an appropriate IP ingress protection rating and suitable housing would be required.
