- Sku: AXIS M4327-P
- Vendor: SecurityAustralia

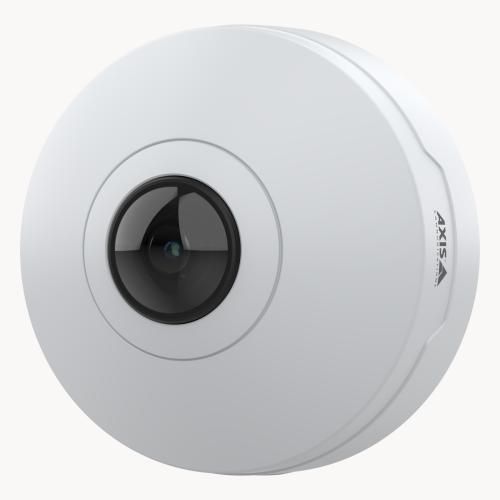

AXIS M4327-P Panoramic Camera
Built as a 6MP panoramic fisheye camera for indoor wide-area surveillance, the AXIS M4327-P delivers full 360° or 180° coverage with no blind spots and up to 4 simultaneous dewarped view areas. Powered by the ARTPEC-8 chip with an onboard deep learning processing unit, it runs AXIS Object Analytics directly on the camera for intelligent edge detection. Note: two-way audio requires external microphone and speaker connections.
Why This Model
- One camera, zero blind spots: The 182° fisheye lens covers an entire room in a single install, with up to 4 independently configurable dewarped view areas streamed simultaneously - replacing multiple cameras in open-plan or retail spaces.
- On-camera AI without a server: The ARTPEC-8 DLPU runs AXIS Object Analytics locally, classifying moving objects in real time without relying on a separate analytics server or cloud processing.
- Remote alignment after install: Digital roll (±180°) lets you correct camera orientation remotely, avoiding the need to physically reposition a ceiling-mounted unit after installation.
| Camera Specifications | |
|---|---|
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | 1.1 mm, F2.2 Horizontal field of view: 182° Vertical field of view: 182° Fixed iris, fixed focus, IR corrected |
| Day and Night | Automatic IR-cut filter |
| Minimum Illumination | Color: 0.16 lux at 50 IRE, F2.2 B/W: 0.03 lux at 50 IRE, F2.2 |
| Shutter Speed | 1/33500 s to 1/5 s |
| Camera Angle Adjustment | Digital roll: ±180° |
| System on Chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 2048 MB RAM 8192 MB Flash |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | Overview: 2160x2160 to 160x160 (1:1) Panorama: 2560x1440 to 192x72 (8:3, 16:9 or 32:9) Double panorama: 2560x1920 to 256x192 (4:3 or 16:9) Quad view: 2560x1920 to 256x192 (4:3 or 16:9) View area 1-4: 1920x1440 to 256x144 (4:3 or 16:9) Corner left/right: 2368x1184 to 192x72 (2:1 or 8:3) Double corner: 2016x2016 to 256x192 (1:1 or 4:3) Corridor: 2560x1920 to 256x144 (4:3 or 16:9) |
| Frame Rate | 360° overview only up to max resolution without WDR: 50/60 fps @ 50/60 Hz 360° overview and 4 dewarped views up to max resolution with WDR: up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
| WDR | Forensic WDR: Up to 120 dB depending on scene |
| Noise Reduction | Spatial filter (2D noise reduction) Temporal filter (3D noise reduction) |
| Image Settings | Saturation, contrast, brightness, sharpness, local contrast, tone mapping, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring, dynamic text and image overlay, polygon privacy mask |
| Image Processing | Axis Zipstream, Forensic WDR |
| Pan/Tilt/Zoom | Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views, preset positions, guard tours |
| Audio | |
| Audio Streaming | Two-way |
| Audio Encoding | AAC LC 8/16/32 kHz, G.711, G.726 |
| Audio Input/Output | External microphone (line in), stereo (mono audio stream) Line output, stereo (mono audio stream) |
| Network | |
| Network Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog, Link-Local address, MQTT, AVHS, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, ONVIF Profile M |
| Network Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X (EAP-TLS), digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, cross-origin resource sharing, hardware root of trust |
| Integration Systems | Application Programming Interface (API) including VAPIX®, RTSP, ONVIF Profile S, ONVIF Profile G, ONVIF Profile T, ONVIF Profile M, metadata streaming, MQTT publish, Edge storage API, built-in installation aids |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
AXIS M4327-P Panoramic Camera
Model: AXIS M4327-P
Who This Is For
For security integrators and facility managers who need complete area coverage from a single ceiling-mounted camera, the AXIS M4327-P delivers 360-degree panoramic oversight without the blind spots that come from stitching together multiple fixed cameras. This is a compact indoor fisheye designed for spaces where coverage density matters - think open-plan retail floors, reception lobbies, transit concourses, and warehouse interiors where multiple camera positions would otherwise be required. The M4327-P streams up to 4 individually configurable dewarped view areas simultaneously from one camera head, making it a practical choice when camera count, cabling cost, and ceiling aesthetics are all factors in the specification. Built on the ARTPEC-8 processor with an onboard deep learning processing unit, it also supports AXIS Object Analytics and ACAP applications for sites that need more than passive recording - detection, classification, and metadata output included.
What This Camera Actually Does
360-Degree Panoramic Overview
The 1.1 mm F2.2 fisheye lens captures a full 182-degree field of view horizontally and vertically. In practice, one ceiling-mounted unit covers an entire room without a single blind corner - reducing the number of camera positions needed in open-plan spaces significantly.
4 Simultaneous Dewarped View Areas
The camera streams up to 4 individually configurable view areas at the same time, each with digital PTZ. Operators can monitor entry points, aisles, and counters in separate windows without switching feeds - all from a single PoE connection to one camera.
Forensic WDR Up to 120 dB
Axis Forensic WDR handles up to 120 dB dynamic range, keeping detail in both sunlit windows and shadowed interior areas in the same frame. Useful in lobbies and retail spaces where bright entryways and darker interior zones appear in a single panoramic shot.
Deep Learning on the Edge
The ARTPEC-8 SoC includes a dedicated deep learning processing unit. AXIS Object Analytics runs locally, detecting and classifying moving objects - people, vehicles - without sending data to a server first. This reduces network load and enables faster event-triggered responses.
Axis Lightfinder 2.0 Low-Light Performance
The 1/1.8" progressive scan CMOS sensor achieves a minimum colour illumination of 0.16 lux and 0.03 lux in black and white mode. In dimly lit corridors or after-hours retail floors, the camera continues producing usable colour footage at very low ambient light levels.
Zipstream Bandwidth Savings
Axis Zipstream works across both H.264 and H.265, dynamically reducing bitrate in static areas of the frame while preserving detail where motion or detail is detected. On a multi-camera system, this measurably reduces storage consumption and NVR drive costs over time.
Who Buys This Model
- Retail loss prevention teams: A single M4327-P ceiling-mounted above a retail floor delivers 360-degree coverage of aisles, shelving, and point-of-sale areas simultaneously - reducing camera count without sacrificing viewable coverage zones.
- Corporate building managers: Reception areas, open-plan offices, and lift lobbies benefit from the quad view streaming, allowing security staff to monitor all approach directions from one feed without multiple camera installations.
- Transit and venue operators: Concourses, waiting areas, and ticketing halls where high foot traffic needs wide-area monitoring without ceiling clutter - the compact, repaintable housing blends with architectural finishes.
- Security integrators specifying Axis ecosystems: Sites already running AXIS Camera Station or third-party VMS with Axis integration benefit directly from ACAP v4 application support and AXIS Object Analytics metadata output for advanced event workflows.
- Facility managers with storage cost constraints: Zipstream in H.265 alongside the ARTPEC-8 processor delivers meaningful bitrate reduction on multi-camera deployments where NVR storage and network bandwidth are fixed resources.
Honest Assessment
The AXIS M4327-P genuinely delivers on wide-area indoor coverage. The combination of a 6 MP sensor, ARTPEC-8 processing, Forensic WDR up to 120 dB, and 4 simultaneous dewarped streams makes it a strong specification for open-plan interiors where camera count reduction is a real project goal. The deep learning processing unit supporting AXIS Object Analytics on the edge is a practical advantage - not a marketing claim - for sites that need event-based alerting without server-side processing overhead. Digital roll functionality also means the camera can be remotely repositioned after installation without a technician visit to physically rotate the unit. Where the M4327-P will not serve well is in outdoor applications or environments with impact exposure - this is an indoor unit and carries no confirmed IP or IK weather/impact rating for exterior use. Sites requiring outdoor panoramic coverage or long-range perimeter monitoring should look at dedicated outdoor panoramic or multi-sensor options available through Security Australia.
Before You Buy
Installer Note: The M4327-P streams up to 4 dewarped view areas simultaneously with WDR active at up to 25/30 fps at 50/60 Hz. If you need the higher 50/60 fps frame rate, note this is available on the 360-degree overview stream only and without WDR active. Plan your VMS stream configuration and storage calculations around the dewarped multi-view mode if operators require simultaneously monitored zones - that is the typical working configuration and the frame rate and bitrate figures differ from single-stream overview mode.
Audio Note: The M4327-P supports two-way audio streaming but uses external microphone line-in and line output connections - there is no built-in speaker or integrated microphone on this unit. If your site requires audio capability, external microphone and speaker hardware will need to be factored into the installation plan and cabling schedule.
Quick Fit Check
- Good match if: You need to cover a large open indoor area - retail floor, lobby, or concourse - from a single ceiling-mount point and want 4 simultaneous operator-configurable view areas without running multiple camera drops.
- Good match if: Your project requires edge-based object detection and classification via AXIS Object Analytics, reducing reliance on server-side analytics and enabling faster local event responses on the ARTPEC-8 processor.
- You may need a different model if: Your installation is outdoors or in an environment subject to weather, dust, or physical impact - an outdoor-rated panoramic or multi-sensor camera designed for exterior use will be more appropriate for those conditions.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: Your priority is maximising indoor area coverage from minimal camera positions, with edge-based object analytics and 4 simultaneous configurable view areas from a single PoE ceiling mount.
- You may need a different model if: Your site requires outdoor panoramic coverage or long perimeter monitoring - a multi-sensor outdoor panoramic camera with IP66/IP67 weatherproofing will be a better fit for those environments.
- Pairs well with: A PoE-capable NVR or network switch with Axis ONVIF-compatible VMS, plus an Axis-compatible external microphone if two-way audio functionality is required at the installation point.
Common Questions
-
Can the AXIS M4327-P be installed outdoors?
No. The M4327-P is an indoor camera with no confirmed IP weather rating or IK impact rating for exterior use. Installing it in an exposed outdoor environment - even under an eave - risks water ingress and damage. Sites requiring outdoor panoramic coverage should look at a purpose-built outdoor multi-sensor or panoramic camera rated to at least IP66. -
Does this camera have a built-in microphone and speaker for two-way audio?
No. The M4327-P supports two-way audio streaming but relies on external hardware. It has a line-in connection for an external microphone and a line output for an external speaker. There is no built-in microphone or integrated speaker in the camera housing itself. If two-way audio is a project requirement, budget for and plan the additional external audio hardware accordingly. -
Will this camera work with non-Axis VMS platforms?
Yes, in most cases. The M4327-P uses standard ONVIF protocols and supports H.264, H.265, and Motion JPEG streaming, which are compatible with the majority of third-party VMS platforms. Note that advanced features such as AXIS Object Analytics metadata integration and ACAP application management may require the Axis-native management interface or a VMS with specific Axis driver support to access fully. -
How does the digital PTZ work - is it the same as optical PTZ?
No - the digital PTZ on the M4327-P is not the same as optical PTZ. There is no motorised lens or mechanical pan/tilt mechanism. Digital PTZ works by electronically cropping and zooming into regions of the fisheye image that has already been captured. This means zooming into a dewarped view area does reduce pixel density in that region. The camera supports preset positions and guard tours within its digital PTZ view areas, but the overall resolution available in any given zoomed view is a function of the original 6 MP capture - not optical zoom magnification. -
What is the difference between the 360-degree overview stream and the dewarped view areas?
The 360-degree overview is the raw fisheye circular image corrected to a flat panoramic format - it gives the widest possible view of the space but the image is geometrically transformed and detail density is spread across the full field. The dewarped view areas are software-corrected rectangular views extracted from the fisheye image, making them easier to interpret and monitor in a standard VMS grid layout. The camera can deliver up to 4 of these simultaneously. The overview stream supports up to 50/60 fps without WDR, while the multi-view dewarped configuration with WDR active runs at up to 25/30 fps. -
How accurate is AXIS Object Analytics on this camera and what does it actually detect?
AXIS Object Analytics on the ARTPEC-8 processor classifies moving objects as humans or vehicles, and can be configured to trigger events based on object type, zone crossing, or area occupancy. The detection runs locally on the camera's dedicated deep learning processing unit without requiring a separate server. Classification accuracy depends on scene conditions - camera height, lighting, and object size in frame all affect performance. The camera also produces structured metadata output that enables fast forensic search through recorded footage. Security Australia stocks the full Axis range if you need advice on matching analytics capability to a specific use case. -
Does the M4327-P support local storage, and what are the power requirements?
No onboard SD card slot is confirmed in the available specifications for the M4327-P - storage should be planned via NVR or network storage. For power, the camera uses standard Power over Ethernet (PoE), meaning a single Cat5e or Cat6 cable from a PoE switch or injector handles both power delivery and data. No separate power supply is required at the camera end, which simplifies ceiling installations considerably.
