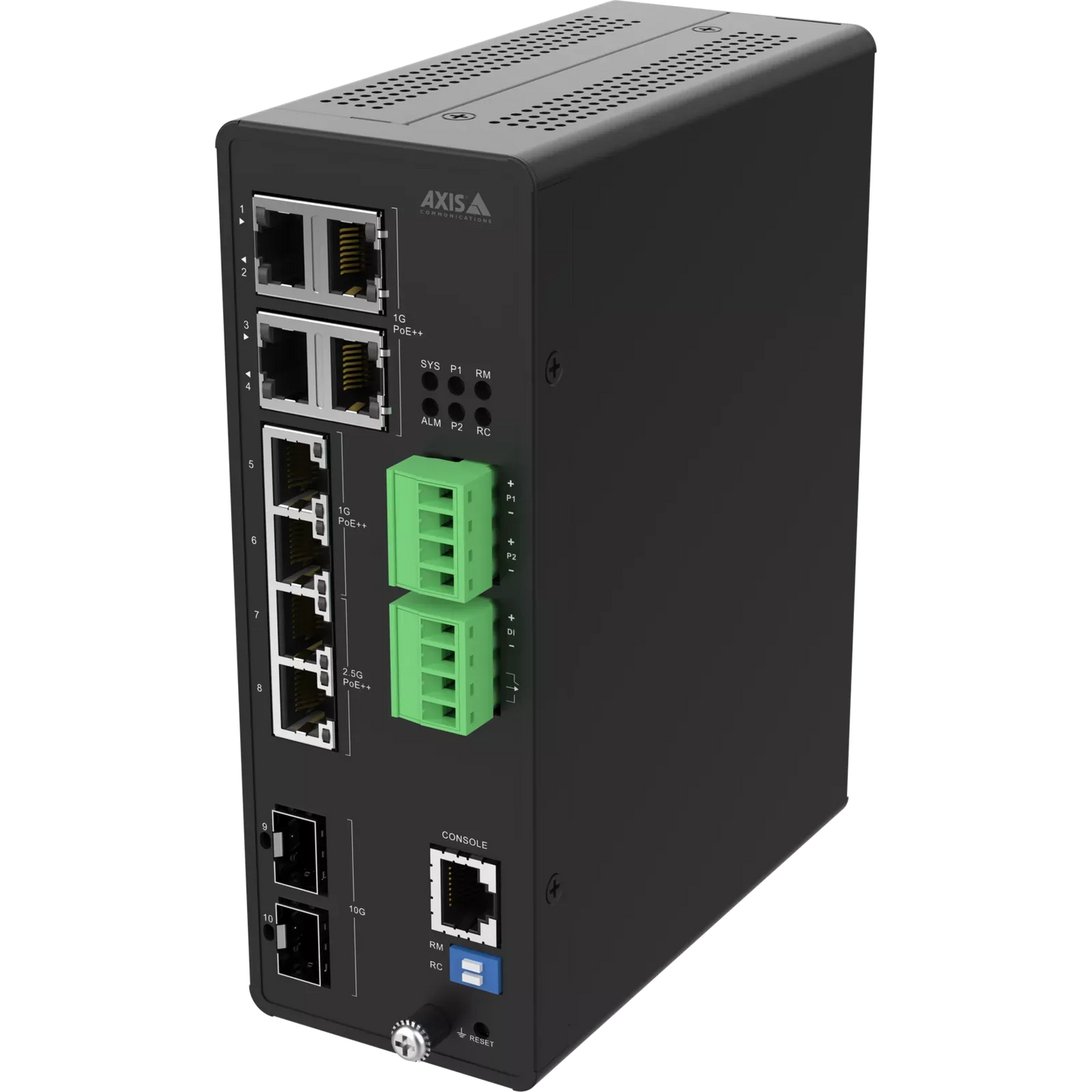

AXIS D8208-R Industrial PoE++ Switch – Rugged, High-Power Network Solution for Critical Surveillance

Model: D8208-R

Who This Is For

For installers and network engineers who need to power and connect high-demand surveillance devices in locations where standard switches simply will not hold up. The AXIS D8208-R is an industrial-grade PoE++ switch built for harsh deployment environments - think traffic intersections, mining site perimeters, rail platforms, outdoor cabinet enclosures, and manufacturing facilities where temperature swings, vibration, and continuous uptime are non-negotiable. With 8 ports delivering PoE++ power output, it supports power-hungry devices including multi-sensor cameras, PTZ units, and access control hardware without requiring separate power injectors. If you are specifying infrastructure for a critical surveillance network where a switch failure means camera downtime across an entire zone, the D8208-R is the component-level answer to that problem.

What This Switch Actually Does

Who Buys This Model

• Traffic and Transport Authorities: Deploying camera clusters at intersections or along rail corridors where roadside cabinets need a switch that handles wide temperature ranges, vibration, and continuous uptime without fan cooling or climate control.
• Mining and Resources Site Integrators: Installing perimeter surveillance across sites where dust, heat, and physical vibration rule out standard commercial switches, and where high-power PTZ cameras need PoE++ rather than separate power supplies.
• AXIS-Centric System Integrators: Specifying end-to-end AXIS infrastructure where the switch, cameras, and management platform all sit within the same ecosystem for simplified commissioning and fault diagnosis.
• Critical Infrastructure Operators: Water treatment, power generation, and port facilities where a switch failure is a security event, not just an IT inconvenience, and industrial-rated components are a procurement requirement.

Honest Assessment

The D8208-R does one thing particularly well: it gives integrators a switch they can install inside an outdoor cabinet or industrial enclosure and trust to run without intervention. The combination of PoE++ output, rugged housing, and DIN rail form factor removes three separate engineering problems - insufficient power budget, environmental exposure, and cabinet space - in a single component. For AXIS-based deployments, the native ecosystem compatibility is a genuine time-saver during commissioning.

Where it is not the right fit: if your installation is a standard indoor comms room or server rack environment, a commercial managed switch will offer more port density, richer VLAN and QoS configuration options, and lower cost per port. The D8208-R is priced for industrial reliability, not office IT budgets. It is available through Security Australia for projects where that industrial specification is genuinely required.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a switch inside an outdoor roadside or industrial cabinet and need PoE++ to power high-draw cameras without running separate 240V to each device.
• Good match if: Your project specifies an all-AXIS infrastructure stack and you want the switch to sit within the same management and diagnostic ecosystem as the cameras and controllers.
• You may need a different model if: Your deployment is a standard indoor rack environment - a commercial managed switch will provide more port density, richer management features, and better value per port for that application. Browse the network infrastructure range at securityaustralia.com.au for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation is in an outdoor cabinet, industrial enclosure, or harsh environment where temperature extremes, vibration, or fanless operation requirements rule out commercial-grade switches, and where connected devices require PoE++ power levels.
• You may need a different model if: Your deployment is a standard indoor server room or comms rack - commercial managed switches at this port count will offer greater VLAN depth, more uplink options, and lower cost per port for controlled-environment installations.
• Pairs well with: High-power AXIS PTZ cameras, AXIS multi-sensor cameras, AXIS access control hardware, and AXIS Network Video Recorders in a unified managed infrastructure stack.

Common Questions

1. Will the D8208-R power standard PoE and PoE+ cameras, or only PoE++ devices?

   Yes. IEEE 802.3bt PoE++ switches are backward compatible with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) devices. If you connect a standard 15W PoE camera, the switch negotiates the correct power level automatically - you are not locked into only PoE++ devices. This makes the D8208-R suitable for mixed deployments where some cameras are high-draw PoE++ units and others are standard PoE.

2. Does this switch require a fan or active cooling to operate in outdoor enclosures?

   No. The D8208-R is a fanless design, which is a key reason it is suited to sealed or semi-sealed industrial enclosures. Fans are a common failure point in outdoor cabinets due to dust ingress and bearing wear. Fanless operation removes that maintenance risk and makes the switch viable in enclosures where filtered airflow is not available.

3. How do I calculate whether 8 ports is enough for my camera zone?

   Start with the number of devices per field location. A typical intersection cluster or building face runs 4-8 cameras, which maps directly to the D8208-R's port count. Where a single zone exceeds 8 devices, a second unit can be deployed in the same cabinet. Factor in whether any ports are needed for uplink or non-camera devices such as access control readers or intercoms when calculating available camera ports.

4. Will this switch work with non-AXIS cameras and third-party VMS platforms?

   Yes. The D8208-R is a standard IEEE 802.3bt network switch and will power and connect any PoE-compatible IP camera or network device regardless of brand. AXIS Camera Station integration is a benefit when the wider system is AXIS-based, but it is not a requirement for basic switch operation. Third-party VMS platforms including Milestone, Genetec, and Avigilon communicate with cameras through the switch without compatibility issues.

5. Does the D8208-R support managed switch features like VLANs and QoS?

   Confirm managed feature depth in the AXIS D8208-R datasheet before specifying this unit for complex network segmentation. For surveillance networks, QoS prioritisation of video traffic over other data is particularly relevant where the switch carries mixed traffic types. Security Australia stocks the D8208-R alongside supporting AXIS infrastructure products - check the full datasheet for port management, VLAN tagging, and trunk configuration details.

6. What cable type and maximum run length applies to the PoE++ ports?

   Standard Cat5e or Cat6 cabling applies, with a maximum PoE cable run of 100 metres per IEEE standards. For PoE++ at higher power levels, Cat6 is preferred to minimise resistive loss over longer runs. If your camera-to-switch distances exceed 100 metres, a fibre uplink with a remote PoE injector or a second switch at the field location is the correct design approach - do not extend PoE runs beyond the 100m limit.

Downloads & Resources

No downloads available for this product.
