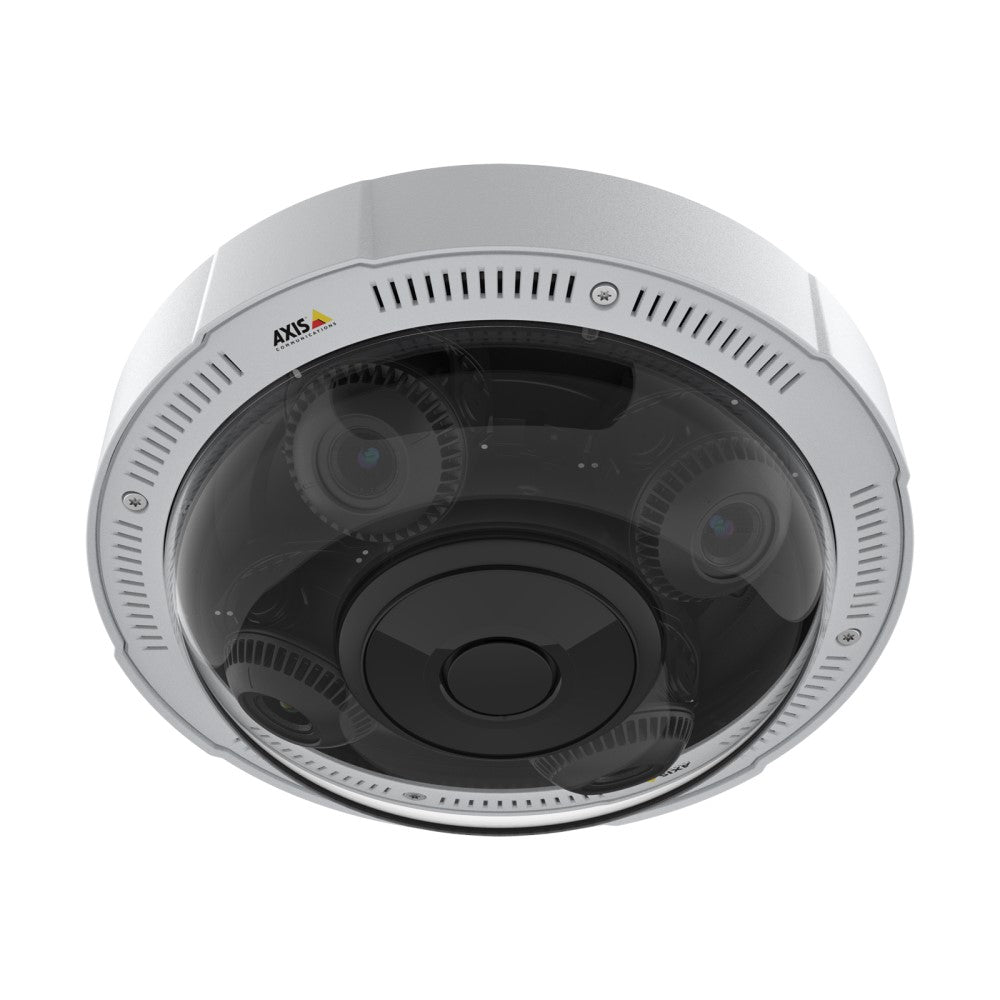

Axis AXIS-02218-001 P3727-PLE 4x 2MP Panoramic Camera, 360deg IR, IP67, IK09

Model: AXIS-02218-001

Who This Is For

When covering a large open area from a single mounting point without compromise is the priority, the Axis P3727-PLE is built for exactly that challenge. Specifying engineers, integrators working on commercial or critical-infrastructure projects, and security managers responsible for wide-area sites - car parks, transit hubs, logistics yards, campus perimeters, and large retail floors - will find this camera purpose-built for positions where running multiple fixed cameras creates complexity without improving coverage. Four independently adjustable 2MP varifocal sensor heads each deliver full 1080p, and because every head can be individually aimed and zoomed via remote focus and zoom, a single ceiling or pole-mount point can cover 4 distinct directions simultaneously. The 360-degree IR illumination with individually controllable LEDs means night coverage across all 4 fields of view without positioning separate IR units. This is a specification-grade product for sites where camera count reduction, precise directional control, and on-board analytics all need to work together.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Commercial Projects: Specifying a single IK09-rated, IP67 camera that replaces 4 fixed cameras at a junction point - reducing conduit runs, switch ports, and NVR channels while maintaining individual directional coverage.
• Transport and Transit Operators: Monitoring station concourses, bus interchanges, or airport terminal zones where a single mounting position needs to cover multiple pedestrian flows simultaneously with full 1080p resolution per direction.
• Logistics and Warehousing Managers: Covering loading dock junctions, yard entry points, or internal warehouse intersections where vehicle and personnel activity needs to be captured in 4 directions without blind zones, especially after hours when IR performance is critical.
• Campus and Education Security Teams: Monitoring open quadrangles, multi-entry foyers, or car park boom-gate areas where multiple directions need surveillance from a single vandal-resistant (IK09) pole or ceiling mount.
• Critical Infrastructure Site Managers: Utility substations, data centres, and government facilities where AXIS Edge Vault device identity protection and on-board MLPU analytics align with hardened cybersecurity and detection requirements.

Honest Assessment

The P3727-PLE does several things genuinely well: delivering 4 independently managed 1080p streams with remote varifocal adjustment from a single PoE-powered body is a real operational advantage on sites where camera count and cabling complexity need to be minimised. The IK09 vandal rating, IP67 sealing, individually controlled 360-degree IR, on-board ARTPEC-7 MLPU running AXIS Object Analytics, and AXIS Edge Vault cybersecurity layer make this a specification-grade product that holds up in demanding commercial and critical-infrastructure environments. Available through Security Australia, it carries the full Axis warranty and firmware support chain.

What it will not do: this is not the right product for sites requiring motorised pan-tilt-zoom tracking of a moving target across a wide area - a PTZ camera handles that. It also does not include built-in audio hardware; two-way audio requires an optional AXIS T61 Audio and I/O Interface with portcast technology and a 30W midspan, adding cost and complexity. Buyers comparing this against a fisheye single-sensor panoramic should note the P3727-PLE trades the single stitched overhead view for 4 separate directional streams with superior per-channel resolution and IR range.

Before You Buy

Quick Fit Check

• Good match if: You need to cover 4 distinct directions from a single outdoor mounting point - pole top, eave junction, or ceiling at a multi-corridor intersection - with full 1080p per direction and IR night vision, and want to reduce cabling runs versus deploying 4 separate fixed cameras.
• Good match if: Your site has a hardened cybersecurity requirement and needs on-device AI object classification with low false-alarm rates - the ARTPEC-7 MLPU running AXIS Object Analytics and AXIS Edge Vault device identity protection address both without a separate analytics server.
• You may need a different model if: Your primary requirement is actively tracking a single moving subject across a large open area - a motorised PTZ camera with auto-tracking is better suited to that application and is worth comparing on the Security Australia site.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4 individually directed and zoomed 1080p streams from one mounting point, particularly where cabling reduction and on-device AI classification without a server licence matter - and where the site requires IK09 vandal resistance and IP67 outdoor sealing.
• You may need a different model if: Your requirement is continuous pan-tilt-zoom tracking of a moving subject across a large open space - a motorised PTZ camera handles active target tracking in a way a multi-sensor fixed-head camera cannot.
• Pairs well with: A PoE+ managed switch with VLAN capability for stream segregation, and a VMS or NVR platform with confirmed multi-channel single-device support and Axis integration.

Common Questions

1. Does the P3727-PLE count as 1 camera or 4 on my NVR?

   It depends entirely on your NVR or VMS platform. The P3727-PLE has one IP address and one physical body, but it outputs 4 independent 1080p video streams. Most professional NVR and VMS platforms licence by channel or stream, which means this camera typically occupies 4 channels in your recording system, not 1. Confirm with your VMS vendor before purchasing - this is the most common planning error on first installations of multi-sensor cameras.

2. Can I adjust each camera head independently after installation?

   Yes. Each of the 4 sensor heads has independent physical adjustment for pan (±90°), tilt (+25 to +95°), rotation (-5 to +95°), and twist (±20°). Physical head angles need to be set during mounting, but remote zoom and focus can be adjusted after the camera is installed via the software interface, which significantly speeds up commissioning on elevated or difficult mounts.

3. Will this camera work in total darkness without external lighting?

   Yes. The built-in IR illumination covers 360 degrees around the camera with individually controllable LED clusters per head, and the minimum illumination in black-and-white mode is 0 lux with IR active. In colour mode with Forensic WDR and Lightfinder, minimum illumination is 0.17 lux at F1.8 - meaning it retains colour imaging in very low ambient light before switching to IR monochrome in true darkness.

4. Does the P3727-PLE have built-in audio?

   No, not natively. The camera body does not include a built-in microphone or speaker. Two-way audio capability requires an optional AXIS T61 Audio and I/O Interface connected using portcast technology, and that interface itself requires a 30W midspan between it and the P3727-PLE. If audio is a requirement at your site, factor this accessory and the additional PoE budget into your specification before purchase.

5. How does AXIS Object Analytics work on this camera, and does it require a separate server?

   No separate server is required. AXIS Object Analytics runs directly on the camera's ARTPEC-7 SoC, which includes a dedicated machine learning processing unit (MLPU). The MLPU classifies detected objects - distinguishing humans from vehicles and filtering out non-human motion like foliage or lighting changes - on the device itself. This means analytics-driven alerts do not depend on an external processing server, which simplifies system architecture and reduces latency on event triggers. All 4 channels share the on-board MLPU resources, so configure analytics zones with that in mind on dense-activity sites. The P3727-PLE is stocked by Security Australia as part of the broader Axis professional camera range.

6. What does AXIS Edge Vault actually provide on this camera?

   AXIS Edge Vault is a hardware-based security module that stores a unique, cryptographically protected Axis device ID on the camera. This prevents device identity spoofing on the network, enables IEEE 802.1X network access control authentication without manual certificate management, and provides a trusted foundation for encrypted communication. For sites with cybersecurity compliance requirements - government, critical infrastructure, finance - this hardware-level protection is meaningfully different from software-only access controls and is confirmed present on the P3727-PLE.

7. How does Zipstream affect storage when running 4 simultaneous streams?

   Zipstream dynamically reduces bitrate in low-activity regions of each frame while preserving full detail around detected motion. With 4 x 1080p streams at 30fps running simultaneously, the combined baseline bitrate without Zipstream is substantial. In scenes with extended low-activity periods - car parks overnight, building perimeters on weekdays - Zipstream in H.265 mode can produce significant reductions in storage consumption. When sizing NVR storage for multiple P3727-PLE units, calculate your worst-case (fully active scene) bitrate, then apply a Zipstream reduction factor based on the expected activity level of each deployment location.

Downloads & Resources

No downloads available for this product.
