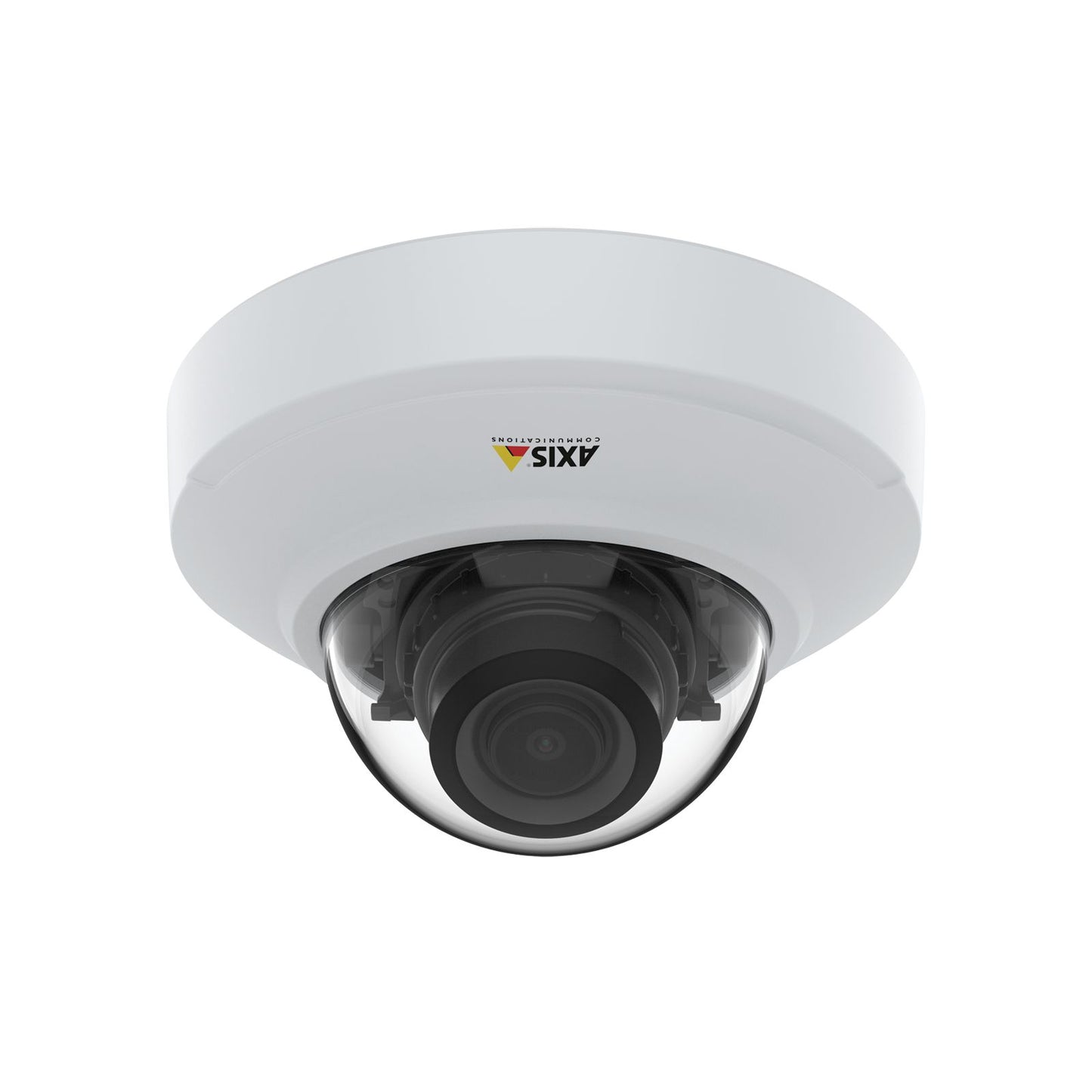

Varifocal 4 MP dome with deep learning
This compact and discreet dome camera offers exceptional image quality even in challenging lighting conditions, thanks to its WDR and Lightfinder technologies. Equipped with a deep learning processing unit (DLPU), it supports advanced edge-based analytics, allowing for intelligent monitoring. Designed to seamlessly blend into any environment, it can be repainted and customized with various accessories for discreet surveillance. The camera also features an HDMI port and the option to add audio and I/O connectivity via the AXIS T61 Series. Additionally, Axis Edge Vault safeguards your device ID and streamlines the authorization process for integrating Axis devices into your network.
Key Features
Code/SKU: AXIS M4216-V
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | |
| Type | 1/2.7” progressive scan RGB CMOS |
| Lens | |
| Type | Varifocal, 3–6 mm, F1.9 - 2.7 |
| Horizontal Field of View | 100°–45° |
| Vertical Field of View | 72°–34° |
| Features | Remote focus and zoom, fixed iris |
| Day and Night | |
| IR-cut Filter | Automatic |
| Minimum Illumination | |
| With Lightfinder | Color: 0.18 lux at 50 IRE F2.0 B/W: 0.03 lux at 50 IRE F2.0 |
| Shutter Speed | |
| Range | 1/37500 s to 1/5 s |
| Camera Angle Adjustment | |
| Pan | ±180° |
| Tilt | -40 to +65° |
| Rotation | ±105° |
| Direction | Can be directed in any direction and see the wall/ceiling |
| System on Chip (SoC) | |
| Model | CV25 |
| Memory | |
| RAM | 1024 MB |
| Flash | 512 MB |
| Compute Capabilities | |
| Deep Learning Processing Unit (DLPU) | Yes |
| Video | |
| Video Compression | |
| Formats | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main and High Profiles Motion JPEG |
| Resolution | |
| Range | 2304x1728 to 320x240 |
| Frame Rate | |
| Up to | 25/30 fps with power line frequency 50/60 Hz in H.264 and H.265a |
| Video Streaming | |
| Streams | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
| Axis Zipstream Technology | Yes, in H.264 and H.265 |
| Controllable Frame Rate and Bandwidth | VBR/MBR H.264/H.265 |
| Low Latency Mode | Yes |
| HDMI Output | |
| Resolution and Refresh Rate | HDMI 1080p (16:9) @25/30 Hz refresh rate HDMI 720p (16:9) @50/60 Hz refresh rate |
| Multi-view Streaming | |
| Number of View Areas | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | |
| Adjustments | Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR: up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask |
| Rotation Options | 0°, 90°, 180°, 270°, including Corridor Format |
| Pan/Tilt/Zoom | |
| Digital PTZ | Yes |
| Audio | |
| Audio Input/Output | Audio features through portcast technology: two-way audio connectivity, voice enhancer |
| Network Protocols | |
| Supported Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, HDMI, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| System Integration | |
| API | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
| Cloud Connection | One-click |
| ONVIF Profiles | ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
| SIP Support | Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Event Conditions | |
| Device Status | Above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, system ready, within operating temperature |
| Edge Storage | Recording ongoing, storage disruption |
| I/O | Manual trigger, virtual input, digital input via AXIS T61 Audio and I/O Interfaces with portcast technology |
| MQTT Subscribe | Scheduled and recurring: scheduled event Video: live stream open |
| Event Actions | MQTT publish Notification: email, HTTP, HTTPS, TCP and SNMP trap Overlay text, zoom preset, day/night mode Pre- and post-alarm video or image buffering for recording or upload Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email External output activation via AXIS T61 Audio and I/O Interfaces with portcast technology |
| Built-in Installation Aids | |
| Features | Remote zoom, remote focus |
| Analytics Applications | |
| Included | AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection, AXIS Face Detector |
| Supported | AXIS People Counter AXIS Queue Monitor Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| AXIS Object Analytics | |
| Object Classes | Humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios | Line crossing, object in area, crossline counting, occupancy in area, time in area |
| Number of Scenarios | Up to 10 |
| Other Features | Triggered objects visualized with color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| AXIS Scene Metadata | |
| Object Classes | Humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Object Attributes | Vehicle color, upper/lower clothing color, confidence, position |
| Approvals | |
| EMC | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: CISPR 24, CISPR 35, RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KC KN32 Class A, KC KN35 USA: FCC Part 15 Subpart B Class A |
| Safety | IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645 |
| Cybersecurity Edge Security | |
| Software | Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware | Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security | |
| Protocols | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | |
| Available Documents | AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General | |
| Casing | IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome Encapsulated electronics Color: white NCS S 1002-B For repainting instructions of casing and impact on warranty, contact your Axis partner. |
| Sustainability | PVC free, BFR/CFR free, 43% recycled plastics |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 2.8 W, max 4.4 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE HDMI type D Audio: Audio and I/O connectivity via portcast technology |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com |
| Operating Conditions | |
| Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity | 10–85% RH (non-condensing) |
| Storage Conditions | |
| Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | |
| Height | 71 mm (2.8 in) |
| Diameter | 121 mm (4.76 in) |
| Weight | |
| Weight | 350 g (0.77 lb) |
| Included Accessories | |
| Accessories | Installation guide, Windows® decoder 1-user license |
| Optional Accessories | |
| Accessories | AXIS TM3207 Recessed Mount AXIS T94C01L Recessed Mount AXIS T94C01U Universal Mount AXIS T94C01M J-Box/Gang Box Plate AXIS M42 Casing A Black 4P AXIS M42 Smoked Dome A 4P AXIS T91A33 Lighting Track Mount AXIS T91A23 Tile Grid Ceiling Mount AXIS TM3101 Pendant Wall Mount AXIS Surveillance Cards For more accessories, see axis.com |
| Video Management Software | |
| Software | AXIS Companion, AXIS Camera Station and video management software from Axis Application Development Partners. For more information, see axis.com/vms |
| Languages | |
| Languages | English, German, French, Spanish, Italian, Russian, Japanese, Korean, Portuguese, Simplified Chinese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Axis AXIS-02112-001 M4216-V 4MP Indoor Mini Dome Camera, H.265, WDR, HDMI, 3-6mm, VF Lens
The AXIS M4216-V is a high-performance network camera designed to provide superior surveillance capabilities in various environments. It features a 4-megapixel resolution sensor that ensures clear and detailed video footage, even in low-light conditions. The camera supports H.264 and H.265 video compression, which helps in reducing bandwidth and storage requirements while maintaining high image quality. Equipped with a 2.8mm fixed lens, the AXIS M4216-V offers a wide field of view, making it ideal for monitoring large areas. Its built-in WDR (Wide Dynamic Range) functionality enhances visibility in challenging lighting conditions, balancing both bright and dark areas of the scene. The camera is equipped with Axis' Lightfinder technology, which improves performance in low-light situations, providing color images even in near-darkness. For added security, it features two-way audio capabilities, allowing for both listening and speaking through the camera.
The AXIS M4216-V is designed for ease of installation with Power over Ethernet (PoE) support, eliminating the need for separate power supplies. Its robust design is suitable for both indoor and outdoor use, with an IP66-rated weatherproof housing that protects against dust and water. The camera also supports Axis' Zipstream technology, which optimizes video compression and preserves important details while reducing file sizes. With its built-in analytics, such as motion detection and tampering alarm, the AXIS M4216-V enhances overall security by providing real-time alerts and automated responses. The camera’s compact and discreet design ensures it blends seamlessly into various environments without drawing unnecessary attention. Additionally, it supports remote access through Axis' network video management software, enabling users to monitor and manage their surveillance system from anywhere. Its versatile mounting options allow for flexible installation, making it adaptable to a range of settings.
Great images, every time
Ideal for indoor surveillance applications, AXIS M4216-V delivers great image quality in 4 MP for wide 4:3 view and 3 MP for 16:9 aspect ratio. With a varifocal lens, this affordable camera offers a flexible field of view. Plus, with remote zoom and auto focus capabilities, it ensures sharp high resolution video with great details where needed. Thanks to Lightfinder and WDR, it provides details even in challenging light conditions. Furthermore, Axis Edge Vault provides a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.
Extended possibilities
AXIS M4216-V offers great possibilities to add value to your camera and extend the functionality of your surveillance system. For instance, with an HDMI port and AXIS Face Detector you can display live video and face detection on a public viewing monitor to help deter theft. Plus, you can add audio or I/O connectivity using AXIS T61 Series. It offers advanced analytics based on deep learning on the edge to deliver valuable metadata facilitating efficient forensic search capabilities in live or recorded video. And AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering.
Small and discreet
Compact and flexible in design, this varifocal dome offers flexible and discreet installation. With a wide range of accessories, it can be installed almost anywhere making it ideal for any location where discreet monitoring is needed. And it can be easily repainted to blend in seamlessly with any environment. This IK08-rated camera is protected against redirection, defocusing, and impact. A smoked dome is available as an accessory to disguise which way the camera is pointing. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it’s always safe and secure.
Features
| Video | |
| Video Compression | |
| Formats | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main and High Profiles Motion JPEG |
| Resolution | |
| Range | 2304x1728 to 320x240 |
| Frame Rate | |
| Up to | 25/30 fps with power line frequency 50/60 Hz in H.264 and H.265a |
| Video Streaming | |
| Streams | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
| Axis Zipstream Technology | Yes, in H.264 and H.265 |
| Controllable Frame Rate and Bandwidth | VBR/MBR H.264/H.265 |
| Low Latency Mode | Yes |
| HDMI Output | |
| Resolution and Refresh Rate | HDMI 1080p (16:9) @25/30 Hz refresh rate HDMI 720p (16:9) @50/60 Hz refresh rate |
| Multi-view Streaming | |
| Number of View Areas | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | |
| Adjustments | Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR: up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask |
| Rotation Options | 0°, 90°, 180°, 270°, including Corridor Format |
| Pan/Tilt/Zoom | |
| Digital PTZ | Yes |
| Audio | |
| Audio Input/Output | Audio features through portcast technology: two-way audio connectivity, voice enhancer |
| Network Protocols | |
| Supported Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, HDMI, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
