Axis AXIS-02100-001 M4308-PLE 12MP Outdoor Panoramic Camera, 360 deg, IR, Mic, IP66, IK10

$1,470.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

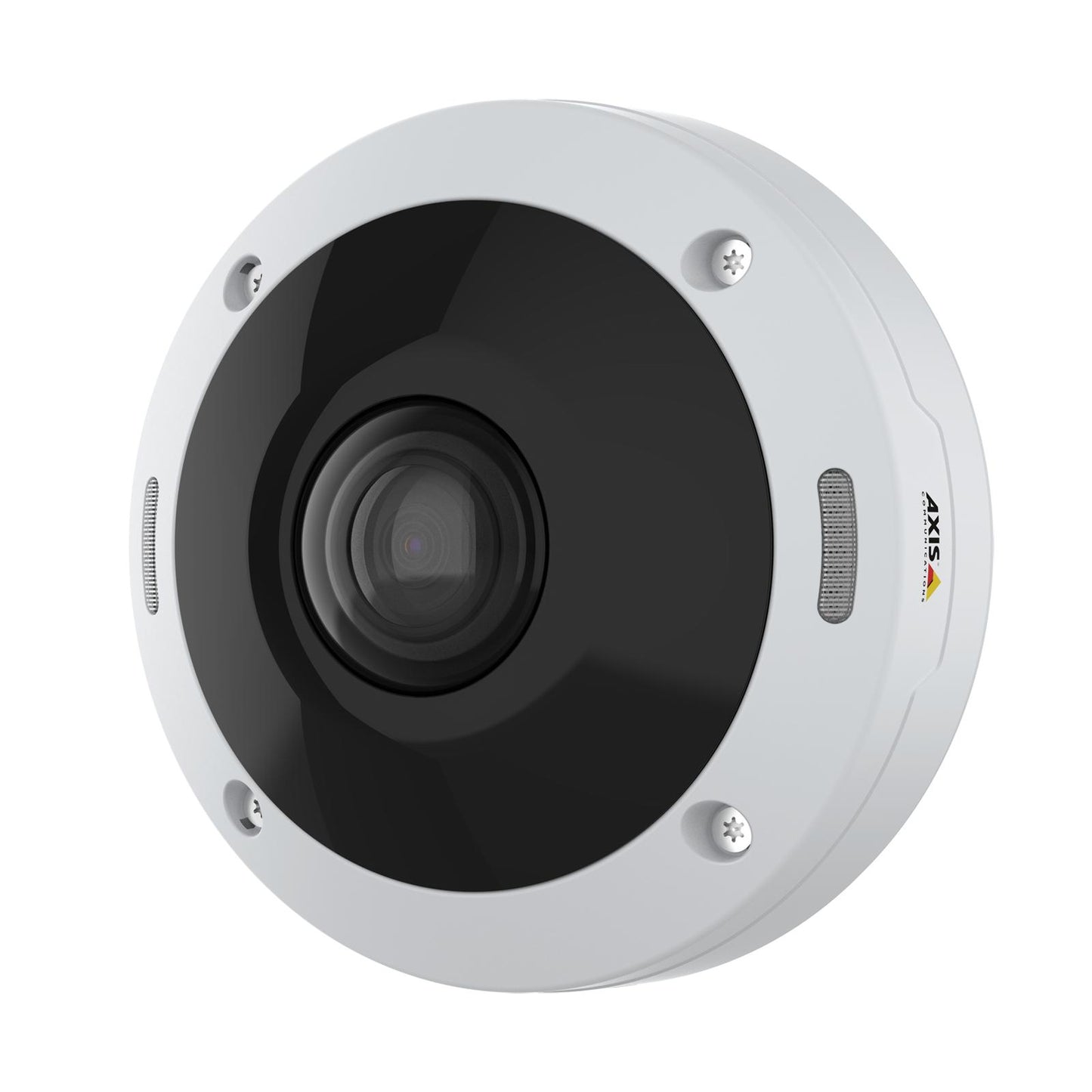

12 MP outdoor-ready dome with audio capture

The AXIS M4308-PLE is a discreet, outdoor-ready mini dome camera designed to blend seamlessly into any environment. It features a 12 MP sensor with a stereographic lens that provides outstanding images and a complete 360° panoramic overview. With Sharpdome 360 technology, the camera delivers enhanced sharpness at the edges of the image. Integrated AXIS Object Analytics, powered by a deep learning processing unit (DLPU), offers advanced on-edge analytics capabilities. The camera also includes Axis Lightfinder and Axis Forensic WDR, ensuring true colors and excellent detail in challenging lighting conditions, even in near darkness, along with Axis OptimizedIR for effective surveillance in complete darkness. Additionally, the four built-in microphones with voice enhancer technology provide superior audio capture with noise suppression.

Key Features

  • 12 MP sensor with 360° overview
  • Stereographic lens and Sharpdome 360
  • Lightfinder, Forensic WDR, OptimizedIR
  • Support for analytics with deep learning
  • 4 microphones with voice enhancer

Code/SKU: AXIS M4308-PLE
Quick Specs:

  • Day and night: Automatically removable infrared-cut filter
  • Minimum illumination: Color: 0.19 lux at 50 IRE, F2.4 B/W: 0.04 lux at 50 IRE, F2.4 0 lux with IR illumination on
  • Shutter speed: 1/22000 s to 1 s
  • Camera angle adjustment: Digital roll: ± 1

Specifications

Camera
Image Sensor 1/1.7” progressive scan RGB CMOS
Lens
  • 1.3 mm, F2.4
  • Horizontal field of view: 183°
  • Vertical field of view: 183°
  • Fixed iris, fixed focus, IR corrected
Day and Night Automatically removable infrared-cut filter
Minimum Illumination
  • Color: 0.19 lux at 50 IRE, F2.4
  • B/W: 0.04 lux at 50 IRE, F2.4
  • 0 lux with IR illumination on
Shutter Speed 1/22000 s to 1 s
Camera Angle Adjustment Digital roll: ± 180°
System on Chip (SoC)
Model ARTPEC-7
Memory 2 GB RAM, 1 GB Flash
Compute Capabilities Deep learning processing unit (DLPU)
Video
Video Compression
  • H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles
  • H.265 (MPEG-H Part 2/HEVC) Main Profile
  • Motion JPEG
Resolution
  • Overview: 2880x2880 to 160x160
  • Panorama: 3840x2160 to 192x72
  • Double Panorama: 3584x2688 to 512x288
  • Quad view: 3584x2688 to 512x288
  • View area 1–4: 2048x1536 to 256x144
  • Corner right/left: 3200x1200 to 192x72
  • Double corner: 2560x1920 to 480x480
  • Corridor: 2560x1920 to 256x144
Frame Rate
  • 360° overview only, up to 2880x2880 without WDR: 25/30 fps @ 50/60 Hz
  • 360° overview and dewarped views up to max resolution with WDR: up to 12.5/15 fps @ 50/60 Hz
Video Streaming
  • Multiple, individually configurable streams in H.264, H.265, and Motion JPEG
  • Axis Zipstream technology in H.264 and H.265
  • Controllable frame rate and bandwidth
  • VBR/ABR/MBR H.264/H.265
  • Low latency mode
Multi-View Streaming
  • 360° overview, dewarped panorama, corridor, corner left/right, and quad views
  • Up to 4 individually cropped out and dewarped view areas
  • All different views can be streamed simultaneously
  • When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream
Image Settings
  • Compression, color saturation, brightness, sharpness, contrast, local contrast
  • White balance, day/night threshold, tone mapping
  • Exposure control (including automatic gain control), exposure zones
  • Forensic WDR: up to 120 dB depending on scene
  • Fine tuning of low-light behavior, dynamic text and image overlay
  • Mirroring, digital roll, polygon privacy masks
Pan/Tilt/Zoom Digital PTZ of view areas, digital PT of panorama, corner, corridor, and quad views, preset positions, guard tours
Audio
Audio Streaming One-way, simplex, mono or stereo. Voice enhancement
Audio Encoding
  • LPCM 48 kHz
  • AAC-LC 8/16/32/44.1/48 kHz
  • G.711 PCM 8 kHz
  • G.726 ADPCM 8 kHz
  • Opus 8/16/48 kHz
Audio Input/Output 4 built-in microphones (can be disabled), network speaker pairing
Network
Network Protocols
  • IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS
  • QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II)
  • DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1
  • Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
System Integration
API
  • Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP)
  • AXIS Guardian with One-Click Connection
  • ONVIF® Profile G, M, S, T
  • Support for Session Initiation Protocol (SIP) for integration with VoIP systems
Onscreen Controls
  • Day/night shift
  • Wide dynamic range
  • Video streaming indicator
  • IR illumination
Event Conditions
  • Analytics, edge storage events, virtual inputs through API
  • Supervised external inputs, open casing, audio detection
  • MQTT subscribe
Event Actions
  • Record video/audio: SD card and network share
  • MQTT publish
  • Upload of images or video/audio clips: FTP, SFTP, HTTP, HTTPS, network share, and email
  • Pre- and post-alarm video or image buffering for recording or upload
  • Notification: email, HTTP, HTTPS, TCP, and SNMP trap
  • PTZ: PTZ preset, start/stop guard tour
  • Overlay text, external output activation, play audio clip, zoom preset, day/night mode
Built-in Installation Aids Pixel counter, digital roll, repositioning of quad views, digital PTZ of view areas, digital PT of panorama, corner, corridor, and quad views
Analytics
Included Applications AXIS Object Analytics, Scene metadata, AXIS Video Motion Detection, active tampering alarm, audio detection
Supported Applications
  • Support for additional applications if the device is used with compatible accessories
  • Support for AXIS Camera Application Platform enabling installation of third-party applications
AXIS Object Analytics
  • Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
  • Scenarios: line crossing, object in area
  • Up to 10 scenarios
  • Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables
  • Polygon include/exclude areas
  • Perspective configuration
  • ONVIF Motion Alarm event
AXIS Scene Metadata
  • Object classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
  • Object attributes: confidence, position
Cybersecurity
Edge Security
  • Software: Signed OS, brute force delay protection, digest authentication, and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
  • Hardware: Axis Edge Vault cybersecurity platform, Secure element (CC EAL 6+), Axis device ID, secure keystore, signed video, secure boot
Network Security
  • IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR
  • HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
Documentation
  • AXIS OS Hardening Guide
  • Axis Vulnerability Management Policy
  • Axis Security Development Model
  • AXIS OS Software Bill of Material (SBOM)
General
Casing
  • IP66-, NEMA 4X- and IK10-rated (IR window IK09)
  • Polycarbonate hard coated dome
  • Sharpdome 360
  • Aluminum
  • Color: white NCS S 1002-B
Sustainability PVC free
Power Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4, Typical 7.9 W, max 15.5 W
Connectors Shielded RJ45 10BASE-T/100BASE-TX PoE, Terminal block for 1 supervised alarm input and 1 output (12 V DC output, max. load 25 mA)
IR Illumination OptimizedIR with power-efficient, long-life 850 nm IR LEDs, Range of reach 15 m (49 ft) or more depending on scene
Storage Support for microSD/microSDHC/microSDXC card, Support for SD card encryption (AES-XTS-Plain64 256bit), Recording to network-attached storage (NAS)
Operating Conditions -40 °C to 50 °C (-40 °F to 122 °F), Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F), Maximum temperature (intermittent): 55 °C (131 °F), Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F), Humidity 10–100% RH (condensing)
Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F), Humidity 5–95% RH (non-condensing)
Approvals
  • EMC: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835
  • Safety: IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471, IS 13252
  • Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10 (IR window IK09), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
  • Network: IPv6 USGv6, NIST SP500-267
  • Cybersecurity: ETSI EN 303 645
Dimensions Height: 69 mm (2.7 in), ø 149 mm (5.8 in)
Weight 850 g (1.9 lb)
Included Accessories Installation guide, Windows® decoder 1-user license, drill hole template, cable gaskets, connector guard, I/O connector, RESISTORX® TR20 bit, mounting bracket, cable hole lid, view protector
Optional Accessories AXIS T94T02D Pendant kit with weathershield, AXIS Surveillance Cards, AXIS TM3808-E Skin Cover Black, AXIS Mounts & Cabinets, AXIS TM3204 Recessed Mount, AXIS TM3206 Recessed Mount
Video Management Software AXIS Device Manager, AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners
Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Axis AXIS-02100-001 M4308-PLE 12MP Outdoor Panoramic Camera, 360 deg, IR, Mic, IP66, IK10

$1,470.00 AUD
 per

The AXIS M4308-PLE is a 12 MP outdoor-ready panoramic mini dome camera designed to deliver exceptional image quality and comprehensive 360° coverage. This camera features a stereographic lens and Sharpdome 360 technology, which enhances image sharpness at the edges, ensuring that objects in peripheral views are captured clearly. Equipped with Axis Lightfinder and Forensic WDR, it provides vivid colors and detailed images even in challenging lighting conditions. The built-in OptimizedIR ensures clear surveillance in complete darkness. With four integrated microphones and a voice enhancer, the camera offers superior audio capture with excellent noise suppression. It supports deep learning analytics via a built-in Deep Learning Processing Unit (DLPU), enabling advanced object detection and classification, minimizing false alarms, and enhancing forensic search capabilities. The AXIS M4308-PLE also includes Axis Zipstream technology, which reduces bandwidth and storage needs while maintaining high video quality. Its discreet design, factory-focused setup, and digital roll functionality make installation easy and seamless. Additionally, the camera is built on the powerful ARTPEC-8 chipset, featuring Axis Edge Vault for enhanced cybersecurity, protecting the device ID and simplifying authorization. This makes it a robust choice for high-performance surveillance in any environment, offering reliable and intelligent monitoring with no blind spots.

Extended possibilities

AXIS M4308-PLE offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, this mini dome enables unique opportunities to take advantage of analytics based on deep learning on the edge. It comes with AXIS Object Analytics allowing you to detect and classify humans and vehicles for reliable detection with fewer false alarms. And, with forensic search functionality, it eliminates the need to scroll through endless hours of video surveillance and you can search through hours of video in seconds.

Sharp images and audio

Featuring a stereographic lens, AXIS M4308-PLE ensures a higher resolution around the outer portion of the view so objects located in the camera’s peripheral view can be captured more clearly. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Featuring four built-in microphones with voice enhancer it offers high-quality audio capture and great noise suppression. And, with complete 360° overview you’ll be sure to record everything with no blind spots.

Secure and easy

Based on a powerful Axis chipset, AXIS M4308-PLE features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. The discreet, flat design blends seamlessly into any environment. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

Features

  • Discreet, outdoor-ready mini dome design
  • 12 MP sensor with stereographic lens for outstanding images
  • Complete 360° panoramic overview
  • Sharpdome 360 for greater sharpness at image edges
  • Includes AXIS Object Analytics
  • Deep learning processing unit (DLPU) for advanced edge analytics
  • Axis Lightfinder for true colors in challenging light
  • Axis Forensic WDR for great details in near darkness
  • Axis OptimizedIR for surveillance in pitch darkness
  • Four built-in microphones with voice enhancer for superior audio capture and noise suppression
Technical Specifications
Video
Video Compression
  • H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles
  • H.265 (MPEG-H Part 2/HEVC) Main Profile
  • Motion JPEG
Resolution
  • Overview: 2880x2880 to 160x160
  • Panorama: 3840x2160 to 192x72
  • Double Panorama: 3584x2688 to 512x288
  • Quad view: 3584x2688 to 512x288
  • View area 1–4: 2048x1536 to 256x144
  • Corner right/left: 3200x1200 to 192x72
  • Double corner: 2560x1920 to 480x480
  • Corridor: 2560x1920 to 256x144
Frame Rate
  • 360° overview only, up to 2880x2880 without WDR: 25/30 fps @ 50/60 Hz
  • 360° overview and dewarped views up to max resolution with WDR: up to 12.5/15 fps @ 50/60 Hz
Video Streaming
  • Multiple, individually configurable streams in H.264, H.265, and Motion JPEG
  • Axis Zipstream technology in H.264 and H.265
  • Controllable frame rate and bandwidth
  • VBR/ABR/MBR H.264/H.265
  • Low latency mode
Multi-View Streaming
  • 360° overview, dewarped panorama, corridor, corner left/right, and quad views
  • Up to 4 individually cropped out and dewarped view areas
  • All different views can be streamed simultaneously
  • When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream
Image Settings
  • Compression, color saturation, brightness, sharpness, contrast, local contrast
  • White balance, day/night threshold, tone mapping
  • Exposure control (including automatic gain control), exposure zones
  • Forensic WDR: up to 120 dB depending on scene
  • Fine tuning of low-light behavior, dynamic text and image overlay
  • Mirroring, digital roll, polygon privacy masks
Pan/Tilt/Zoom Digital PTZ of view areas, digital PT of panorama, corner, corridor, and quad views, preset positions, guard tours
Audio
Audio Streaming One-way, simplex, mono or stereo. Voice enhancement
Audio Encoding
  • LPCM 48 kHz
  • AAC-LC 8/16/32/44.1/48 kHz
  • G.711 PCM 8 kHz
  • G.726 ADPCM 8 kHz
  • Opus 8/16/48 kHz
Audio Input/Output 4 built-in microphones (can be disabled), network speaker pairing
