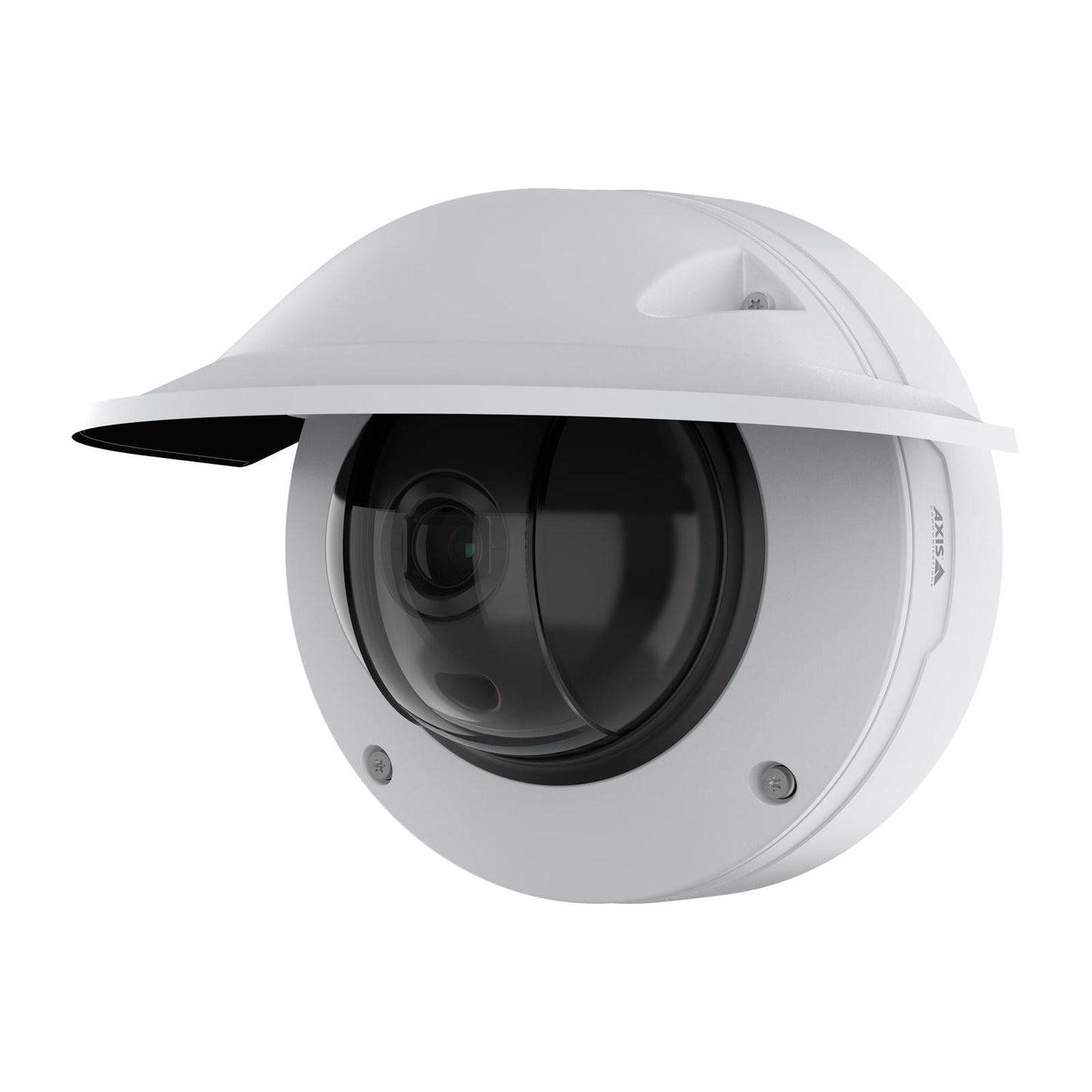

Axis AXIS-02054-001 Q3536-LVE 4MP Outdoor Dome Camera, Analytics, IR, IP66, 4-9mm VF Lens

Model: AXIS Q3536-LVE 4-9mm

Who This Is For

Property managers specifying cameras for high-stakes outdoor environments - transport hubs, critical infrastructure perimeters, large commercial sites, or government facilities - will find the AXIS Q3536-LVE engineered specifically for those demands. This is a fixed outdoor dome built around the ARTPEC-8 processor with a dedicated deep learning processing unit, giving it on-edge AXIS Object Analytics that classifies humans, vehicles, and vehicle types without relying on server-side processing. The 4-9mm motorized varifocal lens lets installers fine-tune the field of view remotely after mounting, avoiding ladder returns. With a confirmed IK10+ metal casing, IP66 weatherproofing, and an operating range of -50°C to 60°C, this camera is specified where lesser units simply fail. Redundant power input and Axis Edge Vault cybersecurity make it equally relevant to projects where system uptime and data integrity are non-negotiable requirements.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Utilities, water treatment, and energy sites that require cameras capable of -50°C operation, redundant power, and hardware-backed cybersecurity with FIPS 140-2 Level 2 TPM.
• Government and Defence Facilities: Projects specifying Axis Edge Vault for device identity protection and ONVIF Profile compliance for VMS interoperability within existing managed networks.
• Transport and Logistics Hubs: Sites needing on-edge vehicle type classification via AXIS Object Analytics at entry points, loading docks, and yard perimeters without adding server-side analytics infrastructure.
• Large Commercial and Retail Complexes: Installers needing a high-impact-resistant outdoor dome with motorized focus adjustment across multiple roof and soffit positions where post-mount lens tuning avoids repeat access lift hire.
• Security Integrators on ACAP Platforms: Teams building custom applications using AXIS Camera Application Platform version 4 with Computer Vision SDK, where on-device deep learning inference is a project requirement.

Honest Assessment

The Q3536-LVE genuinely earns its position at the top of the fixed outdoor dome category. The combination of ARTPEC-8 on-edge analytics, confirmed IK10+ metal casing, -50°C to 60°C thermal tolerance, redundant power, and hardware-level cybersecurity addresses requirements that most comparable dome cameras simply do not meet on paper. The IR-shielded dome is a practical engineering choice, not a marketing claim - it solves a real problem for outdoor installations in rain-prone Australian climates.

Where it will not serve: this is a fixed-position dome, not a PTZ. If a project requires active pan and tilt coverage across a wide open area or long vehicle approach, a motorized PTZ camera is the correct product type. Audio capability requires external microphone and speaker hardware - there is no built-in mic or speaker. At its price point, it is best evaluated for sites where the analytics, cybersecurity, and environmental specifications are genuine requirements rather than nice-to-haves. Available through Security Australia with full Axis warranty and documentation support.

Before You Buy

Quick Fit Check

• Good match if: Your site requires on-edge vehicle and person classification at an access point or perimeter, and you need analytics running without a dedicated server - the ARTPEC-8 DLPU handles AXIS Object Analytics entirely on the camera.
• Good match if: The installation is in a location with extreme temperature exposure or vandalism risk - the confirmed -50°C to 60°C operating range and IK10+ metal casing cover conditions that eliminate most competing dome cameras.
• You may need a different model if: Your coverage requirement involves actively tracking subjects across a large open area or long approach - a motorized PTZ camera with optical zoom and auto-tracking would be a more suitable product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires on-edge deep learning analytics, hardware-level cybersecurity with FIPS 140-2 Level 2 TPM, confirmed IK10+ vandal resistance, and an operating temperature range that reaches -50°C - all in a single fixed outdoor dome with a motorized varifocal lens.
• You may need a different model if: Active area scanning is required - following subjects across a wide open zone or monitoring a long vehicle approach with optical zoom tracking means a motorized PTZ camera type is fundamentally better suited to that task than any fixed dome.
• Pairs well with: A network video recorder or VMS with ONVIF Profile G support for on-recorder storage, or an Axis network switch with PoE output and redundant power path to complement the camera's dual power input capability.

Common Questions

1. Does this camera have a built-in microphone and speaker for two-way audio?

   No. The Q3536-LVE supports two-way full duplex audio streaming, but requires an external microphone connected to the audio input and an external speaker connected to the line output. There is no built-in mic or speaker in this housing. Speaker pairing is supported for connecting compatible external Axis speakers to the system.

2. Will AXIS Object Analytics run without a separate analytics server?

   Yes. AXIS Object Analytics runs entirely on-device using the ARTPEC-8 processor's dedicated deep learning processing unit. No external server or cloud subscription is required for the core classification functions. The DLPU handles detection and classification of humans, vehicles, and vehicle types directly on the camera in real time.

3. How does the motorized varifocal lens work on this model, and do I need physical access to adjust it after installation?

   No physical access is required after mounting. The 4-9mm motorized varifocal lens is adjusted remotely via the camera's web interface or a compatible VMS. Zoom and focus can be fine-tuned from a laptop or tablet at ground level without reopening the dome housing. The 4-9mm range covers wide-area corridor views at the short end through to more defined mid-distance coverage at 9mm, providing 2x optical zoom across the range.

4. What does IK10+ mean, and is this camera's housing metal or plastic?

   IK10+ means the housing is rated to withstand impacts beyond the standard IK10 threshold of 20 joules. The Q3536-LVE is confirmed to use a metal casing - not polycarbonate. The metal construction also protects against forced redirection and defocusing attempts, which are common tamper methods on dome cameras mounted at reachable heights.

5. Does this camera work at extreme outdoor temperatures found in Australian outback or alpine environments?

   Yes. The Q3536-LVE has a confirmed operating range of -50°C to 60°C. No external heater or fan unit is required within that range. For Australian conditions, this covers both high ambient temperatures at outback mining sites and cold overnight temperatures in alpine or high-altitude installations without additional accessories.

6. What cybersecurity features are built into the hardware, and what is Axis Edge Vault?

   Axis Edge Vault is a hardware-based secure element integrated into the ARTPEC-8 chip architecture. It protects the device identity certificate, stores cryptographic keys in hardware rather than software memory, and enforces signed firmware verification. The camera also includes a FIPS 140-2 Level 2 certified Trusted Platform Module (TPM). These are hardware controls - they cannot be disabled by a software configuration change or firmware rollback attack in the same way software-only security features can be circumvented. Security Australia stocks this model as part of its professional-grade Axis camera range.

7. Does the guard tour function work like a PTZ camera's patrol route?

   Partially. The guard tour on the Q3536-LVE uses digital PTZ to cycle through preset positions within the camera's fixed field of view - it does not physically pan or tilt the camera head. Up to 100 preset guard tour positions are supported, and up to 10 tour recordings of up to 16 minutes each can be saved. This is useful for cycling through sub-zone crops of the 4MP sensor, but it cannot replicate the physical coverage range of a motorized PTZ camera.

8. Does this camera support custom third-party applications, and what is ACAP?

   Yes. AXIS Camera Application Platform (ACAP) version 4 is supported, which allows third-party and Axis-partner applications to be installed and run directly on the camera. ACAP v4 includes a Native SDK and a Computer Vision SDK for deep learning-based custom applications. This makes the Q3536-LVE a suitable platform for integrators building specialised analytics - such as queue detection, occupancy measurement, or site-specific classification rules - that go beyond the preinstalled AXIS Object Analytics capability.
