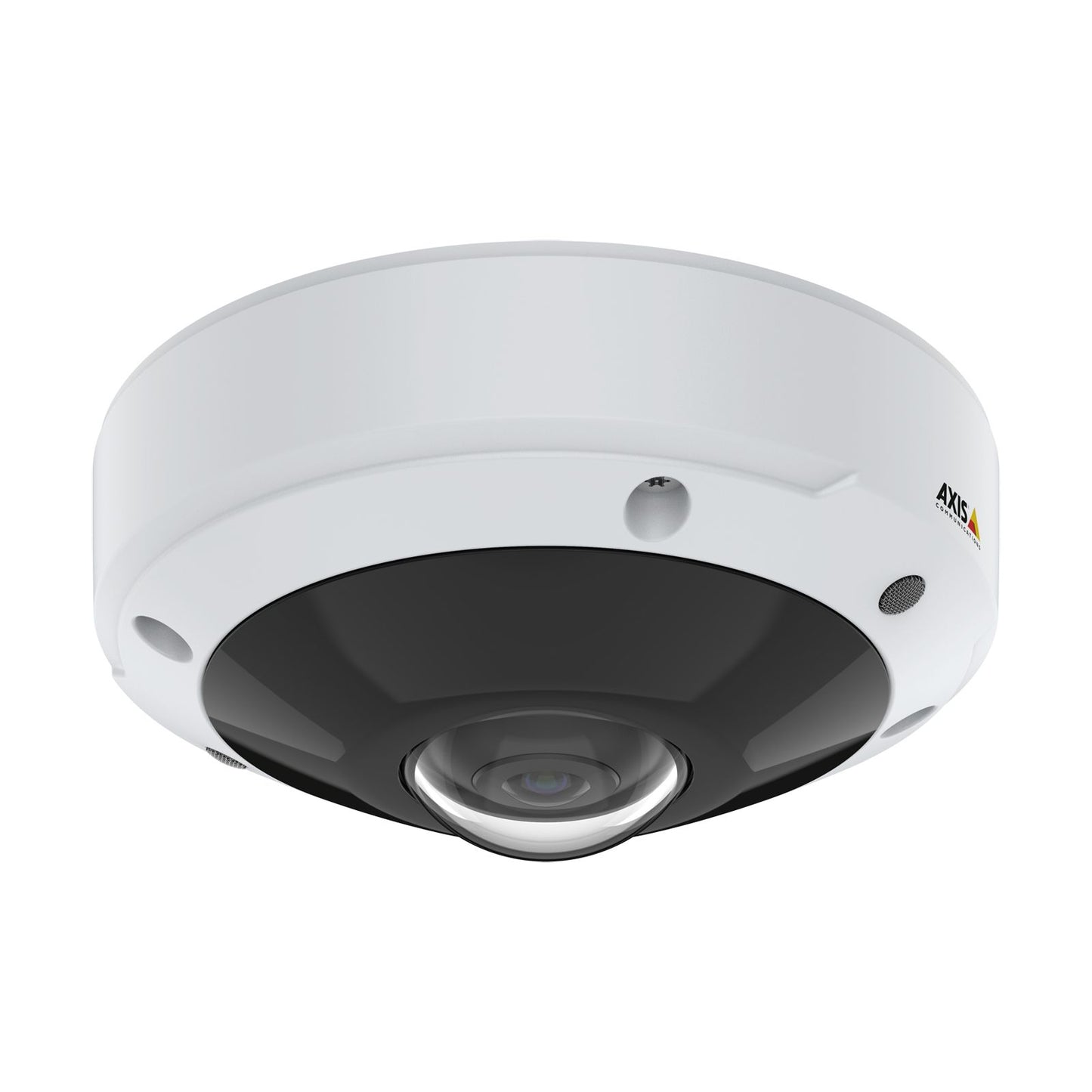

6 MP outdoor-ready dome with 360° panoramic view and audio capture
The AXIS M3077-PLVE, equipped with a 6 MP sensor, delivers exceptional image quality and a comprehensive 180° or 360° overview both indoors and outdoors, 24/7. This compact mini dome features two built-in microphones for audio surveillance and detection, and offers versatile dewarped views including panorama, quad, corner, and corridor perspectives directly from the camera. It incorporates Axis Lightfinder and Axis Forensic WDR technologies for accurate color reproduction and fine details in challenging lighting or near darkness, and Axis OptimizedIR ensures effective surveillance even in total darkness.
Key Features
Code/SKU: AXIS M3077-PLVE
Quick Specs:
| Camera | |
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | 1.56 mm, F2.0 |
| Field of View | Horizontal: 183°, Vertical: 183° |
| Iris/Focus | Fixed iris, fixed focus, IR corrected |
| Day and Night | Automatically removable infrared-cut filter |
| Minimum Illumination | Color: 0.16 lux at 50 IRE, F2.0 B/W: 0.03 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Speed | 1/16000 s to 1 s |
| Camera Angle Adjustment | Digital roll: ± 180° |
| System on Chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution Overview | 2016x2016 to 160x160 |
| Panorama | 2560x1440 to 192x72 |
| Double Panorama | 2560x1920 to 384x288 |
| Quad View | 2560x1920 to 384x288 |
| View Area 1–4 | 1920x1440 to 256x144 |
| Corner Right/Left | 2368x1184 to 384x288 |
| Double Corner | 2016x2016 to 384x288 |
| Corridor | 2560x1920 to 256x144 |
| Frame Rate | 360° overview only, up to 2016x2016 without WDR: 50/60 fps @ 50/60 Hz 360° overview and dewarped views up to max resolution with WDR: up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Multi-view Streaming | 360° overview, dewarped panorama, corridor, corner left/right, and quad views. Up to 4 individually cropped out and dewarped view areas. All different views can be streamed simultaneously. When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream. |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, dynamic text and image overlay, mirroring, digital roll, polygon privacy masks |
| Pan/Tilt/Zoom | Digital PTZ of view areas, digital PT of panorama, corner, corridor, and quad views, preset positions, guard tours |
| Audio | |
| Audio Streaming | One-way, simplex, mono or stereo. Audio encoding LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
| Audio Input/Output | Built-in microphone (can be disabled) Two-way audio connectivity via the optional AXIS T61 Audio and I/O interfaces with portcast technology |
| Network | |
| Network Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, ONVIF® Profile T specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| Onscreen Controls | Day/night shift, Wide dynamic range, Video streaming indicator, IR illumination |
| Event Conditions | Analytics, edge storage events, virtual inputs through API, supervised external inputs, open casing, audio detection MQTT subscribe |
| Event Actions | Record video/audio: SD card and network share MQTT publish Upload of images or video/audio clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation, play audio clip, zoom preset, day/night mode |
| Built-in Installation Aids | Pixel counter, digital roll, repositioning of quad views, digital PTZ of view areas, digital PT of panorama, corner, corridor, and quad views |
| Analytics | |
| Applications Included | AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| Cybersecurity | |
| Edge Security | Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform, Secure element (CC EAL 6+), secure keystore, secure boot |
| Network Security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | AXIS OS Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
| General | |
| Casing | IP66-, NEMA 4X- and IK10-rated Polycarbonate hard coated dome Aluminum Color: white NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner. |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 8.0 W, max 11.9 W |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX PoE Terminal block for 1 supervised alarm input and 1 output (12 V DC output, max. load 25 mA) |
| IR Illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 20 m (66 ft) or more depending on scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com |
| Operating Conditions | -40 °C to 50 °C (-40 °F to 122 °F) Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) Maximum temperature (intermittent): 55 °C (131 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Humidity 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
| Approvals | |
| EMC | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35 |
| Safety | IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645 |
| Dimensions | |
| Height | 66 mm (2.5 in) |
| Diameter | ø 149 mm (5.8 in) |
| Weight | |
| Weight | 700 g (1.5 lb) |
| Included Accessories | |
| Installation guide, Windows® decoder 1-user license, drill hole template, cable gaskets, connector guard, I/O connector, RESISTORX® TR20 bit, mounting bracket, cable hole lid, view protector | |
| Optional Accessories | |
| AXIS T94T02D Pendant kit with weathershield AXIS Surveillance Cards AXIS TM3808-E Skin Cover Black AXIS Mounts & Cabinets AXIS T6101 Audio and I/O Interface AXIS T6112 Audio and I/O Interface For more accessories, see axis.com | |
| Video Management Software | |
| AXIS Device Manager, AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners available at axis.com/vms | |
| Languages | |
| English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Axis AXIS-02018-001 M3077-PLVE 6MP Mini Dome Camera, H.264, PoE, 1.56mm, 180/360 Fxed Lens
The AXIS M3077-PLVE is a high-performance, compact, and versatile network camera designed to deliver exceptional video quality and reliability. Featuring a 6 MP resolution, this camera ensures clear and detailed images even in challenging lighting conditions. Its 4K Ultra HD resolution capability provides sharp and accurate footage for various surveillance needs. The camera includes built-in analytics that offer advanced features such as motion detection and tampering alerts, enhancing its functionality for comprehensive monitoring. The AXIS M3077-PLVE is equipped with a powerful Varifocal lens that offers flexible and precise field-of-view adjustments, ensuring optimal coverage in any environment. It also supports day and night functionality, utilizing Infrared (IR) LEDs for superior low-light performance. The camera's rugged design and weatherproof housing make it suitable for both indoor and outdoor installations. With its easy installation process and user-friendly interface, the AXIS M3077-PLVE simplifies setup and maintenance. Its integrated Power over Ethernet (PoE) feature reduces the need for additional power sources, streamlining installation. Additionally, the camera supports multiple video streaming formats, allowing for efficient bandwidth usage and storage. The AXIS M3077-PLVE is compatible with a range of Axis accessories, providing further customization options. Its advanced cybersecurity features ensure that video feeds remain secure from unauthorized access. The camera is also designed to be energy-efficient, contributing to lower operational costs. With its combination of high resolution, advanced features, and robust design, the AXIS M3077-PLVE is an ideal choice for high-security environments and demanding surveillance applications.
See and hear- 24/7
AXIS M3077-PLVE delivers a complete 180° or 360° overview, indoors or out, around the clock. This compact, IK10-rated vandal-resistant mini dome can be repainted to blend in seamlessly with any surroundings. And, the IP66 rating keeps the camera safe from dust and powerful blasts of water. It features two built-in microphones allowing for audio surveillance and detection. Furthermore, you can use one video stream to produce any dewarped views you'd like. And, it’s possible to stream panorama, quad, corner, and corridor views directly from the camera. Plus, you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously.
Sharp images in any light
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality regardless of the light conditions. It includes Axis Lightfinder for sharp, color images in poor lighting conditions and Axis Forensic WDR for high-quality images even when there’s both dark and light areas in the scene. Plus, there’s no need for extra lighting, thanks to Axis OptimizedIR you get 24/7 coverage for surveillance in pitch darkness up to 20 m (65 ft) or more. Furthermore, it’s possible to stream the complete 360° overview so you can be sure you record everything with no blind spots.
New generation camera
AXIS M3077-PLVE is packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And, secure boot guarantees the camera is completely free of malware even after a factory default. It’s delivered factory-focused and features digital roll functionality allowing you to remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
Features
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution Overview | 2016x2016 to 160x160 |
| Panorama | 2560x1440 to 192x72 |
| Double Panorama | 2560x1920 to 384x288 |
| Quad View | 2560x1920 to 384x288 |
| View Area 1–4 | 1920x1440 to 256x144 |
| Corner Right/Left | 2368x1184 to 384x288 |
| Double Corner | 2016x2016 to 384x288 |
| Corridor | 2560x1920 to 256x144 |
| Frame Rate | 360° overview only, up to 2016x2016 without WDR: 50/60 fps @ 50/60 Hz 360° overview and dewarped views up to max resolution with WDR: up to 25/30 fps @ 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Low latency mode |
| Multi-view Streaming | 360° overview, dewarped panorama, corridor, corner left/right, and quad views. Up to 4 individually cropped out and dewarped view areas. All different views can be streamed simultaneously. When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream. |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, dynamic text and image overlay, mirroring, digital roll, polygon privacy masks |
| Pan/Tilt/Zoom | Digital PTZ of view areas, digital PT of panorama, corner, corridor, and quad views, preset positions, guard tours |
| Audio | |
| Audio Streaming | One-way, simplex, mono or stereo. Audio encoding LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
| Audio Input/Output | Built-in microphone (can be disabled) Two-way audio connectivity via the optional AXIS T61 Audio and I/O interfaces with portcast technology |
