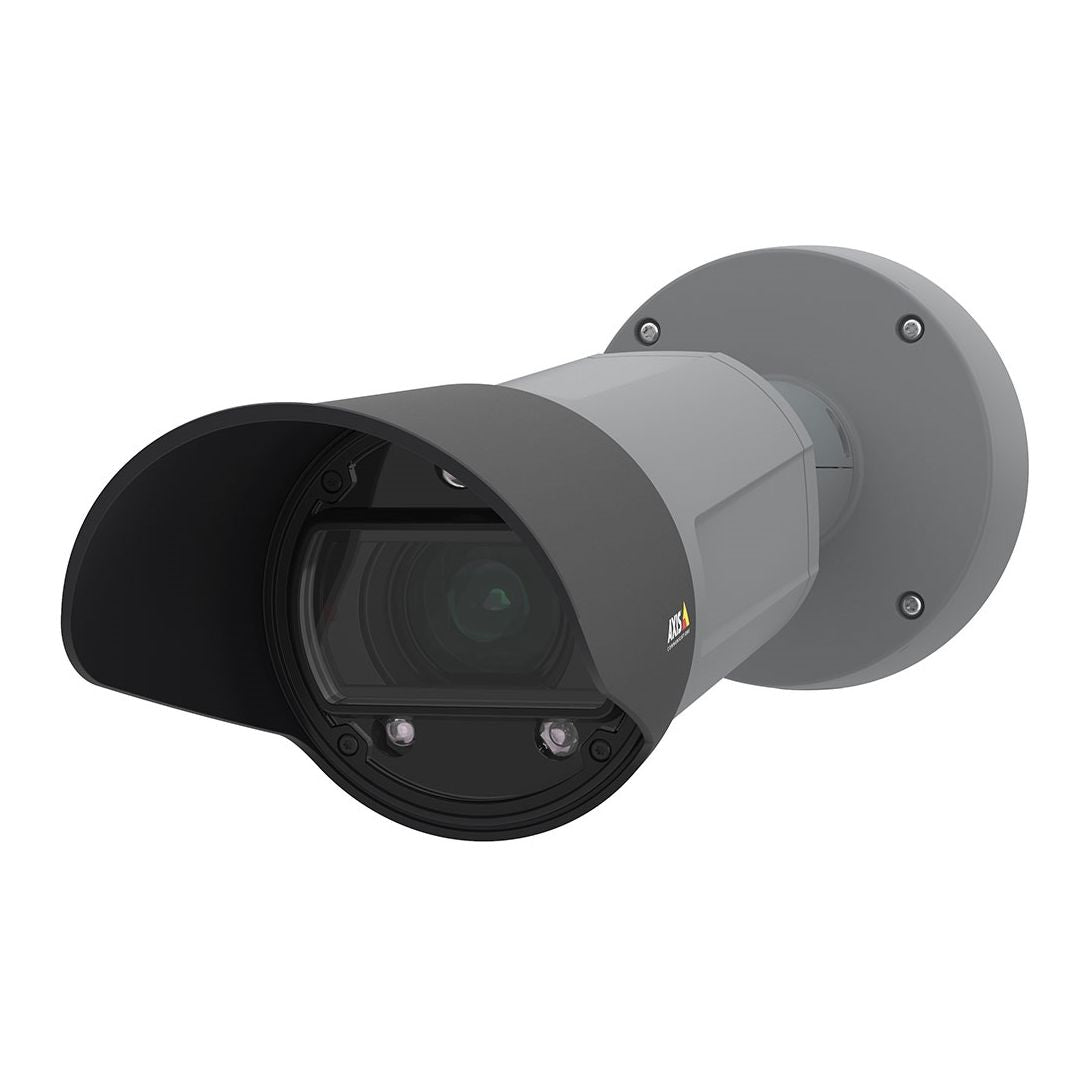

Axis AXIS-01782-001 Q1700-LE Bullet Camera, 2MP, 50m IR, IP66, 18 - 137mm

Model: AXIS-01782-001

Who This Is For

For traffic engineers, security integrators, and logistics operators who need consistent, readable license plate images from vehicles in motion - day and night - the Axis Q1700-LE is built for exactly that task. This is not a general-purpose outdoor camera pressed into plate capture service; it is purpose-engineered for LPR, with an 18-137 mm motorised zoom lens, a built-in capture assistant that adjusts image settings based on mounting height and vehicle speed, and IR illumination reaching 50 m in full tele mode without any additional hardware. It handles vehicles travelling up to 130 km/h using edge analytics, and up to 250 km/h when paired with server-based software. Typical deployments include controlled access carparks, highway monitoring points, weighbridge entries, port and logistics terminals, and council-managed parking enforcement infrastructure across Australian commercial and government sites.

What This Camera Actually Does

Who Buys This Model

• Carpark Operators and Access Control Integrators: Deploying automated entry and exit systems where a plate read triggers barrier arm release. The single-lane edge analytics capability and built-in IR make this a self-contained solution for controlled-speed access points.
• Local Government and Traffic Management Bodies: Monitoring intersections, school zones, or enforcement corridors where vehicle speed is predictable and plate capture accuracy needs to hold up in council audit or legal proceedings.
• Port, Logistics, and Weighbridge Operators: Tracking heavy vehicle movements across terminal entries where 24-hour operation, weather resilience, and integration with third-party logistics software are mandatory requirements.
• Law Enforcement and Stolen Vehicle Recovery Programs: Where the camera feeds into server-based LPR platforms capable of two-lane coverage and processing vehicles at up to 250 km/h, requiring confirmed pixel density at long range.
• Security System Integrators Specifying for Highways or Open-Road Sites: Who need a camera that accepts optional external IR illumination to push night capture range to 100 m and integrates with AXIS Camera Station or third-party analytics without proprietary lock-in.

Honest Assessment

The Q1700-LE does one thing at a high level: it captures license plates from moving vehicles with the kind of image consistency that LPR software can actually process. The built-in capture assistant, motorised zoom, auto-tilt detection, and Forensic WDR genuinely reduce the trial-and-error that makes LPR commissioning slow. The IP66/NEMA 4X/IK10 housing is appropriate for exposed roadside and industrial environments without modification. Night capture to 50 m is solid for single-lane controlled-access sites; if you need 100 m night coverage, budget for the optional AXIS T90D20 IR illuminator from the start. Where this camera is not the right choice: it is not a general overview camera - the narrow field of view (down to 2.3 degrees horizontal at maximum zoom) means scene context is limited. Sites that need wide-area surveillance alongside plate capture will require a separate overview camera. Two-lane capture and speeds above 130 km/h require server-based analytics, which adds software licensing cost. Security Australia stocks this model as part of the Axis professional LPR range.

Before You Buy

Quick Fit Check

• Good match if: You are deploying a single-lane carpark entry, boom gate, or weighbridge where vehicles approach at up to 130 km/h and you need day/night plate capture without adding a separate IR illuminator.
• Good match if: Your site is exposed to weather extremes - coastal, roadside, or industrial - and the housing must meet IP66, NEMA 4X, and IK10 simultaneously without an additional enclosure.
• You may need a different model if: Your application requires wide-area scene overview alongside plate capture - a separate general-purpose outdoor camera paired with this dedicated LPR unit will serve the site better than attempting to use the Q1700-LE for both tasks.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a self-contained LPR camera with built-in IR, motorised zoom, and a setup assistant that removes guesswork from commissioning - particularly on single-lane sites where vehicles travel at up to 130 km/h.
• You may need a different model if: Your primary requirement is wide-area scene coverage rather than plate detail - a general-purpose outdoor bullet or turret camera will give you a usable field of view for monitoring vehicle behaviour across a site without the narrow LPR-optimised framing.
• Pairs well with: A wide-angle outdoor overview camera mounted nearby to provide scene context, and a server-based LPR analytics platform if two-lane coverage or speeds above 130 km/h are required.

Common Questions

1. Will this camera read plates from vehicles travelling at highway speeds?

   Yes, up to 130 km/h with edge analytics running on the camera itself, and up to 250 km/h when paired with server-based LPR software. The 1/66,500 s maximum shutter speed is what makes high-speed plate capture viable - it freezes plate motion that would blur at standard CCTV shutter settings. Server-based analytics also unlocks two-lane coverage, which edge analytics on the camera does not support.

2. Does this camera perform its own license plate recognition, or does it need external software?

   No, the Q1700-LE does not perform license plate recognition itself. It captures optimised plate images and streams them to third-party edge or server-based LPR software that handles the actual character recognition and action triggering. The built-in capture assistant optimises image quality for LPR, but the recognition engine is a separate software component - either edge analytics running on the camera or an external server platform.

3. What is the maximum night capture range without adding an external illuminator?

   50 m at full tele zoom using the built-in 850 nm OptimizedIR LEDs. In wide field of view the IR reach drops to 40 m. If your site requires night capture beyond 50 m - matching the 100 m daytime range - the optional AXIS T90D20 IR-LED Illuminator extends night performance to 100 m. Plan for this accessory at the quoting stage if the approach distance exceeds 50 m.

4. Does this work for a two-lane entry where vehicles approach from both lanes simultaneously?

   Not with edge analytics alone. The built-in edge analytics mode covers a single lane only. Two-lane simultaneous capture requires server-based analytics software. If your site is a two-lane entry, either deploy 2 cameras (one per lane) using edge analytics, or invest in a server-based platform that can handle both lanes from a single camera stream at up to 250 km/h.

5. How does the capture assistant actually work during installation?

   You input your mounting height, the distance from the camera to the approaching vehicle at the point of capture, and the maximum expected vehicle speed. The assistant uses these values to calculate and apply the optimal shutter speed, gain settings, and IR intensity. It also detects the camera's tilt and roll angle automatically, which compensates for imprecise pole positioning. This reduces the back-and-forth of manual image tuning during commissioning. You will still need to focus the lens physically at installation time - focus is set at installation, not motorised on startup.

6. What pixel density does this camera achieve at LPR-relevant distances?

   At 8x optical zoom (full tele), the Q1700-LE delivers 1,912 pixels per metre at 25 m, 956 px/m at 50 m, and 191 px/m at 250 m. LPR software typically requires a minimum of 250-400 px/m depending on the platform. At the stated 20-100 m capture range, the camera delivers sufficient pixel density for most LPR software requirements, but confirm your specific platform's minimum px/m specification before finalising the mounting position and zoom setting. This specification is confirmed in the Axis datasheet and is available through Security Australia on request.

7. Is the 120 dB WDR figure reliable for entry lane backlighting conditions?

   The Forensic WDR rating of up to 120 dB is scene-dependent - it is not a fixed output in all conditions. The figure represents performance under the most favourable WDR conditions. In practice, it handles the contrast between headlights or direct sun and plate surface significantly better than cameras without WDR or those rated below 100 dB. For sites with extreme backlight (west-facing entries in afternoon sun, or night entries with high-power headlights), WDR is enabled at the cost of frame rate - the camera drops from up to 50/60 fps to up to 25/30 fps when WDR is active.

8. Can the camera be mounted more than 10 m above the road?

   The confirmed mounting height supported by the built-in capture assistant is up to 10 m. Physical mounting above 10 m is not prevented by the hardware, but the capture assistant's optimisation logic is designed and validated for heights within that range. Installations above 10 m would require manual image configuration without the benefit of the assistant's automated settings, and capture consistency is not confirmed by Axis beyond that parameter.
