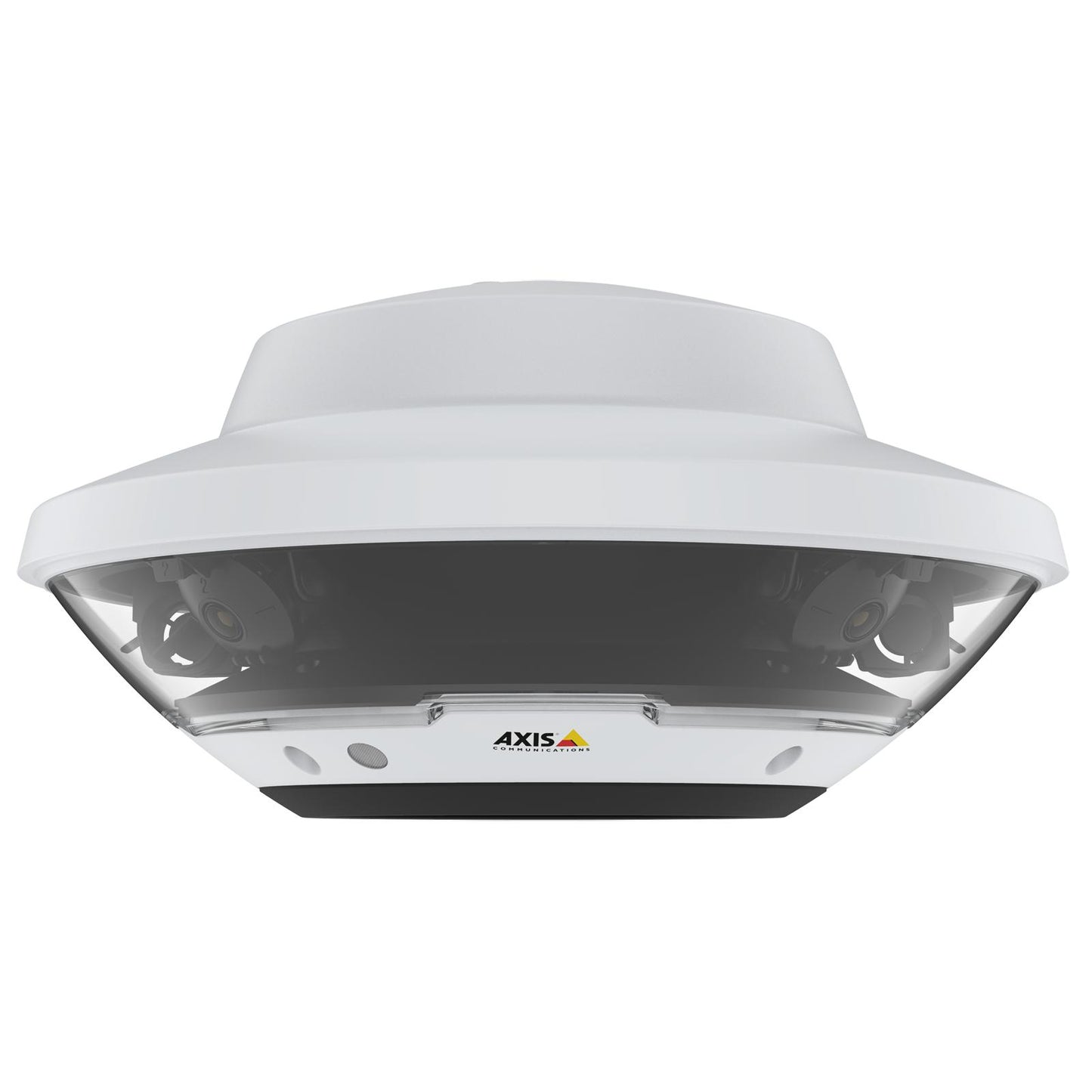

Axis AXIS-01710-001 Q6100-E Network Camera, 4x 5MP Sensors, 50HZ, H.264, WDR, IP66, IK10

Model: AXIS-01710-001

Who This Is For

For security integrators and enterprise site managers who need total situational awareness across a wide open area without deploying a bank of individual cameras, the AXIS Q6100-E is purpose-built for exactly that challenge. This multidirectional camera pairs directly with any AXIS Q61-E or Q63-E PTZ as a companion overview unit, giving operators a full 360-degree picture at 4 x 5 MP resolution while retaining the ability to jump to a zoomed-in detail view with a single mouse click. It suits sites like transport hubs, large carparks, open plazas, and correctional facility yards - anywhere a human operator needs to see everything at once and respond fast. Directional audio detection automatically steers the paired PTZ toward an incident the moment sound triggers, removing the lag of manual pan. If your installation already runs an AXIS Q61 or Q63 series PTZ and you are looking to close the overview gap, this is the unit designed to complete that system.

What This Camera Actually Does

Who Buys This Model

• Enterprise Security Integrators: Specifying AXIS Q61-E or Q63-E PTZ deployments at large sites who need to close the overview gap without adding multiple fixed cameras to the network.
• Transport and Infrastructure Operators: Managing large open environments like bus depots, rail yards, or port staging areas where a single mounting point must cover the full perimeter without blind spots.
• Correctional and Government Facility Managers: Requiring continuous 360-degree situational awareness with automatic incident response driven by motion or audio, reducing the reliance on constant manual monitoring.
• Large Carpark and Venue Operators: Using an existing AXIS Q61 or Q63 PTZ investment who want to add an overview layer that gives operators scene context before the PTZ zooms in on a specific event.

Honest Assessment

The AXIS Q6100-E does something genuinely useful that a single PTZ cannot: it provides a persistent, high-resolution 360-degree overview while simultaneously enabling the paired PTZ to deliver zoom-level detail on demand. The 4 x 5 MP sensor array, combined with exchangeable lenses and per-sensor autofocus, gives integrators real flexibility in how each quadrant is configured for a specific site geometry. Zipstream across H.264 and H.265 keeps the storage load of a 20 MP continuous system manageable. Directional audio detection adding a second automatic trigger pathway - beyond just motion - is a genuine operational advantage in environments where audio events are as significant as visual ones.

This camera is not a standalone unit. It has no function without a compatible AXIS Q61-E or Q63-E PTZ camera present on the same installation - buyers who need a self-contained panoramic camera should look at standalone fisheye or multi-sensor models available through Security Australia. The Q6100-E also does not carry its own IR illumination, so low-light performance depends on the sensor sensitivity and site lighting conditions rather than built-in illumination.

Before You Buy

Quick Fit Check

• Good match if: You are already deploying or operating an AXIS Q61-E or Q63-E PTZ and need a companion overview unit that provides full 360-degree situational awareness and automatic PTZ steering from a single mounting point.
• Good match if: Your site requires automatic incident response driven by both motion and directional audio, reducing operator workload in a control room environment where multiple camera streams are monitored simultaneously.
• You may need a different model if: You need a self-contained panoramic or multisensor camera that operates independently without a paired PTZ - a standalone fisheye or multi-sensor camera type would be the more appropriate product category for that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are deploying an AXIS Q61-E or Q63-E PTZ and need a fully integrated companion overview unit that supports one-click PTZ control, automatic motion tracking, and directional audio steering from a shared mounting point.
• You may need a different model if: You need a standalone panoramic solution without a paired PTZ - a self-contained fisheye or multi-sensor camera type covers that use case independently and does not require a companion PTZ to function.
• Pairs well with: AXIS Q61-E or Q63-E series PTZ cameras, enterprise-grade NVR or VMS systems capable of handling multiple simultaneous high-resolution streams with H.265 support.

Common Questions

1. Will this camera work on its own without a PTZ camera?

   No. The Q6100-E is designed exclusively as a companion unit to a compatible AXIS Q61-E or Q63-E PTZ Network Camera and cannot operate independently. Its one-click PTZ control, auto-tracking, and directional audio steering all require a paired PTZ to function. If you need a standalone 360-degree solution, a self-contained fisheye or multi-sensor camera is the appropriate product type.

2. Does this camera work with the AXIS Q63 Series as well as the Q61 Series?

   Yes, with an additional requirement. The Q6100-E is compatible with both AXIS Q61-E and Q63-E PTZ cameras. However, when used with the Q63 Series, the AXIS Camera Heater Power Supply is also required as a separate component. Confirm this accessory is included in your bill of materials before ordering if you are pairing with a Q63-E unit.

3. How does the automatic PTZ tracking actually work across the 4 sensors?

   Motion detected on any of the 4 individual 5 MP sensors triggers the paired PTZ to automatically reposition and track the moving object within that sensor's field of view. Each sensor covers a 90-degree horizontal slice of the 360-degree scene. When an object crosses from one sensor's zone into another, tracking handoff is managed by the system. This removes the need for an operator to manually steer the PTZ during an active event.

4. What does directional audio detection mean in practice?

   It means the camera identifies the direction from which a significant audio event originates and automatically redirects the paired PTZ to face that direction. Rather than just triggering a generic alert, the system uses the spatial position of the audio source to steer the PTZ. This is particularly useful in environments where an incident may be heard before it is visually identified in a monitored stream.

5. What is the actual resolution and field of view for each sensor?

   Each of the 4 sensors is a 5 MP 1/2.5-inch progressive scan CMOS, with a default resolution of 2592 x 1944 pixels. The default 2.8 mm F2.0 autofocus lens delivers an 84-degree vertical field of view per sensor. Combined, the 4 sensors cover the full 360-degree horizontal plane at a total of 20 MP. Each sensor's lens is independently exchangeable if a different horizontal or vertical coverage angle is required for the installation.

6. How much storage and bandwidth will 4 simultaneous 5 MP streams require?

   Significantly less than a raw 20 MP figure suggests, because Axis Zipstream is active across both H.264 and H.265 streams. Zipstream dynamically reduces bitrate in low-activity areas of each frame while retaining full detail where motion or forensic interest is detected. The practical storage impact depends on scene activity levels, stream configuration (VBR, ABR, or MBR), and the resolution set per sensor. Running H.265 with Zipstream enabled is the most storage-efficient configuration for this camera. Security Australia can assist with storage planning if you provide the intended deployment context.

7. Can the lenses on each sensor be changed for different coverage requirements?

   Yes. Each of the 4 sensors accepts interchangeable lenses, and autofocus is supported per sensor. This allows different fields of view to be configured on individual sensors to match the geometry of the site - for example, fitting a narrower lens on a sensor aimed down a long corridor and a wider lens on a sensor covering a broad open area. Lens changes are most efficiently made during the commissioning phase before final mounting position is fixed.
