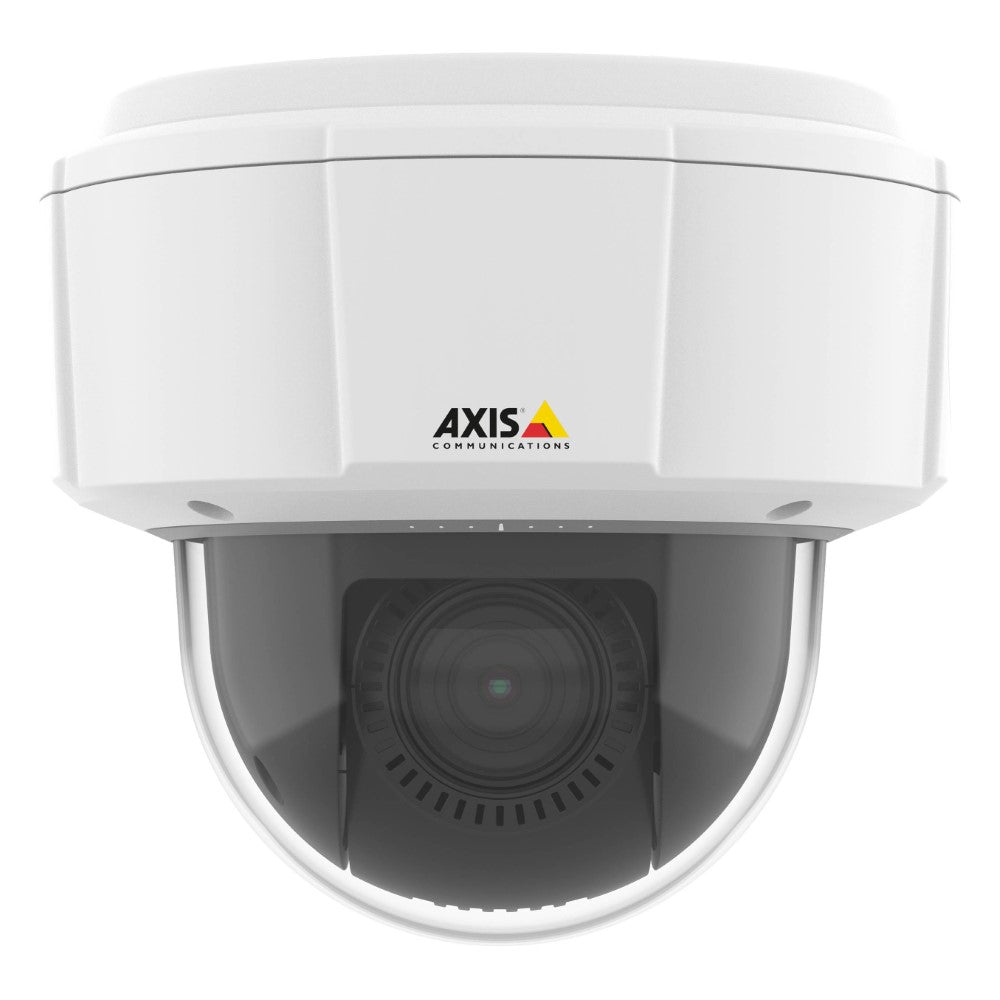

Axis AXIS-01146-001 M5525-E 50HZ PTZ Dome Camera, PoE, 1080p, IP66, 4.7-47mm, 360deg VF Lens

Model: AXIS M5525-E

Who This Is For

For security managers and integrators who need a single outdoor PTZ to cover large, open areas without deploying multiple fixed cameras. The Axis M5525-E is built for sites where the camera must be able to swing to an incident fast, hold a sharp image at distance, and keep operating through rain, heat, and sub-zero nights. Think car parks, school grounds, retail forecourts, local government open spaces, and mid-size industrial yards where an operator or an automated guard tour needs to move between zones on demand. With 360-degree endless pan, 90-degree tilt, 10x optical zoom, and an IP66-rated housing rated for -20°C to 50°C with a built-in heater, the M5525-E is specified by integrators who want an Axis-quality outdoor PTZ at a practical channel count without committing to a multi-sensor array.

What This Camera Actually Does

Who Buys This Model

• Local Government and Council Facilities: Parks, civic plazas, and transport hubs where a single PTZ on a pole must cover a wide open area and operators need to snap to specific zones via presets without deploying a fixed camera array.
• School and University Security Teams: Campuses needing a camera that can patrol ovals, car parks, and pedestrian paths on a programmed guard tour through the night and respond to operator direction during incidents.
• Retail Centre and Forecourt Operators: Fuel stations and shopping centre car parks where WDR - Forensic Capture handles the contrast between shaded canopy areas and sun-lit open lanes, and 10x optical zoom holds detail at the far end of the site.
• Security Integrators on Multi-Site Contracts: Installers specifying an IP66-rated outdoor PTZ compatible with ONVIF VMS platforms who need reliable cold-climate operation down to -20°C backed by an Axis warranty.
• Industrial and Logistics Site Managers: Warehouses and distribution yards where a camera must cover multiple loading bays from one mount point and the microSD card slot provides local recording redundancy if the network path to the NVR drops.

Honest Assessment

The M5525-E does what a mid-range outdoor PTZ is supposed to do well: it moves fast, zooms to 10x optical with solid autofocus, handles temperature extremes with a built-in heater, and integrates cleanly into ONVIF-compatible VMS environments. WDR - Forensic Capture and Zipstream are genuine operational advantages, not marketing additions. The 100-preset capacity and endless pan make it a practical choice for automated patrol on larger sites. Where it has limits: the 10x optical zoom is capable but not a substitute for a 30x or 32x optical PTZ when you need identification-grade detail at distances beyond 50-60 metres. The camera has no built-in IR illuminator, so it depends on adequate ambient or supplementary IR lighting at night. Audio requires external microphone and speaker hardware - the camera provides the input and output connections but no built-in transducers. Available through Security Australia, the M5525-E suits sites that need a proven outdoor PTZ without overspecifying for applications that a fixed wide-angle camera could handle more cost-effectively.

Before You Buy

Quick Fit Check

• Good match if: You need a single outdoor dome PTZ to run automated guard tours across a car park, school oval, or industrial yard with up to 100 programmed positions and 360-degree endless pan.
• Good match if: Your site operates in temperature extremes - from -20°C in alpine or cold-store environments up to 50°C in unshaded outdoor Queensland installs - and you need an IP66-rated housing with a built-in heater as standard.
• You may need a different model if: Your primary requirement is identification-grade zoom at distances beyond 60-70 metres - a PTZ with 30x or greater optical zoom would be a more suitable product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a proven outdoor PTZ with 360-degree endless pan, 100 presets, IP66 and heater for temperature extremes, and clean ONVIF integration into an existing VMS - without overspecifying on zoom range for mid-distance coverage applications.
• You may need a different model if: Your primary use case is long-range identification at distances over 60-70 metres - a PTZ with 30x optical zoom or greater would be a more appropriate product type for that task.
• Pairs well with: A PoE switch with adequate per-port power budget, external IR flood lights for night-time coverage in unlit areas, and a VMS platform with PTZ preset scheduling and alarm-triggered positioning.

Common Questions

1. Does the M5525-E have a built-in IR illuminator for night-time use?

   No. The M5525-E does not include a built-in IR illuminator. The camera uses an auto-removable IR-cut filter to switch to monochrome mode in low light, achieving a minimum illumination of 0.01 lux in B/W. This means it performs well in low-light conditions using ambient or supplementary IR lighting, but it cannot project its own IR beam. If your site has no external lighting at night, plan for dedicated IR flood lights positioned to cover the camera's primary patrol arc.

2. What is the actual optical zoom ratio on this camera?

   10x optical zoom. The lens is 4.7-47mm, producing a 10x optical zoom ratio, not 30x as some product summaries have incorrectly stated. This shifts the horizontal field of view from 61.8 degrees at wide end to 6.7 degrees at full telephoto. Combined with 12x digital zoom, the total is 120x, though optical zoom quality is maintained only to the 10x limit - digital zoom beyond that degrades resolution.

3. Will this camera work with my existing VMS or NVR?

   Yes, in most cases. The M5525-E supports ONVIF, which is the industry standard interoperability protocol. If your VMS or NVR is ONVIF-compliant, the camera should integrate including basic video streaming, PTZ control, and preset recall. For full access to Axis-specific features - such as Zipstream, scene profiles, and guard tour scheduling - a VMS with native Axis integration or the Axis Camera Management software will provide deeper functionality.

4. Does this camera support two-way audio for public address or intercom use?

   Yes, but only with external audio hardware. The M5525-E supports two-way full duplex audio streaming with AAC-LC and G.711 compression, but the camera has no built-in microphone or speaker. It provides an external microphone input (or line input) and a line output. You must connect an external powered speaker to the line output and an external microphone or amplified audio source to the input. This makes it suitable for talkdown or PA applications when the correct external hardware is specified and installed.

5. How does the pan/tilt speed affect PTZ response during live operator control?

   The variable speed range of 1.8 to 150 degrees per second gives operators responsive control at both ends of the range. At low speed, precise positioning around a subject is straightforward; at full speed, the camera can sweep a full 360-degree pan in approximately 2.4 seconds. The 150-degree-per-second maximum is fast enough for responsive alarm-triggered repositioning via VMS rules, though auto-tracking is not a confirmed feature of this model - repositioning is operator- or rule-driven.

6. What does the nadir flip feature do on the M5525-E?

   Nadir flip allows the camera to tilt past vertical and flip the image orientation automatically as it crosses the nadir point directly below the mount. Without this feature, a PTZ dome would lose view of objects directly beneath it when panning and tilting through the lower hemisphere. With nadir flip enabled, the camera maintains continuous, correctly oriented video as it tilts through that transition zone - useful when the mount is positioned above a walkway or entry point that falls within the tilt arc.

7. How much storage does the M5525-E consume at 1080p with Zipstream enabled?

   Storage consumption varies significantly based on scene activity and Zipstream strength settings. Zipstream dynamically reduces bitrate in low-motion or low-detail portions of the video while maintaining full quality on moving subjects and areas of interest. For a PTZ recording at 1080p in a moderately active outdoor environment, Axis documentation typically shows storage savings of 50% or more compared to standard H.264 at equivalent quality settings. For accurate NVR sizing, use your VMS vendor's storage calculator with the Zipstream-adjusted bitrate figures for your expected scene type.

8. Is the M5525-E suitable for use in a site requiring privacy masking over neighbouring properties?

   Yes. The camera supports up to 20 individual 3D privacy masks. These are polygon-based masks that remain fixed to a physical location in the scene as the camera pans, tilts, and zooms - meaning a masked neighbouring window or property boundary stays masked regardless of PTZ position. This is an important distinction from 2D masks, which are fixed to the image frame and move with the camera, making them unsuitable for compliance-driven privacy requirements. The M5525-E's 3D masks are the correct tool for permanent privacy occlusion and are stocked by Security Australia for sites where this is a documented requirement.
