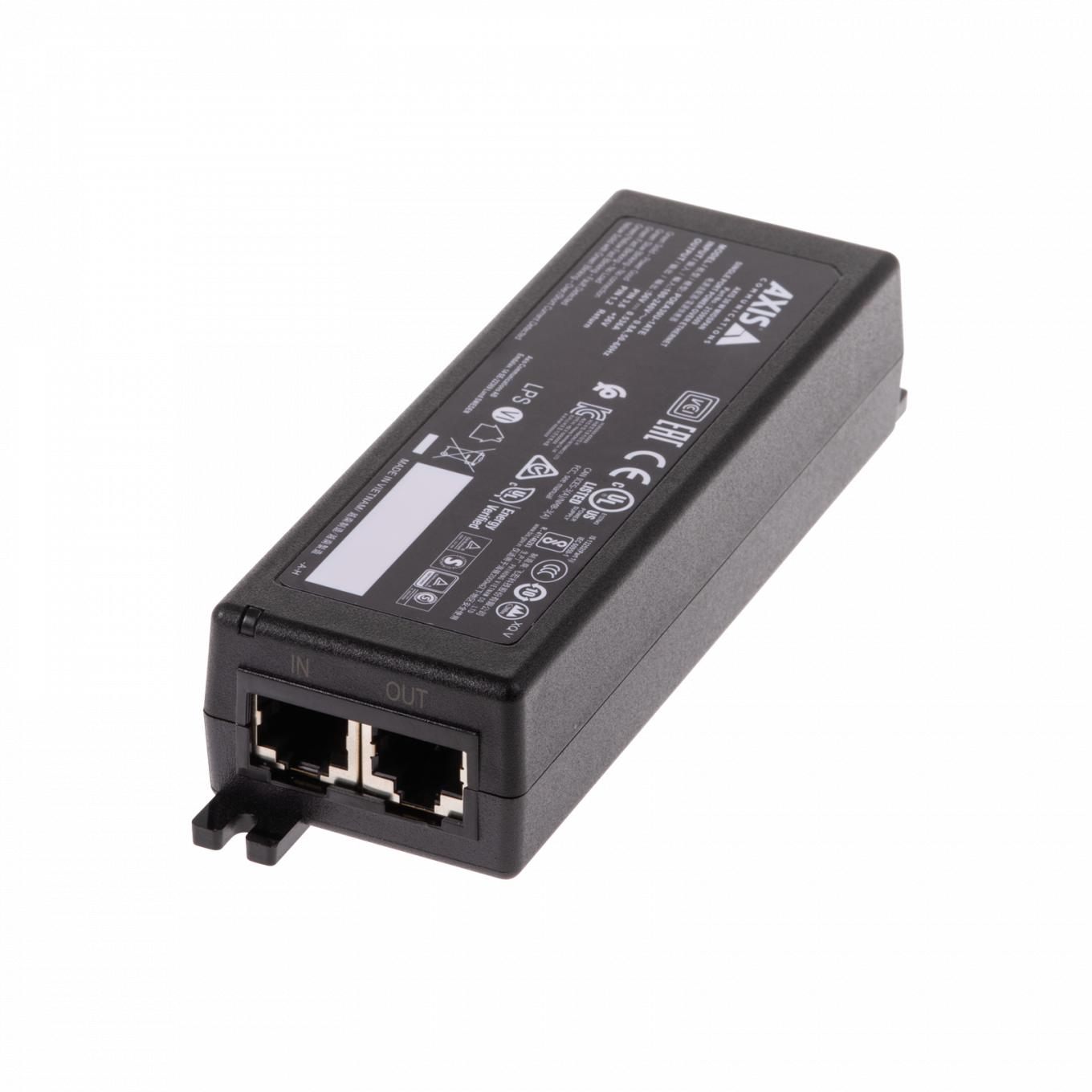

AXIS 30 W MIDSPAN AUS POWER OVER ETHERNET
The AXIS 30W Midspan delivers single-port PoE+ power injection for installers who need to add IEEE 802.3at power to an existing network run without replacing their switch. Supporting up to 30W output at 56V DC, it suits higher-draw devices such as PTZ cameras or access controllers. Compatible with the Australian 100-240V AC mains supply straight out of the box.
Why This Model
- Full PoE+ output: Delivers up to 30W per port (IEEE 802.3at Type 2 Class 4), covering higher-draw devices that standard 15.4W PoE switches cannot power.
- Non-disruptive installation: Sits inline between your existing switch and the camera run, so there's no need to swap out network infrastructure to add powered devices.
- Universal mains compatibility: Accepts 100-240V AC input, making it suitable for any standard Australian power outlet without an adaptor or additional hardware.
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Have a question?
AXIS 30 W MIDSPAN AUS POWER OVER ETHERNET
Model: AXIS 30 W Midspan
Who This Is For
When adding PoE+ power to an existing network switch is the priority - without replacing the switch itself - the AXIS 30 W Midspan is a direct solution. It sits inline between your existing switch and a network device, injecting up to 30 W of IEEE 802.3at Type 2 (PoE+) power over a single Ethernet cable. This is the device installers reach for when deploying high-draw Axis cameras, intercoms, or access control readers that exceed standard PoE budgets, and the existing infrastructure cannot be swapped out. It is equally relevant for staged rollouts where a full PoE+ switch upgrade is planned later but devices need to go live now. The wide-range AC input (100-240 V AC) means it works on any Australian mains circuit without an adapter, and gigabit data passthrough ensures no bandwidth compromise to the connected device.
What This Actually Does
Inline PoE+ Power Injection
Sits between your existing network switch and the end device. Adds PoE+ capability to any non-PoE port without replacing the switch. Data passes through unmodified while power is delivered at up to 30 W via the same Cat cable.
IEEE 802.3at Type 2 (PoE+) Standard
Delivers Class 4 PoE+ at 56 V DC output, supporting devices that require more than the 15.4 W of standard PoE. High-draw PTZ cameras, Axis intercoms, and pan-tilt units that reject standard PoE are within this power budget.
Gigabit Data Passthrough
Supports 10/100/1000 Mbps data rates. Adding this midspan between your switch and a high-resolution camera does not create a bandwidth bottleneck - full gigabit throughput is preserved end to end.
Universal AC Input
Accepts 100 to 240 V AC at 47-63 Hz. Works on Australian mains power without any voltage adapter. The C13 power connector is a standard IEC socket, so replacement power leads are straightforward to source.
Low Idle Consumption
Draws only 100 mW when no remote device is connected. Under full 30 W load the unit consumes 36 W total. The gap between output and consumption represents expected conversion losses rather than wasted standby draw.
Who Buys This Model
- Security installers retrofitting Axis cameras: Adding a high-draw Axis PTZ or multi-sensor camera to a site where the existing switch has no PoE+ ports. The midspan solves the power gap without a switch changeout.
- IT teams managing staged infrastructure upgrades: Devices need to go live on current non-PoE switch infrastructure while a full switch replacement is pending. This midspan bridges the gap with no data-rate penalty.
- Integrators deploying Axis intercoms or access readers: Door stations and intercoms that require PoE+ rather than standard PoE are supported at this 30 W output level, making the midspan a per-device power solution for access control points.
- Small site operators without a PoE-capable NVR or switch: Where a single network camera or device needs powering and running a new power circuit is impractical, this midspan injector provides power over the existing Cat cable run.
Honest Assessment
The AXIS 30 W Midspan does one thing well: it delivers a reliable 30 W PoE+ power budget to a single device over an existing Cat cable, without touching the upstream switch. The IEEE 802.3at Type 2 compliance means it negotiates correctly with Axis devices that actively check for standards-compliant PoE+ before drawing power. Gigabit passthrough and universal AC input make it genuinely plug-and-go in Australian installations. It is available through Security Australia as part of the Axis accessories range. Where this unit is not the right fit: if you are powering multiple devices, a multi-port PoE+ switch or managed PoE injector panel is more cost-effective and tidier to manage. This midspan is a single-port solution - one unit, one device. It will also not power devices requiring more than 30 W, such as some high-end PTZ cameras that draw closer to 60 W under active motor use.
Before You Buy
Installer Note: Confirm your target device's actual PoE power class before ordering. This midspan outputs a maximum of 30 W, which covers IEEE 802.3at Class 4 devices. If the connected device negotiates at Class 5 or above (used by some high-end PTZ cameras), it will not receive adequate power. Also note this is a single-port unit - budget one midspan per device if powering multiple endpoints on a non-PoE switch.
Splitter Use Case: This midspan can be paired with a PoE Splitter to power legacy network devices that have no built-in PoE support at all. The splitter sits at the device end and separates data and power back into separate connectors. If this is your intended setup, confirm the splitter's output voltage matches what your legacy device requires before purchasing.
Quick Fit Check
- Good match if: You have a single Axis camera, intercom, or access device requiring PoE+ (up to 30 W) and your existing switch does not have PoE+ output - this midspan adds that power without replacing the switch.
- Good match if: You are working in a location where only standard mains power is available and need to deliver both data and power over a single Cat cable to a remote device - the universal AC input and gigabit passthrough handle this in one unit.
- You may need a different model if: You are powering 4 or more devices - a multi-port PoE+ managed switch will be more practical and cost-effective; browse the network switches range on securityaustralia.com.au.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need to add PoE+ to a single device on a non-PoE switch without replacing the switch - the midspan adds that power at the port level with zero changes to the switch configuration.
- You may need a different model if: You are powering 3 or more PoE+ devices at the same site - a multi-port PoE+ managed switch delivers better value per port and cleaner cable management; browse managed PoE switch options on securityaustralia.com.au.
- Pairs well with: A PoE Splitter (for powering legacy non-PoE devices from the Cat cable run) or any IEEE 802.3at Class 4 Axis network camera, intercom, or access control reader.
Common Questions
-
Will this midspan work with my existing non-Axis PoE+ cameras?
Yes, provided those cameras comply with IEEE 802.3at. The AXIS 30 W Midspan negotiates using the standard IEEE 802.3at Type 2 protocol, which is manufacturer-agnostic. Any device that correctly requests and accepts PoE+ via that standard should work. However, proprietary passive PoE devices that do not follow IEEE 802.3at negotiation are not supported and could be damaged. -
Does this midspan reduce my network speed at all?
No. The data passthrough is rated at 10/100/1000 Mbps - full gigabit. The midspan only adds power to the cable; it does not process or interrupt the data signal. A camera or device connected through this midspan gets the same bandwidth it would receive if plugged directly into a gigabit switch port. -
Does this unit support Australian mains power without a separate adapter?
Yes. The AC input accepts 100 to 240 V AC at 47 to 63 Hz, which covers Australian standard mains supply. The C13 power inlet is an IEC standard socket - a standard Australian three-pin to C13 lead connects directly. No voltage converter or adapter is required. -
Can I use this to power a PTZ camera that draws close to 60 W under full motor operation?
No. The maximum output is 30 W. High-draw PTZ cameras that require more than 30 W - particularly during pan/tilt/zoom motor activation - will not receive adequate power from this unit. For cameras with that power demand, a PoE+ switch rated at 60 W per port or a dedicated high-power injector is the correct approach. Check your specific PTZ camera's power class in its datasheet before purchasing. -
How does this midspan differ from a PoE switch?
A PoE switch replaces your existing switch entirely and provides PoE on every port. This midspan is a single-port inline device - it sits between one port on your existing switch and one end device. It adds PoE+ to that single connection without any other change to your network. It is not a switch and does not provide additional network ports. For single-device scenarios it is cost-effective; for multi-device deployments a PoE+ switch is the more practical solution. -
Will this work with a PoE Splitter to power a legacy device with no built-in PoE?
Yes. This is an explicitly supported use case. The midspan injects power and data into the Cat cable at the switch end. A PoE Splitter at the device end then separates the power from the data signal and outputs DC voltage to the legacy device's power input. Confirm the splitter's output voltage matches the device's input requirement before pairing them - the splitter, not this midspan, determines the final DC output voltage delivered to the device. The AXIS 30 W Midspan is supplied by Security Australia as part of the Axis accessories range.
