  • Sku: DS-2CD2386G--IU_BLACK / DS-7608NI - 3TB
  • Vendor: SecurityAustralia

8MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Black Shadow Series w/ Acusense + 8CH NVR

$2,560.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

Kit Includes:

  • 4 x 8MP Hikvision Outdoor Turret Acusense Cameras (DS-2CD2386G2-IU with Microphone)

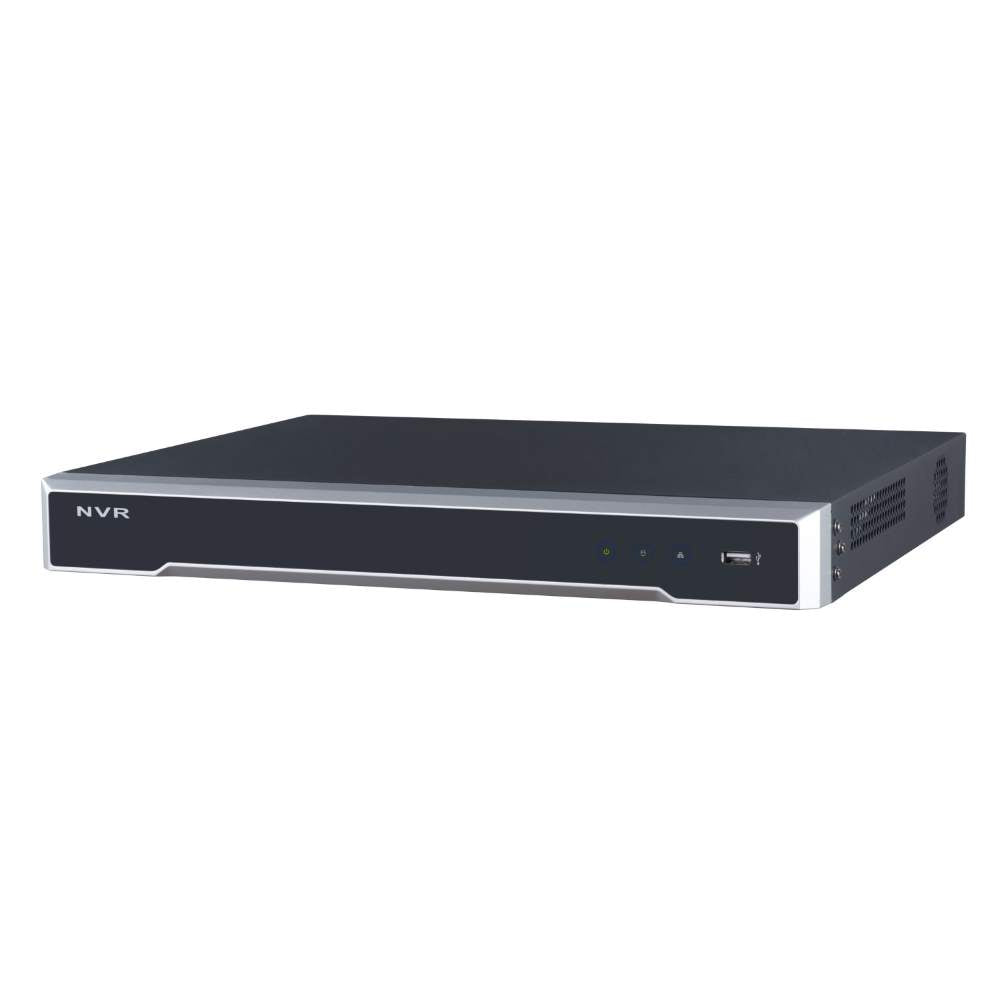

  • 1 x 8 CH Hikvision PoE NVR (DS-7608NI-I2)

Overview:

This Hikvision CCTV kit provides a robust and efficient surveillance solution, ideal for both residential and commercial properties. With high-resolution 8MP cameras and an advanced NVR, it ensures clear, reliable video recording and monitoring.

Key Features:

  • High Resolution: 8MP cameras capture clear and detailed images.
  • Infrared Range: IR range of 30m for enhanced night vision.
  • Environmental Protection: IP67 rated for water and dust resistance.
  • Wide Dynamic Range: 120dB true WDR for clear images in various lighting conditions.
  • Audio Capability: Built-in microphone for real-time audio security.

Technical Details:

  • Lens Options: 2.8mm
  • Camera Color: Available in Black
  • NVR Capacity: 8 channels, 80Mbps throughput, supports 4K output.
  • Storage: 3TB Hard Drive included with NVR.

Suitable For:

This kit is perfect for users needing a reliable, high-resolution video surveillance system with advanced features for either home or business security.

Specifications

Camera Image Sensor
1/1.8" Progressive Scan CMOS
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N Wide Dynamic Range: 120 dB
Day & Night: IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type
Fixed
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Aperture F1.6
Lens Mount M12
DORI 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
Illuminator Supplement Light Type
IR
IR Range
Up to 30 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Visual Alarm
Yes
Video Max. Resolution
3840 × 2160
Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate H.264 Type: 32 Kbps to 16 Mbps (Baseline Profile/Main Profile/High Profile)
H.265 Type: Main Profile
H.264+: Main stream supports
H.265+: Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Network Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
User/Host Security
Up to 32 users. 3 user levels: administrator, operator and user
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client Web Browser
iVMS-4200, Hik-Connect, Hik-Central
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image SNR
≥ 52 dB
Target Cropping
Yes
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone
Built-in Microphone
Yes
Built-in Speaker
Yes
On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 512 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Scene change detection
Deep Learning Function
Face Capture
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
General Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
Web Client Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software Reset Yes
Firmware Version V5.5.112
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current 12 VDC, 0.75 A, max. 9 W
PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Metal except for trim ring
Camera Dimension Ø138.3 mm× 124.5 mm (Ø5.4" × 4.9")
Package Dimension 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")
Camera Weight Approx. 840 g (1.9 lb.)
With Package Weight Approx. 1160 g (2.6 lb.)
Approval EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

8MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Black Shadow Series w/ Acusense + 8CH NVR

8 x 8MP 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

Elevate your outdoor security with the powerful DS-2CD2386G2-ISU/SL Fixed Turret Network Camera from Hikvision. Featuring 8MP (4K) resolution and powered by DarkFighter technology, it delivers high-quality imaging even in challenging low-light conditions. Benefit from 120 dB true WDR technology for clear images against strong backlight, and efficient H.265+ compression to minimize bandwidth and storage requirements.

This camera is equipped with AcuSense technology for accurate human and vehicle target classification, reducing false alarms. It includes an active strobe light and audible alarm to deter intruders, along with built-in two-way audio for real-time communication.

IP66-rated for water and dust resistance, this camera is designed to withstand outdoor environments.

Functions:

  • DarkFighter Technology: The camera is designed to perform exceptionally well in low-light conditions, capturing clear and detailed images even in near darkness. This is crucial for ensuring 24/7 surveillance in areas where lighting is unpredictable or insufficient.
  • 120 dB True WDR Technology: Wide Dynamic Range (WDR) technology is essential for capturing high-quality images in environments with varying lighting conditions. It ensures that both bright and dark areas of a scene are captured with clarity, making it easier to identify important details.
  • AcuSense Technology: This intelligent feature uses deep learning algorithms to distinguish between human and vehicle targets and other movements like leaves or animals. This reduces the number of false alarms, allowing the system to focus on real threats.
  • Active Deterrence with Strobe Light and Audible Alarm: The camera is equipped with a strobe light and audible alarm to actively deter potential intruders. When a person or vehicle is detected, the system can trigger these features to warn off intruders before they can take action.
  • Two-Way Audio: With built-in two-way audio, you can communicate in real-time with anyone near the camera, whether to provide warnings or gather information. This adds an extra layer of security and control over your monitored area.

Key Features:

  • 8MP 4K Resolution: Captures clear and detailed images suitable for high-definition surveillance needs.
  • Low-Light Performance: DarkFighter technology ensures superior image quality even in low-light conditions.
  • Wide Dynamic Range: 120dB true WDR technology helps in capturing clear images in challenging lighting conditions.
  • Efficient Compression: H.265+ compression technology reduces bandwidth and storage requirements without compromising quality.
  • Active Deterrence: Features an integrated strobe light and audible alarm to deter potential threats.
  • Durable Design: IP66 rating ensures the camera is water and dust resistant, making it ideal for outdoor use.

Specifications Summary:

Resolution: 8MP (4K)
Low Light Performance: Powered by DarkFighter technology
Wide Dynamic Range: 120dB true WDR
Compression: H.265+
Intelligent Detection: Human and vehicle classification
Active Deterrence: Strobe light and audio alarm
Audio: Two-way audio
Protection: IP66 (water and dust resistant)
