8MP 4CH Hikvision CCTV Camera Kit: 4 x Outdoor Acusense Motorised VF Turret + 8CH NVR

Model: DS-2CD2H86G2-IZS / HIK-7608NI

Who This Is For

For installers and property owners who need a complete, ready-to-deploy 8MP surveillance system without piecing together compatible components individually. This kit pairs 4 x Hikvision DS-2CD2H86G2T-IZS AcuSense motorised varifocal turret cameras with an 8-channel NVR, giving you a confirmed-compatible system from a single order. The motorised 2.8-12mm varifocal lens on each camera means focal length can be adjusted after mounting - useful on sites where the exact coverage angle is only confirmed once you're on the roof or under the eave. AcuSense deep learning classifies detections as human or vehicle, cutting nuisance alerts from animals and foliage movement. With IP66 weather resistance and IK10 vandal resistance on the cameras, this kit suits external wall and eave positions at commercial premises, medium-density residential buildings, and light industrial sites where both weather exposure and physical interference are real concerns.

What This System Actually Does

Who Buys This Model

• Small business owners: Retail stores, cafes, and warehouses needing a fully matched kit that covers 4 external angles from day one, with room on the NVR to add cameras at a rear loading area or internal POS position later.
• Property managers at medium-density residential: Strata managers specifying camera upgrades for carparks and entry points where motorised varifocal adjustment and IK10 vandal resistance are both required in the same unit.
• Security installers on fixed-budget commercial projects: Tradespeople who need a confirmed-compatible 8MP camera-and-NVR combination to quote confidently, without sourcing and compatibility-testing components separately.
• Light industrial site supervisors: Facilities with fencing perimeters, machinery yards, or external storage where IP66 weather resistance and 30m IR reach are needed to maintain visibility across open areas at night.

Honest Assessment

This kit delivers a genuine 4K AcuSense system at a price point that makes 8MP resolution accessible for small commercial sites. The motorised varifocal lens is a practical advantage over fixed-lens alternatives - adjusting coverage remotely after mounting reduces revisit costs. AcuSense classification is confirmed and works on-camera, which means it functions without cloud dependency or additional subscription. H.265+ compression keeps storage manageable at 8MP, and the 8-channel NVR provides future expansion capacity that a 4-channel recorder cannot offer.

What this kit will not do: the cameras reach 30m on IR, so if your site has long external approaches beyond that range, a dedicated bullet camera with 60m or 80m IR reach would serve those positions better. Two-way audio is not confirmed on this model - the audio I/O interface accepts an external microphone, but there is no built-in speaker for talk-back. If active deterrence with strobe lighting and siren is a priority, a TiOC-based kit available through Security Australia would be the more appropriate direction.

Complete Package Contents

• 4 x Hikvision DS-2CD2H86G2T-IZS - 8MP AcuSense Motorised VF Outdoor Turret Camera, 2.8-12mm, IP66, IK10, 30m IR, PoE/12V DC
• 1 x Hikvision HIK-7608NI 8-Channel NVR - 8CH Network Video Recorder, H.265+, compatible with AcuSense cameras

Before You Buy

Quick Fit Check

• Good match if: You need 4 x external 8MP cameras with motorised varifocal lenses and confirmed AcuSense classification, and want a single compatible kit rather than individually sourced components.
• Good match if: Your site currently needs 4 cameras but you anticipate expanding to 6 or 8 cameras within 12-24 months - the 8-channel NVR accommodates that growth without replacing the recorder.
• You may need a different model if: Your primary requirement is long-range coverage beyond 30m, active deterrence with strobe and siren, or full-colour night vision without IR - in those cases, a bullet camera kit or TiOC-based system would be a better fit for your site.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need confirmed AcuSense classification at 8MP resolution across 4 outdoor positions, with motorised varifocal flexibility and an NVR that has room to grow - all from a single matched kit.
• You may need a different model if: Coverage distances beyond 30m are required at any camera position, or if full-colour night vision without IR is a priority - a bullet camera kit with extended IR or a ColorVu-based system would be more appropriate for those scenarios.
• Pairs well with: A surveillance-grade 3.5" SATA hard drive sized for your retention requirement, a PoE switch for extended cable runs, and an external siren or alarm panel connected via the camera's alarm I/O interface.

Common Questions

1. Does this kit include a hard drive?

   No. The HIK-7608NI NVR accepts a standard 3.5" SATA surveillance-grade hard drive, but none is included in the kit. You will need to purchase a drive separately. For continuous recording across 4 x 8MP cameras with H.265+ enabled, a minimum 4TB drive is recommended - size up to 6TB or 8TB if you require 30 days or more of retention.

2. Will these cameras work with my existing Hikvision NVR?

   Possibly, but compatibility depends on your existing NVR model and firmware version. The DS-2CD2H86G2T-IZS cameras require an NVR that supports AcuSense and 8MP streaming. If your current recorder is an older generation, AcuSense smart detection may not function correctly even if the live image connects. The HIK-7608NI NVR included in this kit is confirmed compatible with the cameras in this package.

3. Does this camera support two-way audio?

   No. The DS-2CD2H86G2T-IZS includes an audio and alarm I/O interface, which means it can accept input from an externally wired microphone. However, there is no built-in speaker on this camera, so it cannot be used for talk-back or two-way communication without adding external hardware. If intercom-style two-way audio from a camera is a requirement, a different camera model with both built-in microphone and speaker would be needed.

4. What does AcuSense actually do differently from standard motion detection?

   AcuSense classifies detected motion as either human, vehicle, or other before triggering an alert. Standard motion detection triggers on any pixel change - trees moving in wind, animals, passing headlights. AcuSense runs a deep learning algorithm on the camera itself and only sends a push notification or records a flagged event when a human or vehicle is the confirmed cause. For sites with trees, traffic movement, or wildlife nearby, this distinction significantly reduces the volume of irrelevant alerts.

5. How does the motorised varifocal lens work in practice during installation?

   Once the camera is physically mounted and connected, the focal length and focus are adjusted via the NVR interface or web browser - no physical access to the camera is required. You zoom in or out remotely until the desired coverage area is framed correctly, then lock the position. This is a practical advantage on multi-storey walls or roof soffits where returning to the camera after installation is time-consuming or requires additional equipment.

6. Will this system work in the Australian summer heat?

   Yes. The DS-2CD2H86G2T-IZS is rated to operate in temperatures from -40°C to +60°C. For Australian outdoor installations - including exposed north-facing walls, corrugated iron rooflines, and Queensland summers - this thermal range covers all realistic conditions. The IP66 rating also means the housing seals against dust and water ingress, including heavy rain and hose-down environments.

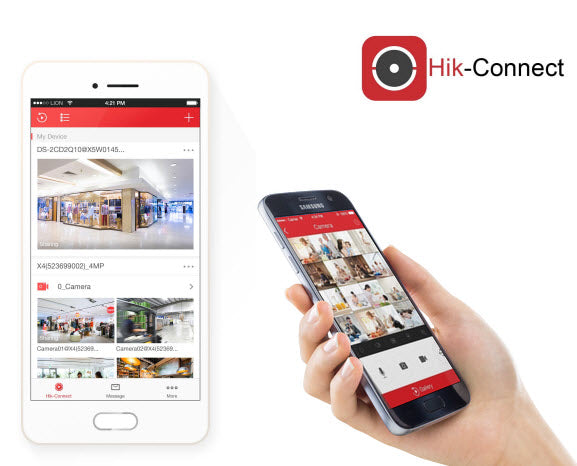

7. Can I access the cameras remotely on my phone?

   Yes. The HIK-7608NI NVR supports remote access via Hikvision's mobile applications, allowing live view and recorded footage playback from a smartphone or tablet. Remote access requires the NVR to be connected to your network with appropriate port forwarding or cloud relay configured. The setup process is documented in the NVR manual - if you need guidance on network configuration, the team at Security Australia can point you toward the relevant setup resources.

8. Does the 8-channel NVR support cameras from other brands?

   It depends on the brand and protocol. The HIK-7608NI is a Hikvision NVR and is optimised for Hikvision cameras - AcuSense, 8MP streaming, and smart event functionality are confirmed when using the included DS-2CD2H86G2T-IZS cameras. Third-party ONVIF-compatible cameras may connect at a basic level, but smart detection features and full resolution are not guaranteed. For a fully functioning AcuSense system, all cameras should be Hikvision AcuSense-compatible models.

Cabling Considerations

• Cable Type: Cat5e or Cat6 for PoE runs from the NVR to each camera. Cat6 is recommended for new installs to support future higher-bandwidth cameras.
• Max Cable Run: 100m per PoE run from NVR switch port to camera. Runs over 100m require either a PoE extender or a 12V DC power supply at the camera end with a separate network cable.
• PoE Notes: The DS-2CD2H86G2T-IZS supports IEEE 802.3af/at PoE. Confirm the NVR's per-port and total PoE budget before adding additional cameras to spare channels - higher-resolution cameras and motorised lens cameras draw more power than basic fixed-lens models.
• Wiring Tips: Run all camera cables back to the NVR location before wall finishing where possible. The motorised varifocal adjustment is done via the NVR after cables are terminated, so there is no need to pre-set the lens angle at rough-in stage. Label each cable run with the camera position at both ends to simplify commissioning.

Downloads & Resources

No downloads available for this product.
