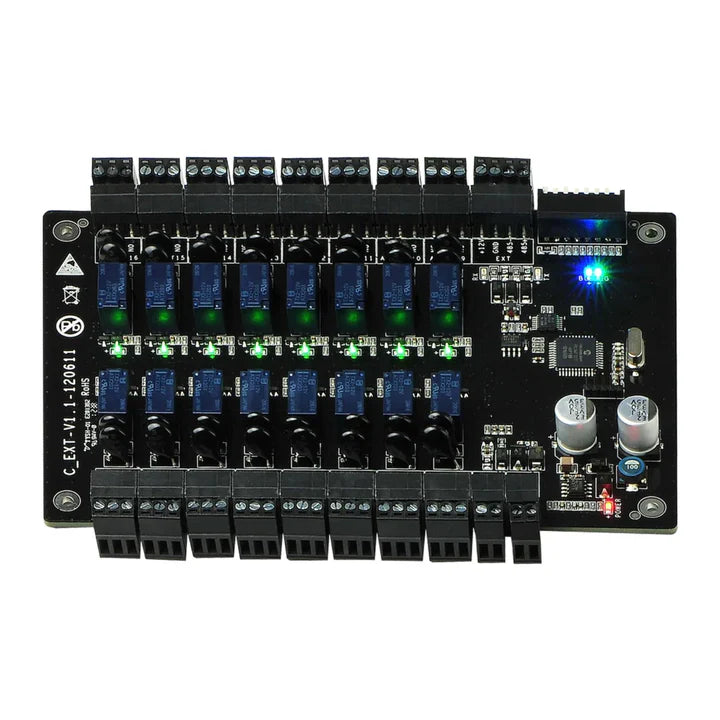

ZKTeco EX16 Elevator Controller Extend Board
ZKTeco EX16 Elevator Controller Extend Board
The ZKTeco EX16 is an elevator floor extension board designed to work with the EC10 elevator control panel, providing additional control for up to 16 floors per board. Together with the EC10, the EX16 offers a secure, scalable, and versatile access control solution for elevator systems. Floor access can be restricted based on user credentials such as fingerprint, proximity card, or password, and pre-defined time schedules can be configured for flexible access management.
With the ability to connect up to three EX16 boards to a single EC10 panel, the system can control up to 58 floors. Multiple EC10 panels can also be daisy-chained for larger installations, making it a cost-effective solution for buildings of various sizes.
Features:
- Multiple Verification Modes: Supports fingerprint, proximity card, and password for secure floor access control.
- Scalable Design:
- Each EC10 panel supports up to 3 EX16 boards.
- Combined, a single EC10 and EX16 setup can control up to 58 floors.
- Multiple EC10 panels can be daisy-chained for larger installations.
- Time-Based Access Control: Allows pre-defined time schedules for restricted or unrestricted floor access (Passage mode).
- Easy-to-Use Software: Intuitive software for easy management of the elevator control system.
- SDK Availability: Software Development Kit (SDK) is available for integration with third-party systems.
Code/SKU: EX16
Quick Specs: Floors Supported: 16 per EX16 board; Communication: RS485; Power: 12V DC 1A; Dimensions: 160mm × 106mm; Weight: 0.2Kg.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The ZKTeco EX16 Elevator Controller Extend Board is designed to work with the EC10 panel, providing a secure, scalable, and versatile access control solution for elevator systems. Each EX16 board extends control to an additional 16 floors, allowing a single EC10 bundle to manage up to 58 floors when combined with three EX16 boards. Floor access can be restricted using user credentials such as fingerprint, proximity card, or password, and pre-defined time schedules can also be applied. During normal business hours, unrestricted floor access can be enabled (Passage mode).
The system is managed through powerful yet user-friendly software, and an SDK is available for integration with third-party applications. The EX16 board communicates with the EC10 panel via RS485, ensuring seamless operation and scalability for buildings of all sizes.
Features
- Multiple Verification Modes: Supports fingerprint, proximity card, and password for secure floor access control.
- Time-Based Access: Allows pre-defined time schedules to restrict or permit floor access.
- Passage Mode: Enables unrestricted floor access during normal business hours or predefined periods.
- Scalable Solution: Each EX16 board extends control to 16 additional floors, supporting up to 58 floors per EC10 bundle.
- Easy Integration: Communicates with the EC10 panel via RS485 for seamless operation.
- User-Friendly Software: Easy-to-use software for managing the elevator control system.
- SDK Availability: SDK provided for integration with third-party software applications.
- Compact Design: Compact dimensions and lightweight design for easy installation and deployment.
Functions
Extended Floor Control:
Each EX16 board extends control to 16 additional floors, supporting up to 58 floors per EC10 bundle.
Secure Access Control:
Restricts floor access using fingerprint, proximity card, or password for enhanced security.
Time-Based Restrictions:
Applies pre-defined time schedules to control floor access based on user credentials.
Passage Mode:
Allows unrestricted floor access during normal business hours or predefined periods for convenience.
Seamless Integration:
Communicates with the EC10 panel via RS485 for reliable and efficient operation.
Easy Management:
User-friendly software simplifies system configuration and management.
Integration Options:
SDK available for seamless integration with third-party software applications.
Compact and Lightweight:
Compact dimensions and lightweight design for easy installation and deployment.
Technical Specifications:
| Model | ZKTeco EX16 Elevator Controller Extend Board |
| Floor Control Capacity | 16 additional floors per EX16 board |
| Compatibility | Works with EC10 Elevator Control Panel |
| Floor Button Control Relay | 16 relays |
| Communication Protocol | RS485 |
| RS485 Address Configuration | Set by DIP switch |
| Power Supply | 12V DC 1A |
| Dimensions | 160mm × 106mm (L × D) |
| Net Weight | 0.2Kg |
| Scalability | Up to 3 EX16 boards per EC10 panel (58 floors total) |
| Integration | Seamless integration with EC10 and ZKTeco systems |
