Vivotek ND9542P H.265, 32CH, 1 HDMI+1 VGA, 1080P @ 360 fps, 4K display, 4 HDD, RAID 0/1/5, 16 PoE, Core+ AI
$2,873.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
Core+ AI 32-Channel NVR with Embedded PoE
Core+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.
Key Features
- 1080P 360 fps with H.265 Compression Technology
- Up to 20MP Cameras Supported
- 4K Video Output Display for Clear and Detailed Monitoring
- Deep Search (Attribute Search, Scene Search)
- VIVOTEK Smart VCA Camera Supported for Event Search & Recording
- 802.3at/af PoE with PoE Management
- RAID 0, 1, 5 Supported to Prevent from Recording Data Loss
- Alarm In *16, Alarm Out *8
- Trend Micro IoT Security & Cybersecurity Management
- Manage with VORTEX and VAST Security Station (VSS)
- Made in Taiwan
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Free shipping
Enjoy free shipping when your order exceeds $100.
Fast dispatch
Orders are dispatched within the next business day.
Best local support in Aus
We back all products with manufacturer warranty support.
Official Australian stock
Genuine products with local warranty support.
Product Overview
Next Generation NVR Firmware: Core+AI
Core+ AI firmware take Core+ up a level. Core+ AI NVR’s are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search’s AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.
Deep Search

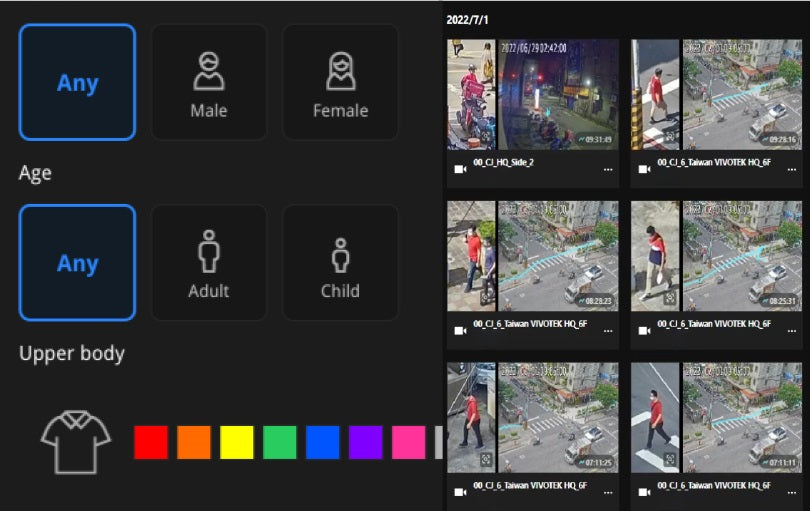

Attribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g., gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.

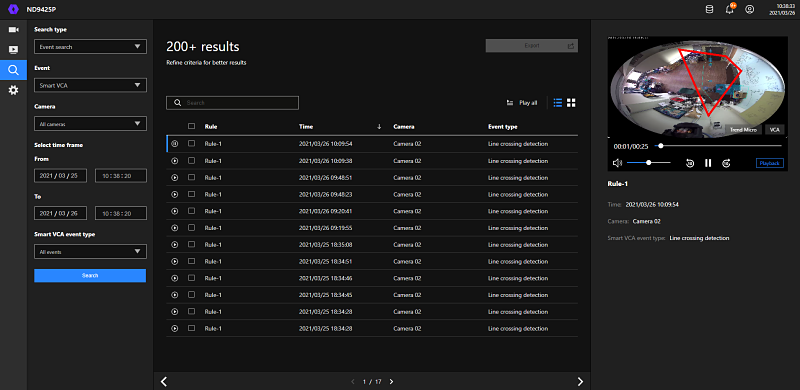

Smart VCA Event Search
it supports alarm management and event search of VIVOTEK’s deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips. *Requires Smart VCA enabled cameras
4K IP Camera Video Input and 4K Local Video Output
Supporting 4K IP camera video input and 4K local video output, it can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.

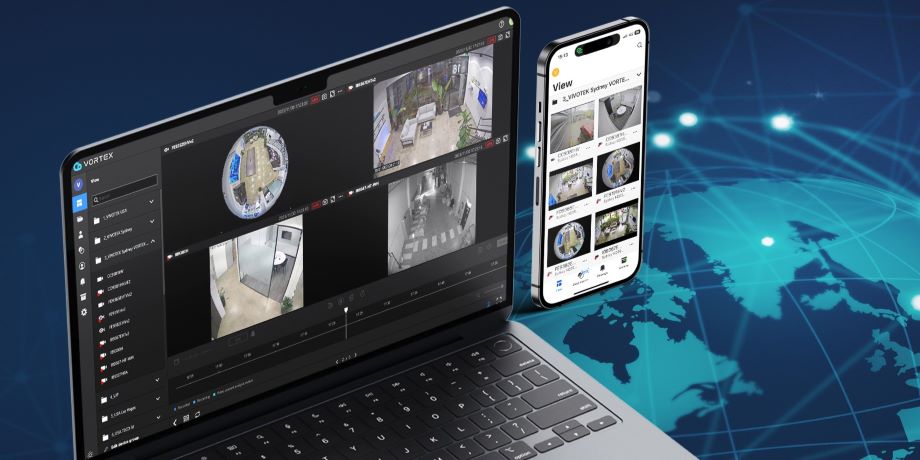

24/7 Monitoring Convenience through VORTEX
VORTEX makes surveillance lightweight and portable, ensuring efficient operation. This cloud cross-platform makes surveillance even more convenient, users can view live streams, play recorded clips at any time, anywhere. Equipped with the Push Notification function, users receive immediate alert messages on their Android/iOS mobile devices and can directly playback the video to inspect any suspicious activity.
This NVR features HDMI and VGA ports, along with an audio input and output. Remote management is possible thanks to the iViewer app for iOS and Android. Compliance with ONVIF profile S enables interoperability with ONVIF cameras.
Sample Video
https://youtu.be/hEFQT_iNXX4
- Embedded Linux OS
- Recording modes include: continuous, schedule, manual, event, and activity adaptive streaming
- Supports IP cameras up to 20MP
- 16 x PoE ports
- 4K UHD video output via HDMI
- Fisheye dewarping
- PTZ operation includes: direction control, home, iris, preset, and patrol (group)
- Compatible with Chrome, iViewer for Android and iOS, VIVOCloud, Shepherd, VAST 2, and VSS
- HDD S.M.A.R.T disk management
- Watermark support
- Watchdog hardware and software
- Power restoration restarts the system automatically after power recovery
| Specifications | |
|---|---|
| Device | Model: ND9542P |
| OS | Embedded Linux |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Display | LiveView Display |
| Channels | 32 Channels |
| Multi-Layout Display | 1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4, 1M+31 |
| Video Output | HDMI x1, VGA x1 |
| Display Resolution | 3840x2160, 1920x1080, 1280x720 |
| Stream Application | Constant/Auto Adaptive Stream |
| Fisheye Dewarp | Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R Web: 1O, 1R, 1P |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group) |
| Video | Video Format |
| Video Format | MJPEG, H.264, H.265 |
| Graphic Decoder | Hardware decoding |
| Decoding Resolution | Up to 7680x2560 |
| Decoding Capability | H.265/H.264: 3840x2160 @ 90 fps 1920x1080 @ 360 fps |
| Audio | Audio Format |
| Audio Format | G.711, G.726, MPEG-2 AAC-LC |
| Audio In/Out | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1 |
| Record | Recording Time (sec.) |
| Pre-Record | 5 (Max. 10) |
| Post-Record | 20 (Max. 300) |
| Recording Stream | Dual |
| Recording Throughput | 192 Mbps |
| Recording Mode | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming |
| Recording Setting | Recycle (unit: Day) |
| Watermark | Supported |
| Seamless Recording | Supported |
| Storage & Backup | DISK Devices |
| DISK Devices | Internal x4 (3.5") (HDD is purchased separately) |
| HDD Max. Capacity | Please refer to the recommended HDD list on the VIVOTEK website. |
| RAID | RAID 0, 1, 5 (Up to 10-CH Vision Object Analytics supported network cameras when using RAID5) |
| Disk Management | Create, Format and Remove Disk |
| HDD S.M.A.R.T. | Supported |
| External Storage | USB Storage (USB 3.0) |
| Video Clip Export | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback | Playback Display |
| Playback Display | 4 Channels Multi-Layout Display: 1x1, 2x2, 1P+3, 3V |
| Playback Control | Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) |
| Video Search | By Calendar, Date/Time, and Alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2-CH) |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| Network | Ethernet |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x2 |
| Network Throughput in total | 224 Mbps |
| PoE | 802.3at/af compliant PoE ports x 16 (Total Max. 200 W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk. |
| PoE Management | Supported |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS |
| External Interface | USB |
| Front | 2 (USB 2.0) |
| Back | 1 (USB 3.0) |
| Alarm In | 16 |
| Alarm Out | 8 |
| Audio | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1 |
| RS485 | 1 (Reserved) |
| System | Camera Integration |
| Camera Integration | ONVIF Profile S |
| Event | Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss |
| Event Action | Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service |
| User Management | User level: administrator, regular user |
| Log | System, Recording, User, Error |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic |
| Deep Search | Object Search |
| Object Search | People, Vehicle |
| Scene Search | Line crossing, Intrusion, Loitering |
| Attribute Search | People: Gender, Age, Clothing Color, Accessories Vehicles: Type, Color |
| Advanced Features | VCA Counting Solution |
| VCA Counting Solution | Supported |
| VCA Event Search | Smart VCA, Smart 360 VCA |
| Smart Search II | Supported |
| Trend Micro IoT Security | Supported |
| Cybersecurity Management | Supported |
| Remote Client | Software AP |
| Software AP | Shepherd, VSS (VAST Security Station) |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Chrome |
| Cloud Service | VORTEX Connect |
| General | Power Input |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | Max. 300 W |
| Dimensions | 432 (W) x 421 (D) x 66 (H) mm |
| Weight | 4.6 kg (without HDD) |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
