  • Sku: MS9321-EHV-V2
  • Vendor: SecurityAustralia

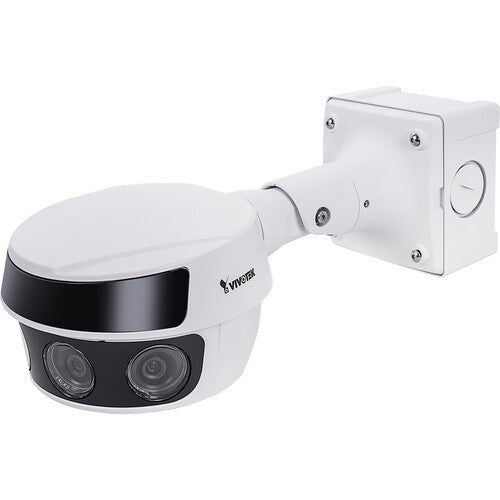

Vivotek MS9321-EHV-v2 Multi-Sensor Panoramic Camera, 18MP 30 fps, 180° View, 30M IR, WDR Pro, Smart VCA

$4,897.20 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

18MP 30fps • 180° View • 30M IR • WDR Pro • Smart VCA The Vivotek MS9321-EHV-v2 Multi-Sensor Panoramic Camera captures 18MP total resolution video at 30 fps. Four IR LEDs provide up to 98' of night vision. The camera's four 3.5mm fixed lenses deliver a 180° horizontal angle of view. A built-in microphone, along with an audio input and output enable two-way audio. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Key Features
  • 30 fps @ 6912x2624
  • H.265 Compression Technology with Smart Stream III
  • SNV, WDR Pro and Smart IR
  • Built-in IR Illuminators up to 30 Meters
  • Signed Firmware and Secure Boot
  • AI-powered Smart Motion Detection and Smart VCA
  • Trend Micro IoT Security for Cyber Protection
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
MS9321-EHV-V2 Datasheet

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Vivotek MS9321-EHV-v2 Multi-Sensor Panoramic Camera, 18MP 30 fps, 180° View, 30M IR, WDR Pro, Smart VCA

$4,897.20 AUD
 per

The Vivotek MS9321-EHV-v2 Multi-Sensor Panoramic Camera captures 18MP total resolution video at 30 fps. Four IR LEDs provide up to 98' of night vision. The camera's four 3.5mm fixed lenses deliver a 180° horizontal angle of view. A built-in microphone, along with an audio input and output enable two-way audio. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. High-Quality Surveillance Featuring 4 x 5MP CMOS Sensors at 30fps at all resolutions, the multiple sensor network camera can monitor full 180° horizontal views and deliver the highest-quality comprehensive coverage, making it an ideal outdoor surveillance solution with excellent image details. Video Alignment to Have a Seamless Picture The MS9321-EHV-V2 has the Video Alignment feature that allows you to adjust the positioning and image quality of each sensor, enabling users to view a seamless picture, with no repetition. Unparalleled Visibility in High Contrast Environments Featuring WDR Pro (120dB), the MS9321-EHV-V2 captures both the dark and bright areas of an image and combines them to create a highly realistic representation of the original scene. Technical Specifications

System Information

Model MS9321-EHV-V2
CPU Multimedia SoC (System-on-Chip)
Flash 8 GB
RAM 8 GB

Camera Features

Image Sensor 1/2.8" Progressive CMOS in 2560*1920 x 4
Max. Resolution 6912x2624 (18MP)
Lens Type Fixed-focal
Focal Length f = 3.5 mm
Aperture F2.0
Iris Type Fixed iris
Field of View 180° (Horizontal), 62.5° (Vertical), 180° (Diagonal)
Shutter Time 1/30 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Day/Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*4
Minimum Illumination 0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on
Pan Range ±90°
Tilt Range 90°

Storage

Seamless Recording MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)

Video

Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 30 fps @ 6912x2624 (Deep Learning VCA off) 20 fps @ 6912x2624 (Deep Learning VCA on)
Maximum Streams 4 video streams (Up to 9 configurable profiles)
S/N Ratio 54 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and constrained bit rate control, Smart Stream III

Image Settings

General settings Video title and time stamp overlay, day/night settings
Illuminators Illuminators, anti-overexposure
Image settings White balance (auto, fixed current, manual, panorama, snow - auto, snow-panorama) Image adjustment (brightness, contrast, saturation, sharpness, gamma curve) Defog, highlight mask, 3DNR Scene mode (auto, delbur)
Exposure BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR
Privacy mask Yes
Pixel calculator Yes
Lens alignment Auto alignment
Scheduled profile settings Yes

Audio

Audio Capability Two-way audio (Full duplex)
Audio Compression G.711, G.726, MPEG-2 AAC-LC
Audio Interface Built-in microphone
External microphone Input External line output
Effective Range 5 meters (internal mic)

Network

Users Live viewing for up to 10 clients
Security Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface 10 Base-T/100 BaseTX/1000 Base-T Ethernet (RJ-45)
ONVIF Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability SoC with built-in hardware deep learning accelerator
Vision Object Analytics Object Detection: People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction; Path Extraction
Application Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter) Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection) Application available with license Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics

Solution Integration

Applications Trend Micro IoT Security (3-year free trial)

Alarm and Event

Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, PIR detection, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration
Event Action Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card

General

Connectors RJ-45 cable connector for 10/100/1000 Mbps PoE network connection Audio input Audio output Digital input Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) AC 24V power input Micro USB
LED Indicator System power and status indicator
Power Input AC 24V, IEEE 802.3at PoE Class 4 (Simultaneous Power Redundancy Supported)
Power Consumption PoE: Max. 18.81 W AC 24V: Max. 26.4 W
Dimensions 308 x 167 x 130 mm
Weight 2.4 kg
Certifications EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471); Environment: IK10 (IEC 60529), IP66 (IEC 60529), IP6K9K (ISO 20653); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating Temperature Starting Temperature: -30°C ~ 55°C (-22°F ~ 131°F) Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off) -40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity 98% RH (non-condensing)

System Requirements

Operating System Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above Internet Explorer 10/11
Other Players VLC: 1.1.11 or above

Included Accessories

Packing Contents Quick installation guide, alignment sticker, screw pack, junction box

DORI (EN 62676-4 Standard)

Detect (25PPM/ 8PPF) 73.3 m (240.5 ft)
Observe (63PPM/ 19PPF) 29.3 m (96.2 ft)
Recognize (125PPM/ 38PPF) 14.7 m (48.1 ft)
Identify (250PPM/ 76PPF) 7.3 m (24 ft)
