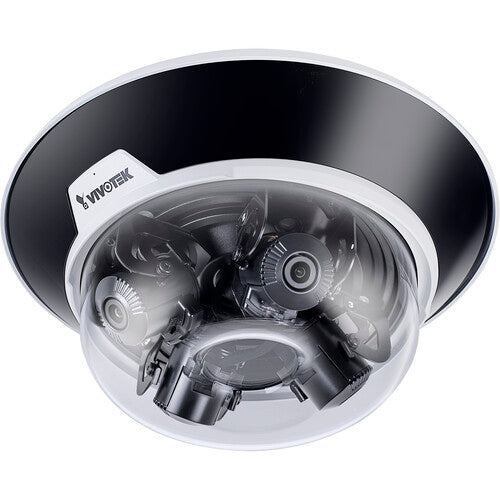

Vivotek MA9322-EHTVL Multi-Sensor Adjustable Dome Camera, 20MP, Adjustable Views, 3.7~7.7mm, 30M IR, WDR Pro, Supreme Night Visibility
$3,016.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
20MP Total Resolution • Multi-Directional • Adjustable Views • 30M IR • WDR Pro •
SNV • NDAA
The MA9322-EHTVL multi-sensor camera uses four 1/2.7" 5MP progressive scan CMOS sensors to capture video at a combined resolution of 20MP. IR LEDs provide up to 98' of night vision. The camera is equipped with four 3.7-7.7mm motorized varifocal lenses that each deliver an 88.6 to 40.1° horizontal field of view. Two-way audio is possible thanks to a built-in microphone, along with an audio input and output.
Key Features
- H.265 Compression Technology
- 4x 5MP Independent Sensors, Adjustable Views
- 12 fps @ 2688x1920 per Sensor / 30 fps @ 2560x1440 per Sensor
- WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Built-in IR Illuminators, Effective up to 30 Meters Radius
- Weather-proof IP66-rated, Vandal-proof IK10-rated, NEMA 4X Housing
- Built-in Microphone
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Free shipping
Enjoy free shipping when your order exceeds $100.
Fast dispatch
Orders are dispatched within the next business day.
Best local support in Aus
We back all products with manufacturer warranty support.
Official Australian stock
Genuine products with local warranty support.
Product Overview
High Quality Unlimited Coverage
Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.
360° Extreme Low Light Visibility
By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.
Comprehensive Video Coverage from a Single Mount Point
The MA9322-EHTVL captures every angle for comprehensive video coverage from a single IP address, helping to reduce the amount of cameras needed and saving on installation time and costs.
Vivotek MA9322-EHTVL Multi-Sensor camera is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- Supreme Night Visibility (SNV) for low-light conditions
- Smart IR technology
- H.265, H.264, and MJPEG video compressions
- Dual streaming per channel
- Two-axis angle adjustments per lens (0 to 105° vertical pivot, ±90° rotation range)
- Image settings include video title and time stamp overlay, video orientation (flip, mirror), day/night settings, illuminators, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR, privacy masking, and scheduled profile settings
- Built-in microphone with an audio pickup range up to 16'
- Five-window video motion detection
- Additional features include: WDR Pro (120 dB), 60.4 dB S/N ratio, ePTZ that provides 48x digital zoom, live viewing for up to 20 clients, system power and status LED indicators, and seamless recording to microSD/SDHC/SDXC card and NAS
- Compatible with Microsoft Windows 10, 8, and 7, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, and VLC 1.1.11 or above
| System Information | |
|---|---|
| Model | MA9322-EHTVL |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1 GB |
| RAM | 4 GB |
| Camera Features | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2688x1920 (5MP) x 4 |
| Lens Type | Motorized, Vari-Focal, Remote Focus |
| Focal Length | f = 3.7 ~ 7.7 mm |
| Aperture | F1.9 ~ F2.9 |
| Iris Type | Fixed-iris |
| Field of View | 88.6° ~ 40.1° (Horizontal) 61.2° ~ 28.6° (Vertical) 115.5° ~ 49.5° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR |
| Minimum Illumination | 0.035 lux @ F1.9 (Color) 0.005 lux @ F1.9 (B/W) 0 lux with IR Illuminators on |
| Tilt Range | 0° ~ 105° each lens |
| Rotation Range | ±90° each lens |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | |
| Seamless Recording | MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote Focus, Remote Zoom |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 12 fps @ (2688x1920) x 4 30 fps @ (2560x1440) x 4 |
| Maximum Streams | 2 simultaneous streams* per channel; max total 13 profiles * Stream 1: 2688x1920, 2560x1920, 2160x1536, 2048x1536, 1680x1200, 1600x1200, 1344x960, 1280x960, 672x480, 640x480 * Stream 2: 1280x960, 672x480, 640x480 |
| S/N Ratio | 60.4 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings Illuminators: illuminators, anti-overexposure Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR Privacy mask Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone External microphone input* External line output* |
| Effective Range | 5 meters |
| * Requires AO-006 cable | |
| Network | |
| Users | Live viewing for up to 20 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, user access log, user account management |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | Event Trigger: Audio detection*, camera tampering detection, digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot Event Action: Event notification via audio clip*, camera link, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card * Requires AO-006 cable |
| General | |
| Connectors | RJ-45 cable connector for 10/100/1000 Mbps PoE network connection Audio input* Audio output* AC 24V power input* Digital input* Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)* * Requires AO-006 cable. |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V IEEE 802.3 at PoE |
| Power Consumption | AC: Max. 25 W PoE: Max. 25 W |
| Dimensions | Ø 267x114 mm (main body) Ø 275x118 mm (w/ bracket) |
| Weight | 2.7 kg |
| Certifications | EMC: CE (EN55032 Class A, EN55024), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); UKCA, ICES-003 issue 7; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X) |
| Operating Temperature | Start Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Working temperature: -40°C ~ 50°C (-40°F ~ 122°F) |
| Humidity | 90% |
| System Requirements | Operating System: Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) Web Browser: Chrome 58.0 or above Internet Explorer 10/11 Other Players: VLC: 1.1.11 or above |
| Included Accessories | Packing Contents: Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack |
| DORI (EN 62676-4 Standard) | |
| Detect (25PPM/ 8PPF) | Wide: 74.0 m (242.8 ft) Tele: 153.9 m (505.0 ft) |
| Observe (63PPM/ 19PPF) | Wide: 29.3 m (96.1 ft) Tele: 61.1 m (200.4 ft) |
| Recognize (125PPM/ 38PPF) | Wide: 14.8 m (48.6 ft) Tele: 30.8 m (101.0 ft) |
| Identify (250PPM/ 76PPF) | Wide: 7.4 m (24.3 ft) Tele: 15.4 m (50.5 ft) |
