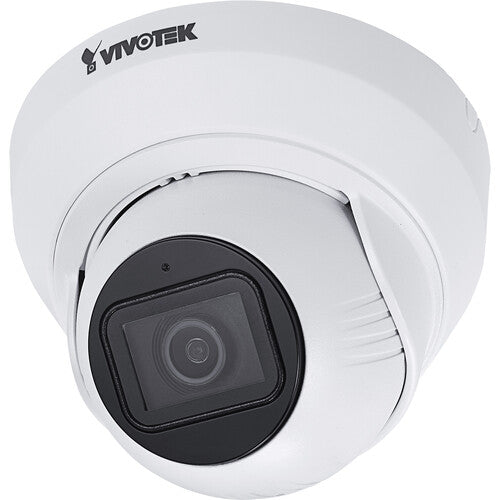

Vivotek IT9389-H-v2 Outdoor Network Turret Camera, 5MP 30fps, H.265, 2MP 60fps, 2.8mm, 30M IR, WDR Pro, Supreme Night Visibility
$978.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
5MP • H.265 • WDR Pro • Smart Stream III • SNV
VIVOTEK’s IT9389-H-v2 is an H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x 1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-H-v2 is capable of capturing high-quality imagery in both high contrast and low light environments.
Key Features
- 30 fps @ 2560x1920, 60 fps @ 1920x1080
- WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
- Built-in IR illuminators, Effective up to 30 meters
- Smart IR Technology to Avoid Overexposure
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-proof IK08-rated Housing
- 2.8mm Fixed Lens
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Free shipping
Enjoy free shipping when your order exceeds $100.
Fast dispatch
Orders are dispatched within the next business day.
Best local support in Aus
We back all products with manufacturer warranty support.
Official Australian stock
Genuine products with local warranty support.
Product Overview
VIVOTEK’s IT9389-H-v2 is an H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x 1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-H-v2 is capable of capturing high-quality imagery in both high contrast and low light environments.
The IT9389-H-v2 offers a fixed-focal lens of 2.8mm and is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IT9389-H-v2 is encased in IP66 and IK08 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 compression, the IT9389-H-v2 is able to reduce bandwidth up to 90%* while maintaining supreme image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market. * Depending on scenes
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is IP66- and IK08-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- Supreme Night Visibility (SNV) for low-light conditions
- Smart IR technology
- H.265, H.264, and MJPEG video codecs
- Triple streaming
- Smart Stream III optimizes bandwidth efficiency
- Seamless recording to microSD/SDHC/SDXC cards and NAS
- Fixed iris
- ePTZ provides 48x digital zoom
- Three-axis angle adjustments (359° horizontal pivot, 75° vertical pivot, 180° rotation range)
- WDR Pro
- 120 dB dynamic range
- 55 dB S/N ratio
- Image settings include video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings, illuminators, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, EIS, scene mode (auto, deblur), BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR, privacy masking, and scheduled profile settings
- Smart motion detection includes five-window video motion detection, human detection, and time filter (without bounding box)
- Event notification using HTTP, SMTP, FTP, NAS server, and microSD card
- File upload via HTTP, SMTP, FTP, NAS server, and microSD card
- 100M RJ45 Ethernet
- Built-in microphone with 16' audio pickup range
- System power and status LED indicators
- Live viewing for up to ten clients
- Compatible with Microsoft Windows 10, 8, and 7, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, VLC 1.1.11 or above, and VADP
| Model | IT9389-H-v2 |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 1 GB |
| Image Sensor | 1/2.7" Progressive CMOS |
|---|---|
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| Field of View | 103° (Horizontal), 76° (Vertical), 134° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.06 lux @ F2.0 (Color), 0.01 lux @ F2.0 (B/W), 0 lux with IR illumination on |
| Pan Range | 359° |
| Tilt Range | 75° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
|---|
| Video Compression | H.265, H.264, MJPEG |
|---|---|
| Maximum Frame Rate | 30 fps @ 2560x1920, 60 fps @ 1920x1080 |
| Maximum Streams | 3 video streams* (Up to 8 configurable profiles) * Stream 1: 2560x1920 * Stream 2: 1280x960, 800x600, 640x480 * Stream 3: 800x600, 640x480 |
| S/N Ratio | 55 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| General settings | Video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings |
|---|---|
| Illuminators | Illuminators, anti-overexposure |
| Image settings | White balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur) |
| Exposure | BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR |
| Privacy mask | Yes |
| Scheduled profile settings | Yes |
| Audio Capability | One-way Audio |
|---|---|
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Users | Live viewing for up to 10 clients |
|---|---|
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
|---|---|
| Vision Object Analytics | Object Detection: people, vehicle (4-wheeled); Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter) Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection) Application available with license Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit https://vivotek.com/video-analytics |
| Applications | Stratocast, Trend Micro IoT Security (3-year free trial) |
|---|
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
|---|---|
| Event Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection |
|---|---|
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 7.4 W (IR on), Max. 6.4 W (IR off) |
| Dimensions | Ø 122 x 99 mm (w/ mounting bracket), Ø 108 x 79 mm (w/o mounting bracket) |
| Weight | 392 g (w/ mounting bracket), 332 g (w/o mounting bracket) |
| Certifications | EMC: CE (EN55032, EN55024 Class A, EN50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK08 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F), Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) |
| Humidity | 98% RH (non-condensing) |
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
|---|---|
| Web Browser | Chrome 58.0 or above, Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Packing Contents | Quick installation guide, alignment sticker, screw pack |
|---|
| Detect (25PPM/ 8PPF) | 68.6 m (225.1 ft) |
|---|---|
| Observe (63PPM/ 19PPF) | 27.2 m (89.3 ft) |
| Recognize (125PPM/ 38PPF) | 13.7 m (45.0 ft) |
| Identify (250PPM/ 76PPF) | 6.9 m (22.5 ft) |
