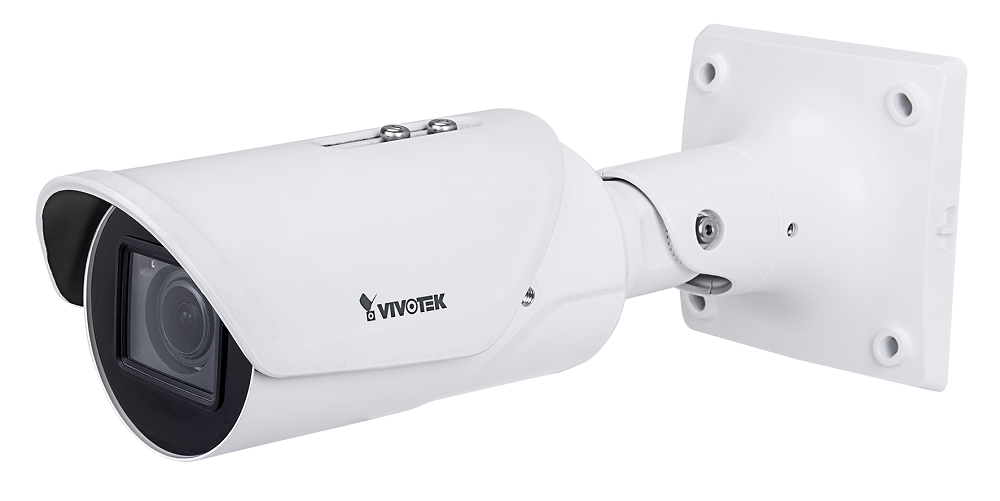

Vivotek IB9387-LPR-v2 Outdoor License Plate Recognition Camera, Embedded LPR Software, Wiegand Protocol Supported, IP67, IK10
- Embedded access control application based on LPR with MMC and Direction Recognition
- Supports License Plates from over 100+ Countries
- Black and White Lists for License Plate Verification
- Fully Integrated with VAST2 & VSS VMS
- Various Open APIs Available for 3rd Party Integration
- Trend Micro IoT Security
- Supports Wiegand Protocol for Access Control Applications
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
| System Information | |
|---|---|
| Model | IB9387-LPR-V2 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1 GB |
| RAM | 2 GB |
| Camera Features | |
| Image Sensor | 1/2.8” Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 3.2~10.5 mm |
| Aperture | F1.6 ~ F3.3 |
| Iris Type | P-iris |
| Field of View | 97.3° ~ 27.9° (Horizontal) 70.3° ~ 20.9° (Vertical) 131.5° ~ 34.9° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | IR LED*6 |
| Minimum Illumination | 0.06 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | |
| Built-in Storage | 32GB MicroSD card for LPR images |
| Slot Type | MicroSD/SDHC/SDXC card slot |
| Seamless Recording | Built-in Installation Aids: Remote focus, remote zoom |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 (WDR on) 30 fps @ 2560x1440 (WDR on) |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 60 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream II |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure, Smart IR II; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (LPC-parking lots); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | External Microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported |
| Solution Integration | |
| Embedded Software | VaxALPR |
| VADP Package | Trend Micro IoT Security |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Camera: Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card ANPR Software: Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, wiegand protocol supported VaxALPR Software: FTP, JSON, XML, TCP Server, TCP client, wiegand protocol supported |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio line in Audio line out AC 24V DC 12V Digital input *2 Digital output *2 (Dry contact, Load voltage 30V AC/DC@1A max) |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC 12V, IEEE 802.3at PoE Class 4 |
| Power Consumption | PoE: Max. 26W DC 12V: Max. 29.5W AC 24V: Max. 28W |
| Dimensions | 118 x 118 x 294 mm |
| Weight | 1.3 kg |
| Casing | IP66, IP67, IK10 (Metal Housing) |
| Certifications | EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032:2015+A11:2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), RCM (AS/NZS CISPR 32 Class A), FCC (FCC Part 15 Subpart B Class A), ICES (ICES-003 Issue 7), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1 Ed.3), CB (IEC/EN 62368-1, EN 62471); Environment: IK10 (IEC 62262), IP66/67 (IEC 60529); IA: BIS (IS 13252, IEC 60950-1), BSMI (EMC: CNS15936) |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | Quick installation guide, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
- Embedded access control application based on LPR with MMC and Direction Recognition
- Supports License Plates from over 100+ Countries
- Black and White Lists for License Plate Verification
- Fully Integrated with VAST2 & VSS VMS
- Various Open APIs Available for 3rd Party Integration
- Trend Micro IoT Security
- Supports Wiegand Protocol for Access Control Applications
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
