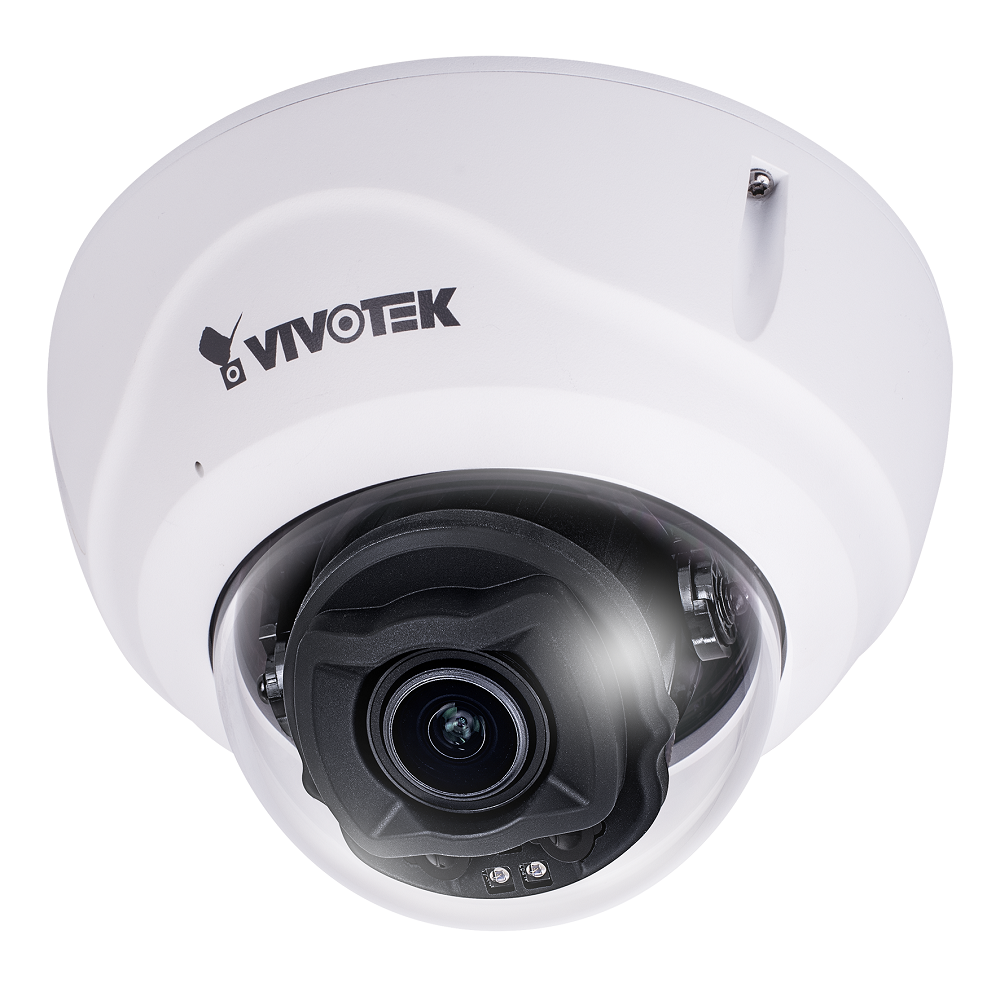

Vivotek FD9387-FR-v2 Fixed Dome Facial Recognition Camera, 5MP, H.265, Up to 10,000 Facial Profiles, WDR Pro, SNV, 50M IR, Smart IR II
$3,261.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
5MP 30fps • Facial Recognition • Up to 10,000 Facial Profiles • SNV • WDR Pro • 50M IR • Smart IR II
The Vivotek FD9387-FR-v2 uses a 1/2.8" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. It features facial recognition analytics with 99% accuracy and stores up to 10,0000 facial profiles. Four IR LEDs provide up to 164' of night vision. The camera's 2.7-13.5mm motorized varifocal lens delivers a 95 to 30° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Key Features
- Facial recognition accuracy up to 99%
- Camera stores up to 10,000 profiles
- Automatic stranger detection to reduce friction for management
- Privacy mode to safeguard user privacy and ensures information is not shared without consent
- Event integration with VIVOTEK VAST Security Station, Milestone, Genetec, and March Networks
- Cyber Protection via Trend Micro IoT Security
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- 30 fps @ 2560x1920
- SNV (Supreme Night Visibility) for Low Light Conditions
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Free shipping
Enjoy free shipping when your order exceeds $100.
Fast dispatch
Orders are dispatched within the next business day.
Best local support in Aus
We back all products with manufacturer warranty support.
Official Australian stock
Genuine products with local warranty support.
Product Overview
The Vivotek FD9387-FR-v2 uses a 1/2.8" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. It features facial recognition analytics with 99% accuracy and stores up to 10,0000 facial profiles. Four IR LEDs provide up to 164' of night vision. The camera's 2.7-13.5mm motorized varifocal lens delivers a 95 to 30° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
10,000 Faces on the edge
With 99% facial recognition accuracy, the FD9387-FR-v2 is a powerful tool for accurate facial detection and person of interest control across multiple locations. The camera itself can hold up to 10,000 facial profiles.
Serverless facial recognition infrastructure up to 5 cameras
FD9387-FR-v2 can operate fully without middleware or FTP server, this reduces the operational overhead and allows you to focus on your core business functions. With a single FD9387-FR-v2, you can store up to 10,000 facial profiles in a serverless architecture. You only need to manage and maintain the database in one camera, and it will automatically synchronize with other facial recognition cameras.
Privacy mode
For enterprise or privacy sensitive region, this protects personal privacy and refrain from sending snapshots of person of interest (POI). Instead, user can choose to hide POI information on the web or disable picture sharing with third-party systems. This helps to safeguard user privacy and ensures that sensitive information is not shared without their consent.
Technical Specifications
System Information
Camera Features
Video
Audio
Network
Alarm and Event
General
System Requirements
Included Accessories
Technical Specifications - Application
Technical Specifications
System Information
| Model | FD9387-FR-v2 |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | eMMC 1GB |
| RAM | DDR4 2GB |
| Image Sensor | 1/2.8" Progressive CMOS |
|---|---|
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.7 ~ 13.5 mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Type | P-iris |
| Field of View | 95° ~ 30° (Horizontal) 70° ~ 23° (Vertical) 128° ~ 38° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4 |
| Minimum Illumination | 0.075 lux @ F1.4 (Color) <0.01 lux @ F1.4 (B/W) 0 lux with IR illumination on |
| Pan Range | ±175° |
| Tilt Range | 80° |
| Rotation Range | ±175° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDKC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video Compression | H.265, H.264, MJPEG |
|---|---|
| Maximum Frame Rate | 30 fps @ 2560x1920 (WDR Pro on) |
| Maximum Streams | 3 video streams (Up to 9 configurable profiles) |
| S/N Ratio | 61 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream II |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators: illuminators, anti-overexposure, Smart IR II Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur) Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus: zoom, focus Privacy mask Scheduled profile settings |
| Audio Capability | Two-way audio (full duplex) |
|---|---|
| Audio Compression | G.711, G.726 |
| Audio Interface | External microphone input External line output |
| Users | Live viewing for up to 10 clients |
|---|---|
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
|---|---|
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card |
| Connectors | RJ-45 cable connector for 10/100 Mbps PoE network connection Audio line input Audio line output DC 12V power input/AC 24V power input Digital input*2 Digital output*1 |
|---|---|
| LED Indicator | System power and status indicator |
| Power Input | AC 24V/DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy) |
| Power Consumption | DC12V: Max 23/18W (IR ON/OFF) Max Current:1.92A PoE Max: 22.5W/18W (IR ON/OFF) 42.5–57.0V Max Current: 0.53A~0.4A AC24V Max: 21W/16W (IR ON/OFF) Max Current: 1.4A |
| Dimensions | Ø 155 x 103.2 mm |
| Weight | 909 g |
| Certifications | EMC: CE (EN 55032 Class A, EN 55035), FCC (FCC Part 15 Subpart B Class A), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66/67 (IEC 60529), IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
|---|---|
| Web Browser | Chrome 58.0 or above Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
| Packing Contents | Quick installation guide, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack |
|---|
| Facial Recognition | Performance: Up to 99% accuracy; supports recognition with mask; gender and age estimation; privacy mode. Numbers of face captures: 30 faces per second Profile database: Up to 10,000 profiles Automatic create profile for stranger: Yes Integration: ONVIF profile S event push; HTTP/HTTPS Push in JSON format. |
|---|
