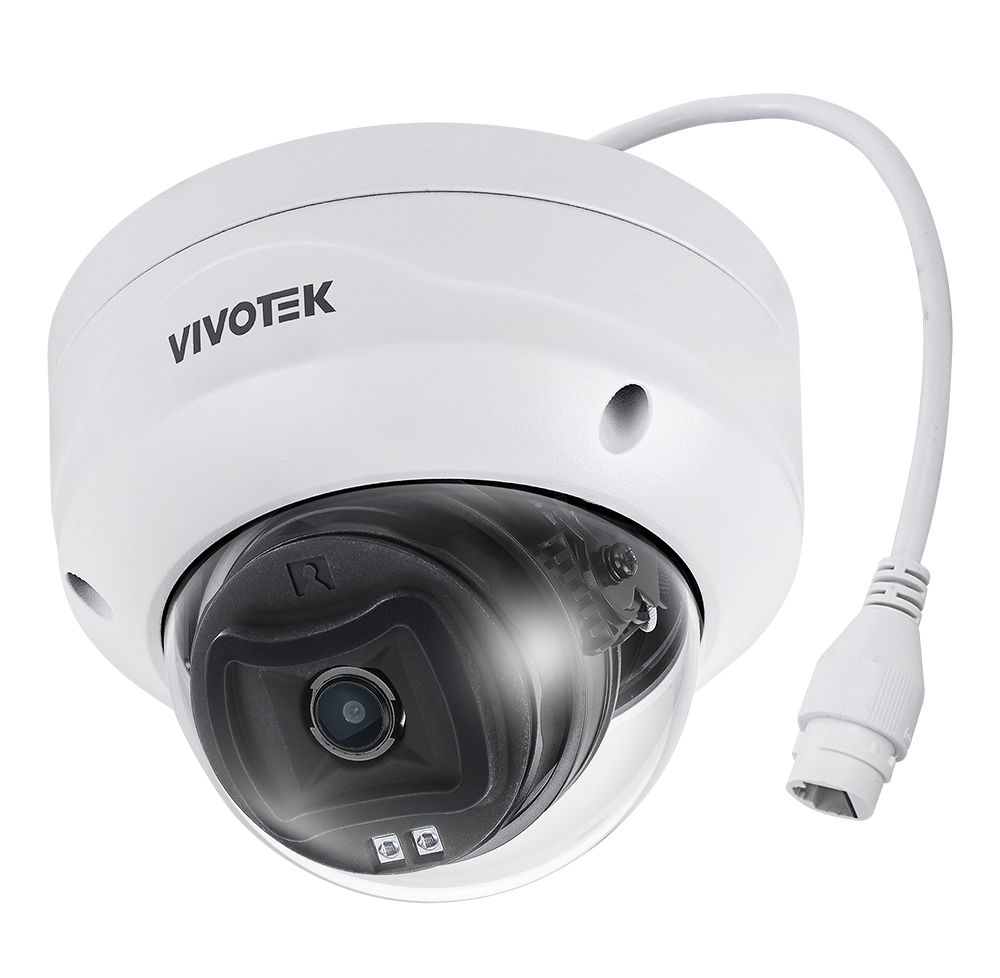

Vivotek FD9383-HV Outdoor Fixed Dome, 5MP@30 fps, Trend Micro IoT Security, Smart VCA, Vision Object Analytics, WDR Pro, IP66/IK10, 30M IR

Experience class-leading image performance with the FD9383-HV. Its advanced Sony image sensor, combined with STARVIS 2 technology, delivers exceptional clarity and precision. Enjoy a 2.5x increase in dynamic range and light sensitivity, ensuring superior visibility in all lighting conditions. From bright daylight to low-light environments, rest assured that every detail is captured with remarkable clarity. Daylight Clarity Stunning daytime imagery with vibrant colors and balanced exposure. The 83 series delivers crisp, clear visuals that capture every detail with vivid accuracy, ensuring optimal surveillance performance in any lighting condition. Enhanced Visibility in Harsh Lighting Superior image quality with WDR technology. Even in challenging scenarios like an office setting with sunlight streaming through the window, the 83 series maintains clear visibility, minimizing glare and shadowing for enhanced detail and accuracy in surveillance footage. Nighttime Vision Exceptional low-light color performance with sharper, non-overblown imagery around light sources. The 83 series ensures balanced exposure between dark and bright regions, delivering evenly-lit, well-exposed footage with balanced contrast. Enjoy clear and visible images, even within LED backlit displays, for enhanced surveillance effectiveness. Object Detection Performance Class-leading AI Processor effortlessly manages over 25 detection objects for advanced AI analytics. Smart VCA: AI-Powered Video Analytics on Edge Empowers the 83 series to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators' workloads. Vision Object Analytics: AI-Driven Solution While AI adoption has presented challenges in installation and configuration for many, the 83 series with VIVOTEK vision object analytics revolutionizes the process, simplifying user judgment through automated investigation. IP66 + IK10 Weather-resistant and vandal-proof, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment. Specifications

Technical Specifications
System Information
Model	FD9383-HV (2.8mm), FD9383-HV (3.6mm)
CPU	Multimedia SoC (System-on-Chip)
Flash	8 GB
RAM	2 GB
Camera Features
Image Sensor	1/2.8" Progressive CMOS
Max. Resolution	2560x1920 (5MP)
Lens Type	Fixed-focal
Focal Length	FD9383-HV (2.8mm): f = 2.8 mm FD9383-HV (3.6mm): f = 3.6 mm
Aperture	F2.0
Iris Type	Fixed iris
Field of View	FD9383-HV (2.8mm): 103.4° (Horizontal) 75.3° (Vertical) 135.2° (Diagonal) FD9383-HV (3.6mm): 79.6° (Horizontal) 57.8° (Vertical) 105.8° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Pro
Day/Night	Yes
Removable IR-cut Filter	Yes
IR Illuminators	Built-in IR Illuminator up to 30 meters with Smart IR, IR LED*2
Minimum Illumination	0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on
Pan Range	350°
Tilt Range	75°
Rotation Range	350°
Pan/Tilt/Zoom Functionalities	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage	Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids	Pixel calculator
Video
Video Compression	H.265, H.264, MJPEG
Maximum Frame Rate	30 fps @ 2560x1920
Maximum Streams	3 video streams (Up to 8 configurable profiles)
Main Stream	30fps @ 2560x1920, 2048x1536, 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3) 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
2nd Stream	30fps @ 1920x1440, 1600x1200, 1280x960, 640x480 (4:3) 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
3rd Stream	30fps @ 1280x960, 800x600, 640x480 (4:3) 30 fps @ 1280x720, 640x360 (16:9) 60 fps @ 1280x720, 640x360 (16:9)
S/N Ratio	FD9383-HV (2.8mm): 58 dB FD9383-HV (3.6mm): 56 dB
Dynamic Range	120 dB
Video Streaming	Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings	General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators: illuminators, anti-overexposure/smart IR Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR Privacy mask; Pixel calculator; Scheduled profile settings
Network
Users	Live viewing for up to 10 clients
Security	Access list, CSRF protection, digest authentication, HTTPS, IEEE 802.1x, Password protection, secure boot, signed firmware Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface	10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF	Profile G, S, T supported, specification available at www.onvif.org
AI Analytics
Compute Capability	SoC with built-in hardware deep learning accelerator
Vision Object Analytics	Object Detection: People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction; Path Extraction
Application	Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter) Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Face detection) Application available with license Unattended object detection, Missing object detection, Crowd detection, Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
Solution Integration
Applications	Trend Micro (Default, 1-year free trial)
Alarm and Event	Event Trigger: camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot Event Action: Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
Connectors	RJ-45 cable connector for 10/100 Mbps Network/PoE connection
LED Indicator	System power and status indicator
Power Input	IEEE 802.3af PoE Class 3
Power Consumption	Max. 8.5 W/ 6.0 W (IR on/off)
Dimensions	Ø 117.2 x 89.6 mm
Weight	550 g
Certifications	EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1) Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating Temperature	Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity	90%
System Requirements
Operating System	Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
Web Browser	Chrome 58.0 or above
Other Players	VLC: 1.1.11 or above
Included Accessories
Packing Contents	Quick installation guide, alignment sticker, screw pack, cable gland
DORI (EN 62676-4 Standard)
Detect (25PPM/ 8PPF)	FD9383-HV (2.8mm): 60.4 m (198.1 ft) FD9383-HV (3.6mm): 78.3 m (256.8 ft)
Observe (63PPM/ 19PPF)	FD9383-HV (2.8mm): 24.1 m (79.2 ft) FD9383-HV (3.6mm): 31.3 m (102.7 ft)
Recognize (125PPM/ 38PPF)	FD9383-HV (2.8mm): 12 m (39.5 ft) FD9383-HV (3.6mm): 15.6 m (51.3 ft)
Identify (250PPM/ 76PPF)	FD9383-HV (2.8mm): 6.0 m (19.6 ft) FD9383-HV (3.6mm): 7.8 m (25.5 ft)

Sample Video https://youtu.be/H9yHAC_LOEU
