  • Vivotek CC9381-HV Outdoor Vandal Dome, 5MP 180° Panoramic, 180° IR Illuminators, WDR Pro 120dB, PoE, built-in mic
Free Shipping
  • vivotek_cc9381_hv_5mp_wdr_pro_1572262578

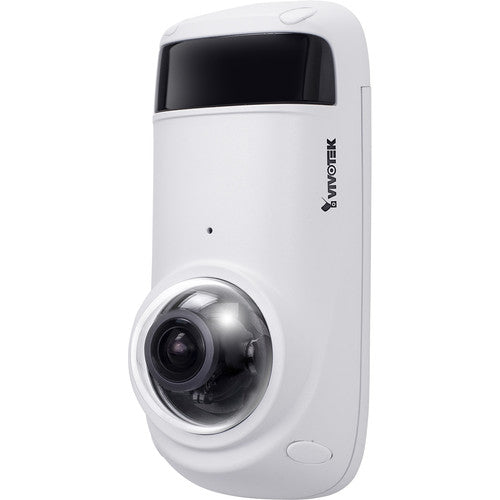

Vivotek CC9381-HV Outdoor Vandal Dome, 5MP 180° Panoramic, 180° IR Illuminators, WDR Pro 120dB, PoE, built-in mic

  • Sku: CC9381-HV
  • Vendor: SecurityAustralia
$820.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
5MP • WDR Pro • SNV • 180° Panoramic View • 15M IR • IK10 • IP66 • 3DNR • Anti-Ligature Along with offering amazing 180° HFOV coverage, CC9381-HV offers up to 20 fps at 5-Megapixel resolution (30 fps at 5MP with WDR Off). This Panoramic Network Camera also incorporates other value-added features. In order to combat high contrast lighting environments, WDR Pro is included and also has built-in 15M panoramic IR illuminators, ensuring 24/7 surveillance coverage. Key Features
  • H.265 Compression Technology
  • 5-Megapixel CMOS Sensor
  • 20 fps @ 2560x1920 (WDR On), 30 fps @ 2560x1920 (WDR Off)
  • 180° Horizontal Panoramic View
  • 180° IR Illuminators up to 15 Meters
  • WDR Pro (120 dB) to Provide Extreme Visibility in High Light Contrast Scenes
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Trend Micro IoT Security
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • ±25° Tilt Lens
  • Built-in Microphone
  • Anti-Ligature Design
CC9381-HV Datasheet

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

High-Quality Surveillance Along with offering amazing 180° HFOV coverage, CC9381-HV offers up to 20 fps at 5-Megapixel resolution (30 fps at 5MP with WDR Off). This Panoramic Network Camera also incorporates other value-added features. In order to combat high contrast lighting environments, WDR Pro is included and also has built-in 15M panoramic IR illuminators, ensuring 24/7 surveillance coverage. 180° Clear Night Views The CC9381-HV also has built-in 180° IR illuminators up to 15 meters. No matter day or night, light or dark, it always provides complete video security. Maximize Video Quality with Ultra-Low Bandwidth Combining both H.265 and VIVOTEK Smart Stream III, the CC9381-HV can reduce bandwidth and storage consumption more than 90%* compared to traditional H.264 without smart streaming. * depending on scene Designed for use in vandal-prone outdoor locations, the CC9381-HV is housed in an IP66- and IK10-rated enclosure. Also featured are an audio input for connecting an optional microphone and a microSD card slot for edge storage. PoE technology enables you to run just one cable for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
  • Multimedia SoC CPU
  • 1.45mm fixed fisheye lens
  • Removable IR cut filter enables day and night functionality
  • Supreme Night Visibility (SNV)
  • Smart IR technology
  • H.265, H.264, and MJPEG compression
  • Three simultaneous streams
  • Smart Stream III optimizes bandwidth efficiency
  • 120 dB WDR Pro
  • 62 dB S/N ratio
  • -25 to 25° vertical lens adjustment
  • ePTZ provides 48x digital zoom
  • Image settings include: time stamp, text overlay, flip & mirror, scheduled profile settings, white balance, exposure control, gain, backlight compensation, privacy masks, defog, 3D-DNR, and pixel calculator
  • Configurable: brightness, contrast, saturation, and sharpness
  • Five-window video motion detection
  • Alarm triggers include: motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, microSD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, and quarantine event)
  • Event notification and file upload via email, HTTP, FTP, NAS server, or microSD card
  • RJ45 connector
  • One-way audio
  • System power and status LED indicators
  • Live viewing for up to 10 clients
  • Compatible with: Microsoft Windows 8 and 7, macOS 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, VLC 1.1.11 or above, and QuickTime 7 or above
  • Trend Micro IoT Security
  • Safety certifications include: CE, LVD, FCC Class B, VCCI, C-Tick, and UL
  • Anti-ligature enclosure
  • IP66 rated for outdoor use
  • IK10-rated vandal resistance
  • Tilt bracket included
  • Adapter bracket for mounting to gang box included
Camera Specifications
Sensor
5 MP 1/2.7" CMOS
Focal Length
1.45mm
Maximum Aperture
f/2.2
Zoom
Digital: 48x
Lens Field of View
Horizontal: 180° Vertical: 120° Diagonal: 180°
IR Cut Filter
Mechanical
Day/Night
Yes
Minimum Illumination
Color: 0.11 Lux B&W: 0 Lux
Shutter Speed
1/32000 to 1/5 Seconds
Camera Angle Adjustment
Vertical: -25 to 25°
Video
Streaming Resolution
2560 x 1920 at 30 fps
Supported Video Compression
H.264, H.265, MJPEG
Multi-View Streaming
Yes, 3 Streams
Audio
1- or 2-Way Audio
One-Way
Audio Formats
G.711, G.726
Built-In Mic
No
Built-In Speaker
No
Pan & Tilt
Pan/Tilt
No
Networking
Security
HTTPS, IEEE 802.1X
Supported Protocols
ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
System Integration
Analytics
Five-Window Video Motion Detection
OS Compatibility
Windows 7 Windows 8 macOS 10.12
Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Data Streaming
Yes
Hardware
Memory
512 MB RAM / 256 MB Flash
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
External Storage Options
NAS
Power
Power Source
PoE 802.3af (15 W)
Power Consumption
6.7 W
Environmental
Operating Temperature
-4 to 122°F / -20 to 50°C
Startup Temperature
14 to 122°F / -10 to 50°C
Operating Humidity
90%
IP Rating
IP66
IK Rating
IK10
General
Inputs/Outputs
1 x RJ45
Illumination
IR LEDs up to 49.2' / 15 m
Supported Languages
English French German Italian Japanese Portuguese Russian Simplified Chinese Spanish Traditional Chinese
Certifications
C-Tick, FCC (Part 15 Class B), UL, as per Manufacturer
Dimensions
H: 6.3 x W: 2.8 x L: 2.4" / H: 159.9 x W: 71.9 x L: 60.2 mm
Weight
1.08 lb / 492 g
Sample Video https://youtu.be/BJG2uNwON-I
