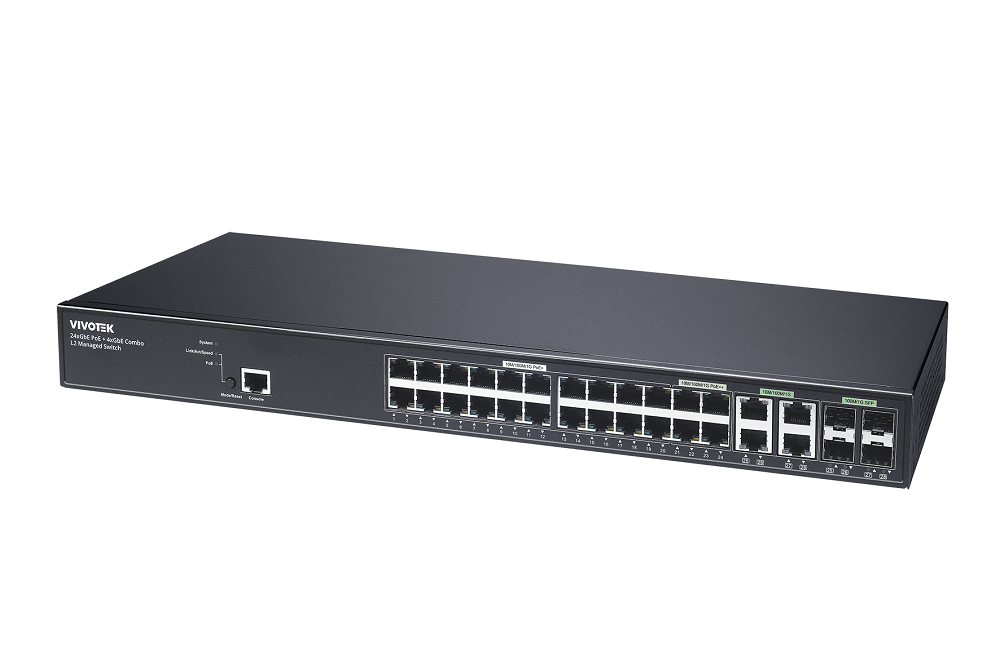

Vivotek AW-GEV-288A-370 AU, 4xGbE bt 90W PoE + 20xGbE 30W PoE + 4xGbE Combo VIVOCAM L2 Managed PoE Switch

  • Sku: AW-GEV-288A-370 AU
  • Vendor: SecurityAustralia
$1,345.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
4xGbE bt 90W PoE + 20xGbE 30W PoE+ 4xGbE Combo VIVOCAM L2 Managed PoE Switch Key Features
  • Topology View, Floor View, Map View
  • Traffic Monitor
  • Device List
  • DHCP Server
  • Non-Stop PoE
  • 802.3 af/at/bt Hybrid, bt PoE Port Max. 30W
  • Extended PoE Mode up to 250M
VIVOCAM L2 Managed PoE Switch Datasheet

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

Highlight Features Auto Discovery The VIVOCAM L2 series can automatically discover VIVOTEK’s devices, such as network cameras, video servers, and NVRs, with a simple click of the mouse. Topology View Auto-generated Topology View allows administrators to quickly view and export a complete network topology in SVG/PNG/ PDF format for easier inspection and planning. Floor View Upload custom floor images. Floor View allows for quick location of deployed surveillance devices and exporting this view in SVG/PNG/ PDF format for easier inspection and planning. Google Map View Locate surveillance devices on Google Maps to simplify multi-site management of any large-scale deployments. Device Management Easy network configuration, open camera Web UI, diagnose camera connection and cable status, display camera live stream, change camera network setting, restore default, PoE consumption, and PoE on/off control. Traffic Monitor An auto-generated comprehensive chart shows port-by-port network traffic status. Product Specifications
Model
Model AW-GEV-288A-370
Product Description 4xGbE bt 90W PoE + 20xGbE 30W PoE + 4xGbE Combo VIVOCAM L2 Managed PoE Switch
Port Configuration
Gigabit RJ45 Port 24
Gigabit Combo Port 4
Total Ports 28
Console Port 1
HW Performance
Switching Bandwidth 56 Gbps
Forwarding Capacity 41.7 Mpps
MAC Address 8 K
Jumbo Frames 9216 Bytes
Surveillance Features
Auto Search VIVOTEK Device up to 256 pcs
PoE Reboot V
Surveillance Device Management List V
DHCP Server Function V
VIVOTEK Device Account/Password Setting V
VIVOTEK Device Grouping Setting for VLAN V
VIVOTEK Device Name Edit V
VIVOTEK Camera/Video Server Reboot/Restore Default V
VIVOTEK Device Re-direct Link V
VIVOTEK Device On/Off Line Status V
E-Map View
Topology View V
Floor View V
Google Map View V
Maintenance
VIVOTEK Camera/Video Server Configuration File Export/Import V
Floor Image Management V
Export Surveillance Management Device List V
Cable Diagnostics V
Traffic Monitoring V
L2 Managed Features
Spanning Tree
IEEE802.1D (STP) V
IEEE802.1w (RSTP) V
IEEE802.1s (MSTP) V
Trunking
IEEE802.1d (LACP) V
Static Aggregation V
VLAN
802.1Q Tag-based VLAN 4096 VLAN IDs
Port-based VLAN V
Private VLAN Edge (PVE) V
GARP VLAN V
Q-in-Q (Double Tag) V
Protocol-based VLAN V
MAC-based VLAN V
Voice VLAN V
IP Subnet-based VLAN V
Multicast VLAN Registration (MVR) V
IGMP Snooping (v1/v2) V
DHCP Relay V
MLD v1/v2 Snooping V
Network
IPv4/IPv6 V
QoS Features
Hardware Queues 8
Classification
Port Based V
802.1p V
Rate Limiting
Ingress V
Egress V
Per Port V
Priority Queue Scheduling WRR
DSCP & Class of Service V
Security
IEEE802.1x V
RADIUS Authentication V
IGMP-RADIUS Based V
Secure Sockets Layer (SSL) V
Port Security V
IP Source Guard V
Storm Control V
Layer 2 Isolation Private VLAN Edge (PVE) V
RADIUS/TACACS+ V
Loop Detection V
DHCP Snooping V
ACLs Up to 384 Entries
Source and Destination MAC, VLAN ID or IP Address, Protocol, Port V
(DSCP) / IP Precedence V
TCP/ UDP source and destination ports V
802.1p priority V
ICMP Packets V
Ethernet type V
TCP flag V
Management
SNMP (v1, v2c, v3) V
RMON (1,2,3 & 9 groups) V
DHCP Server & Client V
Port Mirroring V
UPnP V
LLDP (IEEE802.1ab) V
LLDP-MED V
S-Flow V
Firmware Upgrade V
NTP V
PoE Management
PoE On/Off Control V
PoE Alive Checking for PD V
PoE Scheduling V
Power Delay V
Non-Stop PoE V
Extended PoE Mode (up to 250m/10mbps) V
PoE Function IEEE 802.3af/at/bt PoE Standard Compliant
Number of PoE Output Port 24
PoE Output Power Port 1-20 at 30W, Port 21-24 bt 90W
Total PoE Power Budget 370 W
PoE Pin Assignment Port 21-24 bt: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-), Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-)
Environmental Specifications
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH
Mechanical Specifications
Dimensions 442 (W) x 44 (H) x 211 (D) mm
Weight 3.2 kg
Power Source
AC Input 100V ~ 240V
Frequency 50 ~ 60 Hz
Certifications
Certifications UL, CE, UKCA, FCC, VCCI, LVD, ICES
Warranty
Warranty 24 months
Accessories
Included Accessories Power Cord, QIG, CD Manual, Rack Mount Kit
