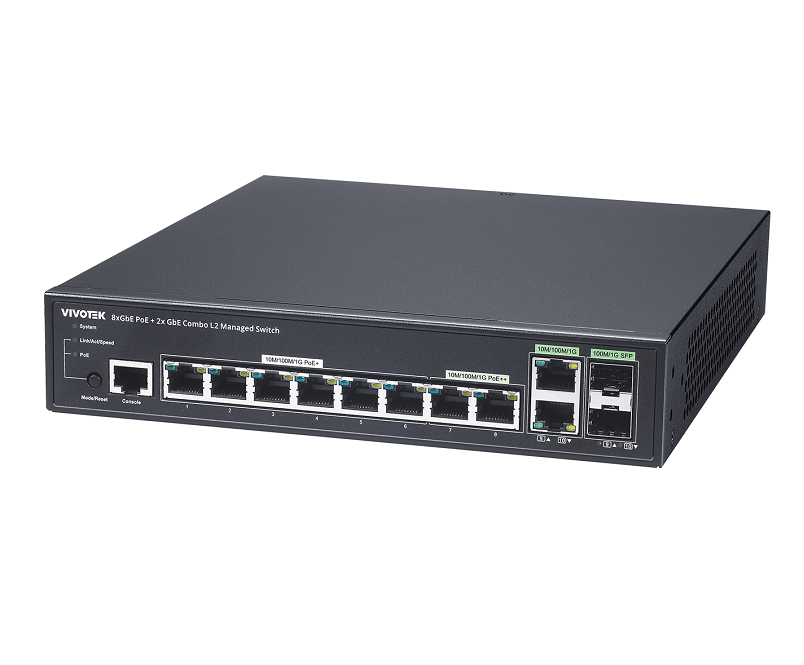

Vivotek AW-GEV-108A-130 AU, 2xGbE bt 90W PoE + 6xGbE 30W PoE + 2xGbE Combo VIVOCAM L2 Managed PoE Switch

  • Sku: AW-GEV-108A-130 AU
  • Vendor: SecurityAustralia
$692.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $200. Usually ships within 1 business day when available.
Quick Buying Summary
2xGbE bt 90W PoE + 6xGbE 30W PoE + 2xGbE Combo VIVOCAM L2 Managed PoE Switch Key Features
  • Topology View, Floor View, Map View
  • Traffic Monitor
  • Device List
  • DHCP Server
  • Non-Stop PoE
  • 802.3 af/at/bt Hybrid, bt PoE Port Max. 90W
  • Extended PoE Mode up to 250M
VIVOCAM L2 Managed PoE Switch Datasheet

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $200. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

Highlight Features Auto Discovery The VIVOCAM L2 series can automatically discover VIVOTEK's devices, such as network cameras, video servers, and NVRs, with a simple click of the mouse. Topology View Auto-generated Topology View allows administrators to quickly view and export a complete network topology in SVG/PNG/ PDF format for easier inspection and planning. Floor View Upload custom floor images. Floor View allows for quick location of deployed surveillance devices and exporting this view in SVG/PNG/ PDF format for easier inspection and planning. Google Map View Locate surveillance devices on Google Maps to simplify multi-site management of any large-scale deployments. Device Management Easy network configuration, open camera Web UI, diagnose camera connection and cable status, display camera live stream, change camera network setting, restore default, PoE consumption, and PoE on/off control. Traffic Monitor An auto-generated comprehensive chart shows port-by-port network traffic status. Product Specifications
Model
Model AW-GEV-108A-130
Product Description 2xGbE bt 90W PoE + 6xGbE 30W PoE + 2xGbE Combo VIVOCAM L2 Managed PoE Switch
Port Configuration
Port Type Quantity
Gigabit RJ45 Port 8
Gigabit Combo Port 2
Total Ports 10
Console Port 1
HW Performance
Specification Value
Switching Bandwidth 20 Gbps
Forwarding Capacity 14.88 Mpps
MAC Address 8 K
Jumbo Frames 9216 Bytes
Surveillance Features
Feature Available
Auto Search VIVOTEK Device up to 256 pcs
PoE Reboot ✔
Surveillance Device Management List ✔
DHCP Server Function ✔
VIVOTEK Device Account/Password Setting ✔
VIVOTEK Device Grouping Setting for VLAN ✔
VIVOTEK Device Name Edit ✔
VIVOTEK Camera/Video Server Reboot/Restore Default ✔
VIVOTEK Device Re-direct Link ✔
VIVOTEK Device On/Off Line Status ✔
E-Map View ✔
Topology View ✔
Floor View ✔
Google Map View ✔
VIVOTEK Camera/Video Server Configuration File Export/Import ✔
Floor Image Management ✔
Export Surveillance Management Device List ✔
Cable Diagnostics ✔
Traffic Monitoring ✔
L2 Managed Features
Feature Supported
Spanning Tree ✔
IEEE802.1D (STP) ✔
IEEE802.1w (RSTP) ✔
IEEE802.1s (MSTP) ✔
Trunking ✔
IEEE802.1d (LACP) ✔
Static Aggregation ✔
VLAN ✔
802.1Q Tag-based VLAN 4096 VLAN IDs
Port-based VLAN ✔
Private VLAN Edge (PVE) ✔
GARP VLAN ✔
Q-in-Q (Double Tag) ✔
Protocol-based VLAN ✔
MAC-based VLAN ✔
Voice VLAN ✔
IP Subnet-based VLAN ✔
Multicast VLAN Registration (MVR) ✔
IGMP Snooping (v1/v2) ✔
DHCP Relay ✔
MLD v1/v2 Snooping ✔
Network
Feature Supported
IPv4/IPv6 ✔
QoS Features
Specification Value
Hardware Queues 8
Classification Port Based, 802.1p
Rate Limiting Ingress, Egress, Per Port
Priority Queue Scheduling WRR
DSCP & Class of Service ✔
Security
Feature Supported
IEEE802.1x ✔
RADIUS Authentication ✔
IGMP-RADIUS Based ✔
Secure Sockets Layer (SSL) ✔
Port Security ✔
IP Source Guard ✔
Storm Control ✔
Layer 2 Isolation Private VLAN Edge (PVE) ✔
RADIUS/TACACS+ ✔
Loop Detection ✔
DHCP Snooping ✔
ACLs Up to 384 Entries
Source and Destination MAC, VLAN ID or IP Address, Protocol, Port ✔
(DSCP) / IP Precedence ✔
TCP/ UDP source and destination ports ✔
802.1p priority ✔
ICMP Packets ✔
Ethernet type ✔
TCP flag ✔
Management
Feature Supported
SNMP (v1, v2c, v3) ✔
RMON (1,2,3 & 9 groups) ✔
DHCP Server & Client ✔
Port Mirroring ✔
UPnP ✔
LLDP (IEEE802.1ab) ✔
LLDP-MED ✔
S-Flow ✔
Firmware Upgrade ✔
NTP ✔
PoE Management
Feature Supported
PoE On/Off Control ✔
PoE Alive Checking for PD ✔
PoE Scheduling ✔
Power Delay ✔
Non-Stop PoE ✔
Extended PoE Mode (up to 250m/10mbps) ✔
PoE Function IEEE 802.3af/at/bt PoE Standard Compliant
Number of PoE Output Port 8
PoE Output Power Port 1-6 at 30W, Port 7-8 bt 90W
Total PoE Power Budget 130 W
PoE Pin Assignment Port 7-8 bt: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-) Port 1-6 af/at: 2 pairs 1/2 (+), 3/6 (-)
Environmental Specifications
Specification Value
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH
Mechanical Specifications
Specification Value
Dimensions 220 (W) x 44 (H) x 242 (D) mm
Weight 1.95 kg
Power Source AC Input 100V ~ 240V
Frequency 50 ~ 60 Hz
Certifications
Certification
UL, CE, UKCA, FCC, VCCI, LVD, ICES
Warranty
Warranty
24 months
Accessories
Included Accessories
Power Cord, QIG, CD Manual, Rack Mount Kit
