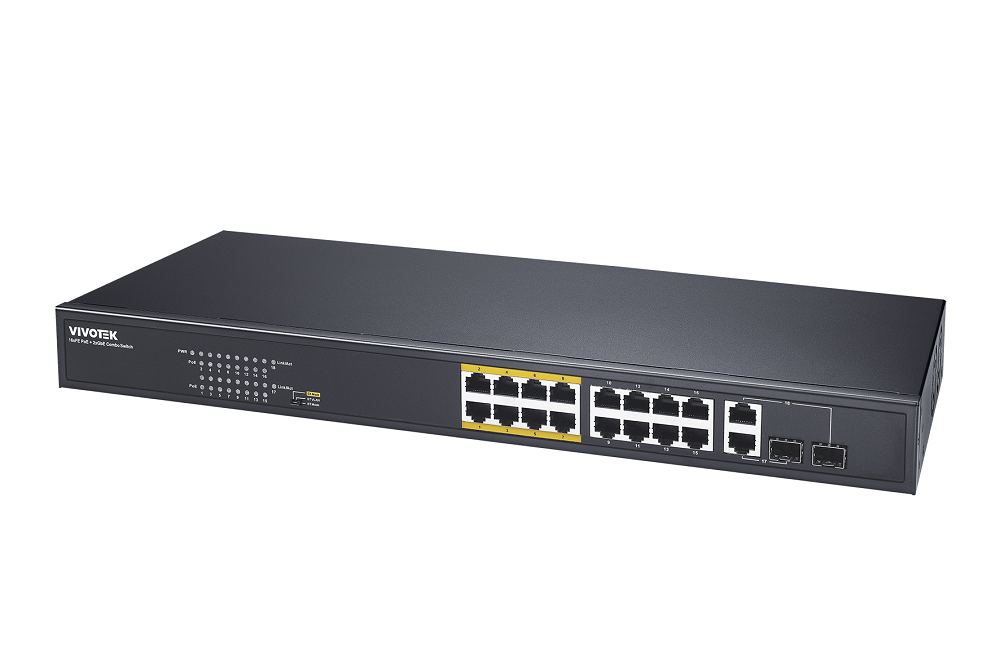

Vivotek AW-FGT-180F-250 AUN, 16xFE PoE + 2xGbE Combo Unmanaged Switch

  • Sku: AW-FGT-180F-250 AUN
  • Vendor: SecurityAustralia
$515.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
16xFE PoE + 2xGbE Combo Unmanaged Switch Key Features
  • 15.4W/30W 802.3af/802.3at Compliant
  • 6KV PoE Surge Protection in Each Port
  • 4KV AC Surge Protection
  • 20% Range of Input Voltage Tolerance (280VAC 4hrs, 300VAC 1 min)
  • Circuit Protection Prevents Power Interference between Ports
  • Extended PoE Mode Reaches 802.3af/at Camera up to 250m@10Mbps via EX PoE Ports
AW-FGT-180F-250 Datasheet

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

Technical Specifications
Model
AW-FGT-180F-250
Short Highlight
16xFE PoE + 2xGbE Combo
Networking Specifications
10/100Mbps RJ45 PoE Port 16
Gigabit RJ45/SFP Combo Ports 2
EX Mode PoE Ports (250M@10Mbps) 8
VLAN Mode Supported
Ethernet Performance
Switching Capacity 7.2 Gbps
Mac Table 16 K
Jumbo Frame 1,536 Bytes
Auto-MDI/MDI-X, Auto-Negotiation Supported
Power Specifications
Power Input Voltage 100VAC ~ 240VAC 280VAC 4Hr, 300VAC 1min
Max. PoE Output Power Per Port 54VDC
PoE IEEE 802.3af (Max. 15.4W) output
PoE+ IEEE802.3at (Max. 30W) output
Total PoE Power Budget 250 W
IEEE 802.3af/at Supported
Power Pin Assignment 1/2(+), 3/6(-)
PoE PD Auto Detection Supported
PoE Surge Protection 6 KV
AC Surge Protection 4 KV
General
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10% to 90% non-condensing
Dimensions 440 (L) x 207 (W) x 44 (H) mm
Weight 2.93 KG
Warranty 24 Months
Certifications
EMC CE, UKCA, FCC, VCCI, C-Tick Class A
Safety EN62368-1, IEC62368-1

Key Features

Trusted Brand Partner & Security Equipment Wholesaler

  • Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
  • Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

What This Product Does

16xFE PoE + 2xGbE Combo Unmanaged Switch Key Features
  • 15.4W/30W 802.3af/802.3at Compliant
  • 6KV PoE Surge Protection in Each Port
  • 4KV AC Surge Protection
  • 20% Range of Input Voltage Tolerance (280VAC 4hrs, 300VAC 1 min)
  • Circuit Protection Prevents Power Interference between Ports
  • Extended PoE Mode Reaches 802.3af/at Camera up to 250m@10Mbps via EX PoE Ports
AW-FGT-180F-250 Datasheet
