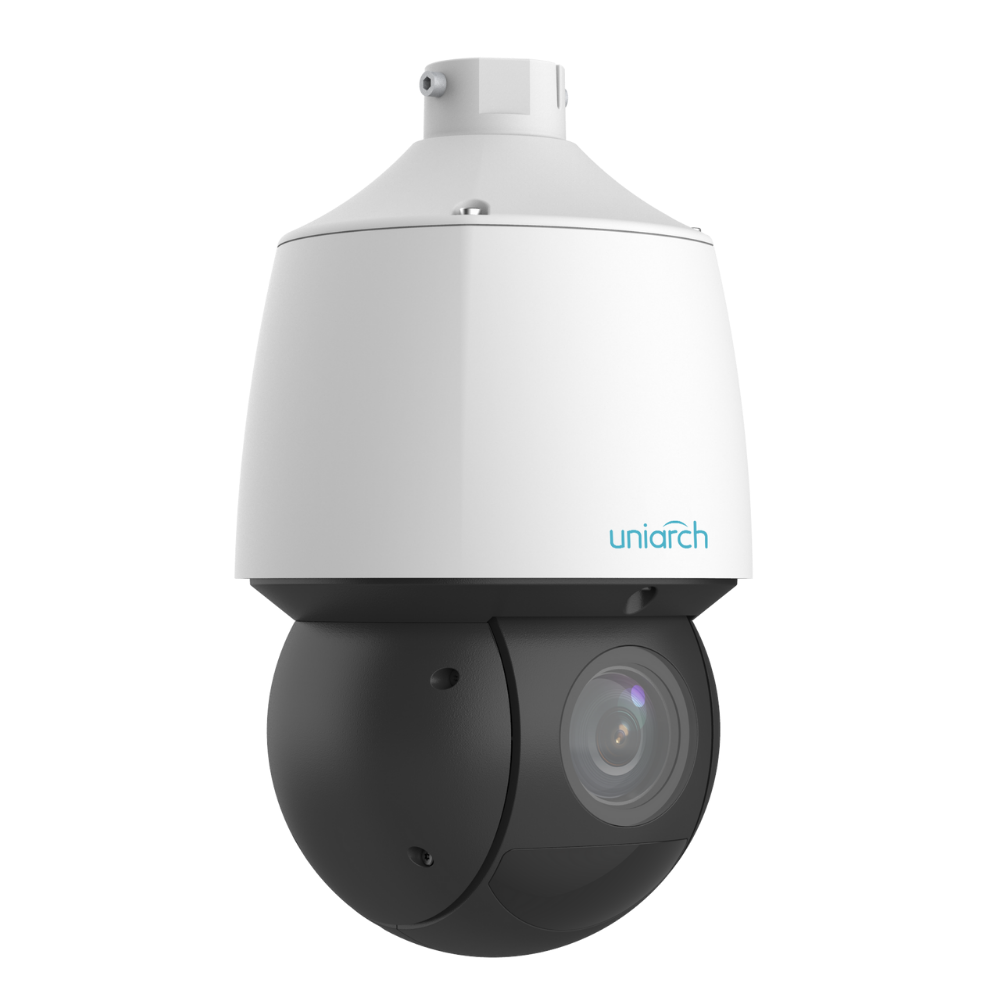

IPC-P4P4-X25 |
| Camera |
| Sensor |
1/2.8", 4.0 megapixel, progressive scan, CMOS |
| Min. Illumination |
Colour: 0.003 Lux (F1.5, AGC ON)
0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120dB |
| S/N |
>56dB |
| Lens |
| Lens type |
4.8 ~ 120mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom |
16 |
| Optical Zoom |
25 |
| Iris |
Auto; F1.5 ~ F3.8 |
| Angle of View (H) |
52.20°~2.74° |
| Angle of View (V) |
30.81°~1.54° |
| Angle of View (O) |
64.20°~3.23° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 4.8 |
119.3(391.2ft) |
47.7(156.5ft) |
23.9(78.2ft) |
11.9(39.1ft) |
| 120 |
2475.0(8120.1ft) |
990.0(3248.0ft) |
495.0(1624.0ft) |
247.5(812.0ft) |
| Illuminator |
| IR Range |
Up to 100m (328 ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| U-code |
Support |
| ROI |
Support |
| Video Stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
24 areas, up to 4 areas per scene |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart Intrusion Prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
| Face Capture |
N/A |
| People Counting |
N/A |
| Events |
| Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking |
Support |
| General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication |
| Audio |
| Audio Compression |
G.711U,G.711A |
| Audio Bitrate |
64 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client |
Uniarch Client
Uniarch app |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Pan & Tilt |
| Pan Range |
360° (endless) |
| Pan Speed |
0.1°/s ~ 200°/s |
| Preset speed: 240°/s |
| Tilt Range |
–15° ~ 90° (auto reverse) |
| Tilt Speed |
0.1°/s ~ 120°/s |
| Preset speed: 200°/s |
| Number of Presets |
1024 |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Route Patrol |
16 patrols, up to 32 actions for each patrol |
| Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time |
15s~1800s |
| Preset Image Freeze |
Support |
| Home Position |
Support |
| Interface |
| Audio I/O |
1/1 |
| Alarm I/O |
2/1 |
| Serial Port |
1 RS485 |
| Built-in Mic |
N/A |
| Built-in Speaker |
N/A |
| WIFI |
N/A |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output |
1 BNC |
| General |
|
Power
|
DC12V(±25%,3A), PoE+(IEEE 802.3at) |
| Power consumption: MAX 21W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Ø166 x 295mm (Ø6.5” x 11.6”) |
| Weight |
3.05kg(6.72lb) |
| Working Environment |
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment |
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
6KV |
| Reset Button |
Support |
| Protection |
Ingression protection: IP67
Vandal resistant: IK10 |
