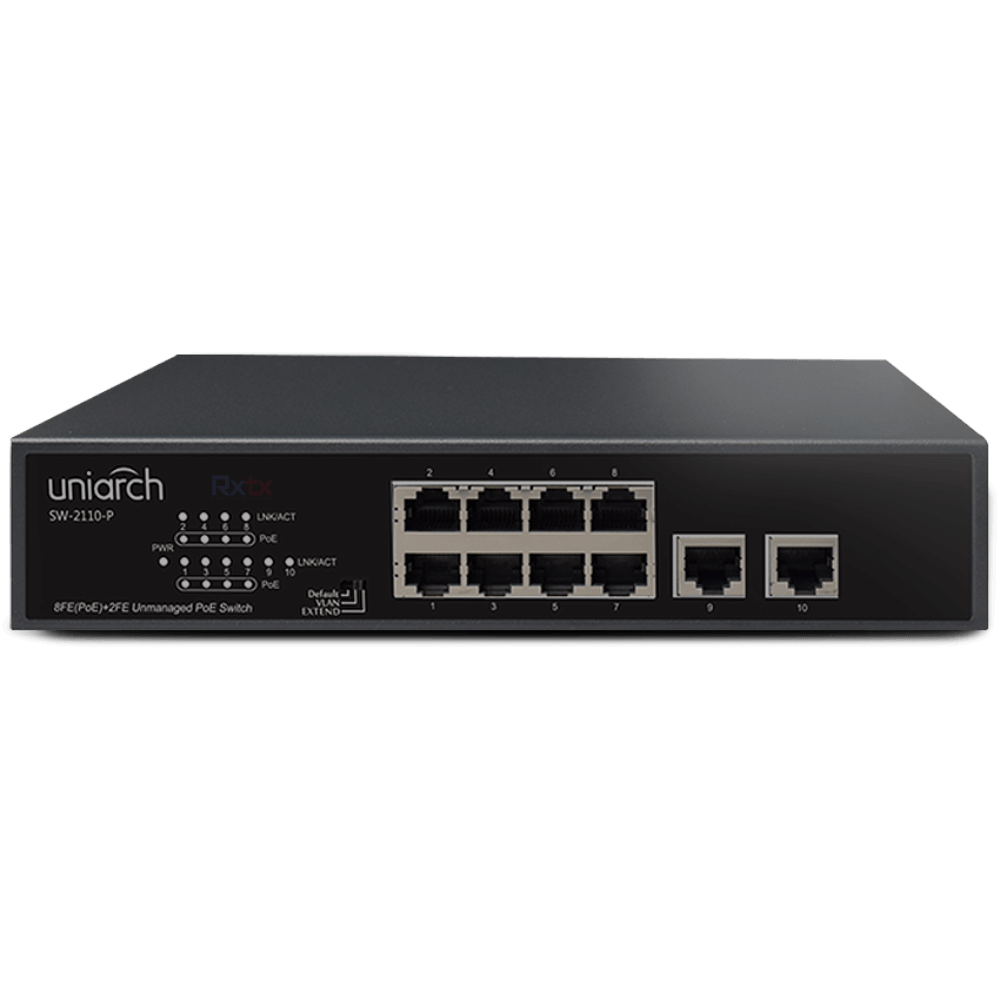

UNIARCH SW-2110-P 10-PORT POE SWITCH
10-Port PoE Switch
The SW-2110-P is a fast uplink switch that offers high performance at a low cost, with easy installation and a seamless upgrade to enhance your network to 100Mbps. It boosts the speed of your network server and backbone connections, making a Gigabit connection to a server or uplink essential.
Key Features
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Code/SKU: SW-2110-P
Quick Specs:
- Dimensions (W×D×H): 220mm x 150mm x 44mm (8.7" × 5.9" × 1.7")
- Weight: <1.22kg
- Power supply: AC: 100-240V, 50/60Hz
- PoE: 802.3at/af
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The SW-2110-P is a fast uplink switch that offers high performance at a low cost, with easy installation and a seamless upgrade to enhance your network to 100Mbps. It boosts the speed of your network server and backbone connections, making a Gigabit connection to a server or uplink essential. Its PoE ports automatically detect and provide power to IEEE 802.3af/at compliant Powered Devices (PD), transmitting electrical power along with data over a single cable. This feature allows you to expand your network in areas without power lines or outlets, supporting devices like access points, IP cameras, and IP phones.
Features
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Technical Specifications:
| Specifications | |
| Ports | 10×100Mbps network ports (RJ45), including 8 PoE ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching capacity | 2Gbps |
| Forwarding performance | 1.49Mpps |
| Packet Buffer | 2Mbit |
| MAC | 8K |
| Dimensions (W×D×H) | 220mm x 150mm x 44mm(8.7"×5.9"×1.7") |
| Weight | <1.22kg |
| Power supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 120W Max capacity for single port: 30W |
| Cooling Fans | 0 |
| Mean Time Between Failure(MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input |
| PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal | |
| LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data | |
| Working Mode | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
10-Port PoE Switch
The SW-2110-P is a fast uplink switch that offers high performance at a low cost, with easy installation and a seamless upgrade to enhance your network to 100Mbps. It boosts the speed of your network server and backbone connections, making a Gigabit connection to a server or uplink essential.
Key Features
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Code/SKU: SW-2110-P
Quick Specs:
- Dimensions (W×D×H): 220mm x 150mm x 44mm (8.7" × 5.9" × 1.7")
- Weight: <1.22kg
- Power supply: AC: 100-240V, 50/60Hz
- PoE: 802.3at/af
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Specifications | |
| Ports | 10×100Mbps network ports (RJ45), including 8 PoE ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching capacity | 2Gbps |
| Forwarding performance | 1.49Mpps |
| Packet Buffer | 2Mbit |
| MAC | 8K |
| Dimensions (W×D×H) | 220mm x 150mm x 44mm(8.7"×5.9"×1.7") |
| Weight | <1.22kg |
| Power supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 120W Max capacity for single port: 30W |
| Cooling Fans | 0 |
| Mean Time Between Failure(MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input |
| PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal | |
| LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data | |
| Working Mode | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
