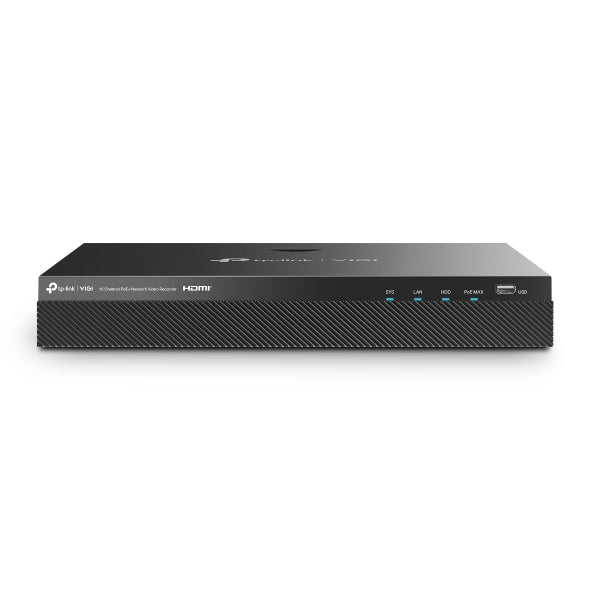

tp-link VIGI NVR2016H-16P 16 Channel Network Video Recorder with 16 POE

$399.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

VIGI 16 Channel PoE+ Network Video Recorder

The VIGI NVR2016H-16P is equipped with an intuitive user interface that facilitates easy setup and operation. It supports remote viewing via the VIGI App, enabling users to access live feeds and recorded footage from anywhere. The built-in network switch eliminates the need for additional network infrastructure. The system is designed for scalability, allowing users to expand their security setup as needed. It also includes motion detection and alert features to enhance monitoring efficiency. The VIGI 16 Channel PoE+ NVR integrates seamlessly with TP-Link's range of IP cameras, offering a cohesive and reliable surveillance solution.

Key Features

  • 8-Channel Live View: Monitor all areas in real-time on a single screen, giving you comprehensive control over your surveillance.
  • Simplified Deployment with PoE+: Connect and power your PoE cameras with a single RJ45 cable, which handles both data transmission and power—no separate power adapter required.
  • 4K Video Output: Capture and display detailed footage with up to 8MP resolution per channel and a total decoding capacity of 16MP across all channels.
  • Easy Management: Manage your NVR and connected cameras effortlessly through the Web UI, NVRUI, VIGI App, and VIGI Security Manager. Tailor the management systems to meet your specific needs.

Code/SKU: VIGI NVR2016H-16P
Quick Specs:

  • Audio Compression: G.711A/G.711U/G.726
  • Video Compression: H.265+/H.265/ H.264+/H.264

Specifications

Product Model VIGI NVR2016H-16P
Video and Audio
IP Video Input 16-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8/9/16
Decoding
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback Capability 16-Channel
25fps 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
30fps 4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode Regular Backup, Video Clip Backup
Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
Network Protocols UPnP (Plug and Play), NTP (Network Timing)
Interoperability ONVIF, CGI
Mobile Phone Access Android, iOS
Browser Chrome (57+), Firefox (52+), Edge (91+)
Specifications
PoE Interface 16 × RJ-45 10/100 Mbps PoE Port
Power 90W
Standard IEEE 802.3 af/at
Auxiliary Interface
Network Interface 1, RJ-45 10/100 Mbps LAN Port
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA 1
HDMI 1
VGA 1
Hard Disk
SATA 2 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD
Alarm
General Alarm Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection
Anomaly Alarm Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage Recording, White Light Alarm, Buzzer, Log, Audible Alarm
General
Package Contents • VIGI Network Video Recorder
• Power Adapter
• Power Cables
• HDD Power Cables
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide
Power Supply DC 53.5V/2.43A
Max Power Consumption (Without Disk) 6.2 W
Max Power Consumption (With Disk) 40W
Working Temperature -10-55 °C
Storage Temperature -40-70 °C
Working Humidity 10%~90% RH Non-Condensing
Storage Humidity 10%~90% RH Non-Condensing
Product Dimensions (W × D × H) 330 × 285 × 45 mm
Net Weight 2.1Kg
Gross Weight 3.85 Kg
Certification CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

tp-link VIGI NVR2016H-16P 16 Channel Network Video Recorder with 16 POE

$399.00 AUD
 per

The VIGI 16 Channel PoE+ Network Video Recorder NVR2016H-16P from TP-Link is a robust surveillance solution designed for comprehensive security management. It features 16 Power over Ethernet (PoE) ports, which simplify the installation of IP cameras by delivering both power and data through a single cable. The NVR supports up to 16 channels, allowing users to connect multiple cameras and monitor various areas simultaneously. With high-resolution recording capabilities, it ensures clear and detailed footage for effective surveillance. The device supports H.265+ video compression technology, which significantly reduces storage requirements while maintaining high video quality. It includes a 2 SATA hard drive bay, accommodating up to 12TB of storage for long-term video retention. The NVR is equipped with an intuitive user interface that facilitates easy setup and operation. It supports remote viewing via the VIGI App, enabling users to access live feeds and recorded footage from anywhere. The built-in network switch eliminates the need for additional network infrastructure. The system is designed for scalability, allowing users to expand their security setup as needed. It also includes motion detection and alert features to enhance monitoring efficiency. The VIGI 16 Channel PoE+ NVR integrates seamlessly with TP-Link's range of IP cameras, offering a cohesive and reliable surveillance solution. Its robust build and reliable performance make it suitable for both residential and commercial applications. The NVR’s advanced security features ensure that footage remains protected against unauthorized access.

Features

  • 4K HDMI Video Output & 16MP Decoding Capacity Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
  • 90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.
  • 16-Channel Simultaneous Playback*Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • ONVIF Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Auto Initialize for Quick ConfigurationJust click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
  • 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
  • Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
  • Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
Technical Specifications
Product Model VIGI NVR2016H-16P
Video and Audio
IP Video Input 16-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8/9/16
Decoding
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback Capability 16-Channel
25fps 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
30fps 4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode Regular Backup, Video Clip Backup
Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
