Tp-Link TL-EAP613 AX1800 Ceiling Mount WiFi 6 Access Point

The TP-Link AX1800 Ceiling Mount WiFi 6 Access Point (EAP613) is designed for high-performance business environments, providing up to 1,775 Mbps combined speeds—574 Mbps on the 2.4 GHz band and 1,201 Mbps on the 5 GHz band. Leveraging WiFi 6 technologies like OFDMA and MU-MIMO, it efficiently manages multiple devices in congested areas, making it ideal for offices, hotels, and small clinics. It supports over 250 concurrent clients and covers up to 115 square meters (1250 square feet), offering high-speed connections and reduced lag across numerous devices. Integrated with TP-Link’s Omada Software Defined Networking (SDN) platform, the EAP613 enables centralized, cloud-based management, simplifying network control. It also features Omada Mesh technology for easy wireless deployment, auto-channel selection, and power adjustment to optimize performance. With support for PoE+ for flexible power options, a slim design for aesthetic installations, and advanced security features like WPA3 and captive portals, this access point is perfect for high-density, secure environments. Software Defined Networking (SDN) with Cloud Access Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Easy-Mount Design The Ceiling Mount EAP’s elegant appearance and easy-mount design promote fast installation on any wall or ceiling surface, allowing it to blend seamlessly with most interior decorating styles. The slimline, inconspicuous Wall Plate EAP can be easily installed into any standard EU/US wall junction box or 86 mm wall junction box. PoE Power Supply With IEEE 802.3af/at/bt PoE or Passive PoE, Ethernet cables can transfer both electrical power and network data, making deployment more flexible and eliminating the need for additional power cabling. Business-Class Hardware Design Enterprise-class chipsets offer outstanding performance and support longer running time, higher client capacity, and greater range. Dedicated high-power amplifiers, specialized antennas, and professionally designed RF shields ensure excellent wireless performance. Seamless Roaming 802.11k and 802.11v seamless roaming provide uninterrupted switching to the access point with optimal signal when moving between APs. Mesh Omada Mesh technology enables wireless connectivity between access points for extended range, making wireless deployments more flexible and convenient. Increased Efficiency with OFDMA Wi-Fi 6 and above standards use OFDMA for more efficient channel use and reduced latency. With 802.11ac WiFi, each delivery truck could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously, improving efficiency for both uploads and downloads. Advanced RF Management MU-MIMO, Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications. Easy Centralized Management Configure and monitor hundreds of Omada EAPs with ease using the Omada controller. Specifications

HARDWARE FEATURES
Interface	1× Gigabit Ethernet (RJ-45) Port
Button	Reset
Power Supply	• 802.3at PoE • 48 V Passive PoE • 12 V / 1 A DC (Power Adapter IS NOT included)
Power Consumption	11.0W (For PoE); 9.9W (For DC)
Dimensions ( W x D x H )	V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type	Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi

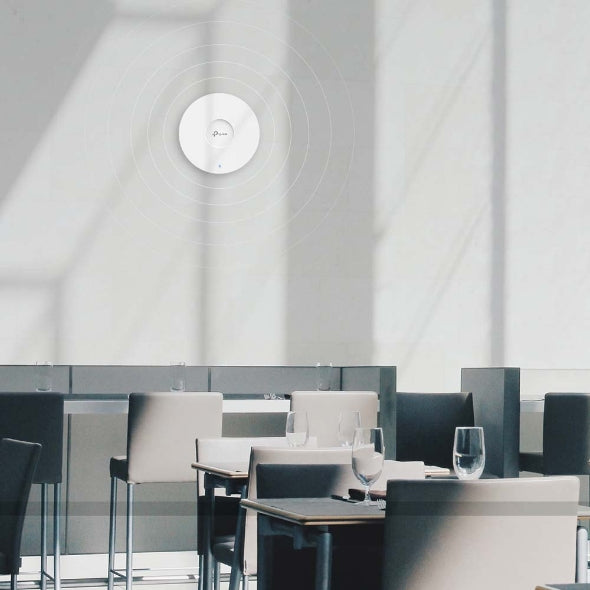

Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting
WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 1201 Mbps• 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)• FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)
MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
Cloud Access	Yes, through • OC300 • OC200 • Omada Software Controller • Omada Cloud-Based Controller
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification	CE, FCC, RoHS
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Videos https://youtu.be/xdhle4cdHho   https://youtu.be/2qAPsoRl_H0
