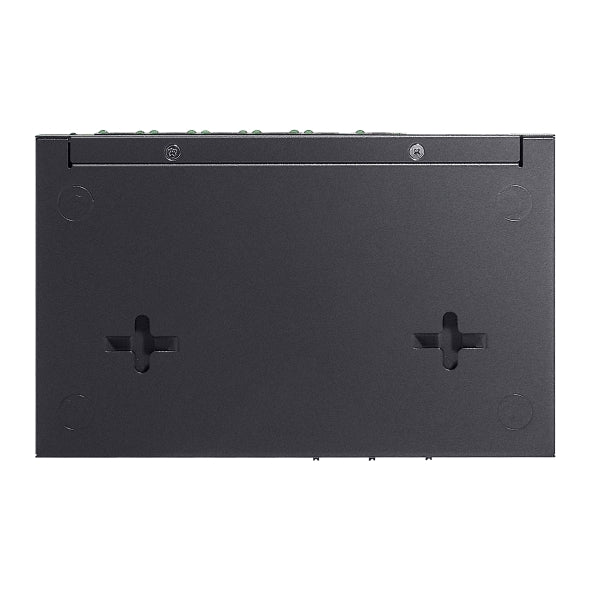

Tp-Link TL-DS106P Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+

The Omada 6-Port 10/100Mbps Unmanaged Desktop Switch with 4-Port PoE+ (DS106P) is a versatile networking solution designed for small offices, dormitories, and surveillance systems. It features six 10/100 Mbps RJ45 ports, with four supporting PoE+ (Power over Ethernet), providing both data and power on a single cable. Each PoE+ port can supply up to 30W of power, with a total PoE budget of 67W across all four ports. This makes it ideal for powering devices like IP cameras, access points, and IP phones, reducing the need for separate power cables. The device is plug-and-play, requiring no configuration, making it simple to install and deploy. The DS106P also supports an extended transmission range of up to 250 meters in "Extend Mode," which is useful for long-distance deployments. In addition, "Priority Mode" ensures that sensitive applications like video or voice data on ports 1 and 2 receive higher priority. The "PoE Auto Recovery" feature automatically reboots unresponsive powered devices to ensure stability. Its fanless design enhances reliability and reduces noise. Overall, this switch offers a balance of performance and cost-effectiveness, especially for surveillance and small network setups​. Power over Ethernet, Flexible Network Deployment Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 67 W with 30 W max per PoE+ port. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority ports power to protect devices from damage. Up to 250m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas. One-click Port Priority Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports. PoE Auto Recovery Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts. Specifications

HARDWARE FEATURES
Interface	• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate	0.8928 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.2 Gbps
Dimensions ( W x D x H )	6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption	• 2.52 W (220 V / 50 Hz, no PD connected) • 75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation	• 8.59 BTU/h (no PD connected) • 257.11 BTU/h (with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • PoE Auto Recovery: Ports 1–4 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification	FCC, CE, RoHS
Package Contents	• DS106P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
