Modular Lithium Solar Station (AIO)
The AIO Modular Lithium Solar Station is fully customisable according to the project requirements. Coming standard with a 100W Monocrystalline Silicon Panel and a 460WH Lithium slimline Battery integrated in the bracket of the solar panel, it also features an inbuilt heating element that allows the solar panel to charge the Lithium battery at low temperatures. This solution is suitable for parks, rural areas, commercial settings, government projects, and the building industry, among others.
Key Features
Code/SKU: SOLARKITVERSION_NOCAM
Quick Specs:
| Solar Panel / Battery Summary | |
|---|---|
| Size Battery | 205x112x68mm |
| Module | 100W |
| Battery | Lithium Ion - 460WH |
| Load Voltage | 10 ~ 14.6V |
| Max Charge | 10A |
| Solar Input Voltage | 18V |
| Max Load | 40W |
| Panel | |
| Solar Cell | 156Mono |
| Optimum Power(V) | 18V |
| Optimum Operating Current | 5.55A |
| Short Circuit Voltage | 6.11V |
| Open Circuit Voltage | 21.24V |
| Size Module | 940x740x100mm |
| Front Glass Thickness | 3.2mm |
| Tolerance Watts | ±3% |
| Surface Max Load Capacity | 60m/s (5kg/sq.m) |
| Allowable Hail Load | 23m/s, 7.53g |
| Temperature Range | -40°C to +85°C |
| Weight Per Piece (KG) | 38KG with Battery (no Pole or accessories) |
| Cell Efficiency | 21.6% |
| Warranty | 90% for 10 years, 80% for 25 years |
| Battery | |
| Array Mode | 3S20P |
| Minimum Capacity | ≥39800mAh |
| Nominal Voltage | 11.1V |
| AC Impedance Resistance | ≤200mΩ (AC 1kHz) |
| Operating Temperature | 0℃ ~ 50℃ (Charging) / -10℃ ~ 60℃ (Discharging) |
| Nominal Capacity | 40000mAh |
| Cycle Life | ≥500 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

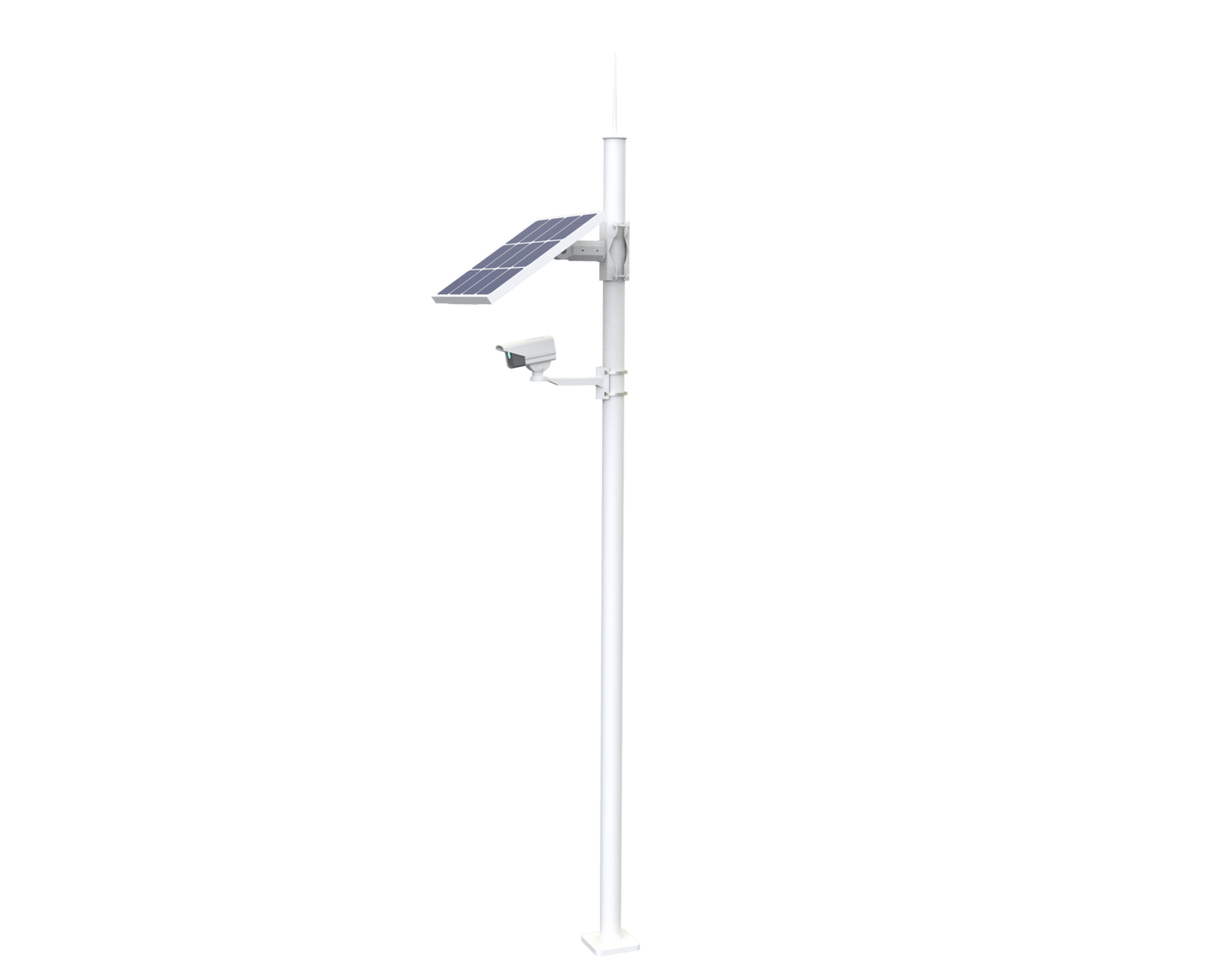

Solar-CCTV Kit (Multi-module Battery/Panel/Bracket) Compatible With Most Cams
This product is a sophisticated smart solar power supply system, consisting of three main components: a solar panel, a lithium battery, and a mounting bracket. Designed for quick deployment and ease of use, it offers long-lasting operation and reliability. The system provides stable power output for equipment (within the recommended current consumption) without needing a mains connection. It is ideal for applications such as urban development, road monitoring, rural properties, environmental management, water source protection, and forest fire prevention.
The system includes an integrated fixed bracket that is compatible with Turret, Dome, and PTZ cameras, as well as a U-shaped pole-mount clamp designed for poles with a diameter of 80 to 110 mm. All connectors feature IP-rated “aviation” style inline plugs for straightforward installation.
A high-performance microcontroller oversees the lithium battery's activation, pre-charge functions, and real-time Battery Management System (BMS) protection, ensuring efficiency greater than 90%. An illuminated indicator provides real-time feedback on the solar panel, battery, and overall operational status.
The system supports RS-485 communication, allowing real-time monitoring of battery load, remaining power, temperature, and other parameters. The power generation unit employs high-efficiency monocrystalline silicon wafers with a conversion efficiency of 21.6% or higher and a service life exceeding 20 years.
The energy storage unit utilizes deep cycle lithium battery technology for safety and reliability, also covered by a 3-year return-to-base warranty. Constructed from die-cast aluminum and fully galvanized mild steel, the system is designed to endure harsh environmental conditions. All components are IP67 rated for outdoor use and protection from the elements.
An optional heating version supports automatic heating at 0℃, suitable for sub-zero temperatures. Note that POE on the router is not available; the camera will use a splitter to be powered via 12V DC. The working temperature for the conventional version is -20 to 40℃ for discharge and 0 to 50℃ for charging, while the heating version operates between -20 to 40℃ for discharge and -20 to 50℃ for charging.
The LTE Router 32 is a cost-effective industrial cellular router featuring intelligent software designed for various M2M and IoT applications. It supports global WCDMA and 4G LTE carriers, providing reliable drop-in connectivity and helping operators maximize uptime. With an integrated cellular modem and dual SIM functionality, the LTE Router 32 offers 3G/4G cellular network speeds of 150 Mbps download and 50 Mbps upload. It also includes two fast Ethernet ports and supports Wi-Fi compliant with the 802.11b/g/n standard, ensuring uninterrupted internet access. Its easy deployment and comprehensive remote device management make the LTE Router 32 versatile for most IoT and M2M applications.
Features
| Solar Panel / Battery Summary | |
|---|---|
| Size Battery | 205x112x68mm |
| Module | 100W |
| Battery | Lithium Ion - 460WH |
| Load Voltage | 10 ~ 14.6V |
| Max Charge | 10A |
| Solar Input Voltage | 18V |
| Max Load | 40W |
| Panel | |
| Solar Cell | 156Mono |
| Optimum Power(V) | 18V |
| Optimum Operating Current | 5.55A |
| Short Circuit Voltage | 6.11V |
| Open Circuit Voltage | 21.24V |
| Size Module | 940x740x100mm |
| Front Glass Thickness | 3.2mm |
| Tolerance Watts | ±3% |
| Surface Max Load Capacity | 60m/s (5kg/sq.m) |
| Allowable Hail Load | 23m/s, 7.53g |
| Temperature Range | -40°C to +85°C |
| Weight Per Piece (KG) | 38KG with Battery (no Pole or accessories) |
| Cell Efficiency | 21.6% |
| Warranty | 90% for 10 years, 80% for 25 years |
| Battery | |
| Array Mode | 3S20P |
| Minimum Capacity | ≥39800mAh |
| Nominal Voltage | 11.1V |
| AC Impedance Resistance | ≤200mΩ (AC 1kHz) |
| Operating Temperature | 0℃ ~ 50℃ (Charging) / -10℃ ~ 60℃ (Discharging) |
| Nominal Capacity | 40000mAh |
| Cycle Life | ≥500 |
