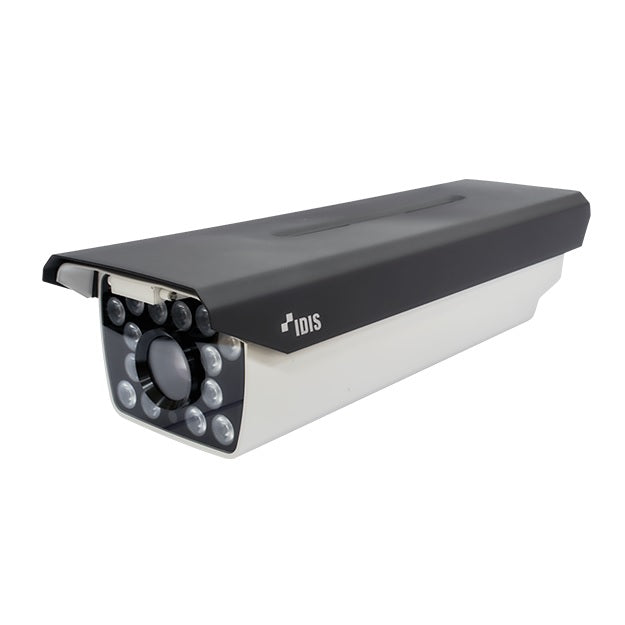

IDIS DC-T6224HRXL License Plate Capture Camera, NDAA Compliant
- Sku: DC-T6224HRXL-12-50MM
- Vendor: SecurityAustralia
- Easy installation with DirectIP NVR
- Full HD (1920 x 1080) resolution
- Manual Vari-focal lens (f=12 - 50mm)
- IR LED (20m for License plate capture up to 80km/h, 100m for Surveillance)
- True Wide Dynamic Range (WDR)
- Day and Night (ICR)
- Two-way audio
- Alarm In / Out
- IP66 support
- Supports ONVIF
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
2MP
Vari-focal Lens
Heater
IR LED
True WDR
Easy Installation
Two-way audio
IP66
ONVIF
NDAA Compliant
IR Cut Filter Removable
Technical Specifications
| Video | |
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Vari-focal |
| Focal Length | 12 ~ 50mm |
| Aperture | F1.5 ~ F1.9 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 33º(H), 18º(V), 38º(D) Tele : 9º(H), 5º(V), 10º(D) |
| Min. Illumination | Color Mode : 0.02 lux @F1.5 BW Mode : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20m (License plate capture up to 80km/h) 100m (Surveillance) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 25ips : 1920 x 1080 30ips : 1920 x 1080 |
| Supported Resolution | 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 2 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 100V ~ 240VAC |
| Power Consumption | 100-240V~, 50/60Hz, 1.0-0.5A, 50W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 166.5mm x 129.5mm x 540mm (6.56" x 5.1" x 21.26") |
| Weight | 4.65 kg (10.25 lb) |
