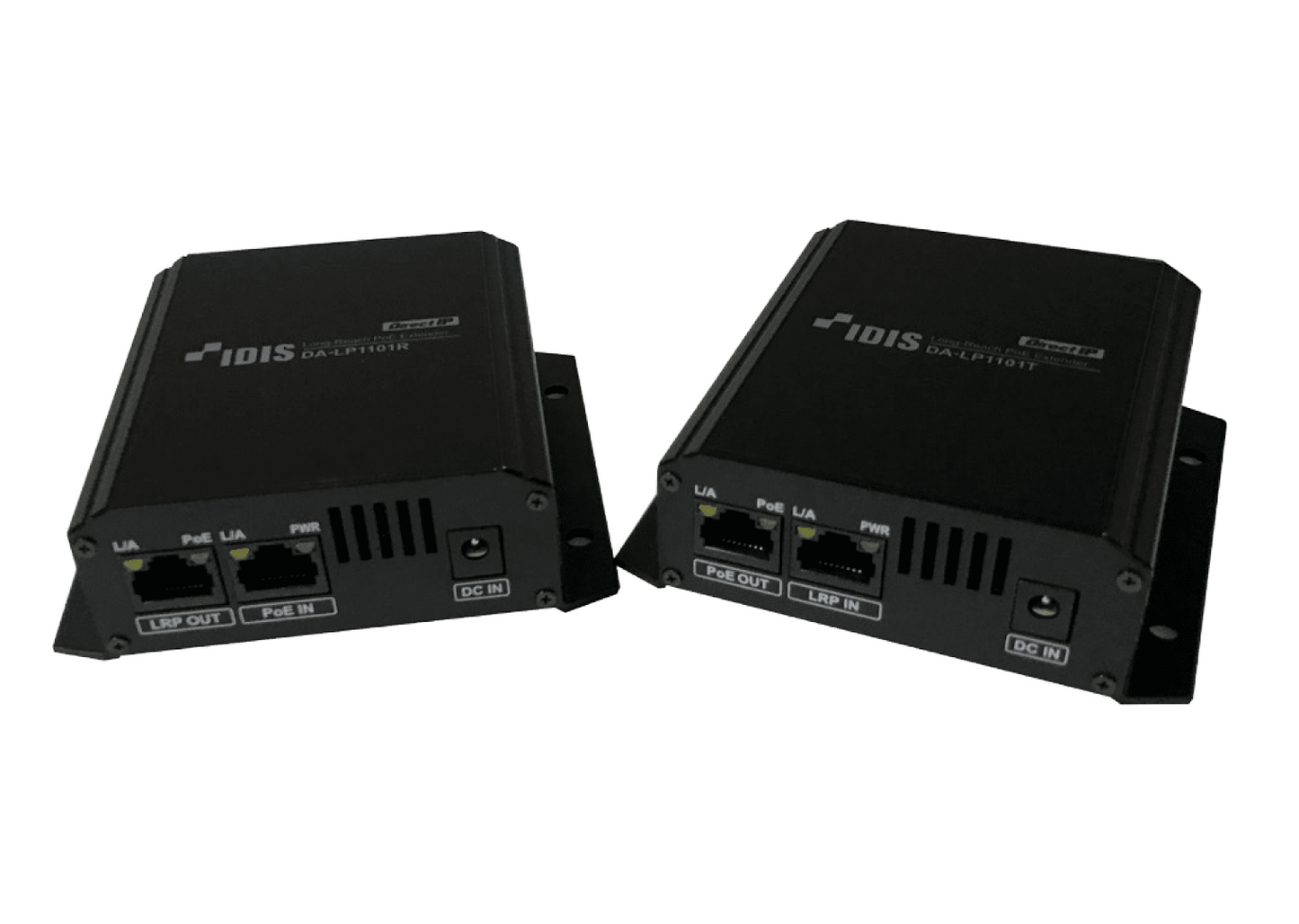

IDIS DA-LP1101T Long Reach PoE Transmitter Cam End

  • Sku: DA-LP1101T
  • Vendor: SecurityAustralia
$203.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
The IDIS DA-LP1101T Long Reach PoE Transmitter Cam End is a reliable solution designed to extend Power over Ethernet (PoE) and data transmission beyond the standard 100-meter limit of Ethernet cabling. This extender allows users to achieve up to 500 meters of data transmission when used with Cat5e or higher cables, making it ideal for installations in large buildings, parking lots, and other expansive areas where longer cable runs are required. It supports both PoE and PoE+ (802.3af/at standards), providing ample power to connected devices like IP cameras, access control systems, and other networked equipment. The unit requires no external power source, as it is powered directly from the PoE injector or switch, simplifying installation. With plug-and-play functionality, the DA-LP1101T eliminates the need for complex configuration or additional software. Its compact and durable design ensures reliability in various environmental conditions, with the ability to function effectively in temperatures ranging from -10°C to 50°C. The extender also includes built-in surge protection, which safeguards connected devices from potential electrical damage caused by power spikes. This ensures long-term stability and reduces maintenance requirements for network systems. Additionally, its cost-effectiveness makes it a practical choice for enhancing network infrastructure without the need for significant upgrades. Key Features
  • Up to 500meters PoE transmission between devices using UTP cabling
  • Up to 700meters DATA transmission between equipments using UTP cabling
  • Plug-and-play without any required PC setting
  • Supports 1Gbps / IEEE802.3at for PoE Injector
  • Supports 1Gbps / IEEE802.3at / 100meters for PoE Repeater
DA-LP1101R _ DA-LP1101T Datasheet

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

The IDIS DA-LP1101T Long Reach PoE Extender is a high-performance solution designed to extend both data and power transmission up to 500 meters over Ethernet, surpassing the typical 100-meter limit. It is compatible with Cat5e or higher cabling, making it ideal for large-scale installations such as in campuses, warehouses, or industrial sites. Supporting both PoE and PoE+ standards (802.3af/at), the extender efficiently powers a range of devices, including IP cameras and access control systems, without requiring additional power sources. Its plug-and-play design allows for quick and hassle-free deployment, eliminating the need for complex setup or additional software. The device’s robust construction ensures reliable performance in harsh environmental conditions, with an operating temperature range of -10°C to 50°C. Integrated surge protection adds an extra layer of security by preventing damage from power surges, thus enhancing the longevity of the connected devices. The DA-LP1101T also offers a cost-effective alternative to installing new cabling or network infrastructure upgrades. Its compact size makes it easy to integrate into existing systems without taking up much space, while maintaining high-quality data transmission and power delivery. Additionally, the device can be used in various outdoor settings, providing flexibility for extending network coverage in remote areas. Dimension Technical Specifications
PoE INJECTOR / REPEATER FUNCTION
port RJ45 x1 with PD RJ45 x1 with PSE
connectivity RJ45, Auto-MDI/MDI-X Sensing
Power Input IEEE 802.3at, 48 ~ 56V DC
Power Output Max. 720mA
PoE Standard IEEE 802.3at PD IEEE 802.3at PSE
PSE Budget up to 30W
Speed 10/100/1000Mbps
LONG REACH PoE EXTENDER FUNCTION
port RJ45 x1 with PD RJ45 x1 with PSE
connectivity RJ45, Auto-MDI/MDI-X Sensing
Power Intput IEEE 802.3at, 48 ~ 56V DC
Power Output Max. 720mA
PoE Budget Up to 30W(Depending on Cable Distance and Power Input)
cable UTP CAT5E or Above
Speed 10/100Mbps
LEDs and BUTTON
Link Status LED 2 Yellow LED(Link/Activity LED per Ethernet port)
PoE Status 1 Green LED(PSE LED)
Reset Button None
Power LED 1 Green LED
GENERAL
Dimensions (W x H x D) 104 x 34 x 96(mm)
Unit Weight 226g
Operating Temperature -10℃ ~ 50℃
Operating Humidity 0% ~ 90%
Power Input 56VDC
Power Consumption 56V=, 0.786A, 44W
Approvals KC, CE, FCC

Key Features

Trusted Brand Partner & Security Equipment Wholesaler

  • Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
  • Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

What This Product Does

The IDIS DA-LP1101T Long Reach PoE Transmitter Cam End is a reliable solution designed to extend Power over Ethernet (PoE) and data transmission beyond the standard 100-meter limit of Ethernet cabling. This extender allows users to achieve up to 500 meters of data transmission when used with Cat5e or higher cables, making it ideal for installations in large buildings, parking lots, and other expansive areas where longer cable runs are required. It supports both PoE and PoE+ (802.3af/at standards), providing ample power to connected devices like IP cameras, access control systems, and other networked equipment. The unit requires no external power source, as it is powered directly from the PoE injector or switch, simplifying installation. With plug-and-play functionality, the DA-LP1101T eliminates the need for complex configuration or additional software. Its compact and durable design ensures reliability in various environmental conditions, with the ability to function effectively in temperatures ranging from -10°C to 50°C. The extender also includes built-in surge protection, which safeguards connected devices from potential electrical damage caused by power spikes. This ensures long-term stability and reduces maintenance requirements for network systems. Additionally, its cost-effectiveness makes it a practical choice for enhancing network infrastructure without the need for significant upgrades. Key Features
  • Up to 500meters PoE transmission between devices using UTP cabling
  • Up to 700meters DATA transmission between equipments using UTP cabling
  • Plug-and-play without any required PC setting
  • Supports 1Gbps / IEEE802.3at for PoE Injector
  • Supports 1Gbps / IEEE802.3at / 100meters for PoE Repeater
DA-LP1101R _ DA-LP1101T Datasheet
