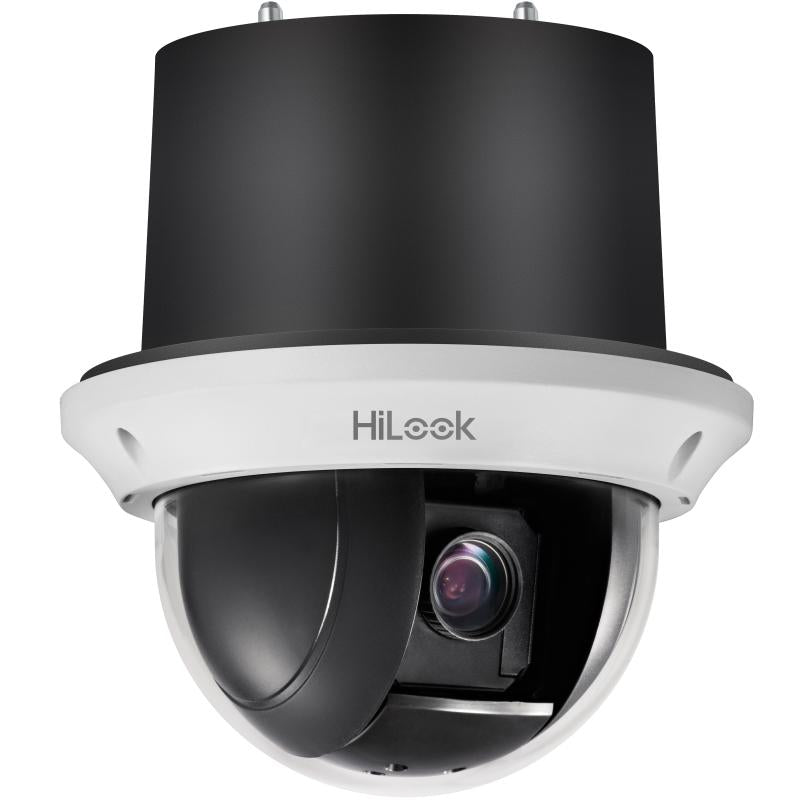

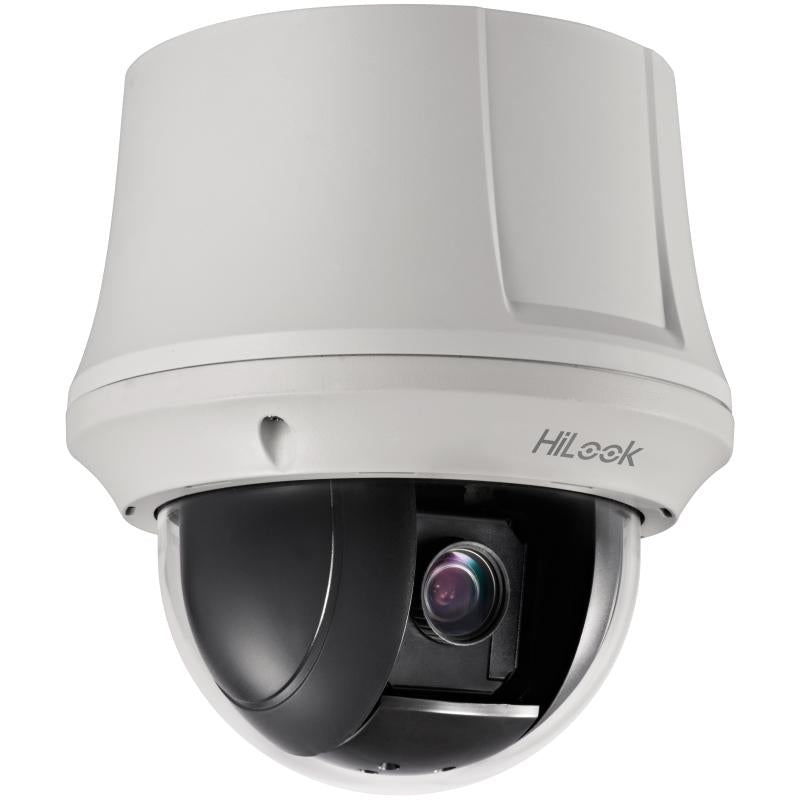

HiLook PTZ-N4215-DE3 2MP 15× Optical Zoom PTZ Network Dome Camera

Model: PTZ-N4215-DE3

Who This Is For

When covering a large, open area from a single camera position is the priority, the HiLook PTZ-N4215-DE3 is the product most installers reach for. Designed for car parks, school grounds, warehouses, and commercial yards where fixed cameras would require multiple units to achieve the same result, this 2MP PTZ dome delivers 15x optical zoom and full pan/tilt movement to let operators or automated tracking follow activity across a wide scene. The dome housing suits exposed rooftop mounts, building corners, and elevated wall brackets where a bullet-style PTZ would look out of place or be more vulnerable to interference. Security integrators specifying mid-range PTZ solutions for councils, logistics sites, or education campuses will find the PTZ-N4215-DE3 sits in a practical position between entry-level fixed cameras and high-cost broadcast-grade PTZs.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Commercial Sites: Installers specifying a single flexible camera for a large open area - a car park, school oval, or commercial yard - where running cable to multiple fixed cameras is impractical or cost-prohibitive.
• Council and Campus Security Teams: Operators who need to actively monitor a space in real time, using PTZ movement and 15x optical zoom to follow incidents as they develop across a wide scene.
• Warehouse and Logistics Facility Managers: Sites with long internal aisles or large loading areas where a single elevated PTZ dome covers zones that would otherwise require 4 or more fixed cameras.
• Installers Replacing Ageing Analogue PTZ Units: Those upgrading an existing PTZ position to a network-based system without changing the mounting bracket footprint - the dome housing suits a direct swap in most overhead mount configurations.

Honest Assessment

The PTZ-N4215-DE3 earns its place in a system wherever a single camera needs to do the work of many fixed units. The 15x optical zoom is the standout specification - it is the difference between seeing that something is happening at the far end of a car park and being able to identify who or what is involved. The dome housing adds meaningful physical protection for the PTZ mechanism compared to open-head designs, and network integration keeps the install straightforward for any site already running PoE NVR infrastructure. Where this camera will not serve as well: if your site needs wall-to-wall continuous recording of every fixed zone simultaneously, a multi-camera fixed system captures more at once because a PTZ only covers where it is pointed at any given moment. For wide-area active monitoring with zoom capability, it is a strong option available through Security Australia and worth pairing with at least some fixed cameras for full coverage redundancy.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to actively monitor a large open area - car park, yard, or open floor - and want 15x optical zoom to pull detail from distance without running multiple cable drops.
• Good match if: You are replacing an existing PTZ position on a network NVR system and need a dome-profile unit that handles the full pan/tilt/zoom movement within a compact housing.
• You may need a different model if: Your priority is simultaneous continuous recording of multiple fixed zones - a multi-camera fixed system will capture every zone at once regardless of where an operator or tracking function has aimed the camera, making it a better fit for forensic review-focused applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to actively cover a large area with 15x optical zoom and PTZ movement, and a dome housing suits the mounting position better than an exposed speed-dome or bullet PTZ profile.
• You may need a different model if: Your site demands simultaneous continuous recording of 4 or more fixed zones - a multi-sensor panoramic camera or a bank of fixed turret cameras will capture every zone at the same time, regardless of where a PTZ is pointed.
• Pairs well with: A compatible PoE+ NVR with PTZ control support, plus fixed IP cameras covering the highest-priority static zones as a complement to the PTZ sweep.

Common Questions

1. Will a standard PoE switch port power this camera?

   No. The PTZ-N4215-DE3 requires PoE+ (IEEE 802.3at, up to 30W) - a standard IEEE 802.3af port (15.4W) will not deliver enough power. During pan/tilt movement the motor draw spikes, and an undersupplied camera will either fail to start or cut out mid-movement. Confirm your NVR's built-in PoE ports or external switch are 802.3at rated before installation.

2. What is the pan and tilt range on the PTZ-N4215-DE3?

   Pan is 360-degree continuous with no mechanical stop, and tilt range is -15° to 90°. The continuous pan means the camera can rotate indefinitely without cable wrap-up, which is important for patrol functions that cycle through multiple presets in one direction. The tilt range allows the camera to look almost straight down, which suits overhead or elevated pole mounts looking into the space directly below.

3. How many preset positions can this camera store?

   300 presets. Each preset saves the exact pan, tilt, and zoom position so the camera returns to the identical framing every time. For patrol use, up to 8 patrol paths can be configured, with each path containing up to 32 of those preset positions. This makes it practical to set up a full-site sweep sequence without any operator involvement after initial configuration.

4. Does this PTZ camera work with non-HiLook NVRs?

   Yes, for basic streaming. The PTZ-N4215-DE3 supports ONVIF Profile S, which means video will display on any ONVIF-compatible NVR. However, PTZ control functions - presets, patrol, zoom commands - may be limited or unavailable on third-party systems that do not implement full PTZ control via ONVIF. For complete PTZ functionality including preset management and patrol scheduling, a HiLook or Hikvision NVR with PTZ control support is the recommended pairing. Confirm ONVIF PTZ control compatibility with your NVR manufacturer before committing to a mixed-brand setup.

5. Does the 15x optical zoom affect image quality at maximum range?

   No - optical zoom does not degrade image quality. At 15x magnification the lens physically adjusts focal length, so the 2MP sensor is still capturing full-resolution detail of the zoomed subject. This is the key difference from digital zoom, which simply enlarges pixels. At maximum zoom you will see the same sharpness as at wide angle, provided lighting conditions are adequate and the mount is vibration-free. Camera shake is magnified at 15x, so a rigid mounting surface is important.

6. Will this camera work outdoors in Australian summer temperatures?

   Yes. The PTZ-N4215-DE3 is rated to operate up to 65°C and carries an IP66 ingress protection rating, covering dust and high-pressure water jets. The operating range of -30°C to 65°C covers standard Australian outdoor conditions including exposed roof mounts in Queensland and Western Australia summer environments. For installations in areas with direct sun on the dome for extended periods, a sunshield accessory is worth considering to keep the housing temperature within spec.

7. How does the IR range perform when the camera is zoomed in at 15x?

   The IR illuminators on the PTZ-N4215-DE3 are designed to coordinate with the zoom level - as the camera zooms in, the IR beam narrows to match the tighter field of view, concentrating illumination on the zoomed subject rather than scattering it across a wide angle. This adaptive IR behaviour means the quoted up-to-100m IR range is most relevant at or near full zoom. At wide angle the IR spreads over a larger area with proportionally less intensity per square metre. Contact Security Australia if you need specific low-light performance data for your installation geometry before ordering.
