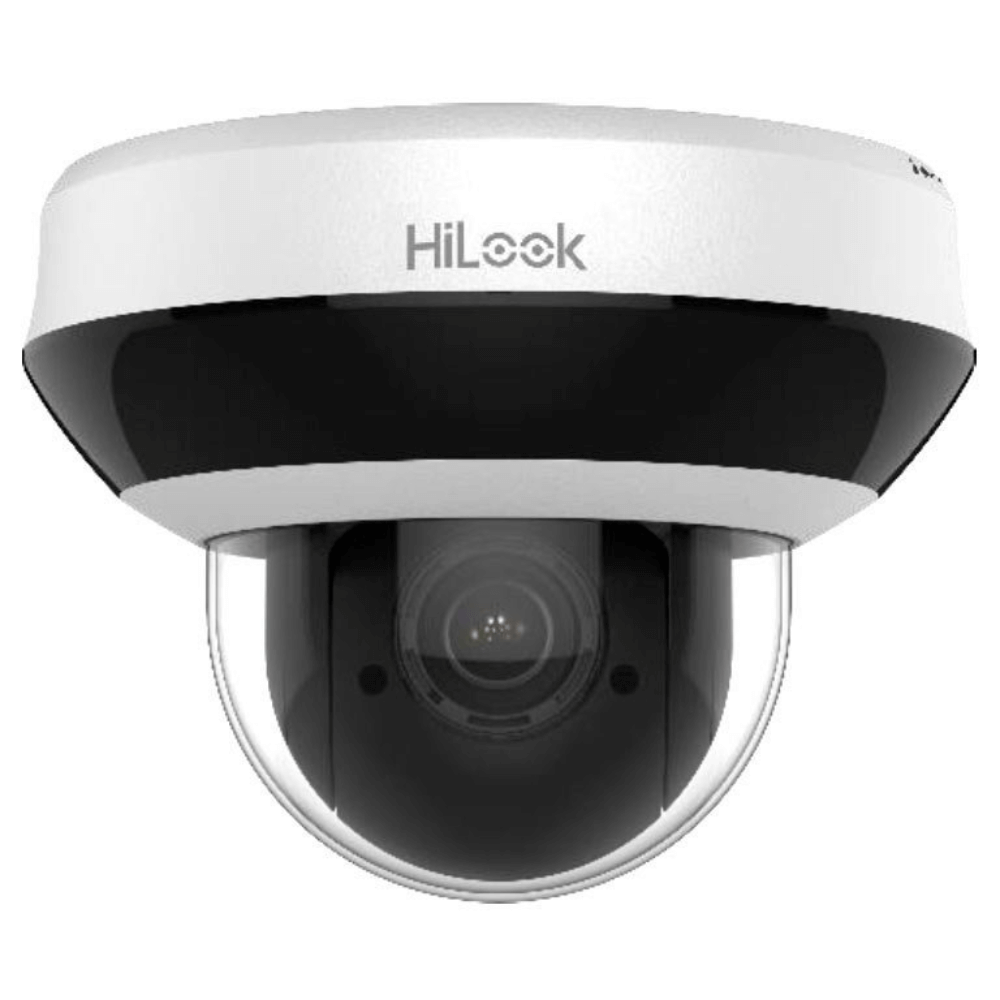

HiLook PTZ-N2404I-DE3 PTZ 2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome

Model: PTZ-N2404I-DE3

Who This Is For

Property managers specifying active surveillance for medium-to-large sites will find the HiLook PTZ-N2404I-DE3 a capable and cost-effective position in the HiLook PTZ lineup. Designed around a 4 MP sensor with 4X optical zoom and HiLook's DarkFighter low-light technology, this speed dome is built for sites where a fixed camera simply cannot cover enough ground - think open car parks, school oval perimeters, retail loading areas, or industrial yards where operators need to zoom in on activity without losing image quality. The IR illumination extends usable night vision across the zoom range, and the motorised pan-and-tilt mechanism allows operators to respond to events in real time or run automated patrol and scan patterns unattended. If your site needs a single camera position that can do the work of several fixed units, this is the category to evaluate.

What This Camera Actually Does

Who Buys This Model

• Car park operators: A single PTZ-N2404I-DE3 with 4X zoom can monitor entry points, travel lanes, and bays from one elevated pole position, reducing the number of fixed cameras needed across a multi-bay facility.
• School and education facility managers: Patrol scan modes allow the camera to automatically cycle perimeter areas after hours, providing moving coverage of ovals, walkways, and gate lines without live operator involvement.
• Industrial and warehouse sites: Loading dock managers who need to zoom into vehicle activity, read signage, or identify individuals at distance benefit from the 4X optical zoom combined with DarkFighter performance during early-morning or late-night shift changes.
• Integrators building cost-managed PTZ systems: The HiLook positioning places this camera below the full Hikvision PTZ price tier while retaining the core optical zoom and low-light capability, making it viable for budget-sensitive commercial projects that still need PTZ functionality.

Honest Assessment

The PTZ-N2404I-DE3 earns its place as a genuine PTZ camera rather than a marketing-labelled fixed unit. The 4X optical zoom is real and functional at 4 MP, DarkFighter delivers measurable low-light improvement over standard sensors, and the speed dome mechanism handles both live operator control and automated patrol reliably. For sites that need wide-area monitoring from a single mounting position, this camera does that job at a price point that sits below full-range Hikvision PTZ models available through Security Australia. What it will not do: 4X optical zoom has a shorter reach than 25X or 36X PTZ units suited to very large open spaces like industrial estates or sports grounds - if you need to identify detail at 100 metres or more, a higher zoom ratio camera is a better fit. It is also not a replacement for a fixed camera array where simultaneous multi-point recording is needed, since a PTZ only looks one direction at a time.

Before You Buy

Quick Fit Check

• Good match if: You need one camera to actively monitor a medium-sized open area - a car park, school perimeter, or retail forecourt - where 4X optical zoom gives you the reach to identify detail at distance and patrol modes handle after-hours coverage automatically.
• Good match if: Your site has transitional or low-light conditions at shift changeover or dusk, and DarkFighter's sensor optimisation means you need usable colour or high-contrast footage before the IR activates.
• You may need a different model if: Your site requires simultaneous recording of multiple zones at once - a PTZ only covers one direction at a time, so a multi-sensor panoramic camera or a planned array of fixed cameras would serve that requirement better. Browse the panoramic and multi-sensor range at securityaustralia.com.au for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need genuine optical zoom and motorised pan-tilt coverage from a single camera position at a price point below full-tier commercial PTZ units, and your site falls within the reach of 4X optical zoom.
• You may need a different model if: Your site requires long-distance identification beyond what 4X zoom provides - a PTZ unit with 16X, 25X, or higher optical zoom from the full Hikvision or Dahua PTZ range would be a more appropriate product type for large open spaces or extended approaches.
• Pairs well with: ONVIF-compatible NVR with PoE+ ports, or a standalone PoE+ injector feeding into an existing NVR - combined with fixed IP cameras covering static recording zones the PTZ cannot watch during patrol mode.

Common Questions

1. Does this camera work with a standard PoE switch or NVR PoE port?

   No - the PTZ-N2404I-DE3 requires PoE+ (IEEE 802.3at), which delivers up to 30W per port. Standard PoE (IEEE 802.3af) is rated at 15.4W and will not reliably power a PTZ speed dome. Before installation, confirm your switch or NVR's PoE ports are 802.3at rated on the port allocated to this camera. If your NVR only supports 802.3af, a PoE+ injector on that run will resolve the issue. Alternatively, the camera can be powered via a 12V DC adaptor if network PoE is not available.

2. Will this camera work with my existing NVR if it's a different brand?

   Yes, in most cases. The PTZ-N2404I-DE3 supports ONVIF, which is the widely adopted interoperability standard across IP camera and NVR brands. Basic video streaming and PTZ control (pan, tilt, zoom) will function over ONVIF on most compatible NVRs. Note that some advanced features - such as patrol pattern programming or specific scan modes - may only be fully configurable through HiLook's own NVR platform or iVMS software. Check your NVR's ONVIF PTZ command support before specifying.

3. What is the pan and tilt range, and can it be set to auto-patrol positions?

   Yes. The PTZ-N2404I-DE3 supports continuous 360-degree pan with no mechanical stop, and tilts from -15° to 90° (allowing the camera to look slightly above horizontal as well as downward). Preset positions can be programmed for patrol sequences, where the camera moves through named positions on a defined schedule. Auto-scan mode runs the camera back and forth across a defined pan range without operator input. The number of programmable preset positions should be confirmed in the product datasheet for your specific firmware version.

4. How far does the 4X optical zoom actually reach for identification purposes?

   The effective identification distance depends on mounting height, scene lighting, and the subject size in frame - but as a practical guide, 4X optical zoom on a 4 MP sensor extends useful identification range to roughly 2-4 times what a fixed wide-angle lens provides from the same position. For a camera mounted at 5-6 metres covering a car park approach, you can typically read a number plate or identify a face at distances where a fixed 2.8mm lens would show only a silhouette. For very large open spaces requiring identification beyond 80-100 metres, a higher zoom ratio PTZ is the more appropriate product type.

5. What does DarkFighter actually do differently from standard night vision?

   DarkFighter is HiLook's designation for a sensor and lens combination optimised for extreme low-light capture. Unlike standard cameras that switch to black-and-white IR mode at dusk, DarkFighter-equipped cameras retain colour or high-contrast mono footage at light levels where a standard sensor would produce noisy, unusable frames. This matters in transitional lighting - dusk, streetlit car parks, or dimly lit loading bays - where IR alone does not activate but ambient light is insufficient for a standard sensor. The IR illuminators then provide full night vision when light falls further. The combination is available through Security Australia as part of the broader HiLook PTZ range.

6. Does the IR illumination stay effective when the camera is zoomed in?

   Yes. The IR illuminators on the PTZ-N2404I-DE3 are designed to adjust with the zoom position - a feature sometimes called IR zoom synchronisation or adaptive IR. When the lens zooms in, the IR beam narrows to match, maintaining illumination intensity on the subject at distance rather than flooding the foreground and leaving the zoomed subject dark or underexposed. This is a key distinction from fixed cameras with static IR arrays, which cannot compensate for a changing field of view.

7. Is the PTZ-N2404I-DE3 weatherproof enough for outdoor installation in Australian conditions?

   Yes. The camera carries an IP66 weatherproof rating, which means it is fully protected against high-pressure water jets and dust ingress. IP66 is appropriate for exposed outdoor installations including rooftop, pole, and parapet mounts subject to direct rain. Confirm the operating temperature range in the datasheet against your specific site conditions if the installation is in an extreme heat zone or in a cool-climate region with frost risk.
