HiLook HA-KIT-P2 2-Wire Video Intercom Kit

Model: HiLook HA-KIT-P2

Who This Is For

When keeping cabling simple without sacrificing front-door visibility is the priority, the HiLook HA-KIT-P2 is built for that exact brief. This 2-wire video intercom kit suits residential installers, small business owners, and property managers who want a clean, low-disruption installation - particularly in apartments, townhouses, small offices, or any building where running multiple cables through finished walls is impractical. The door station delivers 2MP 1080p resolution through a fisheye lens that captures a wide field of view at the entry point, while the 7-inch indoor touch screen gives occupants a clear image and one-touch unlock response. Remote access via mobile app means residents or staff can answer calls and release the door lock from anywhere - useful for short-term rental managers, small medical clinics, or home-based businesses managing deliveries and visitor access without being physically present.

What This Kit Actually Does

Who Buys This Model

• Residential installers: Working on townhouses, villas, or apartments where 2-wire simplicity cuts labour time significantly compared to multi-conductor intercom systems.
• Short-term rental property owners: Using the mobile app to remotely manage guest check-ins and door releases without needing a property manager physically present at every arrival.
• Small office and medical practice managers: Needing controlled front-door access with visual confirmation of visitors before buzzing them in, without the complexity of a full access control system.
• Home-based business operators: Monitoring and managing deliveries or client arrivals at the door while working elsewhere in the building, using the indoor touch screen or mobile app.

Honest Assessment

The HiLook HA-KIT-P2 does the fundamentals well for a single-entry residential or small commercial install. The 2-wire design is a genuine advantage when cable runs through finished walls are a constraint, and the combination of a 7-inch touch screen, metal door station, and mobile app remote unlock gives this kit a complete feature set at its price point. The IP65 door station rating is appropriate for most Australian outdoor entry conditions, and the fisheye lens covers a wide angle without requiring precise aiming adjustment at the door frame. What this kit will not do: it is a single-door, single-indoor-station system. Properties needing multiple indoor monitors, multi-apartment calling directories, or integration with third-party access control hardware will need a more scalable intercom platform. Available through Security Australia, this kit suits straightforward single-entry installs rather than complex multi-tenancy deployments.

Complete Package Contents

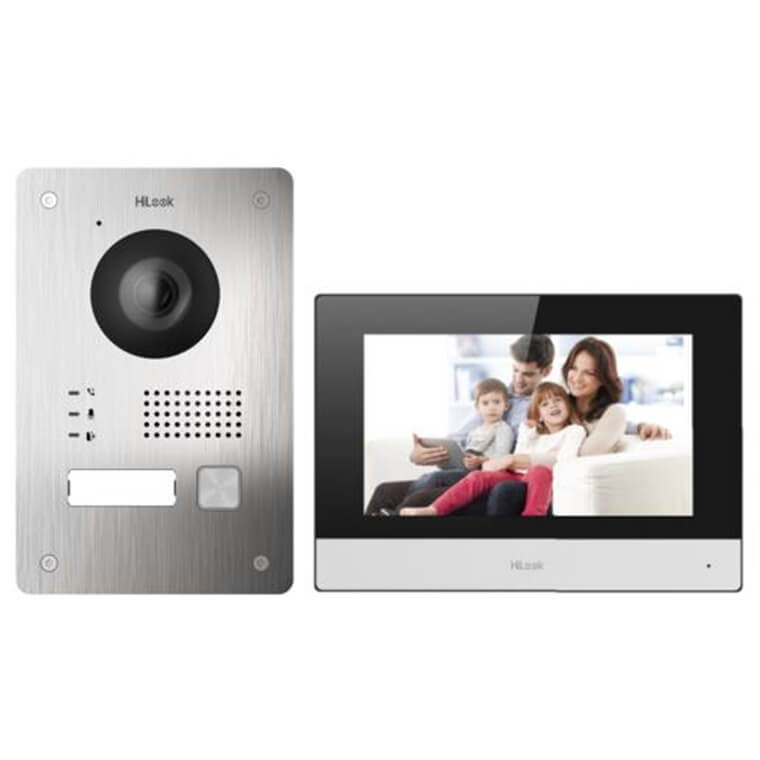

• 1 x Metal Door Station - 2MP 1080p fisheye camera, IP65, name tag, communication status LED
• 1 x Indoor Station - 7-inch touch screen, plug-and-play, mobile app support
• 1 x Rain Shield - for door station weather protection

Before You Buy

Quick Fit Check

• Good match if: You have a single entry point and want a clean 2-wire installation - particularly in a renovated home, townhouse, or small office where running multiple cable types through finished walls is not viable.
• Good match if: Remote door release via smartphone is a core requirement - short-term rental operators or home-based businesses that need to answer the door and grant access without being physically at the indoor monitor.
• You may need a different model if: Your property has multiple entry points, multiple apartments or tenancies, or requires a calling directory - look at a multi-unit or villa intercom system at securityaustralia.com.au that supports expanded indoor monitor configurations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your install is a single-entry residential or small commercial property and 2-wire cabling simplicity combined with mobile app remote unlock is the primary requirement.
• You may need a different model if: Your property has multiple apartments, multiple indoor monitors, or requires a numbered call directory - a multi-unit villa intercom system with expandable indoor station support will serve that scenario better.
• Pairs well with: A compatible electromagnetic or electric strike lock on the door frame, and a PoE or dedicated power supply appropriate for the door station's power input requirements.

Common Questions

1. Does the fisheye door station give a distorted image on the indoor monitor?

   Yes, some barrel distortion is expected with a fisheye lens, but the practical result is a wide-angle view of the entire entry area rather than a narrow straight-ahead shot. The trade-off of a fisheye at a door station is deliberate - it means you see the full width of who is standing at the door, including anyone standing to the side, without requiring the camera to be precisely aimed at a single point. The indoor monitor displays this wide view directly; no dewarping software processing is applied in the way a surveillance fisheye would dewarp into a flat panoramic image.

2. Will this intercom kit work if I'm not home - can I unlock the door from my phone?

   Yes. The system supports remote video calling and door unlock via the mobile app, so you can answer a visitor and release the door lock from anywhere with an internet connection on your phone. This requires the indoor station to be connected to your network. The door station initiates a call when a visitor presses the button, and your smartphone receives the notification and video feed through the app.

3. Is the door station suitable for outdoor installation in Australian conditions?

   Yes. The door station is rated IP65, which means it is dust-tight and protected against direct water jets from any direction. This rating handles typical Australian outdoor conditions including rain, humidity, and coastal environments. The included rain shield provides additional overhead protection and is recommended for exposed mounting positions where rain can fall directly onto the face of the unit.

4. What type of cable does the 2-wire system actually need?

   The system uses a 2-conductor connection between the door station and indoor monitor. Standard 2-core intercom or alarm cable (twisted pair) is appropriate for this wiring run. Because the system carries both power and signal on 2 wires, cable quality and run distance matter - confirm the maximum rated cable distance for the HA-KIT-P2 before planning runs on larger properties, as voltage drop over long cable runs can affect performance.

5. Can I add a second indoor monitor to the system later?

   This is not confirmed as a supported configuration for the HA-KIT-P2 kit. The kit is designed as a 1-door, 1-indoor-monitor system. If you need multiple indoor stations - for example, one at the front door and one in a separate room or office - you would need to look at an intercom system that explicitly supports multiple indoor monitors on a single door station, which is a different product category available at securityaustralia.com.au.

6. Does the fisheye lens affect how well I can identify a person's face at the door?

   At close door-station distances, 2MP resolution and a fisheye lens provide sufficient detail for facial recognition at typical visitor distances of 0.5 to 1.5 metres from the unit. Because a fisheye lens compresses a wide field of view into the full frame, individual features appear smaller than they would on a narrow fixed-angle lens of the same resolution - but the intent of a door station fisheye is visitor identification at close range, not surveillance-grade recognition at distance. For a visitor standing directly in front of the station, the image on the 7-inch indoor monitor is clear enough to identify who is there before releasing the lock.

7. Does this kit include a door lock, or do I need to supply one separately?

   No lock is included. The HA-KIT-P2 kit contains the door station, indoor monitor, and rain shield only. You will need to supply and install a compatible electric strike, electromagnetic lock, or electric bolt separately, wired to the door station's lock relay output. Confirm the lock release voltage and current requirements are compatible with the door station's relay specifications before purchasing a lock.

Cabling Considerations

• Cable Type: 2-core twisted pair intercom or alarm cable between door station and indoor monitor.
• Max Cable Run: Confirm maximum rated run distance with HiLook specifications before laying cable - longer runs can cause signal or power degradation on 2-wire systems.
• Network Connection: Indoor monitor requires a network connection (wired or Wi-Fi) for mobile app and remote unlock functionality to operate.
• Lock Wiring: A separate 2-core cable run is needed from the door station to the electric lock or strike at the door frame - size cable appropriately for the lock's current draw and run distance.
• Wiring Tips: Route the 2-wire intercom cable and the lock cable separately where possible to avoid interference. Label both ends at installation for easier future servicing or fault finding.
