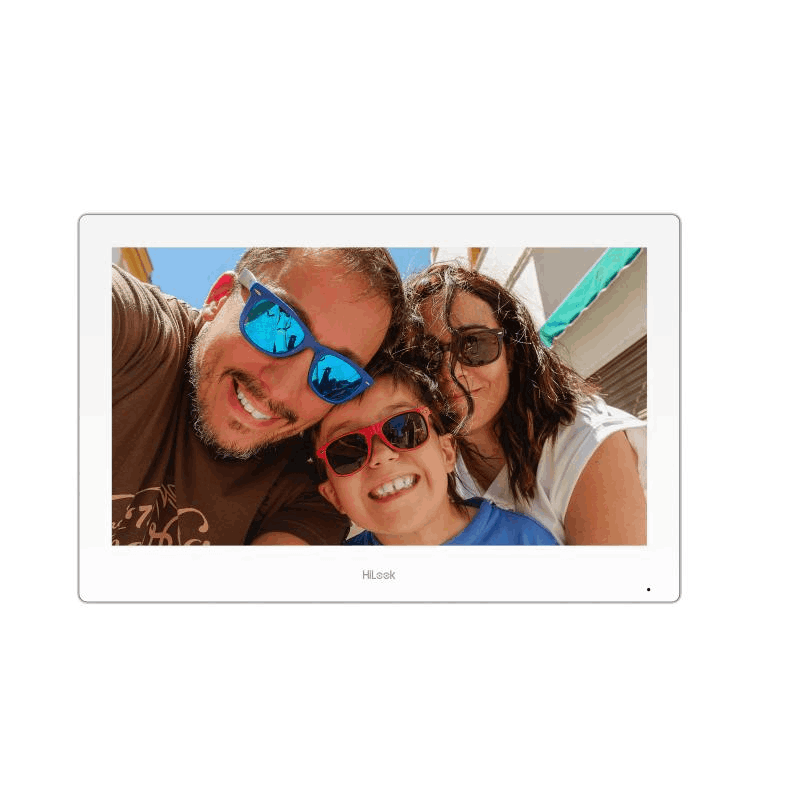

HiLook HA-IN-IP2 | 7″ IP Intercom Indoor Monitor PoE, WiFi Support, 128 GB TF Card

Model: HA-IN-IP2

Who This Is For

Property managers specifying IP intercom systems for apartment buildings, townhouse complexes, or small commercial premises will find the HiLook HA-IN-IP2 a practical indoor station for their install. With a 7" display, PoE power input, and built-in WiFi support, it suits both hard-wired network deployments and mixed-connectivity environments where running an additional power cable to the monitor position is not practical. The 128 GB TF card slot adds local video and snapshot storage directly at the indoor unit - useful where a dedicated NVR is not part of the intercom system design. It is suited to residential apartments, strata-managed dwellings, small offices, and any application where a clearly visible, larger-format indoor monitor is preferred over a compact handset-style unit.

What This Monitor Actually Does

Who Buys This Model

• Strata and apartment installers: Adding a larger-format indoor monitor to IP intercom systems where the 7" display makes answering calls easier for residents of all ages.
• Homeowners upgrading from analogue intercoms: Moving to an IP-based system and wanting PoE simplicity so only one cable needs to be run to the monitor position.
• Small office managers: Installing a visible indoor station at a reception or admin desk that connects to a door station at the entrance and allows remote answering via mobile when staff are away from the desk.
• Retrofit installers working in apartments: Using the WiFi option where running a new Cat6 data cable through finished walls is not feasible, while still powering the unit via PoE from the network cabinet.

Honest Assessment

The HA-IN-IP2 does a straightforward job well. The 7" touchscreen is noticeably larger than the compact monitors shipped with many entry-level intercom kits, which matters in shared-use settings like apartments where multiple occupants interact with the device. PoE powering is a genuine installation advantage - one cable to the wall plate covers everything. Local TF card storage up to 128 GB means a visitor log is maintained even without cloud services or a separate recorder. Where this monitor will not replace a dedicated video management system: it is an indoor station, not a recording hub, and the TF card is not a substitute for full NVR-based footage retention across multiple cameras. If the installation requires intercoms at multiple entry points feeding many indoor stations across a large complex, a managed IP intercom system with centralised management will serve better. The HA-IN-IP2 is available through Security Australia as part of the HiLook intercom range.

Before You Buy

Quick Fit Check

• Good match if: You are installing a HiLook IP intercom system and need a larger 7" indoor monitor that can be powered by a single Cat6 cable from an existing PoE switch, with no separate power outlet required at the wall.
• Good match if: The install location has limited or no cable access and WiFi connectivity is required as the primary or backup network connection for the indoor station.
• You may need a different model if: Your project requires a compact flush-mounted or handset-style indoor station - a smaller form-factor indoor unit from the HiLook intercom range would suit tighter wall-box or bench-mount situations better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a 7" touchscreen indoor monitor that runs on a single PoE cable and can fall back to WiFi where wired data runs are impractical, with onboard TF card storage up to 128 GB.
• You may need a different model if: The installation requires a compact or surface-mount handset-style indoor station - a smaller form-factor indoor monitor from the HiLook intercom range would be more appropriate for tight spaces or desk-phone style deployments.
• Pairs well with: A HiLook IP door station and a PoE network switch - the door station handles visitor calling and door release while the PoE switch provides clean, centrally managed power and network connectivity to all indoor monitors in the building.

Common Questions

1. Does the HA-IN-IP2 need a separate power adapter?

   No. The HA-IN-IP2 is powered via PoE, so a single Cat5e or Cat6 cable from a PoE-capable network switch or PoE injector delivers both power and data to the monitor. No separate 240V power outlet is required at the wall mount position, which simplifies installation significantly in apartments and offices.

2. Will this monitor work with WiFi only, without a wired Ethernet connection?

   Yes. The HA-IN-IP2 supports WiFi connectivity, allowing the unit to join your local wireless network without a wired data connection. However, note that PoE power still requires a physical cable - WiFi replaces the data portion of the cable run only, not the power delivery. If both power and data need to be wireless, a 12V power supply would be required instead of PoE.

3. Does the HA-IN-IP2 include a TF card for storage?

   No. The TF card slot supports up to 128 GB but the card is not included in the box. You will need to purchase a compatible TF card separately and insert it before the local storage function is available. Once fitted, the monitor can store visitor snapshots and call recordings directly on the card without requiring a cloud account or external recorder.

4. Can I answer the door from my smartphone using this monitor?

   Yes. The WiFi and IP network connectivity on the HA-IN-IP2 enables mobile app integration, allowing you to receive door call notifications and answer visitors remotely from a smartphone when you are away from the indoor monitor. App compatibility should be confirmed against the current HiLook intercom app version before commissioning.

5. How many HA-IN-IP2 monitors can be connected to one door station?

   Multiple indoor monitors can be connected to a single IP door station within a HiLook intercom system, as the architecture runs over standard IP network infrastructure. The exact limit per door station depends on the door station model being used. Consult the door station's specifications or contact the Security Australia team to confirm the supported indoor monitor count for your specific configuration.

6. Is this monitor compatible with non-HiLook IP intercoms or third-party door stations?

   Compatibility is not confirmed outside the HiLook IP intercom ecosystem. The HA-IN-IP2 is designed to operate within the HiLook intercom system architecture. Using it with third-party door stations or other brand intercom systems may result in limited or no functionality. If cross-brand compatibility is a requirement, confirm protocol support with HiLook technical documentation before purchasing.

7. Does the 7" touchscreen display visitor video from the door station?

   Yes. The HA-IN-IP2 displays live video from the connected IP door station on the 7" touchscreen when a visitor calls or when the occupant initiates a manual view. The touchscreen interface is used to answer calls, unlock doors, and navigate monitor functions without any separate button panel.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for reliable PoE power delivery and network performance to the indoor monitor.
• Max Cable Run: Standard PoE Ethernet maximum of 100 m from switch to device. Runs approaching this limit should use Cat6 with quality connectors to avoid power drop.
• PoE Notes: Confirm your PoE switch or injector output wattage is sufficient for the HA-IN-IP2 before installation. Using a managed PoE switch allows per-port power monitoring, which simplifies fault-finding in multi-monitor deployments.
• Wiring Tips: In apartments with concrete walls, run Cat6 through conduit to the monitor wall plate position during any building or renovation works - retrofitting cable through solid concrete is significantly more difficult and costly. If WiFi is being used for the data connection, a short PoE patch cable from a wall-mounted PoE injector to the monitor may still be required for power.

Downloads & Resources

No downloads available for this product.
