HiLook Hikvision 8MP Pro Series CCTV Kit – 4x Turret IPC-T383H-MU + 8CH PoE NVR (NVR-108MH-C/8P)

Model: HiLook Turret Kit 8MP/8CH 4x AcuSense T383H-MU

Who This Is For

For installers and property owners who need a complete, camera-to-recorder 8MP system without sourcing components separately, the HiLook 8MP Pro Series Kit delivers a matched 4-camera setup with genuine AcuSense AI filtering built in. The kit pairs 4 IPC-T383H-MU turret cameras - each with a built-in microphone and human/vehicle classification - with the 8-channel PoE NVR-108MH-C/8P, so every camera runs from a single Cat5e or Cat6 cable back to the recorder. This suits residential installs covering driveways, entry points, and side gates, as well as small commercial sites like offices, retail tenancies, and childcare facilities where false-alert fatigue from standard motion detection is a real problem. With 4 channels in use and 4 remaining, there is also clear room to grow the system without replacing the recorder.

What This System Actually Does

Who Buys This Model

• Residential owner-builders: Running their own cable during a construction or renovation who want a matched kit so every component is confirmed compatible before they start pulling wire.
• Small business owners: Installing cameras across a retail shopfront, office entry, carpark, and loading zone who need AcuSense human/vehicle filtering to avoid constant false alerts during business hours.
• Security installers working on small commercial sites: Who want a pre-matched 8MP recorder and camera set to quote quickly, with 4 spare PoE ports already available if the client decides to expand after handover.
• Property managers and strata committees: Specifying a system for a small apartment block or commercial tenancy who need audio capture at entry points alongside video, without adding separate microphone infrastructure.
• Childcare and education facilities: Where a clean turret profile on ceiling or eave mounts matters alongside the need for reliable human-detection alerts and audio recording at access points.

Honest Assessment

This kit does the fundamentals well. Matching a proven 8MP AcuSense turret camera with a native PoE NVR from the same HiLook Pro Series range means the cameras and recorder are tuned to work together out of the box - no compatibility guesswork, no third-party integration friction. The 4 spare PoE ports on the NVR-108MH-C/8P are a genuine practical advantage over kits that ship with a full recorder, since the system can grow without replacing any hardware. AcuSense filtering on all 4 cameras keeps alert quality high in busy environments. What this kit will not do is cover large or spread-out sites with 4 cameras alone - a site with multiple buildings, long perimeters, or more than 4 distinct coverage zones will need either a larger kit or additional cameras added to the spare ports. For buyers working through the options, this kit is available through Security Australia alongside compatible add-on cameras if the initial 4-camera count is not enough.

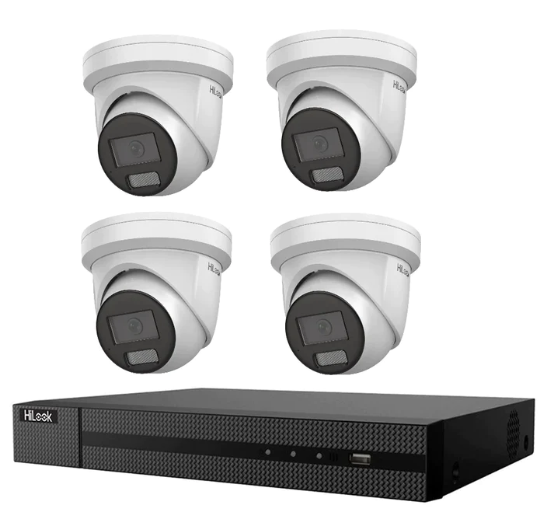

Complete Package Contents

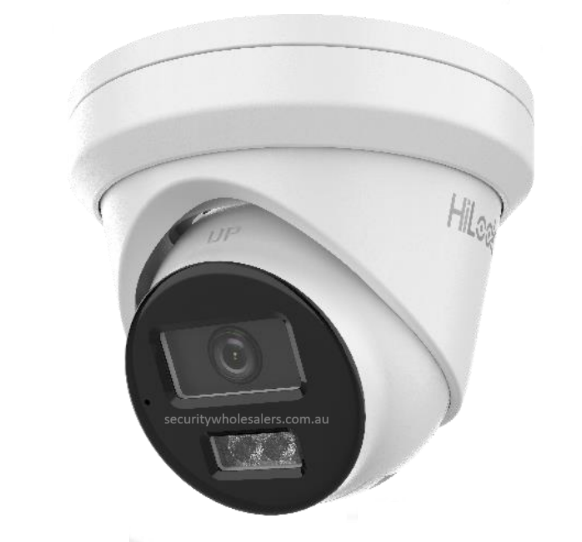

• 4 x HiLook IPC-T383H-MU - 8MP AcuSense turret camera, built-in microphone, IR night vision, PoE powered
• 1 x HiLook NVR-108MH-C/8P - 8-channel PoE NVR, supports up to 8MP cameras, 8 built-in PoE ports

Before You Buy

Quick Fit Check

• Good match if: You need a complete 8MP system for a home or small commercial site with up to 4 initial camera positions, and want built-in AcuSense filtering to reduce false motion alerts from animals and passing vehicles.
• Good match if: You are planning to expand the system after initial installation - the NVR-108MH-C/8P has 4 unused PoE ports ready to accept additional HiLook or Hikvision cameras without any recorder upgrade.
• You may need a different model if: Your site requires more than 8 cameras, long-range outdoor perimeter coverage beyond typical turret IR distances, or PTZ patrol functionality - a larger-channel NVR kit or a system including bullet or PTZ cameras would be more suitable.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete, matched 8MP AcuSense kit with audio capture and room to grow to 8 cameras on the same NVR without additional hardware.
• You may need a different model if: Your site has more than 8 camera positions, requires long-range outdoor perimeter coverage beyond turret IR range, or needs visible deterrence on long open approaches - a bullet camera kit or a 16-channel NVR system would be more appropriate.
• Pairs well with: Additional HiLook or Hikvision AcuSense turret or bullet cameras added to the 4 spare PoE ports, and a compatible surveillance-grade hard drive for the NVR.

Common Questions

1. Does this kit include a hard drive for recording?

   No. The NVR-108MH-C/8P does not include a hard drive. You will need to purchase and install a compatible surveillance-grade HDD separately before the system will record to local storage. When selecting a drive, factor in the number of active cameras, recording resolution (8MP is data-intensive), and how many days of footage you need to retain before the drive loops.

2. Will this kit work if I only have standard Cat5e cable already run in the walls?

   Yes. Cat5e is sufficient for PoE at 8MP over cable runs up to 100 metres. Each IPC-T383H-MU camera draws power and transmits video data over a single Cat5e cable back to the NVR's built-in PoE ports. If any existing cable runs exceed 100 metres, a PoE extender will be needed for those specific runs.

3. Does the AcuSense detection work at night as well as during the day?

   Yes. AcuSense human and vehicle classification operates alongside the IR night vision on the IPC-T383H-MU, so after-hours motion events are still filtered for human and vehicle targets before triggering an alert. This is particularly useful for outdoor positions where passing animals, wind-blown foliage, or IR reflections from insects would otherwise generate constant false alerts overnight.

4. Can I add more cameras to this system later without replacing the NVR?

   Yes. The NVR-108MH-C/8P has 8 built-in PoE ports and 8 recording channels. This kit uses 4, leaving 4 ports immediately available for additional cameras. Compatible HiLook and Hikvision IP cameras can be added to those ports without any changes to the recorder itself. If you eventually need more than 8 cameras, a higher-channel NVR would be required at that point.

5. Do all 4 cameras in this kit have a built-in microphone?

   Yes. The MU suffix in the IPC-T383H-MU model designation confirms a built-in microphone is included in every camera in this kit. Audio is recorded to the NVR alongside video for all 4 channels. Note that this kit does not include a speaker on the cameras - if two-way audio communication is required, a different camera model would be needed.

6. Will this system work with the Hik-Connect app for remote viewing?

   Yes. HiLook NVRs are compatible with the Hik-Connect platform for remote live view, playback, and push notifications on mobile devices. The NVR needs to be connected to your local network and router for remote access to function. AcuSense alert notifications can be pushed through the app when human or vehicle events are detected, keeping mobile alerts relevant rather than constant. This kit is stocked by Security Australia and the NVR is configured through the standard HiLook/Hik-Connect setup process.

7. Are these cameras suitable for outdoor installation in Australian conditions?

   Yes. The IPC-T383H-MU carries an IP67 rating, meaning it is fully dust-tight and protected against water immersion - suitable for exposed eave, soffit, and wall mounting in Australian weather including rain and coastal humidity. The turret housing is also less susceptible to spider web and insect issues than dome cameras with visible air gaps around the lens cover, which is a practical advantage in outdoor Australian environments.

Cabling Considerations

• Cable Type: Cat5e (minimum) or Cat6 (recommended) for all camera runs to the NVR.
• Max Cable Run: 100 metres per camera from the NVR's PoE port. Runs beyond 100 metres require a PoE extender.
• PoE Notes: All 8 NVR ports supply PoE natively - no external PoE switch required. Confirm total PoE budget when adding cameras to the spare ports, particularly if using higher-power camera models.
• Wiring Tips: Run all cables inside conduit for outdoor sections to protect against UV degradation and physical damage. Label each cable at the NVR end before termination to simplify future camera additions to the 4 spare ports.
