HiLook Hikvision 6MP AcuSense CCTV Kit - 2x Colour Deterrence IPC-T269-MU/SL + 2x Turret IPC-T361H-MU + 8CH PoE NVR (NVR-108MH-C/8P)

Model: 2xT361-2x269/8ch HiLook HIKVISION-1

Who This Is For

When mixing active deterrence with standard surveillance coverage is the priority, this HiLook 6MP AcuSense kit gives installers a practical split: 2 colour deterrence cameras for the high-risk zones and 2 standard AcuSense turrets for broader monitoring - all feeding into an 8-channel PoE NVR. It suits small business owners, residential property managers, and self-installing homeowners who want AI-filtered alerts on all 4 cameras, but only need the strobe and audible alarm capability at the entry points, gate, or driveway where it matters most. The 8-channel NVR leaves 4 ports open for future expansion, so the system can grow without replacing the recorder. Single-cable PoE installation keeps the run clean, and the shared AcuSense platform across all cameras means human and vehicle detection works consistently across the whole site from day one.

What This System Actually Does

Who Buys This Model

• Homeowners with a driveway and street-facing entry: Mount the 2 TiOC deterrence cameras at the front gate and entry door, and the 2 standard AcuSense turrets covering the backyard and side access - an intuitive split for a typical residential block.
• Small retail and hospitality operators: Use the active deterrence cameras at the carpark entry and rear loading area where after-hours intrusions are most likely, and the standard turrets covering the front facade and internal corridors.
• Property managers overseeing strata or small commercial sites: The 4-camera starting configuration handles a compact site now, and the 4 spare NVR channels allow additional cameras to be added for shared driveways, letterboxes, or bin areas later.
• Installers quoting a first-time IP system for clients: The shared HiLook/Hikvision AcuSense platform across all cameras simplifies configuration - one alert type, one app, one recording interface - which reduces commissioning time and support calls after handover.

Honest Assessment

This kit's main strength is the combination of 2 different camera types working under the same AI platform. Having active deterrence exactly where you need it - not on every camera - is a practical and cost-effective approach. The 6MP resolution on all 4 channels is solid for identification, and the 4 spare PoE ports in the NVR make this genuinely expandable rather than just marketed that way. AcuSense filtering meaningfully reduces alert fatigue compared to standard motion detection across the whole system. Where this kit has limits: the standard IPC-T361H-MU turrets use IR night vision, not full colour - so the colour detail available from the TiOC cameras at the front will not be consistent with what the rear cameras produce at night. If full-colour coverage across all positions is required, a 4-camera all-TiOC configuration available through Security Australia would be more appropriate. This kit is also not suited to long-range coverage beyond roughly 40 metres.

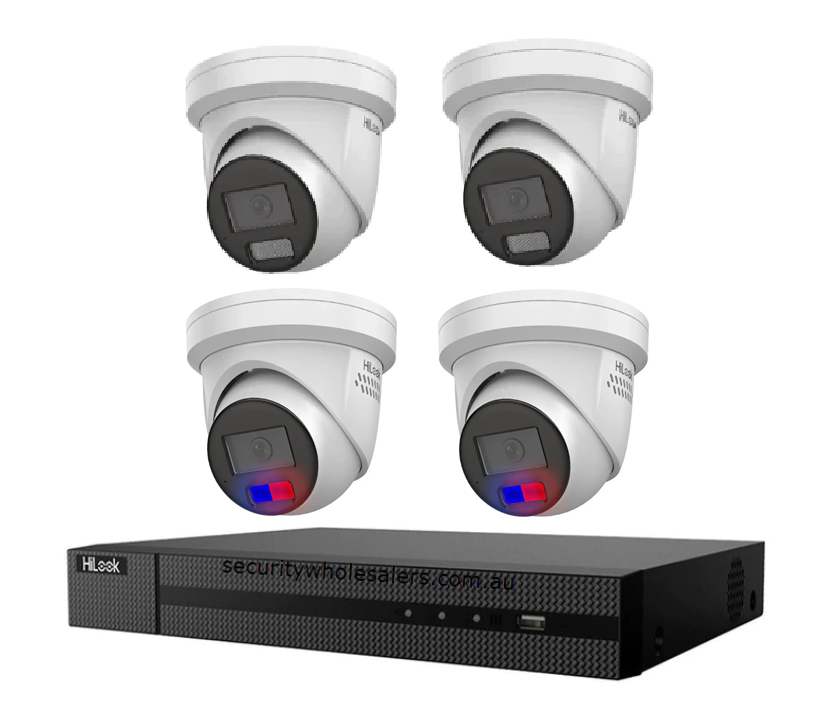

Complete Package Contents

• 2 x HiLook IPC-T269-MU/SL - 6MP TiOC Colour Deterrence AcuSense Turret, white-light LEDs, built-in strobe and audible alarm
• 2 x HiLook IPC-T361H-MU - 6MP AcuSense Turret, IR night vision, human/vehicle detection
• 1 x HiLook NVR-108MH-C/8P - 8-channel PoE NVR, 8x built-in PoE ports, supports up to 8MP

Before You Buy

Quick Fit Check

• Good match if: You have 1 or 2 specific high-risk positions - a driveway gate, rear access lane, or carpark entry - where active deterrence is needed, and want standard AcuSense coverage elsewhere without paying for TiOC on every camera.
• Good match if: You are starting with a 4-camera installation but anticipate adding cameras within 12 to 24 months - the 8-channel NVR's 4 unused PoE ports mean expansion requires only cables and additional cameras, not a new recorder.
• You may need a different model if: You need full-colour night footage from every camera position - consider an all-TiOC or full-colour kit where all cameras use white-light LEDs, available across the HiLook and Hikvision range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You want active deterrence at specific high-priority positions without the cost of TiOC cameras on every channel, while keeping AcuSense filtering consistent across the entire system.
• You may need a different model if: You need full-colour footage from all camera positions at night - an all-TiOC or all white-light kit would give consistent colour detail across every channel rather than mixed colour and IR output.
• Pairs well with: A surveillance-grade 4TB or 6TB HDD for the NVR, and a compatible UPS (uninterruptible power supply) to keep the NVR running during brief power interruptions.

Common Questions

1. Does the NVR come with a hard drive included?

   No. The NVR-108MH-C/8P ships without a hard drive. You will need to purchase and install a compatible surveillance-grade HDD separately before the system can record footage. For 4 cameras at 6MP recording continuously, a minimum of 4TB is recommended - 2TB will provide limited recording duration at full resolution across all channels.

2. Do all 4 cameras trigger the strobe and alarm?

   No. Only the 2x IPC-T269-MU/SL cameras have the built-in strobe and audible alarm. The 2x IPC-T361H-MU are standard AcuSense turrets that detect and alert but do not produce any on-site visual or audio deterrence response. This is an intentional design split in the kit - deterrence at entry points, standard detection elsewhere.

3. Will this system work with additional HiLook or Hikvision cameras I add later?

   Yes. The NVR-108MH-C/8P has 4 unused PoE ports, and HiLook and Hikvision IP cameras are compatible with the same NVR platform. Adding cameras from the same ecosystem means they will be recognised automatically on the network and can be configured through the same NVR interface without additional software licences.

4. What type of cabling do I need to run to each camera?

   Cat5e or Cat6 ethernet cable is required for each camera. A single cable run from the NVR to each camera location carries both power (via PoE) and video data - no separate power cabling is needed at the camera end. Maximum recommended cable run is 100 metres per camera from the NVR's PoE port.

5. Do the IPC-T269-MU/SL cameras produce colour footage at night when the alarm is not triggered?

   Yes. The IPC-T269-MU/SL uses white-light LEDs as its primary night illumination, so it produces full-colour footage continuously after dark - not only when the deterrence response activates. The white-light glow will be visible at the camera's location during night hours. This is different from the IPC-T361H-MU cameras which use invisible IR LEDs and produce greyscale footage at night.

6. How does AcuSense reduce false alerts compared to standard motion detection?

   AcuSense classifies detected objects as human or vehicle before triggering a notification, rather than sending an alert for any pixel movement in frame. Standard motion detection will alert on a passing car on a road behind the fence, a spider crossing the lens, or branches moving in wind. AcuSense on all 4 cameras in this kit filters these out and only sends a push notification when an actual person or vehicle is confirmed within the detection zone. This is particularly useful on properties near busy roads or with animals in the area. The full kit range including this model is available from Security Australia.

7. Can I access the cameras and footage remotely from my phone?

   Yes. The NVR-108MH-C/8P supports remote viewing via the Hik-Connect app, which allows live view, playback of recorded footage, and push notifications from AcuSense events on compatible iOS and Android devices. Remote access requires the NVR to be connected to your router via ethernet and a stable internet connection at the installation site.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for runs over 60 metres or where future-proofing is a priority.
• Max Cable Run: 100 metres per camera from the NVR PoE port to the camera location.
• PoE Notes: All 4 cameras are powered directly from the NVR-108MH-C/8P's built-in PoE ports. No external PoE injectors or switches are required for the base 4-camera kit. Verify total PoE budget if adding cameras near the NVR's maximum channel count.
• Wiring Tips: Pre-run cable to all 8 potential camera positions during initial installation if wall cavity or ceiling access is available - it is significantly easier to run extra cable now than to re-open walls when adding cameras to the 4 spare NVR ports later. Label each cable run at both ends during the pull.
