HiLook 8MP IPC-T282H-MU Acusense 8 x Camera 16CH NVR CCTV Turret Kit

Model: HiLook Turret Kit 8MP/16CH 8xAcuSense T282

Who This Is For

Building out a complete IP surveillance system for a small business, warehouse, childcare centre, or multi-dwelling property is exactly where this kit earns its place. The HiLook 8MP AcuSense 16CH NVR Turret Kit pairs 8 x IPC-T282H-MU eyeball cameras with a 16-channel PoE NVR, giving installers a ready-to-run system that connects over a single Cat5e or Cat6 cable per camera. The 8-channel headroom on the NVR means the system can grow without replacing the recorder. AcuSense deep learning classifies people and vehicles separately from environmental triggers, which matters most on sites where general motion alerts from trees or car headlights create constant noise. Each camera carries a built-in microphone, 30m IR range, and 120dB true WDR - specs that hold up against challenging lighting across car parks, entry points, and covered outdoor areas.

What This Kit Actually Does

Who Buys This Model

• Small business owners: Retail stores, cafes, and trade premises where AcuSense reduces alarm fatigue and the 8MP resolution gives usable footage for insurance or police referrals.
• Strata and property managers: Multi-unit residential blocks and shared car parks where 8 cameras cover key access points and the 16-channel NVR supports future camera additions as the site grows.
• Childcare and education facilities: Sites needing indoor and outdoor coverage where the built-in microphone adds audio context to recorded events without a separate audio device at each position.
• Security installers doing first-time IP deployments: The plug-and-play PoE NVR auto-detects HiLook cameras on the local ports, shortening commissioning time on straightforward 8-camera jobs.

Honest Assessment

This kit does three things well: it delivers genuine 8MP AcuSense cameras across all 8 positions (not a mix of resolutions), it simplifies installation with a single built-in PoE switch on the NVR, and the 16-channel recorder leaves real expansion room without needing to replace hardware. H.265+ compression helps keep storage costs down relative to the resolution. The 2.8mm fixed lens on every camera suits short-to-medium range coverage but will not serve sites that need to cover long driveways or large open yards - a varifocal or bullet camera with longer IR range is a better choice for those positions. This kit does not include a hard drive, so factor in HDD cost and capacity before purchase. Audio recording laws in Australia vary by state - confirm local requirements before enabling the built-in microphone. Available through Security Australia with a 16-channel NVR that supports future standalone camera additions from the same HiLook ecosystem.

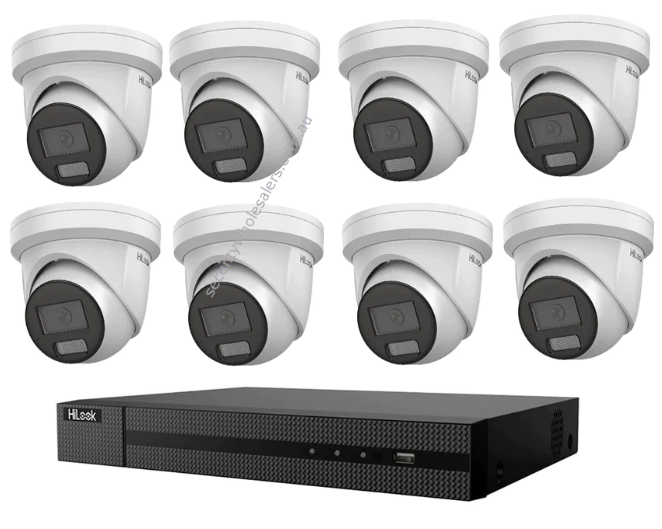

Complete Package Contents

• 8 x HiLook IPC-T282H-MU AcuSense Turret Camera - 8MP, 2.8mm fixed lens, 30m EXIR IR, IP67, 120dB WDR, built-in microphone, PoE
• 1 x HiLook NVR-216MH-C-16P Network Video Recorder - 16 channel, 16x PoE ports, H.265+/H.265/H.264+/H.264, 1 HDD bay (no HDD included)

Before You Buy

Quick Fit Check

• Good match if: You need a complete 8-camera IP system with AcuSense smart detection and room to add up to 8 more cameras later - the 16-channel PoE NVR handles both the current deployment and future expansion from one unit.
• Good match if: Your site has multiple entry points, car park bays, or internal corridors where the 113-degree wide-angle 2.8mm lens covers the zone effectively and 30m IR night range is sufficient.
• You may need a different model if: Your site requires coverage of long driveways, perimeter fencing, or open industrial yards where subjects need to be identified at distances beyond 30m - a long-range bullet camera kit with varifocal lenses would be more suitable for those conditions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete ready-to-run 8MP AcuSense IP system with a PoE NVR that supports up to 16 cameras total, and your coverage requirements suit wide-angle turret cameras at short-to-medium range positions.
• You may need a different model if: Your primary requirement is long-range perimeter coverage, deterrence lighting, or identification at distances beyond 30m - a bullet camera kit with varifocal lenses and longer IR range is better suited to those conditions.
• Pairs well with: A surveillance-grade HDD (4TB or 6TB minimum recommended), a UPS battery backup unit to protect the NVR from power interruptions, and Cat5e or Cat6 cable pre-terminated for each camera run.

Common Questions

1. Does this kit include a hard drive?

   No. The NVR-216MH-C-16P has 1 HDD bay but no hard drive is included. You will need to purchase a surveillance-grade HDD separately before the system can record. Desktop HDDs are not rated for 24/7 continuous operation - use a drive specifically rated for CCTV use. For 8 cameras at 8MP with H.265+ compression, a 4TB drive is a practical minimum for motion-triggered recording, and 6TB or larger is recommended for continuous operation.

2. Can I add more cameras to this system later?

   Yes. The NVR ships with 8 cameras connected but has 16 PoE ports and 16 recording channels in total. You can connect up to 8 additional compatible HiLook or Hikvision IP cameras directly to the spare PoE ports without changing the recorder. Confirm camera compatibility with the NVR firmware version before purchasing additional units to ensure AcuSense features pass through correctly.

3. Will this kit work for outdoor installation?

   Yes. Each IPC-T282H-MU carries an IP67 rating, meaning it is dust-tight and protected against sustained water jets from any direction. The cameras are suited to eaves, soffits, external walls, and covered outdoor positions. They are not rated for direct rain exposure on horizontal surfaces or submerged conditions - standard covered outdoor mounting positions are appropriate.

4. What does AcuSense actually change about how the system alerts?

   AcuSense filters motion alerts so only human or vehicle detections trigger a notification. Standard motion detection triggers on any pixel change - a tree branch, headlight sweep, or animal movement will all activate it. AcuSense's deep learning runs on each camera and classifies the detected object before sending an alert. The result is that false notifications are significantly reduced, and the alerts that do come through correlate to actual people or vehicles entering the frame.

5. Does the 2.8mm lens suit a car park or driveway?

   It depends on the distance. The 2.8mm fixed lens has a 113-degree horizontal field of view and covers a wide area at close range effectively. For car park bays, entry points, and driveways up to roughly 8-10 metres, detail is sufficient for identification review. For longer driveways or open approaches where you need to identify subjects at 15-20m or beyond, a varifocal lens or longer-range bullet camera is more appropriate for those specific positions.

6. Can the built-in microphone be used for audio recording?

   Yes, the IPC-T282H-MU includes a built-in microphone and the NVR-216MH-C-16P supports audio recording per channel. Before enabling audio recording in Australia, check the laws in your state - recording private conversations without consent is regulated differently across jurisdictions. In commercial and public-access settings, signage indicating audio recording is standard practice. Security Australia recommends confirming your legal obligations with a qualified installer or legal adviser before activating audio recording features.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs.
• Max Cable Run: 100m per camera from the NVR PoE port. Runs over 100m require a mid-span PoE extender or an intermediate switch.
• PoE Notes: The NVR-216MH-C-16P has a built-in 16-port PoE switch - no external PoE switch is required for the 8 included cameras or future additions up to 16 total. Confirm the total PoE budget of the NVR against the power draw of any additional cameras added to spare ports.
• Wiring Tips: Run individual cable home runs from each camera position back to the NVR location rather than daisy-chaining. Label each cable at both ends before terminating. If running cable through outdoor or roof cavity areas, use UV-rated or outdoor-rated Cat6 to protect against long-term degradation.
