HiLook 6MP Acusense 4 Camera , 4CH NVR Kit - ACDC All in one Camera with Colour Deterrance

Model: HiLook 4CH AcuSense Turret Kit - 4 x T269H-MU/SL

Who This Is For

For property owners and installers who need active deterrence - not just recording - this HiLook 4-camera AcuSense kit delivers a complete PoE system built around cameras that respond to threats in real time. The IPC-T269H-MU/SL is an all-in-one turret that combines a 6MP sensor, white spotlight, blue and red strobe lights, two-way audio, and AcuSense human and vehicle classification in a single IP67-rated housing. Paired with the HiLook NVR-104MH-C/4P, the whole system is powered and connected over Cat cable with no separate power supplies needed at each camera. This kit suits residential driveways and entry points, small retail premises, rental properties managed remotely, and light commercial sites where a visible, audible response to detection is the primary goal - not just passive recording.

What This System Actually Does

Who Buys This Model

• Residential Owners with Exposed Driveways or Yards: The blue and red strobe and audio alarm at detection events makes this a visible deterrent rather than a silent recorder - suited to homes that have experienced or are concerned about after-hours intrusion.
• Small Retail and Hospitality Operators: The one-tap arm/disarm via the HiLookVision app means deterrence is active after trading hours but suppressed during business hours, making it practical for staffed premises that open and close daily.
• Remote Property and Rental Managers: Two-way audio and remote alarm trigger through the app means a property manager can speak to someone on site and activate the deterrence response without being physically present.
• DIY and Installer-Assisted PoE Setups: The 4-port PoE NVR with plug-and-play camera pairing removes the need for network configuration at each camera point, which reduces installation time whether the buyer is self-installing or using a trade installer.

Honest Assessment

This kit does the active deterrence job well. The combination of AcuSense classification, strobe, audio, and two-way talk in a single camera housing - without needing external speakers, separate siren panels, or third-party integrations - gives installers and DIY buyers a genuinely self-contained response system. The 6MP resolution at 2.8mm gives a broad view with usable detail, and the IP67 rating suits all Australian outdoor conditions. The PoE-only NVR keeps cable runs simple and the system footprint small. What it will not do: the 2.8mm fixed lens is not suited to long-approach monitoring where you need to identify faces or plates at distances beyond 10-15 metres. For that, a kit with a motorised zoom or longer focal length would serve better. No hard drive is included, so storage needs to be budgeted separately. Available through Security Australia, this kit is a strong fit for compact active-deterrence installs rather than large-perimeter coverage.

Complete Package Contents

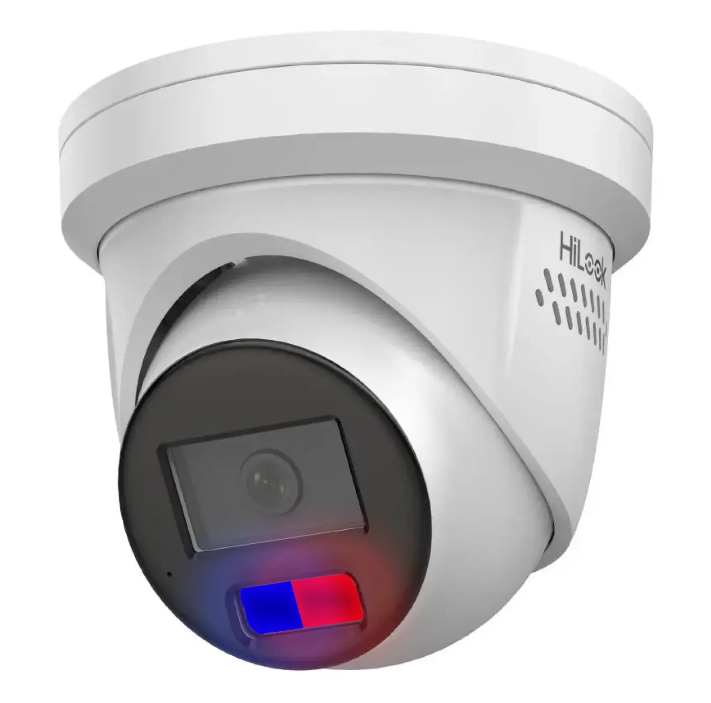

• 4 x HiLook 6MP IPC-T269H-MU/SL All-in-One Camera with Blue/Red Strobe and Audio (ACDC) - 6MP, 2.8mm fixed lens, AcuSense, white spotlight, blue/red strobe, two-way audio, IP67, H.265+, 120dB WDR
• 1 x HiLook NVR-104MH-C/4P 4-Channel PoE NVR - 4ch, 4 built-in PoE ports, 40Mbps, 4K HDMI, VGA, 1 HDD bay (no HDD included)

Before You Buy

Quick Fit Check

• Good match if: You want cameras that actively respond to detection events with strobe and audio rather than just recording silently - the IPC-T269H-MU/SL does this natively without any additional hardware.
• Good match if: You are cabling a new install and want to run a single Cat5e or Cat6 to each camera location - the 4-port PoE NVR powers and connects all 4 cameras without any additional power supplies at the camera end.
• You may need a different model if: Your priority is identifying faces or vehicle plates at distances beyond 15 metres - a kit with motorised varifocal or longer fixed-lens cameras would be more appropriate for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence built into each camera - the strobe, audio alarm, and two-way talk are all in the camera housing, no separate siren or speaker hardware required.
• You may need a different model if: You need long-range identification at distances beyond 15 metres - a kit with varifocal or bullet-style cameras with longer focal length optics would be better suited to that application.
• Pairs well with: A surveillance-grade 3.5-inch HDD (4TB or larger) and a PoE network switch if you plan to expand beyond 4 cameras later using an upgraded NVR.

Common Questions

1. Does this kit include a hard drive?

   No. The NVR-104MH-C/4P ships with an empty HDD bay. You will need to purchase a 3.5-inch surveillance-grade hard drive separately. For 4 cameras recording at 6MP continuously, a 4TB drive is the practical minimum to avoid very short retention windows. Standard desktop drives are not designed for continuous write cycles and can fail prematurely in a recording application.

2. Will the strobe and alarm trigger on my cat or trees moving in the wind?

   No - not under normal conditions. AcuSense is trained to classify detections specifically as humans or vehicles before activating the strobe, audio alarm, or sending a push notification. General motion from animals, foliage, or weather changes does not meet the classification threshold. This significantly reduces nuisance alerts compared to standard motion-detection-only cameras.

3. Does this system work with a single Cat cable to each camera?

   Yes. The NVR-104MH-C/4P has 4 built-in PoE ports that carry both power and data on a single Cat5e or Cat6 run. No power point or adaptor is needed at the camera end. Maximum recommended cable run for PoE is 100 metres per camera. Each camera auto-registers on the NVR once connected, so there is no need to manually assign IP addresses during setup.

4. Can I speak through the cameras remotely from my phone?

   Yes. Each IPC-T269H-MU/SL has both a built-in microphone and a built-in speaker, enabling full two-way audio. Through the HiLookVision app you can listen and speak to anyone in the camera's field of view in real time. You can also upload and push pre-recorded audio clips - such as a verbal warning - directly from the app without needing to speak live.

5. How do I arm and disarm the deterrence during business hours?

   The HiLookVision app includes a one-tap arm/disarm function that controls the deterrence response across all cameras connected to the NVR. This allows you to disable the strobe and audio alarm during operating hours when staff and customers are present, and re-enable it after closing. The NVR must be running updated firmware that supports ACDC camera integration for this function to work. The app will prompt for a firmware update if required during initial setup.

6. What does the camera image look like at night without the spotlight active?

   Without the spotlight, the IPC-T269H-MU/SL switches to infrared illumination with a 30-metre IR range, producing a standard black-and-white night image. When AcuSense detects a human or vehicle, the white spotlight activates and the image switches to full colour. This means colour detail is available precisely when it matters most - during an actual detection event - rather than the spotlight running continuously all night.

7. Can I add more cameras to this system later?

   Not to this NVR. The NVR-104MH-C/4P is a 4-channel recorder and all 4 channels are used by this kit. If you anticipate needing additional cameras at a later stage, you would need to upgrade to an 8-channel or larger NVR. The IPC-T269H-MU/SL cameras are compatible with larger HiLook and Hikvision NVRs, so the cameras themselves can carry across to an expanded system. The team at Security Australia can advise on compatible NVR options if your requirements grow.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera - standard IEEE 802.3 PoE distance limit. Beyond this, signal and power degrade.
• PoE Notes: The NVR-104MH-C/4P supplies PoE power directly from its 4 ports - no external PoE switch or injector is required for the 4 cameras in this kit. Total PoE budget should be confirmed if you intend to use the NVR's network port through a switch for remote access.
• Wiring Tips: Terminate cables with RJ45 connectors rated for outdoor use where runs pass through wall plates or exterior conduit entry points. Drip loops at the camera tail help prevent water ingress into the connector even though the cameras are IP67-rated at the housing.

Product Video Samples

Downloads & Resources

No downloads available for this product.
