HiLook Hikvision 6MP Pro Series CCTV Kit – 4x Turret IPC-T363H-MU + 4CH PoE NVR (NVR-104MH-C/4P)

Model: HiLook 4CH AcuSense Turret Kit - 4x IPC-T363H-MU + NVR-104MH-C/4P

Who This Is For

For residential installers and small business owners who need a complete, plug-and-play IP surveillance system without the complexity of sourcing compatible components separately, this HiLook 6MP Pro Series kit delivers everything in one verified package. The 4x IPC-T363H-MU turret cameras pair directly with the NVR-104MH-C/4P via the built-in PoE switch, meaning a single Cat5e or Cat6 run to each camera handles both power and video. AcuSense AI classification is built into every camera, which separates human and vehicle detections from animals and foliage movement - reducing the alert noise that makes most entry-level systems tedious to manage. At 6MP resolution, the system captures enough detail across driveways, entry points, and perimeter zones to be genuinely useful for incident review. This kit suits first-time IP system buyers, landlords upgrading analogue installations, and small retail or hospitality premises needing a manageable 4-channel foundation.

What This System Actually Does

Who Buys This Model

• Residential Installers: Setting up a complete system on a new house build or renovation where PoE cabling is being run to 4 positions - the kit eliminates component compatibility risk and simplifies NVR-camera setup.
• Small Retail and Hospitality Owners: Cafes, boutiques, and small warehouses needing to cover 2-4 entry points with AI-filtered alerts rather than constant motion notifications from foot traffic and vehicles passing outside.
• Landlords Upgrading from Analogue: Moving from older DVR-based systems to IP with a single verified bundle that does not require matching camera specs to recorder capabilities manually.
• Strata and Property Managers: Specifying a cost-effective baseline system for a townhouse complex or small apartment block where 4 channels cover car park entry, bin areas, and letterbox zones.

Honest Assessment

This kit does several things genuinely well. The combination of 6MP resolution and AcuSense AI classification gives it a practical edge over lower-resolution or motion-only alternatives at a similar price point. The integrated PoE NVR removes the need to source and configure a separate switch, and the turret cameras are straightforward to aim and seal on a typical eave or soffit install. H.265+ compression keeps storage requirements manageable for a 4-camera system running continuous recording. Where it will not serve every buyer: 4 channels is a fixed ceiling - if a site needs 6 or 8 cameras now, this is not the right starting point. The turret housing is suited to moderate outdoor exposure but is not the preferred choice for exposed industrial environments where a bullet or vandal-rated dome would be more appropriate. If colour night vision without IR is a priority, a different camera model would be needed. Available through Security Australia, this kit suits straightforward residential and small commercial installations.

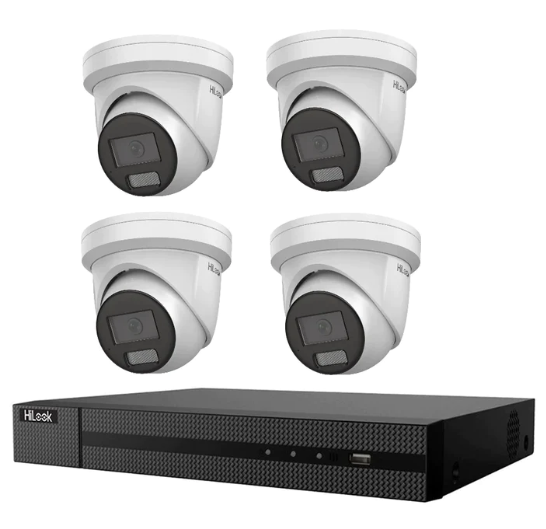

Complete Package Contents

• 4 x HiLook IPC-T363H-MU - 6MP AcuSense Turret Camera, built-in mic, IR night vision, PoE powered
• 1 x HiLook NVR-104MH-C/4P - 4 Channel PoE NVR, H.265+, 4-port built-in PoE switch, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You are installing 4 cameras on eaves, soffits, or interior ceilings and want PoE simplicity - one cable per camera from the NVR with no separate switch or power adapters required.
• Good match if: Alert fatigue from a previous system is the problem and AcuSense human/vehicle filtering would give you notifications worth responding to rather than constant motion events.
• You may need a different model if: Your site requires more than 4 camera positions, needs full-colour night vision without IR, or involves a harsh industrial environment where a heavy-duty bullet camera and a higher-channel NVR kit would serve the brief better - both are available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a verified 4-camera PoE system with AcuSense AI filtering at 6MP in a single purchase - the pre-matched components remove compatibility guesswork and PoE is handled by the NVR itself.
• You may need a different model if: Your site requires 6, 8, or more cameras now, involves exposed industrial environments where bullet cameras and heavy-duty housings are more appropriate, or demands full-colour night vision - a higher-channel kit or a TiOC-based system would be a better fit, both available on securityaustralia.com.au.
• Pairs well with: A 4TB or larger surveillance-rated hard drive, a UPS (uninterruptible power supply) to protect the NVR from power outages, and a managed PoE switch if future camera expansion beyond 4 channels is planned.

Common Questions

1. Does this kit include a hard drive?

   No. The NVR-104MH-C/4P ships without an internal hard drive. You will need to source a surveillance-rated HDD separately before the system can record. For 4 cameras at 6MP using H.265+ compression, a 4TB drive is a practical starting point for continuous recording with a reasonable retention window. Standard desktop drives are not rated for the continuous read/write demands of a surveillance NVR.

2. Do I need a separate PoE switch to run the cameras?

   No. The NVR-104MH-C/4P has 4 built-in PoE ports on the rear panel. Each of the IPC-T363H-MU cameras connects directly to one of these ports via a single Cat5e or Cat6 cable, which carries both power and video data. No external switch or separate power supply is required at the camera end for a standard install within 100m cable runs.

3. What does AcuSense actually do and will it reduce false alerts?

   Yes, it filters out non-human and non-vehicle motion triggers. AcuSense uses deep learning at the camera level to classify detected motion as a human figure or a vehicle before an alert is generated. Animals, swaying vegetation, rain, and insects triggering the IR sensor do not generate a human or vehicle alert. For outdoor residential and small commercial installations where standard motion detection produces constant notifications, this makes a practical difference to day-to-day usability.

4. Can I view this system remotely on my phone?

   Yes. The NVR-104MH-C/4P supports remote viewing via the Hik-Connect app (compatible with iOS and Android) when connected to your local network and configured with a Hik-Connect account. Remote access works over Wi-Fi and mobile data. The NVR requires a wired internet connection via its RJ45 port for remote access to function.

5. Will this system work if I want to add more cameras later?

   Not directly on this NVR. The NVR-104MH-C/4P is a 4-channel recorder and cannot be expanded beyond 4 cameras. If there is any likelihood of needing additional cameras in the future, consider starting with an 8-channel NVR kit instead. The IPC-T363H-MU cameras are compatible with larger HiLook and Hikvision NVRs, so the cameras themselves are not the limiting factor - the NVR channel count is.

6. Does the IPC-T363H-MU record audio?

   Yes. The MU designation in the model name confirms a built-in microphone is included. The camera captures audio alongside video when connected to an NVR that supports audio recording. Note that recording audio in commercial or tenanted premises in Australia requires appropriate signage and compliance with relevant state privacy legislation - confirm your obligations before enabling audio recording.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for new installations - both carry PoE power and video data in a single run.
• Max Cable Run: 100 metres per camera from the NVR PoE port. Runs exceeding this distance will require a PoE extender or a separate PoE switch with an uplink back to the NVR.
• PoE Notes: All 4 PoE ports are built into the NVR-104MH-C/4P. No external PoE injector or switch is needed for a standard 4-camera installation. Total PoE budget of the NVR should be checked against camera draw if non-HiLook cameras are ever substituted.
• Wiring Tips: Route cables through wall cavities or conduit before terminating at camera positions - the IPC-T363H-MU base accepts cable entry from behind or through a surface mount bracket. Leave enough slack at the NVR end for clean port management, and label each run at the NVR panel to simplify future troubleshooting.

Downloads & Resources

No downloads available for this product.
